Sensors & Software NOGGIN 250 MHz Ground Penetrating Radar

Description

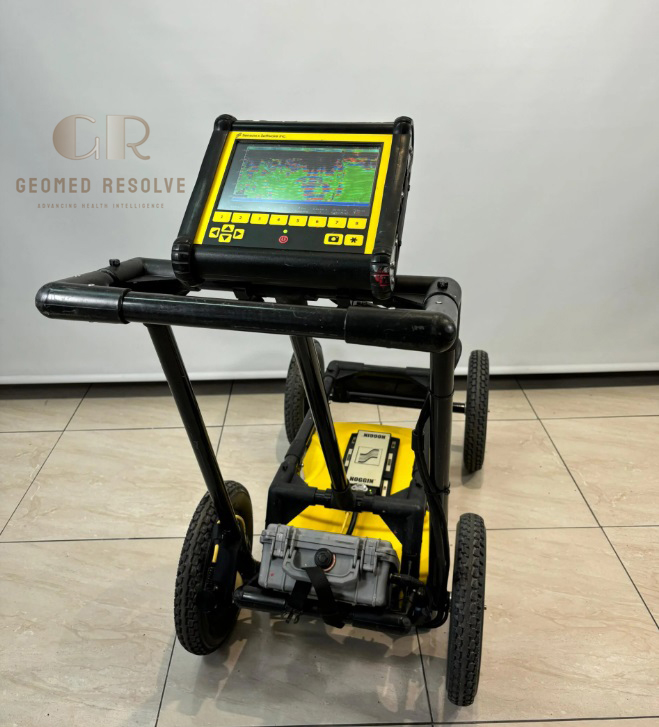

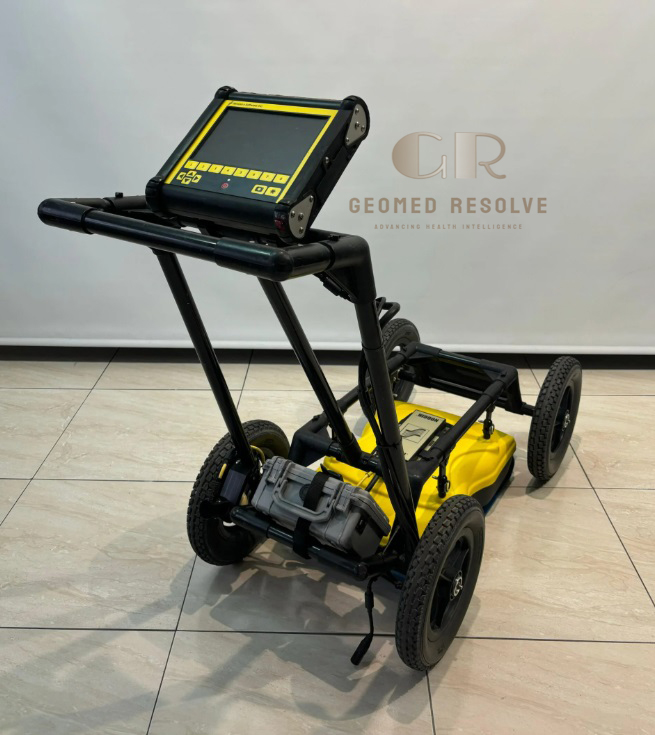

Sensors & Software NOGGIN 250 MHz Ground Penetrating Radar (GPR) System

The Sensors & Software NOGGIN 250 MHz Ground Penetrating Radar (GPR) is a high-performance Surveying Equipment solution developed for professional underground utility detection, subsurface imaging, and geophysical investigations. Featuring a 250 MHz Ultra-Wideband ground-coupled antenna, the system provides an excellent combination of penetration depth and imaging resolution, allowing users to accurately locate buried utilities, pipelines, cables, drainage systems, and underground structures across a wide range of applications.

Designed for efficient field operation, the NOGGIN 250 supports SmartCart deployment with odometer-triggered acquisition, DynaQ dynamic stacking, integrated Wi-Fi connectivity, GPS/GNSS positioning, and 8 GB internal storage. Its rugged IP65-rated design, intuitive touchscreen interface, and compatibility with advanced data processing software make it a dependable solution for utility mapping, civil engineering, infrastructure inspection, environmental assessments, and archaeological surveys.

The Sensors & Software NOGGIN 250 MHz Ground Penetrating Radar is an excellent solution for surveyors, civil engineers, construction companies, utility locating specialists, municipalities, and environmental professionals seeking a reliable and versatile GPR system for accurate underground mapping and subsurface investigations.

Main Benefits

Balanced Depth and Resolution
The 250 MHz antenna provides an ideal combination of penetration depth and high-resolution subsurface imaging for a wide range of survey applications.

Accurate Underground Utility Detection
Detects both metallic and non-metallic underground utilities before excavation.

Patented Ultra-Wideband Technology
Patented UWB antenna technology improves signal quality and subsurface imaging performance.

Efficient Large-Area Surveys
SmartCart platform with odometer-triggered acquisition improves productivity during field operations.

GPS Mapping Capability
Supports integrated or external GNSS receivers for accurate georeferenced survey data.

Rugged Field Performance
Designed for demanding outdoor environments and continuous professional use.

Key Features

250 MHz Ground-Coupled Antenna
Provides excellent performance for medium-depth underground investigations with balanced resolution and penetration.

Ultra-Wideband (UWB) Technology
Patented antenna design delivers improved signal penetration and high-quality radar data.

SmartCart Compatibility
Supports SmartCart operation with:
Odometer-triggered acquisition
DynaQ dynamic stacking
Consistent trace quality
for efficient field surveys.

Investigation Depth
Typical investigation depth of approximately 3–8 meters, depending on soil conditions and target characteristics.

Integrated Display Controller
Features an 8-inch sunlight-readable color touchscreen for easy field operation.

Internal Data Storage
8 GB internal memory capable of storing approximately 1,000 km of 250 MHz survey data.

Wireless Connectivity
Built-in Wi-Fi supports convenient data transfer and field communication.

GPS & GNSS Support
Compatible with:
GPS
Galileo
GLONASS
BeiDou
External GNSS receivers
for accurate utility mapping.

Specifications

Product Type: Ground Penetrating Radar System
Category: Surveying Equipment
Subcategory: Ground Penetrating Radar (GPR) Systems
Manufacturer: Sensors & Software
Model: NOGGIN 250 MHz
Radar Technology
Ground Penetrating Radar (GPR)
Antenna Type
Shielded Ground-Coupled Ultra-Wideband Antenna
Center Frequency
250 MHz
Bandwidth
125–375 MHz
Typical Investigation Depth
Approximately 3–8 m (soil dependent)
Display
8-inch Sunlight-Readable Color LCD Touchscreen
Internal Storage
8 GB
Wireless Connectivity
Wi-Fi (802.11 b/g/n)
Ports
USB
RS-232 (External GNSS)
Integrated GNSS
GPS
Galileo
GLONASS
BeiDou
Protection Rating
IP65
Power Supply
12 V Rechargeable Battery

Applications
Underground Utility Detection
Utility Mapping
Geotechnical Investigation
Environmental Survey
Infrastructure Inspection
Archaeological Survey

Recommended Industries
Surveying
Civil Engineering
Construction
Utility Locating
Environmental Consulting
Archaeology
Infrastructure Inspection

Applications

Underground Utility Detection
Locates buried electrical cables, water pipes, gas pipelines, fiber optic cables, and sewer systems.

Utility Mapping
Produces accurate underground utility maps before excavation.

Geotechnical Investigation
Supports soil profiling and subsurface condition assessments.

Road & Infrastructure Inspection
Evaluates pavement structures and buried infrastructure.

Environmental Survey
Assists environmental and site investigation projects.

Archaeological Investigation
Detects buried structures and archaeological features without excavation.

Construction Planning
Reduces excavation risks through accurate underground imaging.

What is the Sensors & Software NOGGIN 250 MHz GPR?
It is a professional Ground Penetrating Radar system designed for underground utility detection, subsurface mapping, and geophysical investigations.

What is the advantage of the 250 MHz antenna?
The 250 MHz antenna provides an excellent balance between depth penetration and target resolution, making it one of the most widely used frequencies for utility locating.

How deep can the NOGGIN 250 detect?
Typical investigation depth ranges from approximately 3 to 8 meters, depending on soil conditions, target size, and material.

Does the system support GPS?
Yes. It supports integrated GNSS as well as optional external GPS/GNSS receivers for georeferenced mapping.

What utilities can it detect?
It can locate metallic and non-metallic underground utilities including water pipes, gas pipelines, electrical cables, telecommunications conduits, and drainage systems.

Who commonly uses the NOGGIN 250?
It is widely used by surveyors, civil engineers, utility locating companies, municipalities, environmental consultants, geotechnical professionals, and archaeological researchers.
