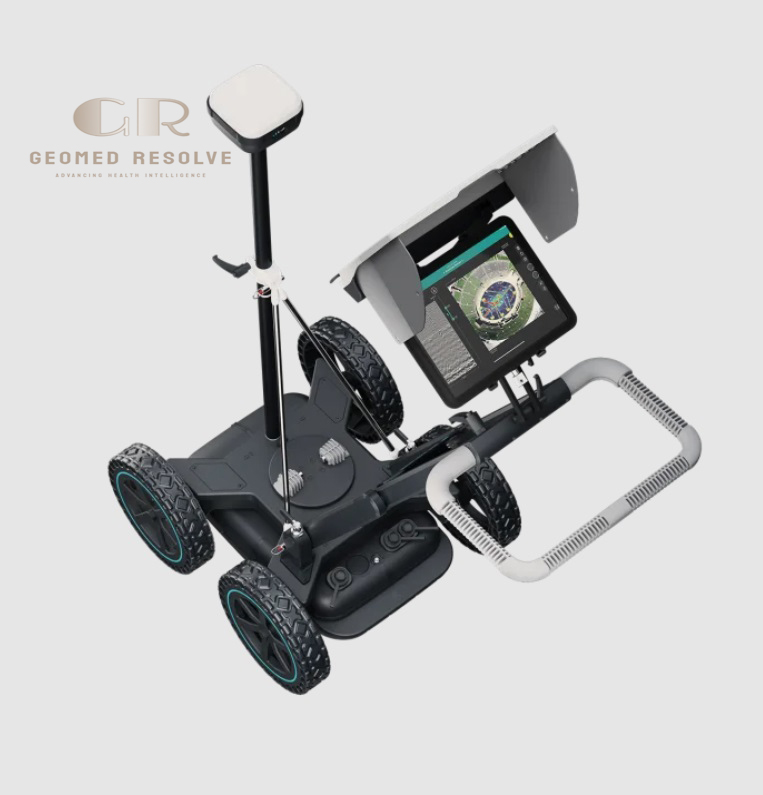

Screening Eagle Proceq GS800

Description

Screening Eagle Proceq GS800 – Ground Penetrating Radar System for Underground Utility Detection

The Screening Eagle Proceq GS800 is an advanced Surveying Equipment solution developed for professional underground utility detection and high-resolution subsurface imaging. Powered by Stepped-Frequency Continuous-Wave (SFCW) Ground Penetrating Radar technology, the system delivers exceptional imaging quality, fast data acquisition, and reliable underground mapping for locating buried utilities, pipelines, reinforced concrete, and other subsurface structures. Its wireless design, cloud-connected workflow, and compatibility with Apple iPad devices provide an efficient solution for modern field operations.

Featuring a wide 40–3440 MHz frequency range, scan rates up to 500 Hz, investigation depths up to 10 meters, artificial intelligence-assisted visualization, augmented reality support, and Screening Eagle Workspace integration, the GS800 offers powerful capabilities for utility locating, infrastructure inspection, transportation projects, geophysical investigations, and environmental surveys. Its rugged construction and intuitive software make it an excellent choice for demanding professional applications.

The Screening Eagle Proceq GS800 is an ideal solution for surveyors, utility locating specialists, engineering firms, municipalities, construction contractors, and infrastructure professionals seeking a reliable, high-performance ground penetrating radar system for accurate underground mapping.

Main Benefits

Advanced SFCW Radar Technology
Provides superior underground imaging using Stepped-Frequency Continuous-Wave radar with a wide frequency spectrum for exceptional target resolution and depth penetration.

Accurate Underground Utility Detection
Locates metallic and non-metallic buried utilities before excavation, helping reduce project risks.

High-Resolution Subsurface Imaging
Produces detailed radar profiles for infrastructure assessment and underground mapping.

Fast Survey Performance
Supports rapid field data collection with high scan rates for increased productivity.

Wireless Cloud Workflow
Integrates with Screening Eagle Workspace for cloud synchronization, reporting, and project collaboration.

Rugged Professional Design
Engineered for reliable operation in demanding construction and surveying environments.

Key Features

Stepped-Frequency Continuous-Wave GPR
Wide operating frequency range of 40–3440 MHz enables both shallow high-resolution imaging and deeper utility detection.

High-Speed Data Acquisition
Scan Rate: 500 Hz
Spatial Interval: Up to 100 scans/m
Survey Speed: Up to 80 km/h

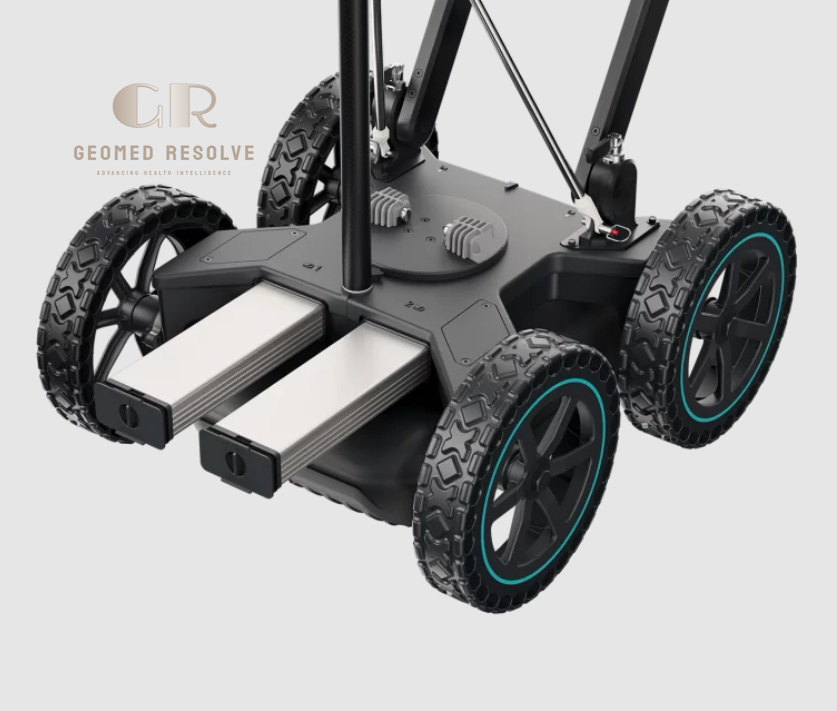

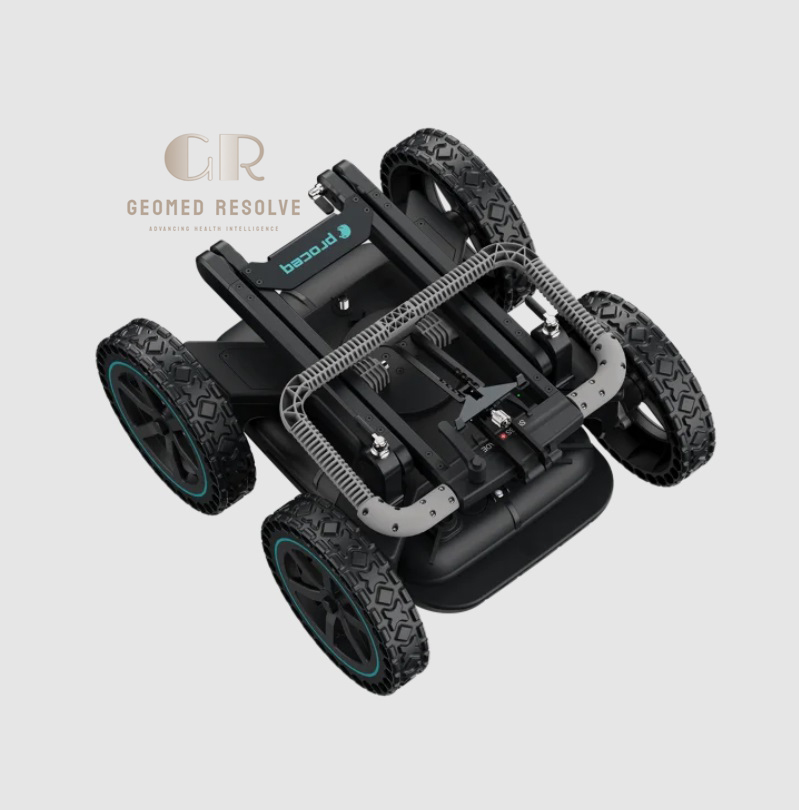

Integrated Wireless Cart
Compact push-and-pull cart design improves maneuverability and survey efficiency.

High-Resolution Imaging
Supports:
A-Scan
Line Scan
Migrated Line Scan
Area Scan
Time Slice View
for detailed subsurface visualization.

Artificial Intelligence Support
Built-in AI-assisted visualization enhances interpretation of underground targets.

Augmented Reality Visualization
Supports augmented reality viewing for improved underground utility interpretation.

Apple iPad Compatibility
Operates with compatible Apple iPad and iPad Pro devices for intuitive field control.

Cloud Connectivity
Supports Wi-Fi, Ethernet, USB, and cloud synchronization with Screening Eagle Workspace.

Specifications

Product Type: Ground Penetrating Radar System
Category: Surveying Equipment
Subcategory: Ground Penetrating Radar (GPR) Systems
Manufacturer: Screening Eagle Technologies
Model: Proceq GS800
Radar Technology
Stepped-Frequency Continuous-Wave (SFCW) Ground Penetrating Radar
Frequency Range
40–3440 MHz
Effective Bandwidth
3200 MHz
Maximum Investigation Depth
Up to approximately 10 m (soil dependent)
Minimum Detectable Target
Approximately 1 cm
Scan Rate
500 Hz
Spatial Resolution
Up to 100 scans/m
Maximum Survey Speed
Up to 80 km/h
Configuration
Wireless Push-and-Pull Cart
Protection Rating
IP65
Connectivity
Wi-Fi
Ethernet
USB-A
USB-B
USB-C
Display Device
Compatible Apple iPad / iPad Pro

Applications
Underground Utility Detection
Utility Mapping
Infrastructure Inspection
Road Inspection
Geophysical Survey
Archaeological Investigation

Recommended Industries
Surveying
Civil Engineering
Construction
Utility Mapping
Transportation
Environmental Consulting
Infrastructure Inspection

Applications

Underground Utility Detection
Locates buried electrical cables, water pipelines, gas lines, telecommunications conduits, and sewer systems.

Utility Mapping
Creates accurate underground utility maps before excavation.

Civil Engineering
Supports planning and construction of infrastructure projects.

Road & Highway Inspection
Evaluates pavement layers and buried infrastructure.

Infrastructure Assessment
Inspects bridges, foundations, and transportation assets.

Environmental Investigation
Supports geotechnical and environmental site investigations.

Archaeological Survey
Identifies buried structures and historical features without excavation.

What is the Screening Eagle Proceq GS800?
The GS800 is a professional Ground Penetrating Radar system designed for underground utility detection, subsurface mapping, and infrastructure inspection using Stepped-Frequency Continuous-Wave radar technology.

What radar technology does the GS800 use?
It uses Stepped-Frequency Continuous-Wave (SFCW) Ground Penetrating Radar with a frequency range of 40–3440 MHz.

What utilities can the GS800 detect?
It detects metallic and non-metallic utilities including electrical cables, gas pipelines, water pipes, telecommunications conduits, drainage systems, and underground structures.

How deep can the GS800 detect?
The system can achieve investigation depths of up to approximately 10 meters, depending on soil conditions and target characteristics.

Does the GS800 support cloud data management?
Yes. It integrates with Screening Eagle Workspace for cloud synchronization, reporting, and project collaboration.

Who commonly uses the GS800?
It is widely used by surveyors, civil engineers, utility locating contractors, municipalities, environmental consultants, and infrastructure inspection professionals.
