PRUFTECHNIK OPTALIGN smart RS5

Description

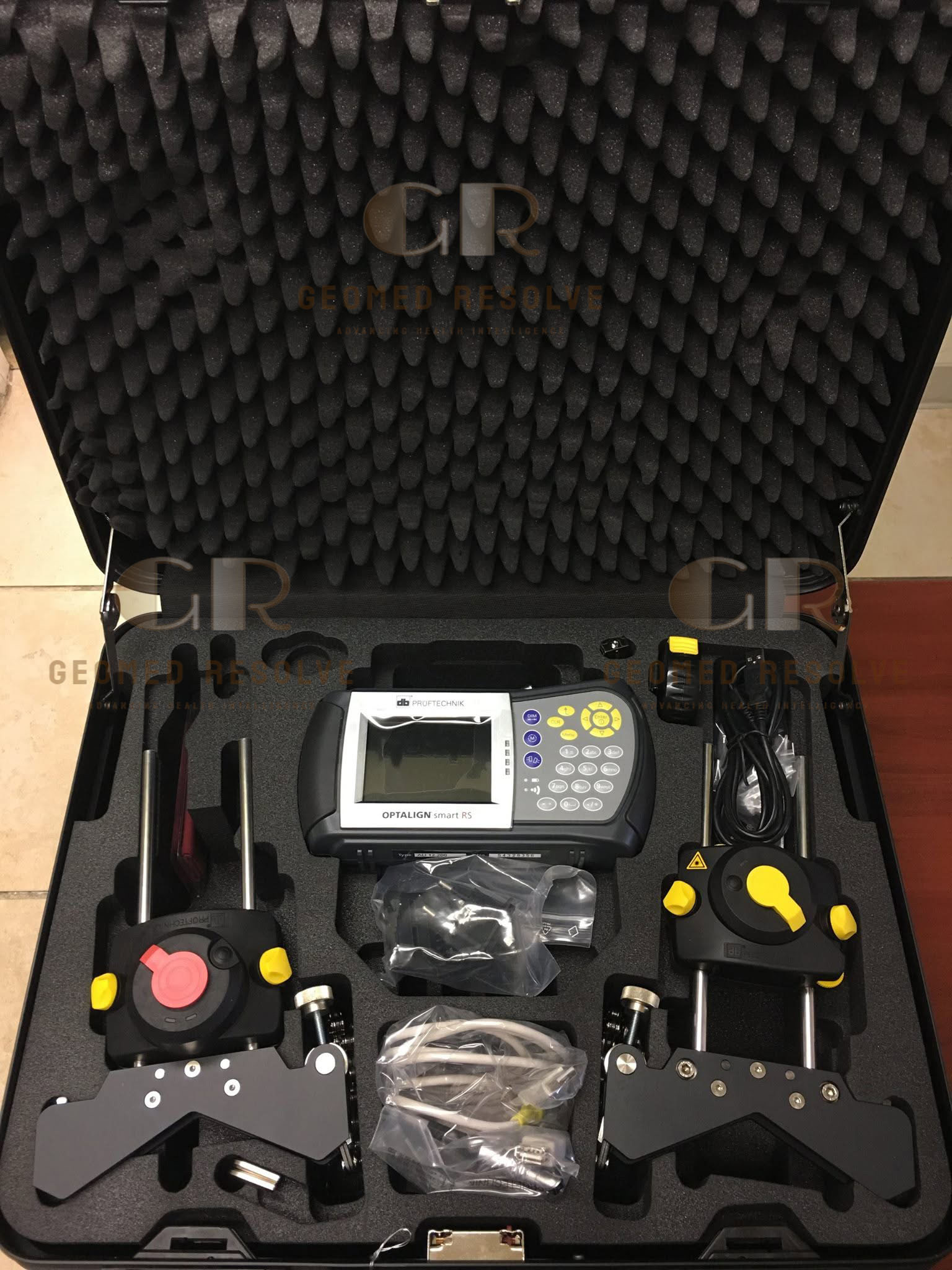

PRUFTECHNIK OPTALIGN smart RS5 Laser Shaft Alignment System – Precision Single-Laser Tool for Motor, Pump & Rotating Machinery Alignment

The PRUFTECHNIK OPTALIGN smart RS5 is a professional laser shaft alignment system designed for precision alignment of motors, pumps, gearboxes, compressors and other rotating machinery.

The system uses PRUFTECHNIK’s patented single-laser measurement technology with an RS5 sensor incorporating two biaxial position detectors and an electronic inclinometer. The system provides wireless Bluetooth communication, automatic Sweep measurement, Live Move and soft-foot checking for efficient machinery alignment.

Main Benefits

Precision laser shaft alignment
Patented single-laser technology
5-axis measurement sensor
1 µm measurement resolution
Wireless Bluetooth communication
Automatic Sweep measurement
Concurrent Live Move
Soft-foot measurement
Automatic alignment evaluation
InfiniRange measurement capability
Alignment of coupled and uncoupled shafts
Cardan shaft alignment capability
Spacer-shaft measurement
PDF reporting
Rugged industrial carrying case

Key Features

Single-Laser Technology
The OPTALIGN smart RS5 uses a single laser and sensor measurement principle. The RS5 sensor contains two biaxial position detectors and an electronic inclinometer, allowing both displacement and angular measurements to be determined during shaft rotation.

5-Axis Sensor
The RS5 sensor provides five-axis measurement capability, consisting of four displacement axes plus angular measurement. This allows the system to determine both parallel and angular shaft misalignment.

Sweep Measurement
The SWEEP measurement mode automatically collects alignment data while the shaft is rotated. This makes the measurement process easier and helps reduce the need to manually record individual measurement positions.

Concurrent Live Move
The Live Move function allows technicians to monitor machine correction in both horizontal and vertical directions while adjusting the machine.

InfiniRange
PRUFTECHNIK’s InfiniRange function extends the effective detector area, allowing alignment measurements even when machines have substantial angular misalignment or are positioned far apart. Rough pre-alignment is therefore not necessarily required.

Soft Foot Check
The OPTALIGN smart RS5 includes a dedicated soft-foot measurement function, allowing technicians to measure, correct and save soft-foot results before final shaft alignment.

Key Specifications

Brand: PRUFTECHNIK
Model: OPTALIGN smart RS5
Product Type: Laser Shaft Alignment System
Measurement Technology: Single-laser
Sensor: RS5 5-axis sensor
Detector: Two biaxial position detectors
Measurement Resolution: 1 µm / 0.04 mil
Angular Resolution: 10 µrad
Measurement Area: Unlimited / dynamically extendible with InfiniRange
Accuracy: Greater than 98%
Inclinometer Resolution: 0.1°
Inclinometer Error: 0.3% full scale
Laser: Semiconductor laser diode
Laser Wavelength: 630–680 nm
Laser Class: Class 2
Laser Power: <1 mW
Laser Beam Divergence: 0.3 mrad
Communication: Bluetooth on RS5 BT configuration
Sensor Protection: IP65
Operating Temperature: Approximately −10°C to +60°C depending on component
Computer: OPTALIGN smart computer
Display: High-resolution TFT color display
Storage: Internal memory / USB data transfer
Reporting: PDF report transfer through USB
Laser Battery: 2 × AA batteries
Laser Operating Time: Up to approximately 180 hours

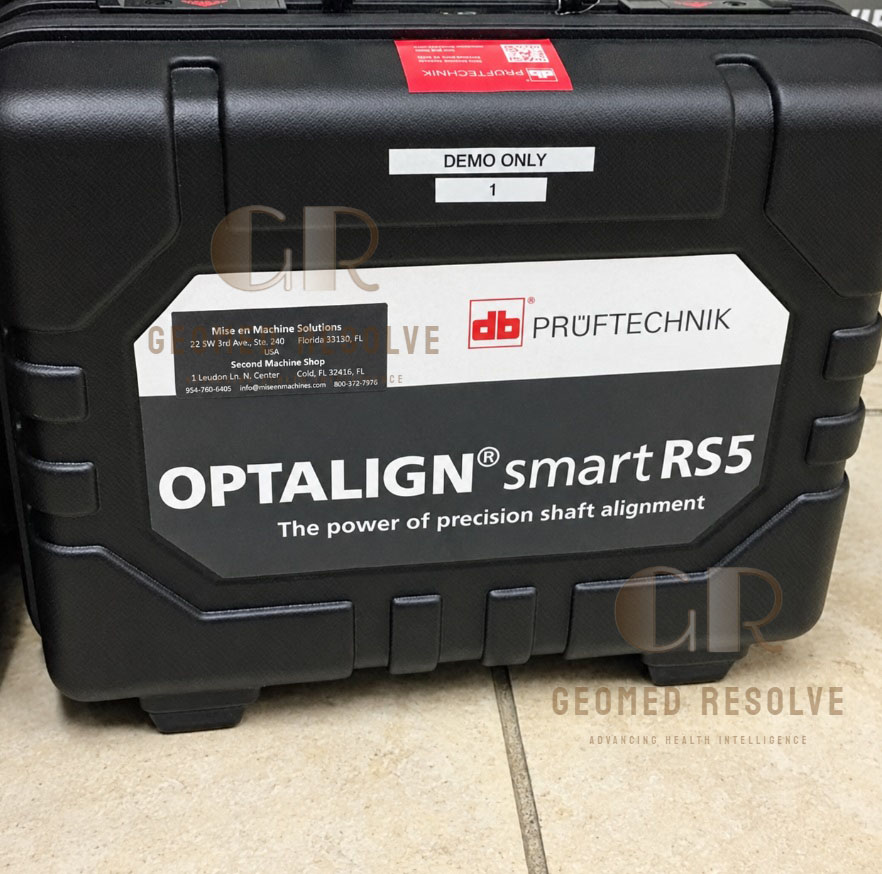

Carrying Case: Rugged HPX resin case
Complete System Weight: Approximately 10 kg including standard components

Applications

The PRUFTECHNIK OPTALIGN smart RS5 is suitable for:
Electric motor alignment
Pump alignment
Gearbox alignment
Compressor alignment
Fan and blower alignment
Generator alignment
Turbine alignment
Rotating machinery maintenance
Machine installation
Preventive maintenance
Predictive maintenance
Industrial machinery alignment
Shaft support positioning
Machine-bed straightness measurement

Shaft Alignment Functions
The OPTALIGN smart RS5 supports a broad range of alignment applications, including:
Horizontal shaft alignment
Vertical machine alignment
Flange-mounted machine alignment
Coupled shafts
Uncoupled shafts
Spacer couplings
Cardan shaft alignment
Non-rotatable shafts
Soft-foot measurement
Machine movement monitoring

Machine Alignment Workflow
A typical alignment procedure is:
Mount the laser and RS5 sensor on the machine shafts.
Enter the machine dimensions.
Adjust the laser beam onto the sensor.
Establish wireless communication if using RS5 BT.
Perform Sweep or static measurement.
Evaluate the coupling and foot alignment values.
Perform a soft-foot check.
Move or shim the machine.
Use Live Move to monitor correction.
Re-measure and save the final results.
Transfer the measurement report through USB.

What is the PRUFTECHNIK OPTALIGN smart RS5 used for?
It is used for precision shaft alignment of rotating machinery, including motors, pumps, gearboxes, compressors and other coupled machines.

What type of laser technology does it use?
It uses PRUFTECHNIK’s single-laser measurement technology, with the laser mounted on one shaft and the RS5 sensor on the other.

What is the measurement resolution?
The published resolution is 1 µm (0.04 mil) with an angular resolution of 10 µrad.

Does it support Bluetooth?
The OPTALIGN smart RS5 BT configuration supports Bluetooth wireless communication between the measurement sensor and computer.

Does it include soft-foot measurement?
Yes. Soft-foot measurement is one of the system’s built-in alignment functions.

Can it align non-rotatable shafts?
Yes. The OPTALIGN smart RS5 supports static measurement for applications including non-rotatable shafts and certain vertical or flange-mounted machines.

Is the OPTALIGN smart RS5 still manufactured?
No. PRUFTECHNIK identifies OPTALIGN smart RS5 as a discontinued product, with sales stopping in 2019. The listed replacement is OPTALIGN Touch
