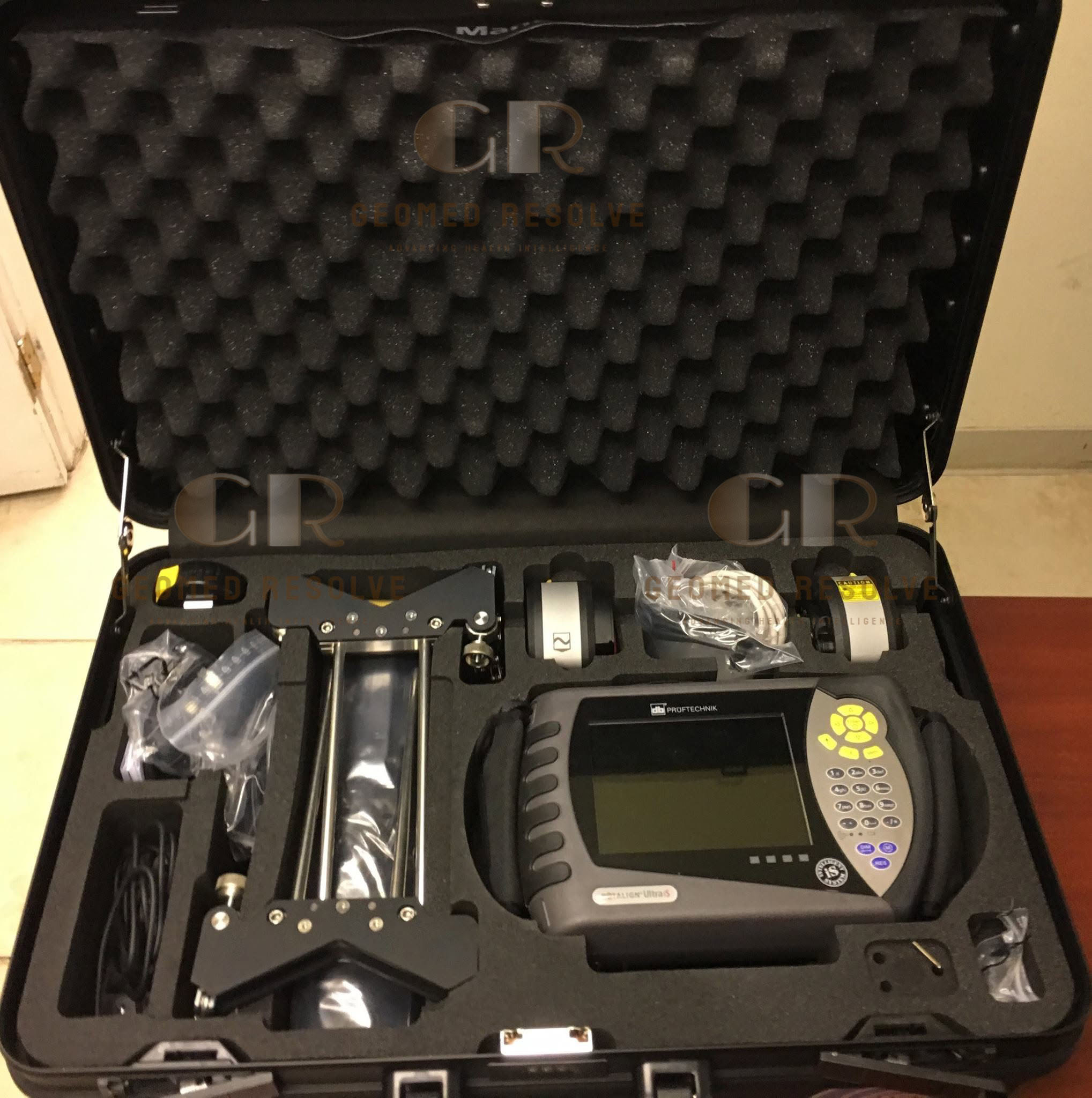

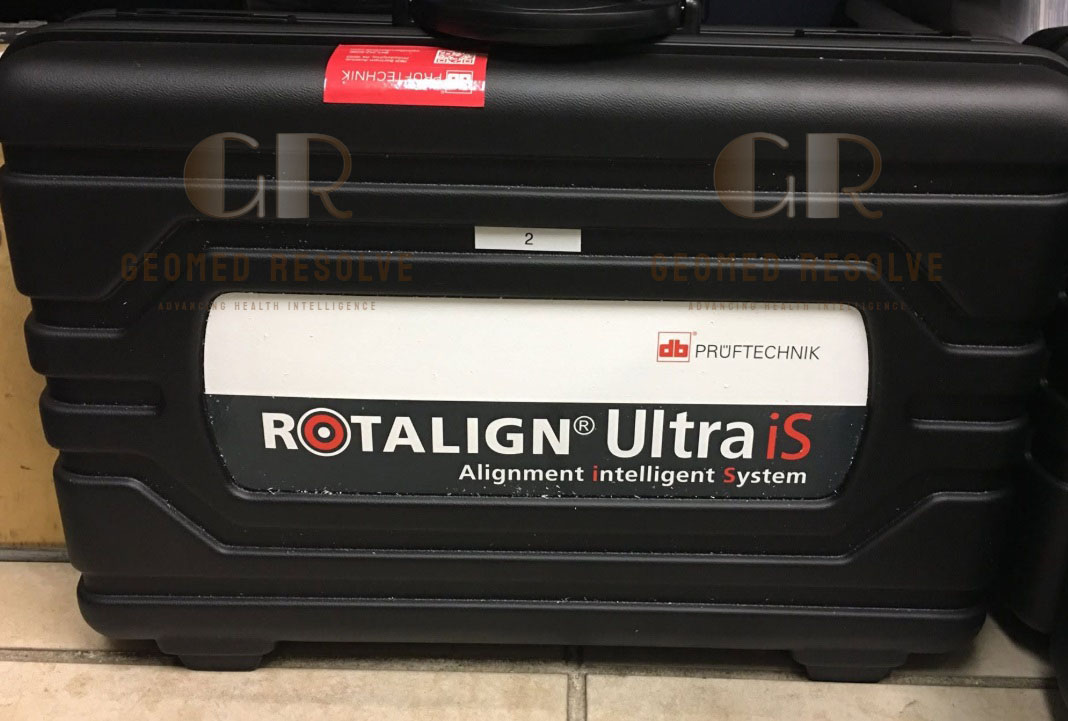

PRUFTECHNIK ROTALIGN Ultra iS

Description

PRUFTECHNIK ROTALIGN Ultra iS Laser Shaft Alignment System – Advanced Precision Tool for Motor, Pump, Turbine & Rotating Machinery Alignment

The PRUFTECHNIK ROTALIGN Ultra iS is a professional laser shaft alignment and machinery diagnostic system designed for precision alignment of motors, pumps, gearboxes, compressors, turbines and complex rotating machinery.

The system combines PRUFTECHNIK’s advanced sensALIGN measurement technology, a 7-axis measurement system with XXL HD PSD, built-in vibration measurement and advanced alignment software. It is designed for demanding industrial alignment applications where high measurement accuracy and comprehensive machine diagnostics are required.

Main Benefits

Advanced laser shaft alignment
7-axis measurement technology
XXL high-definition PSD
Single-laser measurement principle
Built-in vibration measurement
Wireless Bluetooth communication
Automatic measurement quality evaluation
Live Move correction
Soft Foot Wizard
Thermal growth compensation
Machine-train alignment
Cardan shaft alignment
Spacer-shaft alignment
PDF alignment reports
Environmental vibration monitoring
Suitable for complex industrial machinery

Key Features

7-Axis Measurement System
The ROTALIGN Ultra iS uses a 7-axis measurement system with an XXL HD PSD, providing a large detector area and repeatable measurements even with significant shaft misalignment or large measurement distances.

sensALIGN Technology
The system uses PRUFTECHNIK’s sensALIGN measurement technology for precision shaft alignment. The measurement system incorporates electronic inclinometers to help identify coupling backlash and improve measurement reliability.

Intelligent Measurement
The ROTALIGN Ultra iS supports intelligent measurement functions including:
intelliSWEEP
intelliPASS
intelliPOINT

These functions help evaluate measurement quality and identify unreliable measurement points caused by environmental conditions, vibration or mechanical effects.

Built-In Vibration Measurement
Unlike a basic shaft-alignment tool, the ROTALIGN Ultra iS can also perform vibration measurements.

It can be used to:
Check machine vibration before alignment
Check vibration after alignment
Monitor environmental vibration
Record vibration during Live Trend measurements

Soft Foot Wizard
The Soft Foot Wizard measures soft-foot conditions and helps analyze the results, providing guidance toward an appropriate correction.

Machine-Train Alignment
The ROTALIGN Ultra iS can align complex machine trains containing up to 14 machines, depending on the configuration.

Key Specifications

Brand: PRUFTECHNIK
Model: ROTALIGN Ultra iS
Product Type: Laser Shaft Alignment & Machinery Diagnostic System
Measurement Technology: sensALIGN
Measurement System: 7-axis
Detector: XXL HD PSD
Laser: Semiconductor laser
Laser Class: Class 2
Laser Wavelength: Approximately 630–680 nm
Laser Output: <1 mW
Inclinometer: Integrated MEMS
Wireless Communication: Integrated Bluetooth
Vibration Measurement: Built-in
Measurement Modes: Continuous intelligent measurement, intelliSWEEP, intelliPASS and intelliPOINT
Live Functions: Live Move / Live Trend
Machine Train: Up to 14 machines depending on configuration
Reporting: PDF reports
Software: PRUFTECHNIK alignment software
Computer: ROTALIGN Ultra iS computer
Battery: Rechargeable lithium-polymer system
Environmental Vibration Monitoring: Supported
Operating Temperature: Configuration dependent

Applications

The PRUFTECHNIK ROTALIGN Ultra iS is suitable for:
Electric motor alignment
Pump alignment
Compressor alignment
Gearbox alignment
Turbine alignment
Generator alignment
Fan and blower alignment
Machine-train alignment
Cardan shaft alignment
Spacer-shaft alignment
Industrial machinery installation
Preventive maintenance
Predictive maintenance
Rotating machinery diagnostics
Precision machinery alignment

Advanced Alignment Functions
The ROTALIGN Ultra iS provides several advanced alignment functions:
Horizontal shaft alignment
Vertical machine alignment
Flange-mounted machine alignment
Spacer coupling alignment
Cardan shaft alignment
Uncoupled shaft alignment
Thermal growth compensation
Machine-train alignment
Soft-foot measurement
Live Move
Live Trend
Alignment tolerance evaluation
Move Simulator
Optimized machine movement

These functions make it suitable for applications beyond a conventional motor-pump alignment.

Shaft Alignment Workflow
A typical alignment procedure includes:
Mount the laser and sensor on the machine shafts.
Enter the machine dimensions.
Adjust the laser beam to the sensor.
Perform the measurement using the appropriate measurement mode.
Evaluate measurement quality.
Check soft foot.
Review horizontal and vertical alignment values.
Correct the machine position.
Use Live Move where appropriate.
Re-measure the machine.
Confirm the final alignment.
Save and generate the alignment report.

What is the PRUFTECHNIK ROTALIGN Ultra iS used for?
It is used for precision shaft alignment and machinery diagnostics, including alignment of motors, pumps, gearboxes, compressors, turbines and complex machine trains.

Does it measure vibration?
Yes. The ROTALIGN Ultra iS has built-in vibration measurement and can check machine vibration before and after alignment as well as monitor environmental vibration.

What is the measurement system?
The system uses a 7-axis measurement system with an XXL HD PSD for high-resolution shaft-alignment measurements.

Can it align machine trains?
Yes. Depending on configuration, the system supports machine-train alignment of up to 14 machines.

Does it support cardan shafts?
Yes. Cardan shaft alignment is one of the supported advanced applications, with the appropriate bracket/accessory.

Does it have soft-foot measurement?
Yes. It includes the Soft Foot Wizard, which measures and analyzes soft-foot conditions.
