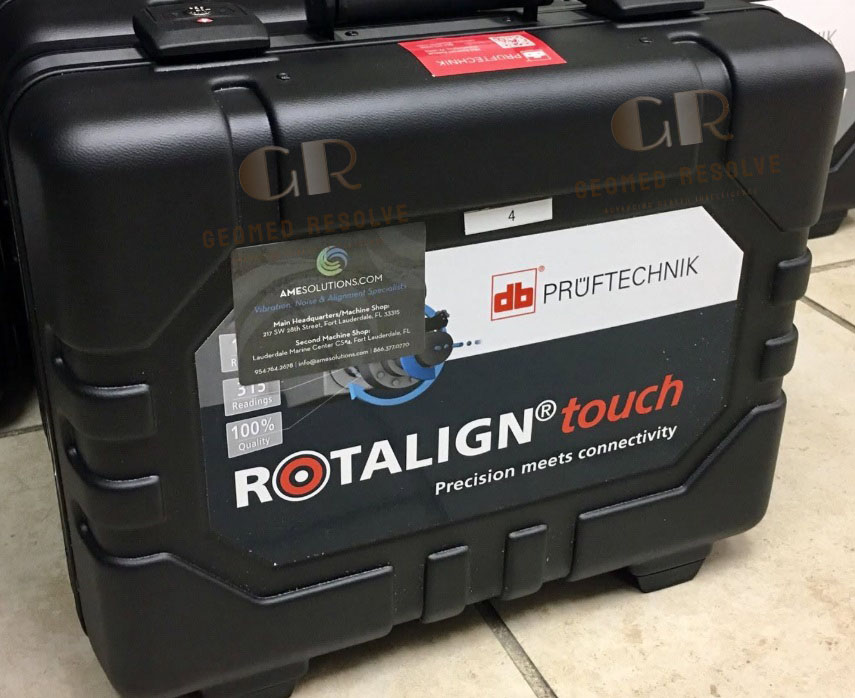

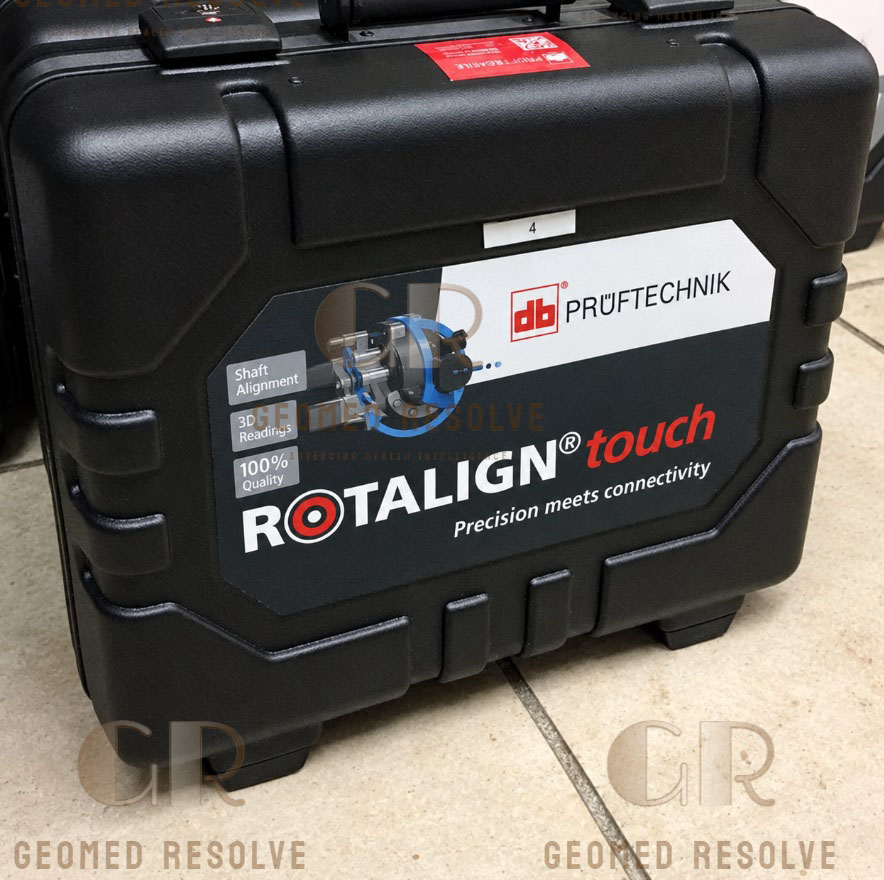

PRUFTECHNIK ROTALIGN Touch Laser Shaft Alignment System

Description

PRUFTECHNIK ROTALIGN Touch Laser Shaft Alignment System – Advanced Precision Tool for Motor, Pump & Rotating Machinery Alignment

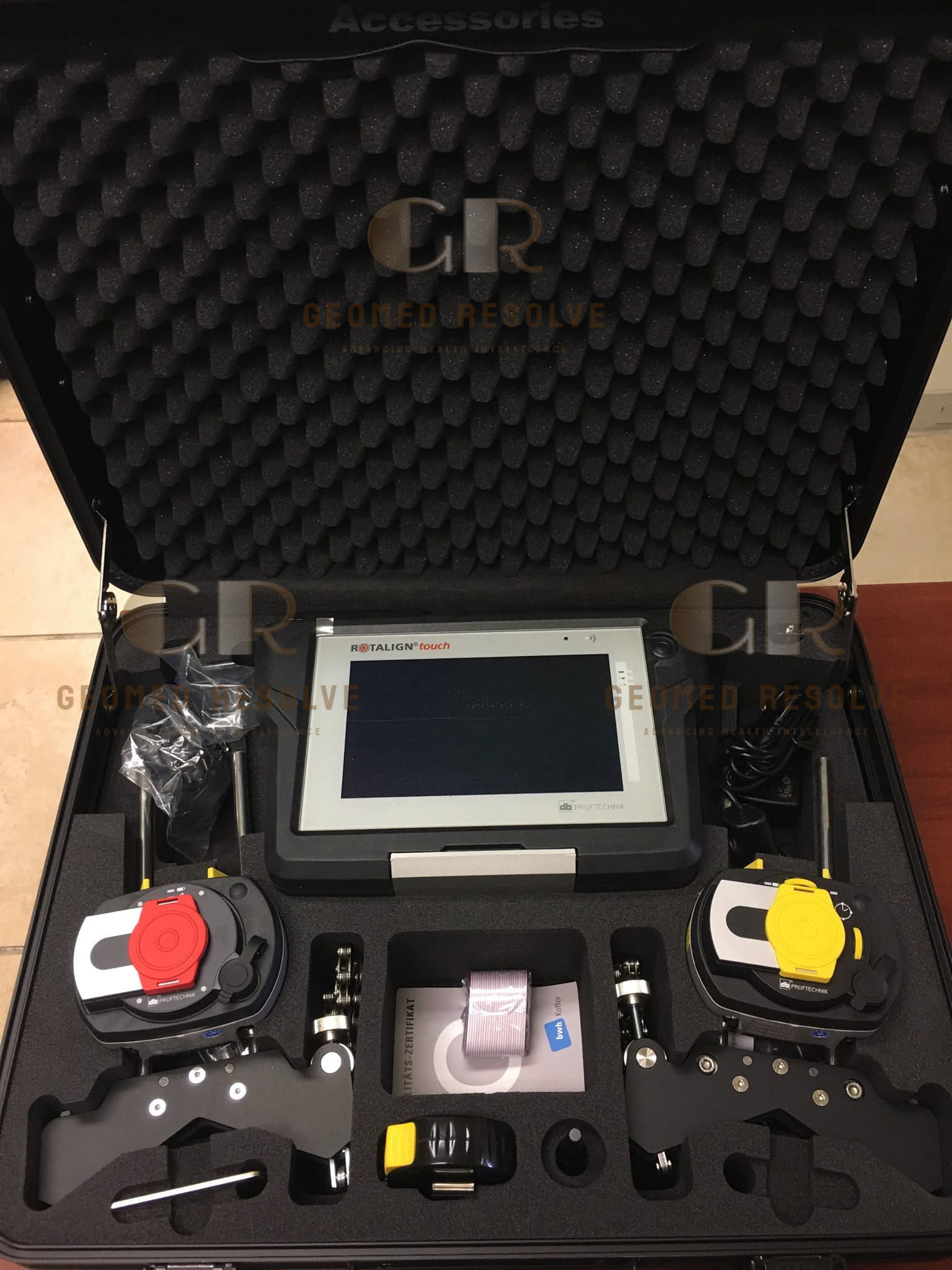

The PRUFTECHNIK ROTALIGN Touch is a professional laser shaft alignment system designed for precision alignment of motors, pumps, gearboxes, compressors, turbines and other rotating machinery.

It combines PRUFTECHNIK’s sensALIGN 7 single-laser technology with a touchscreen measuring device and advanced alignment software. The system is designed for both routine shaft alignment and complex applications such as cardan shafts, vertical machines, thermal growth, machine trains and multiple couplings.

The ROTALIGN Touch also supports connectivity and cloud-based data management through PRUFTECHNIK’s ALIGNMENT RELIABILITY CENTER 4.0, allowing alignment results and work orders to be transferred between field devices and PC software.

Main Benefits

High-precision laser shaft alignment
sensALIGN 7 single-laser technology
1 µm measurement resolution
Wireless measurement communication
No conventional pre-alignment required
Intelligent measurement quality control
Soft foot diagnosis
Horizontal and vertical alignment
Machine-train alignment
Cardan shaft alignment
Thermal growth compensation
Live Move and Move Simulator
Live Trend monitoring
Cloud connectivity
Rugged industrial construction

Key Features

sensALIGN 7 Single-Laser Technology
The ROTALIGN Touch uses sensALIGN 7 laser and sensor technology. Its single-laser configuration is designed to improve repeatability and simplify setup, including eliminating the need for conventional pre-alignment.

The sensor incorporates a large 2-axis position-sensitive detector (PSD) and MEMS inclinometer technology.

Active Situational Intelligence
The system uses intelligent measurement functions including intelliSWEEP, intelliPOINT and intelliPASS to help identify poor measurement data caused by factors such as backlash, vibration or inconsistent shaft rotation.

Advanced Alignment
The ROTALIGN Touch can handle demanding applications including:
Horizontal shaft alignment
Vertical machine alignment
Soft foot
Cardan shaft alignment
Thermal growth
Machine movement
Uncoupled shaft alignment
Multi-coupling alignment
Machine-train alignment

PRUFTECHNIK’s current documentation states that the ROTALIGN Touch platform can align up to 14 machines in a machine train, depending on configuration/software.

Key Specifications

Brand: PRUFTECHNIK
Model: ROTALIGN Touch
Product Type: Laser Shaft Alignment System
Laser/Sensor Technology: sensALIGN 7
Laser Type: Semiconductor laser
Laser Wavelength: 630–680 nm
Laser Class: Class 2
Laser Output: <1 mW
Measurement Resolution: 1 µm
Measurement Error: <1.0%
Measurement Range: Unlimited / dynamically extendible
Inclinometer Resolution: 0.1°
Sensor Protection: IP65
Operating Temperature: −10°C to +50°C
Wireless Communication: Bluetooth Class 1
Additional Interfaces: RS232, RS485, I-Data
Display: 7-inch capacitive multi-touch TFT
Display Resolution: 800 × 480 pixels
Display Weight: Approximately 1.88 kg
Display Dimensions: Approximately 273 × 181 × 56 mm
Processor: 1.0 GHz quad-core ARM Cortex-A9
RAM: 2 GB
Internal Flash: 1 GB
Storage: 32 GB SD card
Camera: 5 MP, depending on configuration
Display Operating Time: Approximately 12 hours typical use
Sensor Operating Time: Approximately 12 hours typical use
Sensor Battery: 3.7 V / 1.6 Ah Li-polymer rechargeable battery

Applications

The PRUFTECHNIK ROTALIGN Touch is suitable for:
Electric motor alignment
Pump alignment
Compressor alignment
Gearbox alignment
Generator alignment
Turbine alignment
Fan and blower alignment
Machine-train alignment
Cardan shaft alignment
Vertical machine alignment
Industrial machinery installation
Preventive maintenance
Predictive maintenance
Rotating machinery maintenance

PRUFTECHNIK specifically highlights applications ranging from standard motor-pump systems to large steam turbines and complex machine trains.

Machine-Train Alignment
One of the major advantages of the ROTALIGN Touch is its ability to work with multiple machines and couplings.

This makes it appropriate for complex equipment trains rather than only simple motor-to-pump arrangements. Current PRUFTECHNIK information specifies support for machine-train alignment of up to 14 machines on the ROTALIGN Touch platform.

Cardan Shaft Alignment
The ROTALIGN Touch supports in-situ cardan shaft alignment, allowing alignment work on cardan/driveshaft applications without requiring conventional disassembly in appropriate configurations.

Soft Foot Measurement
The system includes a Soft Foot function to help technicians identify machine-foot conditions that could affect final shaft alignment.

Live Move & Live Trend
The ROTALIGN Touch provides advanced functions such as:
Live Move
Move Simulator
Live Trend
Simultaneous horizontal and vertical correction
Thermal growth monitoring

These features are particularly useful when aligning machines where positional changes need to be monitored during operation or correction.

Cloud Connectivity
The ROTALIGN Touch was designed with cloud connectivity as part of its workflow.

Through PRUFTECHNIK’s ALIGNMENT RELIABILITY CENTER 4.0, alignment work orders and measurement results can be transferred between field devices and PC software for reporting, monitoring and archiving.

What is the PRUFTECHNIK ROTALIGN Touch used for?
It is used for precision shaft alignment of rotating machinery, including motors, pumps, compressors, gearboxes, turbines and machine trains.

What is sensALIGN 7?
sensALIGN 7 is PRUFTECHNIK’s single-laser sensor technology designed for high-precision shaft alignment and advanced measurement capabilities.

What is the measurement resolution?
The published specification gives a measurement resolution of 1 µm.

Does it use wireless communication?
Yes. The sensALIGN 7 sensor supports Bluetooth Class 1 wireless communication.

Can it align machine trains?
Yes. The current ROTALIGN Touch platform supports complex machine-train alignment, with PRUFTECHNIK specifying up to 14 machines.

Can it align cardan shafts?
Yes. In-situ cardan shaft alignment is one of the advanced capabilities of the ROTALIGN Touch platform.

Does it include soft-foot measurement?
Yes. Soft-foot diagnosis is included among the core/advanced alignment functions.
