Easy-Laser E710 Laser Shaft Alignment System

Description

Easy-Laser E710 Laser Shaft Alignment System – Professional Wireless Laser Tool for Precision Motor, Pump & Rotating Machinery Alignment

The Easy-Laser E710 Laser Shaft Alignment System is a professional laser measurement solution designed for precision alignment of rotating machinery. It is suitable for motors, pumps, gearboxes, compressors, turbines and other coupled machine trains.

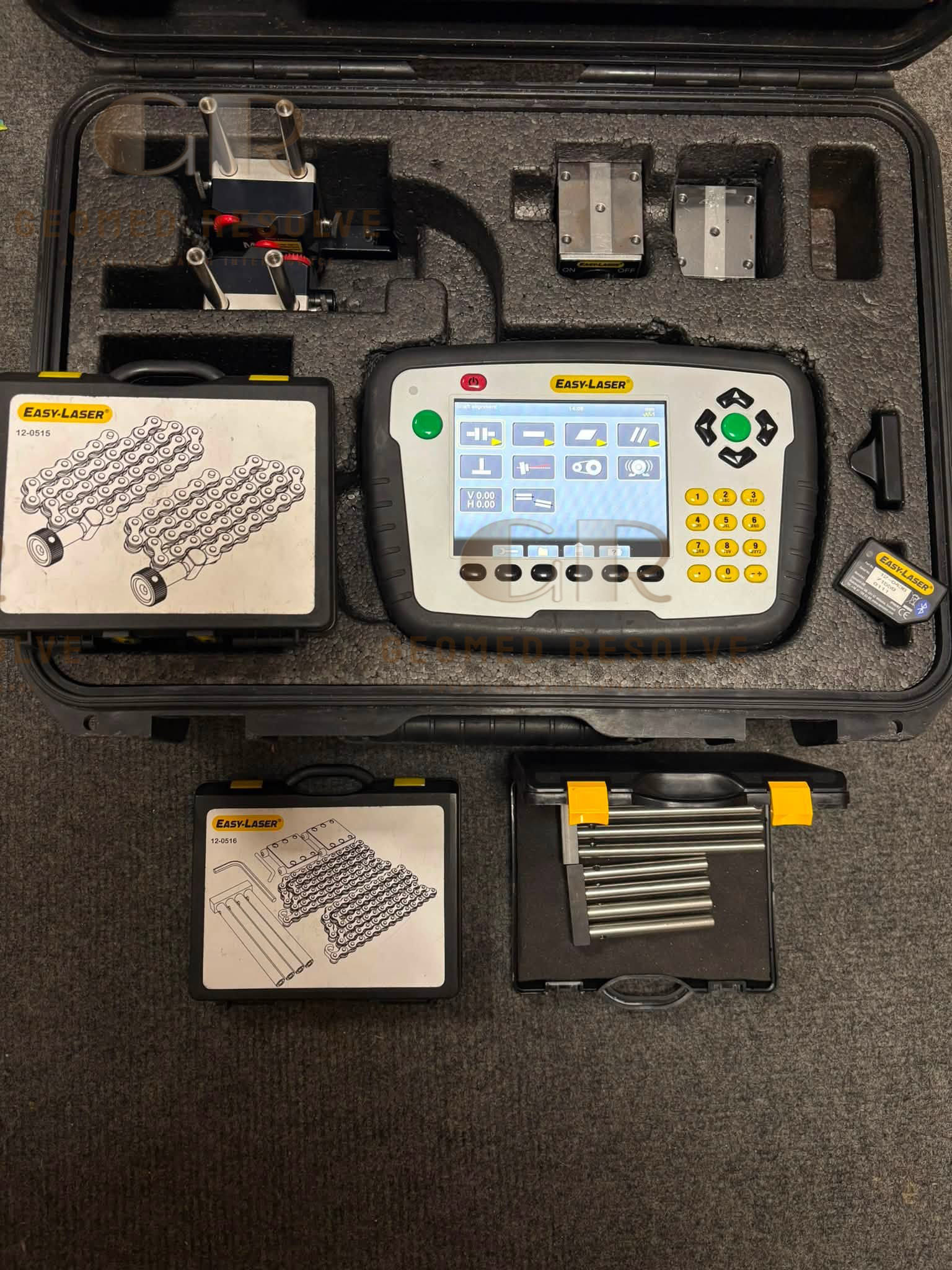

The E710 combines two wireless laser measurement units with a dedicated display unit and alignment software. It supports horizontal shaft alignment, machine-train alignment, vertical/flange-mounted machines, cardan/offset alignment and soft-foot checking.

Easy-Laser specifies a measurement range of up to 20 m, a resolution of 0.001 mm, and measurement accuracy of ±1 µm ±1% for the E710 system.

Main Benefits

Professional laser shaft alignment
Wireless measurement units
Up to 20 m measurement range
0.001 mm measurement resolution
High measurement accuracy
Soft-foot checking
Horizontal shaft alignment
Vertical and flange-mounted alignment
Cardan/offset alignment
Machine-train alignment
EasyTurn measurement technology
Large color display
Long operating time
Robust industrial construction
Automatic measurement documentation

Key Features

Wireless Laser Measurement

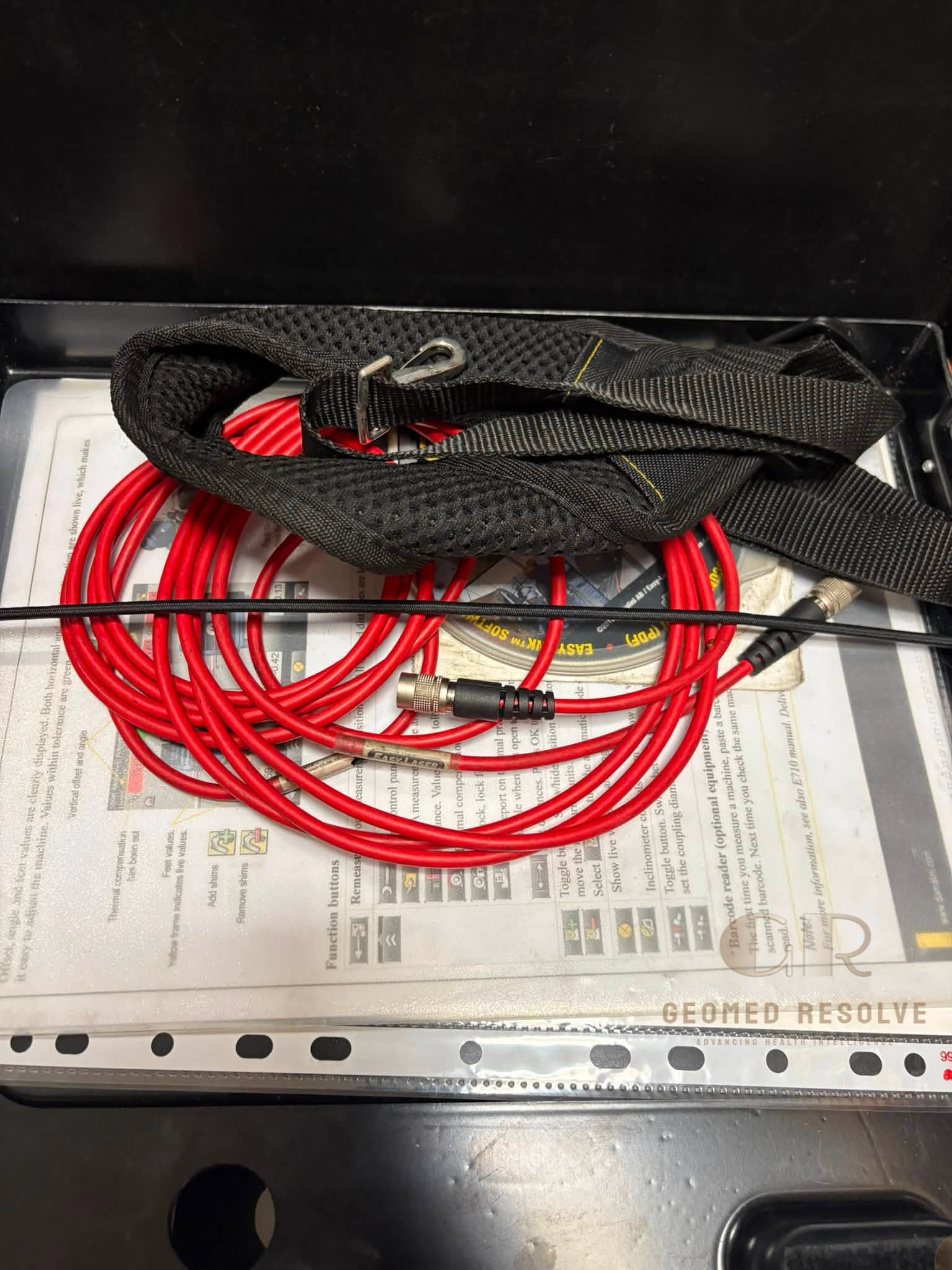

The E710 uses two laser measurement units with wireless Bluetooth communication, allowing technicians to work without being restricted by measurement cables. Wired connection is also available.

High-Precision Measurement

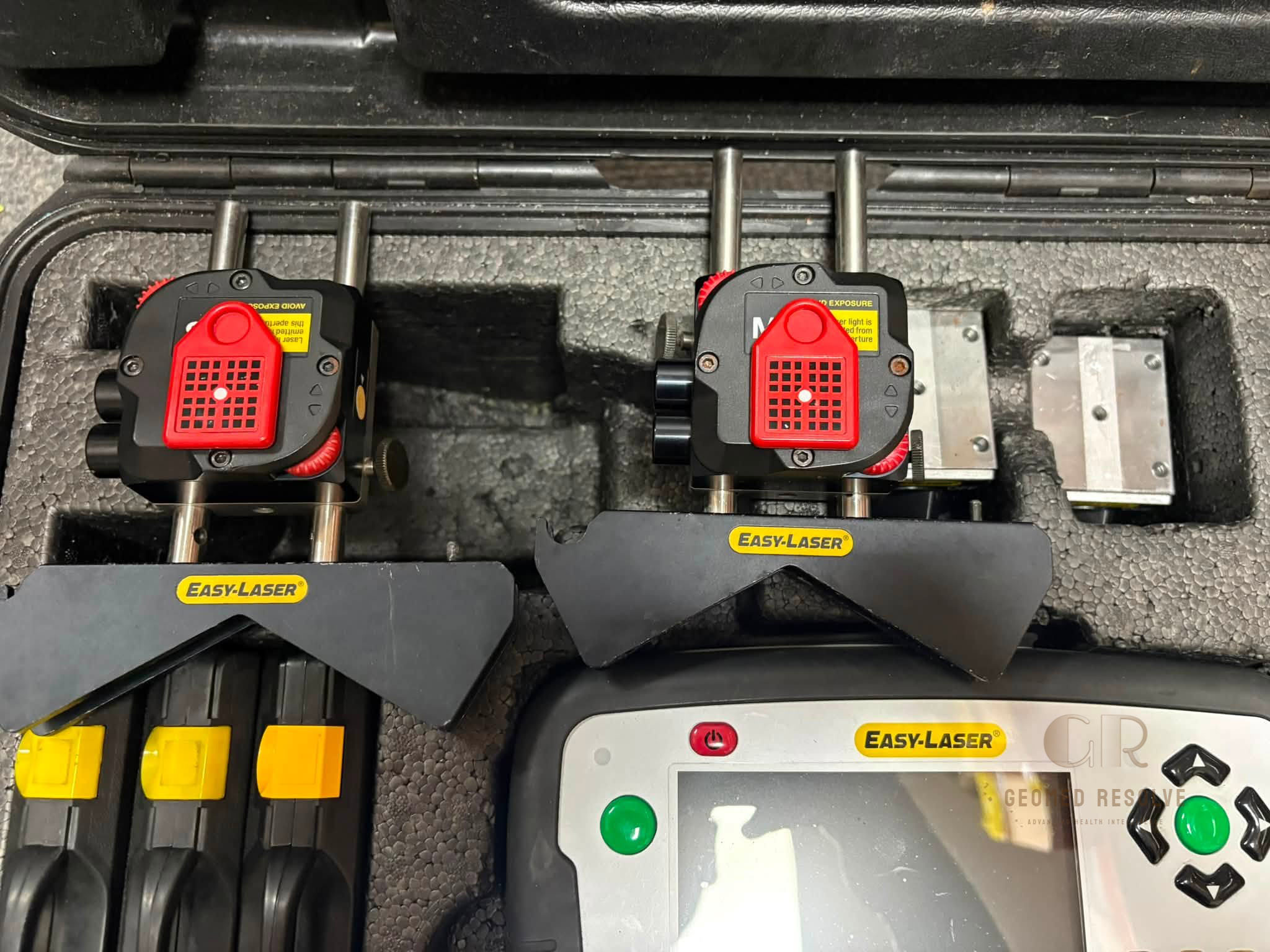

The measurement units use 2-axis PSD detectors measuring 20 × 20 mm, with a displayed resolution of 0.001 mm. The published system specification gives a measurement range of up to 20 m.

EasyTurn
The EasyTurn function allows alignment measurements with as little as approximately 20° between measurement points, making the system useful where complete shaft rotation is difficult.

Soft Foot Check
The E710 includes a dedicated soft-foot measurement program, helping technicians identify machine-foot problems before performing the final shaft alignment.

Machine Train Alignment
The system can be used for machine trains containing multiple connected machines. Easy-Laser demonstrates E710 applications involving multiple pumps, gearboxes, compressors and an electric motor.

Key Specifications

Brand: Easy-Laser
Model: E710
Product Type: Laser Shaft Alignment System
Measurement Units: EM / ES
Detector: 2-axis PSD, 20 × 20 mm
Resolution: 0.001 mm / 0.05 mil
Measurement Accuracy: ±1 µm ±1%
Measurement Range: Up to 20 m
Laser Type: Diode laser
Laser Wavelength: 630–680 nm
Laser Class: Class 2
Laser Output: <1 mW
Electronic Inclinometer: 0.1° resolution
Thermal Sensors: ±1°C accuracy
Measurement Unit Protection: IP66/IP67
Operating Temperature: −10°C to +50°C
Communication: Bluetooth wireless / cable

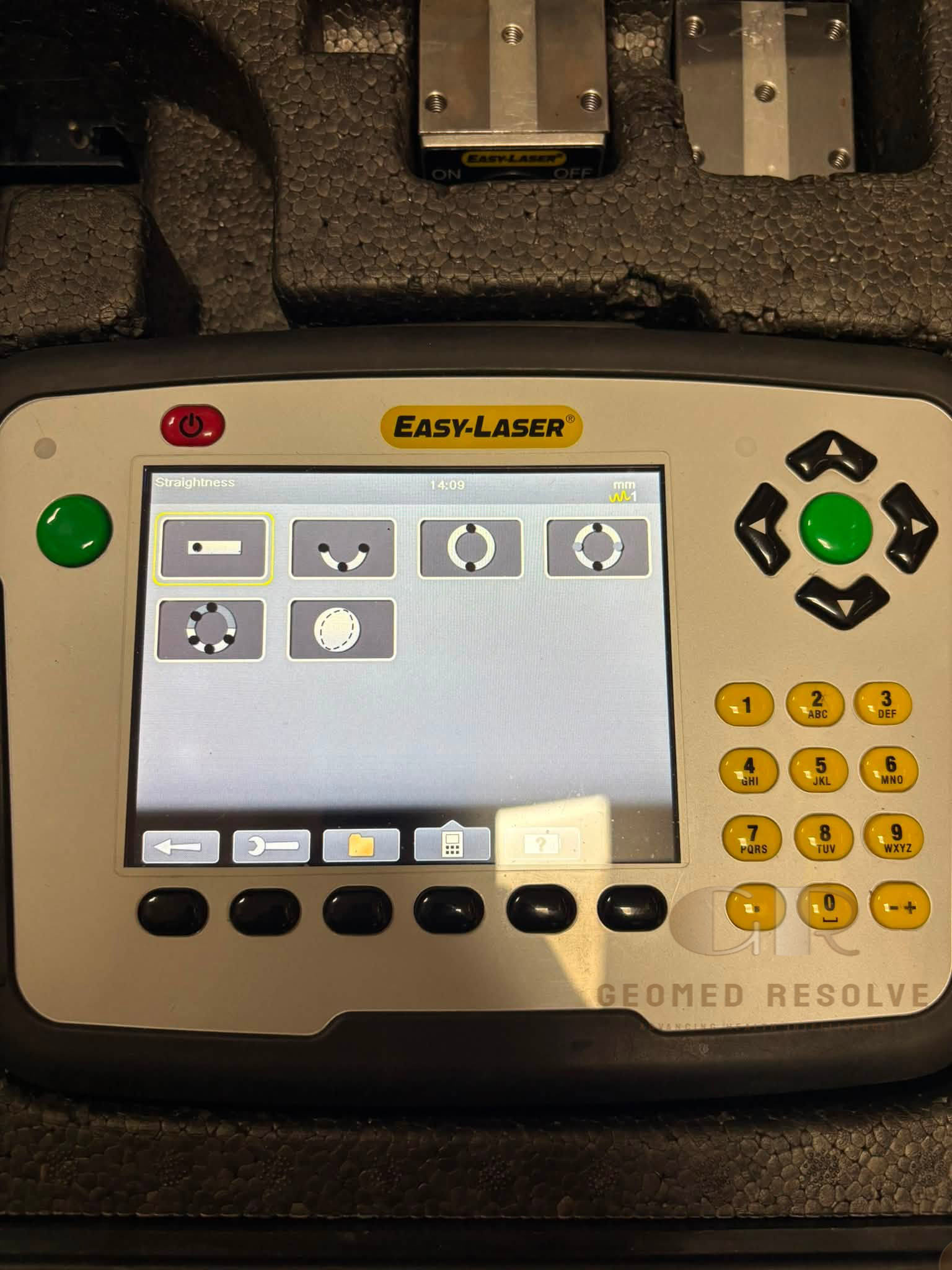

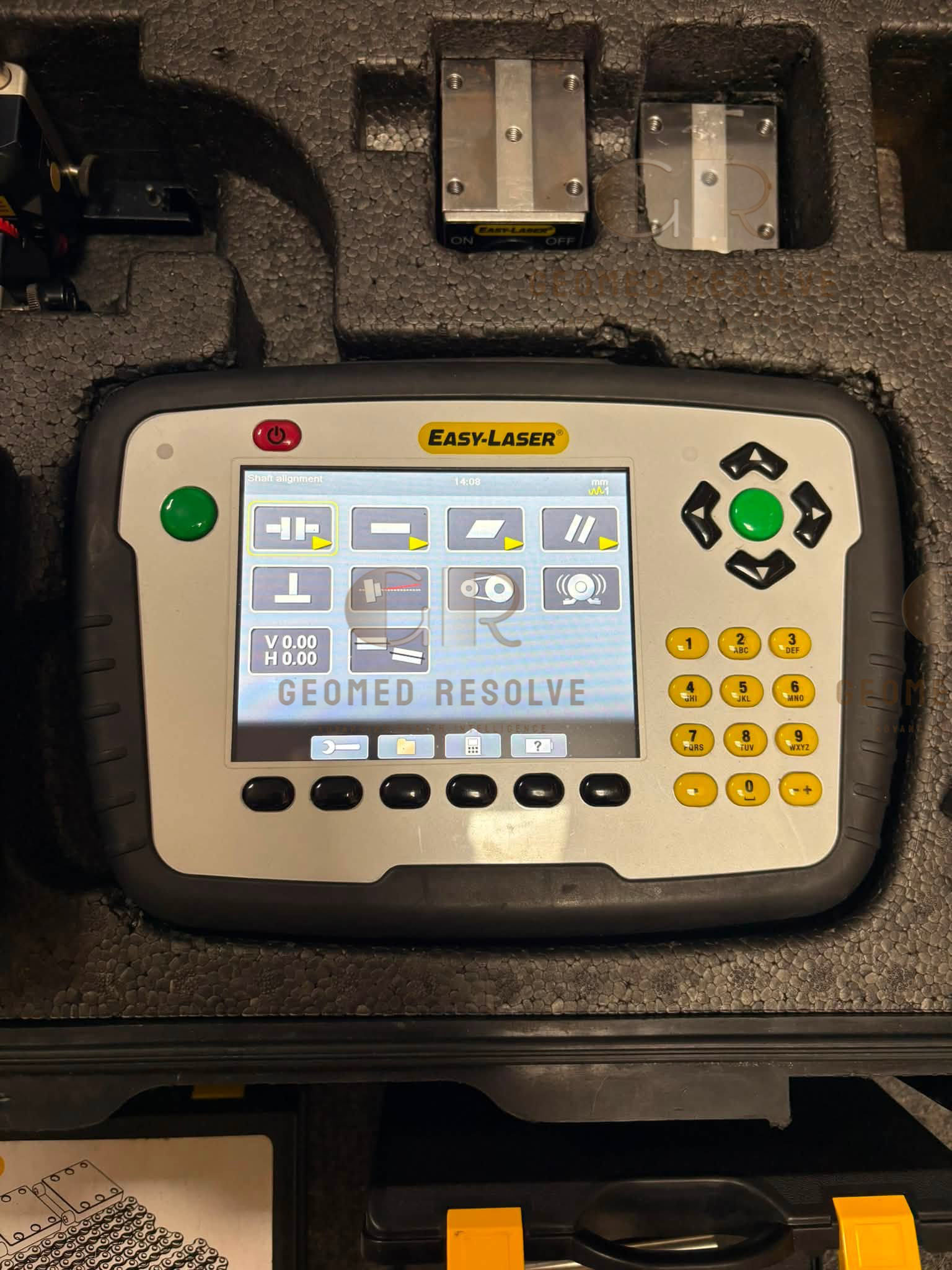

Display Unit: E51
Display: 5.7-inch VGA color screen
Display Resolution: 0.001 mm / 0.05 thou
Internal Display Memory: More than 100,000 measurements
Display Protection: IP65
Shaft Bracket Range: 20–450 mm
Complete System Weight: Approximately 10 kg
Carrying Case: Approximately 500 × 400 × 200 mm

Applications

The Easy-Laser E710 is suitable for:
Electric motor alignment
Pump shaft alignment
Gearbox alignment
Compressor alignment
Turbine alignment
Generator alignment
Fan and blower alignment
Machine-train alignment
Cardan shaft alignment
Flange-mounted machine alignment
Industrial machinery installation
Preventive maintenance
Predictive maintenance
Rotating machinery maintenance

Shaft Alignment Workflow

The E710 can be used throughout the machine-alignment process:
Check the machine foundation.
Check bearing condition and play.
Perform a soft-foot check.
Mount the measurement units.
Enter machine dimensions.
Perform the shaft measurement.
Review horizontal and vertical alignment values.
Correct the machine position.
Re-measure.
Save and document the final alignment result.

What is the Easy-Laser E710 used for?
It is used for precision shaft alignment of rotating machinery, including motors, pumps, gearboxes, compressors, turbines and machine trains.

What is the measurement range?
The E710 has a published measurement range of up to 20 m.

What is the measurement resolution?
The measurement resolution is 0.001 mm / 0.05 mil.

Does the E710 use wireless measurement units?
Yes. The system uses Bluetooth wireless communication between the measurement units and display unit, while cables can also be used.

Does it check soft foot?
Yes. The E710 includes a soft-foot checking program.

Can it align multiple machines?
Yes. The E710 supports machine-train alignment, including systems with multiple couplings.

What shaft diameter can it accommodate?
The standard shaft brackets are specified for shaft diameters from approximately 20 to 450 mm.
