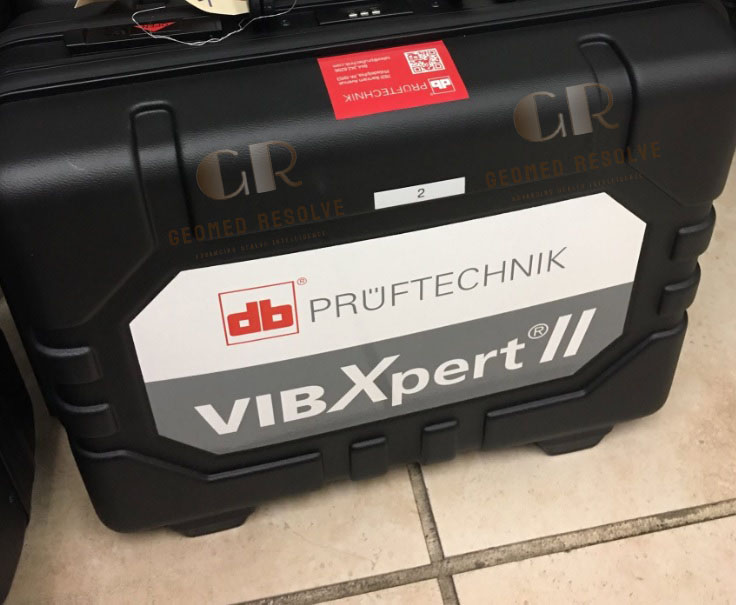

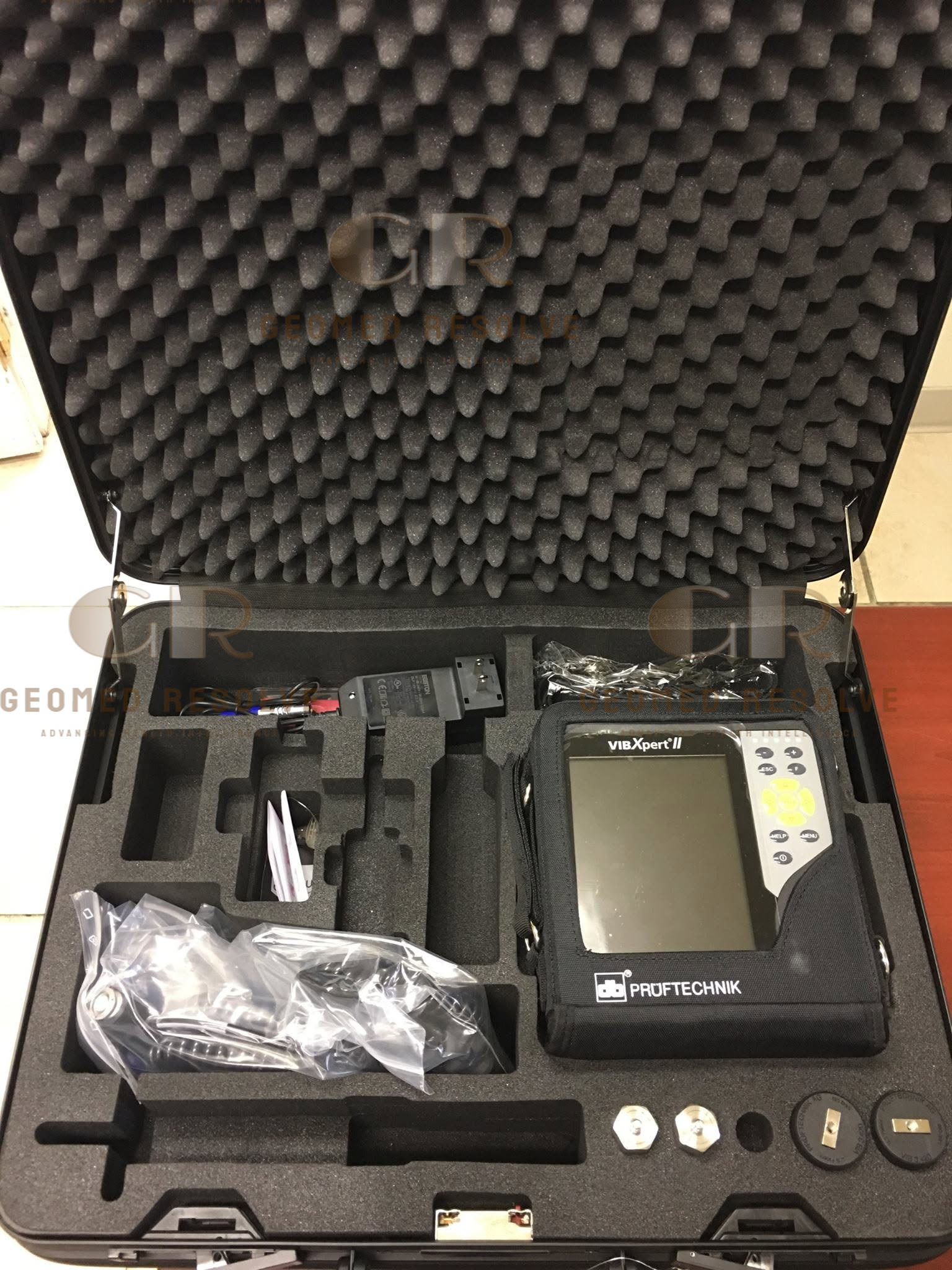

PRUFTECHNIK VIBXPERT II Vibration Analyzer

Description

PRUFTECHNIK VIBXPERT II Vibration Analyzer & Field Balancer – Portable Machinery Condition Monitoring, FFT Analysis & Rotor Balancing System

The PRUFTECHNIK VIBXPERT II is a professional portable vibration analyzer, machine condition monitoring instrument and field balancing system designed for detecting and analyzing mechanical problems in rotating machinery.

It can operate as a route-based vibration data collector, advanced FFT signal analyzer and one- or two-plane field balancer. The instrument is designed for on-site analysis of equipment ranging from industrial machines and pumps to diesel generators, turbines and other rotating machinery. (pruftechnik.com)

The VIBXPERT II is compatible with PRUFTECHNIK OMNITREND Center software for data management and detailed analysis.

Main Benefits

Portable professional vibration analysis
Machine condition monitoring
FFT vibration analysis
Route-based data collection
One- and two-plane field balancing
Machinery troubleshooting
Bearing and gear condition analysis
Acceptance measurements
Data logging
Multimeter functions
Temperature measurement
RPM measurement
On-site diagnosis
OMNITREND Center software compatibility

Key Features

Dual-Channel Vibration Analysis
The VIBXPERT II can operate as a two-channel data collector and signal analyzer, allowing vibration signals to be measured and compared from multiple measurement points. PRUFTECHNIK’s current catalog identifies it as a dual-channel FFT data collector. (pruftechnik-dev.s3.us-west-1.amazonaws.com)

FFT Analysis
The VIBXPERT II provides advanced frequency-domain analysis for identifying common rotating-machinery problems such as:
Unbalance
Misalignment
Bearing defects
Gear damage
Looseness
Resonance
Other abnormal vibration conditions

Field Balancing
The instrument can perform one- and two-plane operational balancing. PRUFTECHNIK states that the balancing function uses an influence-coefficient method and provides several balancing approaches, including fixed-weight and fixed-location methods.

Route-Based Data Collection
The VIBXPERT II can be used for recurring machine-condition measurement routes, allowing maintenance teams to monitor vibration trends over time and identify developing machine problems.

Key Specifications

Brand: PRUFTECHNIK
Model: VIBXPERT II
Product Type: Portable Vibration Analyzer / Data Collector / Field Balancer
Vibration Channels: 2 channels on the signal-analyzer version
Frequency Range: DC–51.2 kHz
Acceleration Measurement: From 0.5 Hz
Dynamic Range: 96 dB measurement / 136 dB total
Sampling Frequency: Up to 131 kHz per channel
Input: AC/DC voltage, current and IEPE-type accelerometer
Temperature Input: Type-K thermocouple
RPM / Pulse Input: 1 channel
RPM Range: 10–200,000 min⁻¹
Temperature Range: Approximately −50°C to +1,000°C with Type-K sensor
Output Frequency Range: 0–500 Hz / 0.5 Hz–40 kHz depending on function
Output Resolution: 0.05 Hz
Weight: Approximately 1.1 kg
Dimensions: Approximately 186 × 162 × 52 mm
Software: OMNITREND Center compatible

Applications

The PRUFTECHNIK VIBXPERT II is suitable for:
Rotating machinery condition monitoring
Vibration analysis
Predictive maintenance
Preventive maintenance
Motor diagnostics
Pump diagnostics
Fan and blower monitoring
Compressor monitoring
Gearbox diagnostics
Turbine monitoring
Generator monitoring
Bearing condition monitoring
Gear condition monitoring
Field balancing
Industrial troubleshooting
Machinery acceptance testing

PRUFTECHNIK specifically describes applications ranging from machine halls and diesel generators to bucket excavators and hydroelectric turbines.

Machinery Condition Monitoring
The VIBXPERT II is designed to provide maintenance technicians with vibration measurements that can help identify developing machinery faults before they lead to major failures.

Typical diagnostic targets include:
Unbalance – excessive vibration caused by uneven rotor mass distribution
Misalignment – vibration associated with incorrectly aligned shafts
Bearing damage – characteristic vibration patterns from damaged rolling elements or raceways
Gear defects – gear-mesh and tooth-related vibration
Mechanical looseness – vibration associated with loose components
Resonance – excessive response at natural frequencies

Field Balancing
The VIBXPERT II can be configured for operational balancing in one or two planes.

This makes it useful for balancing rotating components such as:
Fans
Pumps
Compressors
Turbine rotors
Generator rotors
Inductors
Other stationary rotating machines

What is the PRUFTECHNIK VIBXPERT II used for?
It is used for vibration analysis, machinery condition monitoring, troubleshooting, route-based data collection and field balancing. (pruftechnik.com)

Can the VIBXPERT II perform field balancing?
Yes. It can perform one- and two-plane operational field balancing when equipped with the appropriate balancing functionality. (pruftechnik.com)

How many vibration channels does it have?
The signal-analyzer version provides two vibration channels. PRUFTECHNIK also offers other VIBXPERT II variants with different functionality. (pruftechnik-dev.s3.us-west-1.amazonaws.com)

What is the maximum frequency range?
The published specification gives a frequency range up to 51.2 kHz, with acceleration measurement from approximately 0.5 Hz. (tritanengineering.com.my)

Does it measure RPM?
Yes. The VIBXPERT II has a dedicated pulse/tachometer input and an RPM measurement range of approximately 10–200,000 rpm. (tritanengineering.com.my)

Is it suitable for predictive maintenance?
Yes. It is designed specifically for machine condition monitoring and vibration-based predictive maintenance.
