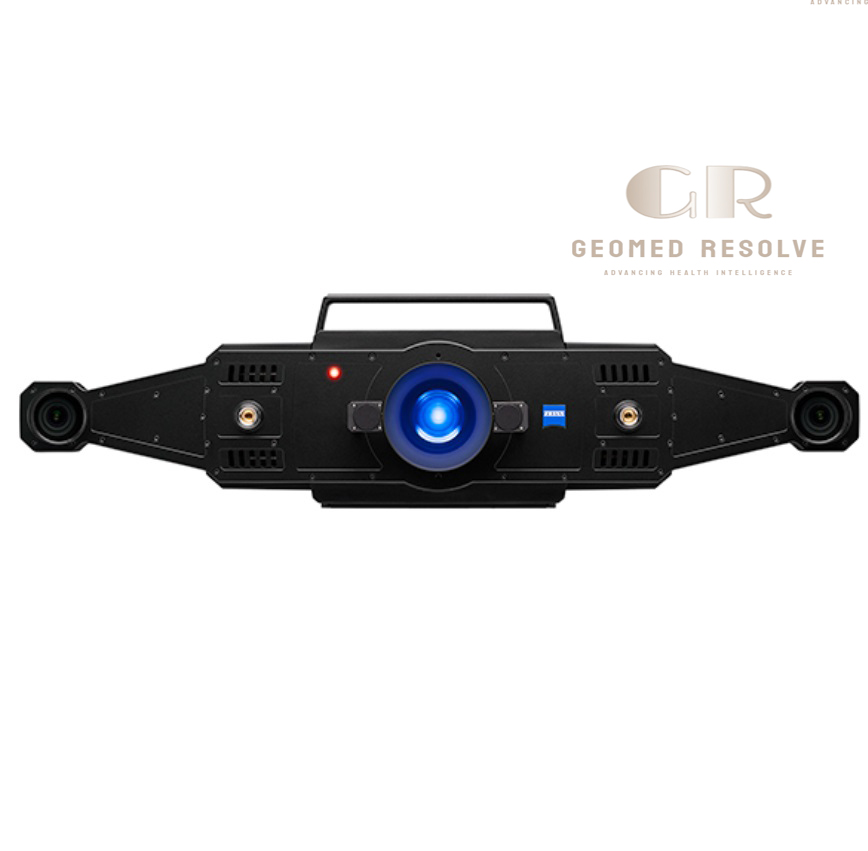

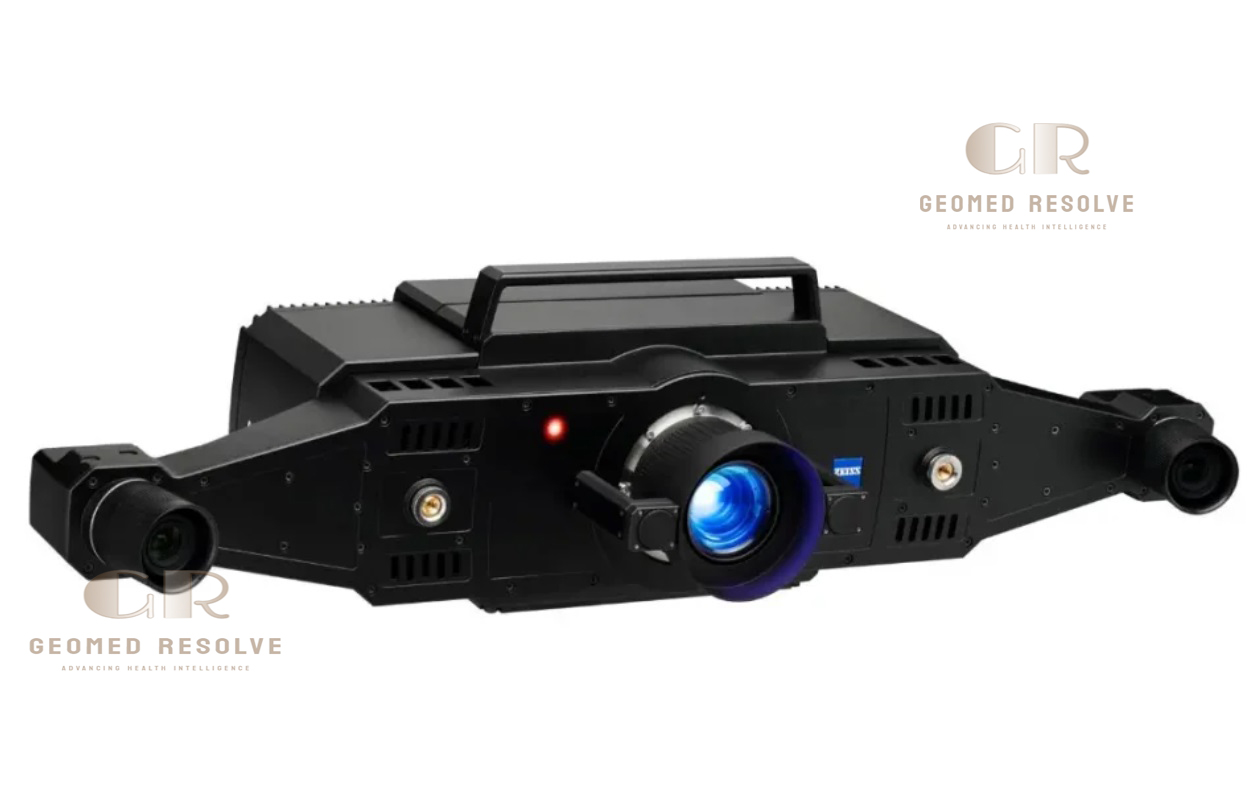

ZEISS ATOS LRX Optical 3D Scanner

Description

ZEISS ATOS LRX Optical 3D Scanner – High-Precision Structured Light System for Large-Scale Industrial 3D Scanning & Metrology Inspection

The ZEISS ATOS LRX Optical 3D Scanner is an advanced industrial structured light scanning system designed for high-precision, large-scale 3D measurement and inspection. It delivers ultra-fast full-field data acquisition using a powerful optical laser projection system capable of capturing extremely dense point clouds in a single scan.

With its large measurement area and high-resolution data output, the ATOS LRX enables efficient scanning of complex geometries and oversized industrial components. It is widely used in aerospace, automotive, and heavy industry applications where accuracy, repeatability, and speed are critical.

The ZEISS ATOS LRX Optical 3D Scanner is a premium metrology solution for organizations requiring reliable large-part inspection, reverse engineering, and advanced industrial 3D digitization.

Main Benefits

Ultra-Fast Large-Scale Scanning
Captures millions of measurement points in a single scan for rapid data acquisition of big components.

High Metrology Accuracy
Provides reliable, traceable measurement data for industrial quality control and inspection.

Full-Field 3D Data Capture
Generates complete surface coverage instead of partial point sampling.

Optimized for Large Parts
Designed specifically for oversized and complex industrial components.

Robust Industrial Performance
Built for stable operation in production and metrology environments.

Key Features

Ultra-Bright Laser Light Projection System
Uses advanced laser illumination to capture full-field 3D geometry even on dark or reflective surfaces.

Large Measurement Area (Up to 4 m²)
Enables efficient scanning of very large parts with fewer scan positions.

High-Density Point Cloud Capture
Records up to 2 × 12 million measurement points per scan, delivering extremely detailed datasets.

Structured Blue Light / Laser Hybrid Technology
Ensures high accuracy even on complex freeform geometries.

Integrated Industrial Software Workflow
Works with ZEISS INSPECT for scanning, inspection, and reporting in one platform.

Robust Metrology-Grade Construction
Designed for harsh industrial environments with stable calibration monitoring.

Fast Calibration & Workflow Efficiency
Supports rapid on-site recalibration for continuous production use.

Specifications

Product Type: Optical Structured Light / Laser 3D Scanner
Technology: Industrial structured light / laser-based optical scanning
Category: 3D Scanners
Subcategory: Structured Light Metrology 3D Scanners
Measurement Volume: Up to 4 m² per scan
Point Density: Up to 24 million points per scan (2 × 12M)
Application Range: Large-scale industrial components
Scanning Type: Full-field optical 3D scanning
Data Output: High-resolution 3D point clouds & surface meshes
Software: ZEISS INSPECT / ZEISS Quality Suite
Operating Environment: Industrial metrology, production, quality labs
Object Size Range: Large-volume parts and complex geometries
Calibration: Automated system monitoring with traceable metrology support

Applications

Aerospace Component Inspection
Used for turbine blades, fuselage parts, and structural assemblies.

Automotive Body & Tooling Analysis
Supports stamping tools, body panels, and mold verification.

Heavy Industry Measurement
Ideal for large machinery, castings, and welded structures.

Reverse Engineering
Creates precise 3D CAD models from physical parts.

Mold & Die Inspection
Checks deformation, wear, and manufacturing accuracy.

Quality Control in Production
Ensures dimensional accuracy in mass manufacturing workflows.

What is the ZEISS ATOS LRX used for?
It is used for high-precision 3D scanning of large industrial components for inspection, metrology, and reverse engineering.

What makes ATOS LRX different from standard 3D scanners?
It is optimized for large-volume, full-field scanning, capturing millions of points in a single scan.

Can it scan very large objects?
Yes. It is specifically designed for oversized industrial parts up to several meters in size.

Is it suitable for factory environments?
Yes. It is built for rugged industrial and production environments.

What type of technology does it use?
It uses advanced structured light and laser-based optical scanning technology.

Which industries use ATOS LRX?
It is widely used in aerospace, automotive, heavy manufacturing, and industrial metrology.
