Hilti PS 1000 X-Scan Concrete Scanner
The Hilti PS 1000 X-Scan Concrete Scanner with PSA 200 Tablet is a professional non-destructive concrete imaging system designed to locate reinforcement, post-tensioning cables, pipes, cables, voids, and other embedded objects. With 2D and 3D scan visualization and tablet-based analysis, it provides an efficient solution for concrete inspection, drilling preparation, structural assessment, and construction documentation.
Description

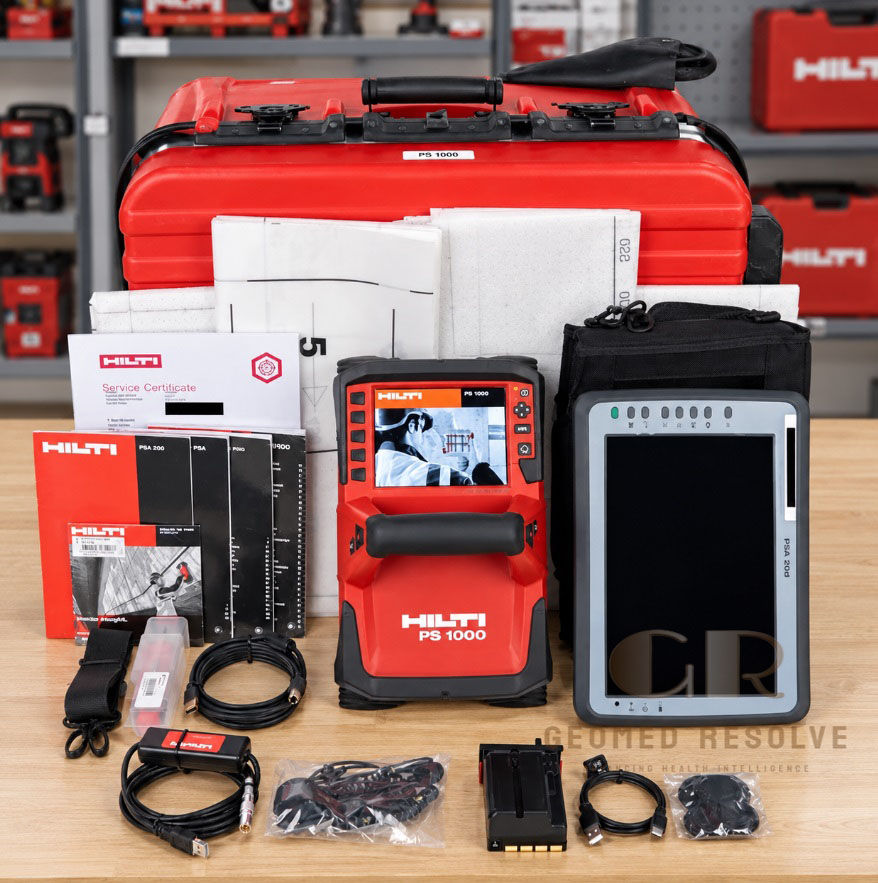

Hilti PS 1000 X-Scan Concrete Scanner with PSA 200 Tablet – Professional Concrete Imaging and Rebar Detection System

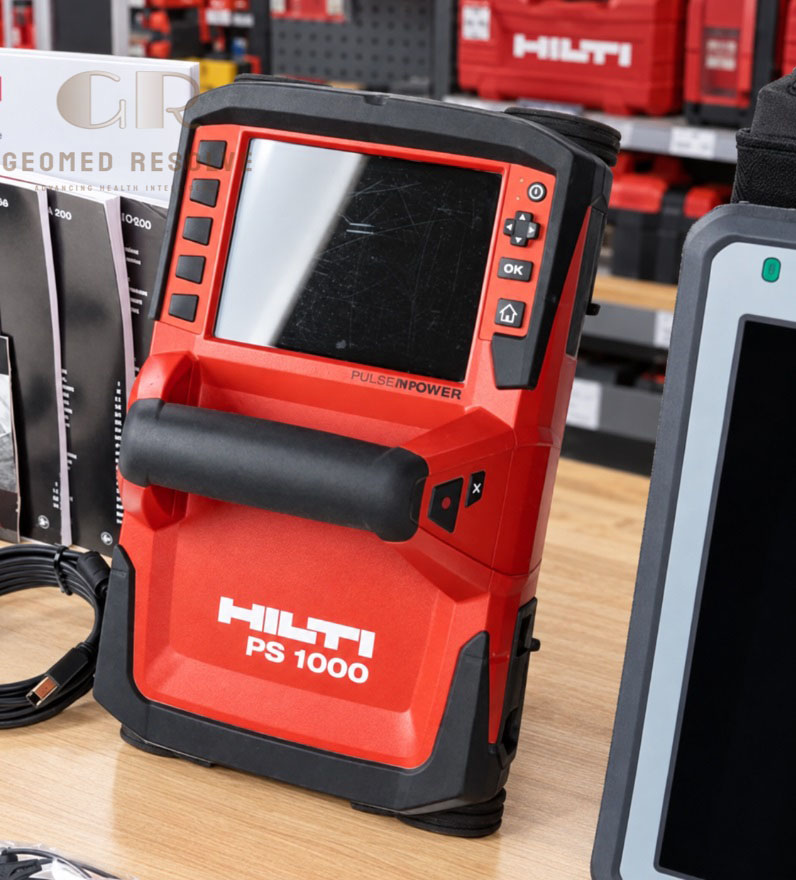

The Hilti PS 1000 X-Scan Concrete Scanner is a professional ground-penetrating radar and concrete imaging system designed to locate and visualize embedded objects inside concrete structures. It can help identify reinforcement bars, post-tensioning cables, metal and plastic pipes, electrical and fiber-optic cables, voids, and other concealed objects.
The system provides 2D and 3D visualization of scanned concrete structures and is designed for rapid on-site analysis. When paired with the PSA 200 Tablet, scan data can be transferred for detailed evaluation, documentation, and reporting. Hilti specifies a maximum object-localization depth of up to 300 mm under current published specifications, while other operating conditions and concrete characteristics can affect detection performance.
Main Benefits
Provides non-destructive inspection of concrete structures.
Helps locate reinforcement and concealed objects before drilling or cutting.
Produces 2D and 3D images for easier interpretation.
Supports analysis of multiple layers within concrete.
Helps reduce the risk of damaging embedded pipes, cables, and reinforcement.
Supports detailed on-site evaluation using the PSA 200 Tablet.
Suitable for floors, walls, slabs, balconies, tunnels, bridges, and other concrete structures.
Designed for efficient scanning of large concrete areas.
Key Features
Ground-penetrating radar-based concrete scanning.
Detection of embedded objects in multiple layers.
Maximum object-localization depth of up to 300 mm under current published specifications.
2D and 3D visualization of scan results.
Real-time display and analysis of concrete structures.
Three scanning modes for different inspection requirements.
Integrated radar antennas and electromagnetic sensing technology.
Data transfer to the PSA 200 Tablet for additional evaluation.
Internal scanner memory for up to 200 scans.
Compact handheld scanner design.
Suitable for non-destructive structural inspection.
Compatible with Hilti software and data-management workflows.
Key Specifications
Product: Hilti PS 1000 X-Scan Concrete Scanner
System: PS 1000 X-Scan Imaging System with PSA 200 Tablet
Technology: Ground-penetrating radar with electromagnetic sensing
Maximum object-localization depth: 300 mm
Depth indication accuracy: ±10 mm below 100 mm; ±15% above 100 mm
Localization accuracy: ±10 mm
Minimum distance between neighboring objects: 40 mm
Data memory: Up to 200 scans
Maximum operating time: Up to 4 hours
Operating temperature: −10°C to +50°C
Scanner weight with batteries: Approximately 3 kg
Protection rating: IP54 for scanner
Display: Color display for on-site scan visualization
Visualization: 2D and 3D scan images
Tablet: Hilti PSA 200 Tablet
Data transfer: Compatible with PSA 200 Tablet and PC-based workflows
Typical detected objects: Reinforcement bars, post-tensioning cables, metal pipes, plastic pipes, electrical cables, fiber-optic cables, voids, and other embedded structures.
Applications
Reinforcement bar detection.
Post-tensioning cable inspection.
Concrete structural analysis.
Pre-drilling and core-drilling inspection.
Diamond cutting and sawing preparation.
Detection of metal and plastic pipes.
Electrical and fiber-optic cable detection.
Detection of voids and gaps.
Concrete slab inspection.
Floor and ceiling inspection.
Bridge and tunnel inspection.
Balcony and structural element inspection.
Structural repair and renovation projects.
Rebar verification and documentation.
Non-destructive testing of concrete structures.
Typical Users
Construction companies.
Structural engineers.
Civil engineers.
Concrete inspection specialists.
NDT technicians.
Building surveyors.
Infrastructure inspection teams.
Concrete cutting and drilling contractors.
Restoration and renovation companies.
Structural repair specialists.
What is the Hilti PS 1000 X-Scan used for?
The PS 1000 X-Scan is used to locate and visualize objects embedded inside concrete, including reinforcement bars, post-tensioning cables, pipes, electrical cables, and voids.
How deep can the PS 1000 scan?
Hilti currently specifies a maximum object-localization depth of 300 mm. Actual performance can vary depending on concrete composition, moisture, object size, spacing, and site conditions.
Does the system provide 3D imaging?
Yes. The PS 1000 provides 2D and 3D visualization of concealed objects, helping operators interpret the location and arrangement of embedded structures.

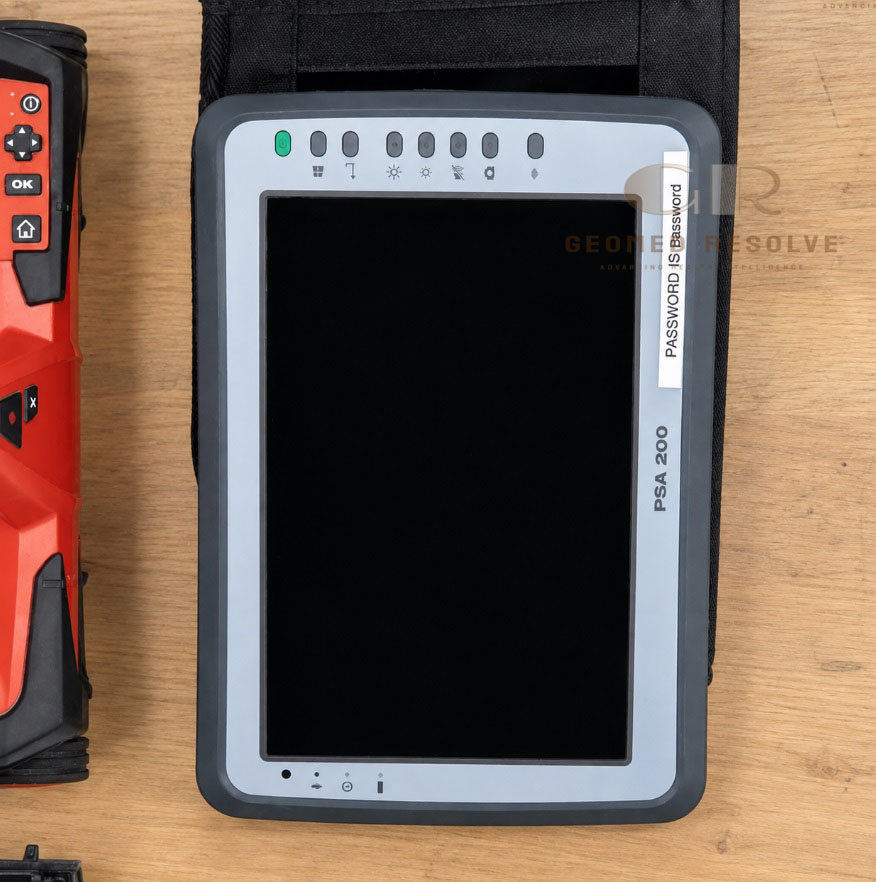

What is the PSA 200 Tablet used for?
The PSA 200 Tablet is designed for transferring, viewing, evaluating, and documenting scan data from compatible Hilti detection systems. PS 1000 scan data can be transferred to the PSA 200 for further evaluation.
Can the PS 1000 detect plastic pipes?
Yes. The system is designed to help locate both metal and plastic pipes within concrete, along with other embedded objects.
Is the PS 1000 suitable for non-destructive testing?
Yes. The PS 1000 is designed for non-destructive inspection of concrete structures and can help identify safe locations for drilling, coring, cutting, and other construction activities.
