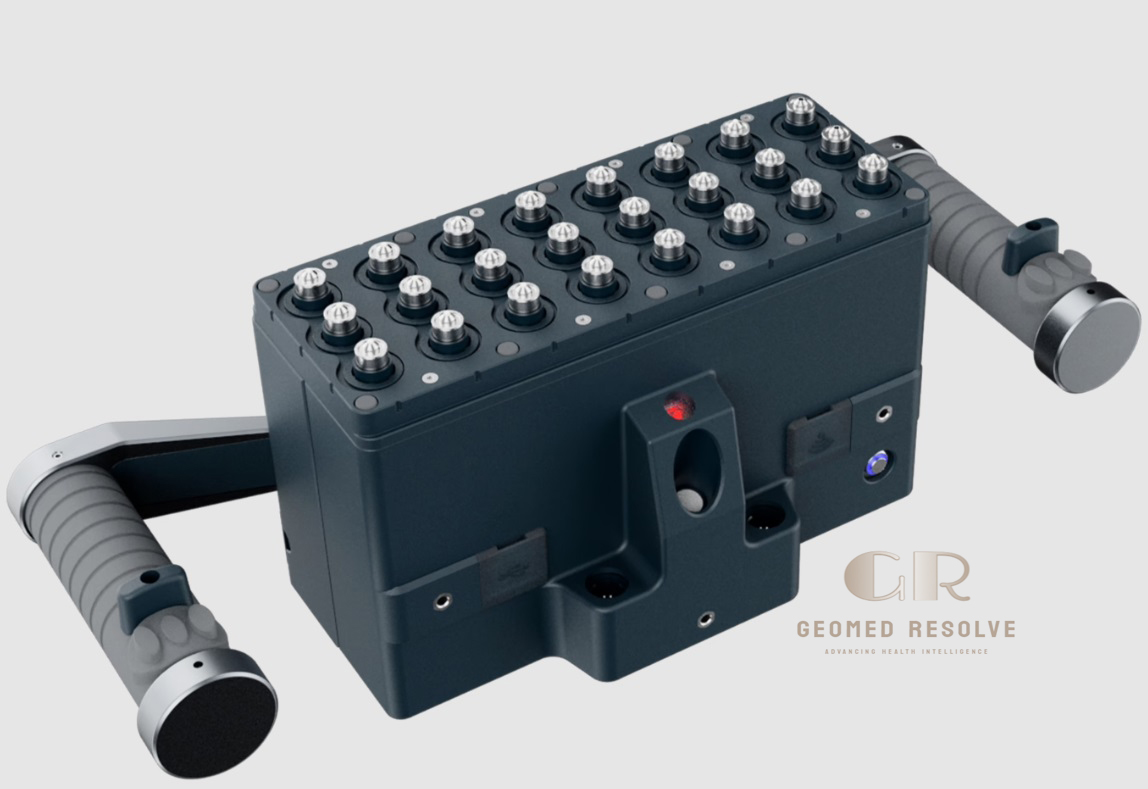

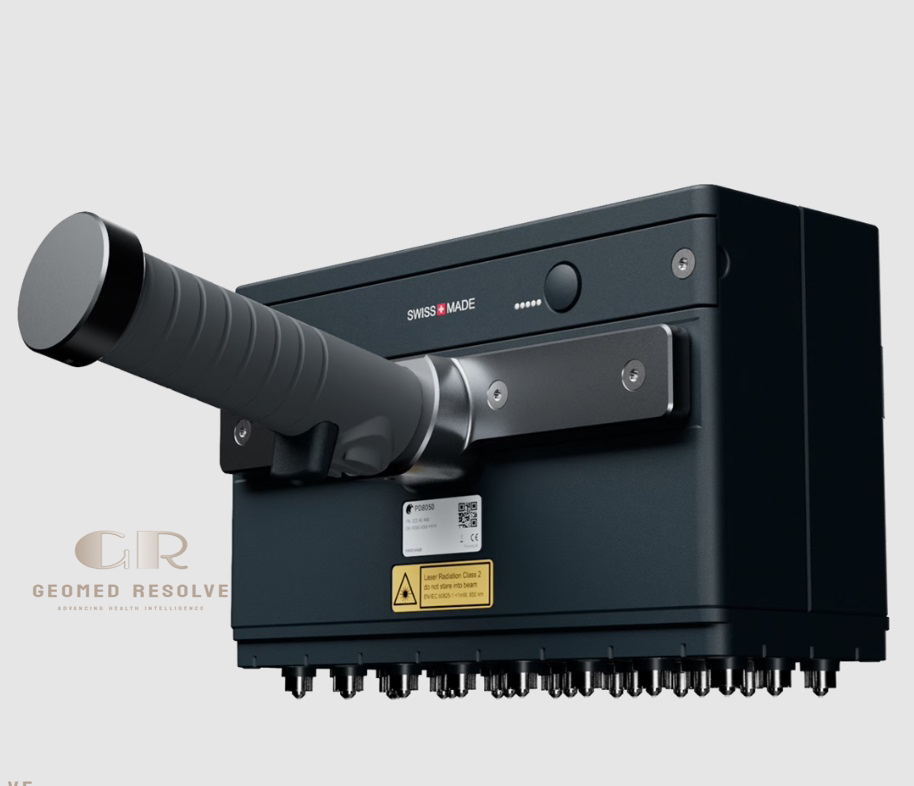

Proceq Pundit Ultrasonic PD8050
The Proceq Pundit Ultrasonic PD8050 is a professional NDT Testing Equipment solution designed for advanced non-destructive concrete inspection, structural imaging, defect detection, and thickness measurement. Utilizing multi-channel Ultrasonic Pulse Echo (UPE) technology, the PD8050 delivers high-resolution imaging for locating voids, delaminations, honeycombing, reinforcement, and other internal concrete defects without damaging the structure.
Designed for structural engineers, inspectors, contractors, and infrastructure professionals, the PD8050 features wireless operation, AI-assisted positioning, augmented reality visualization, cloud reporting, and real-time 2D and 3D imaging to improve inspection efficiency and accuracy
Description
Proceq Pundit Ultrasonic PD8050 – Advanced Ultrasonic Pulse Echo Concrete Imaging System
The Proceq Pundit Ultrasonic PD8050 is a next-generation NDT Testing Equipment solution engineered for high-resolution concrete inspection and structural imaging. Using advanced Multi-Channel Ultrasonic Pulse Echo technology, the system enables inspectors to locate voids, delaminations, honeycombing, reinforcement, and other hidden defects while measuring concrete thickness and pulse velocity with exceptional accuracy.
Featuring AI-assisted positioning, augmented reality visualization, real-time 2D and 3D imaging, and seamless cloud integration, the PD8050 streamlines inspection workflows and delivers comprehensive diagnostic data directly in the field. Its lightweight wireless design, advanced visualization capabilities, and professional reporting tools make it an ideal solution for engineers, contractors, infrastructure managers, and inspection professionals performing concrete assessment and structural evaluation.
Main Benefits
Advanced Ultrasonic Imaging
Produces high-resolution images of internal concrete structures for accurate defect detection.
Fast Non-Destructive Inspection
Evaluates concrete without drilling, coring, or damaging the structure.
Assisted Inspection
Intelligent positioning and feature interpretation help improve inspection speed and consistency.
Real-Time Visualization

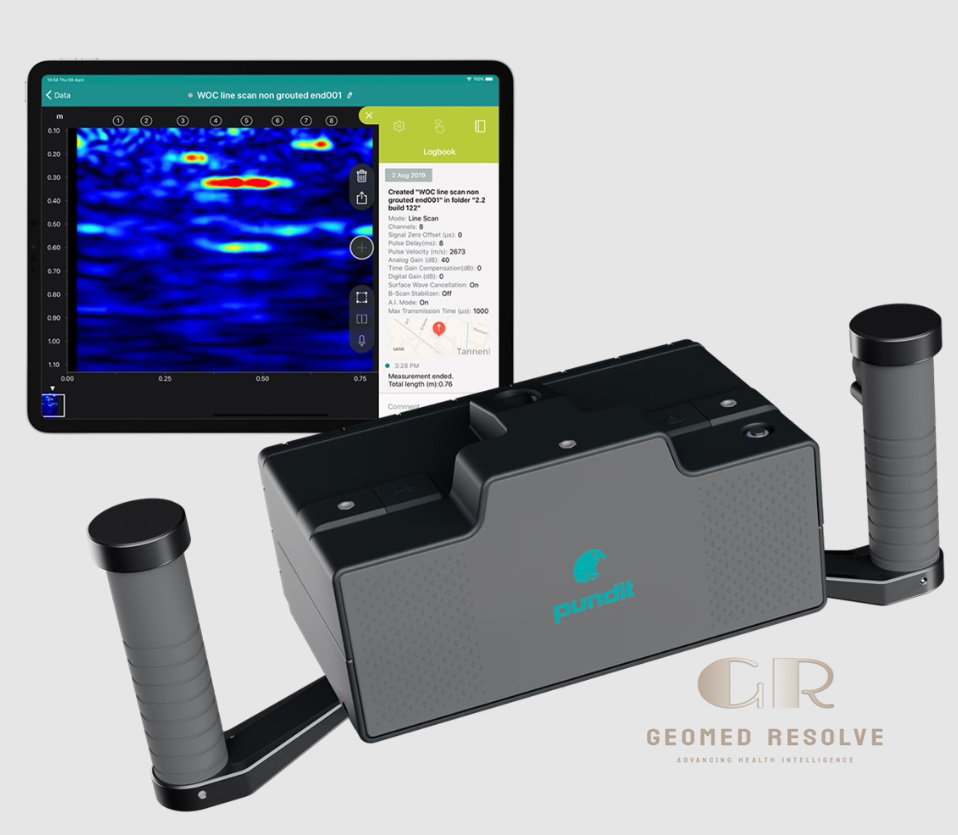

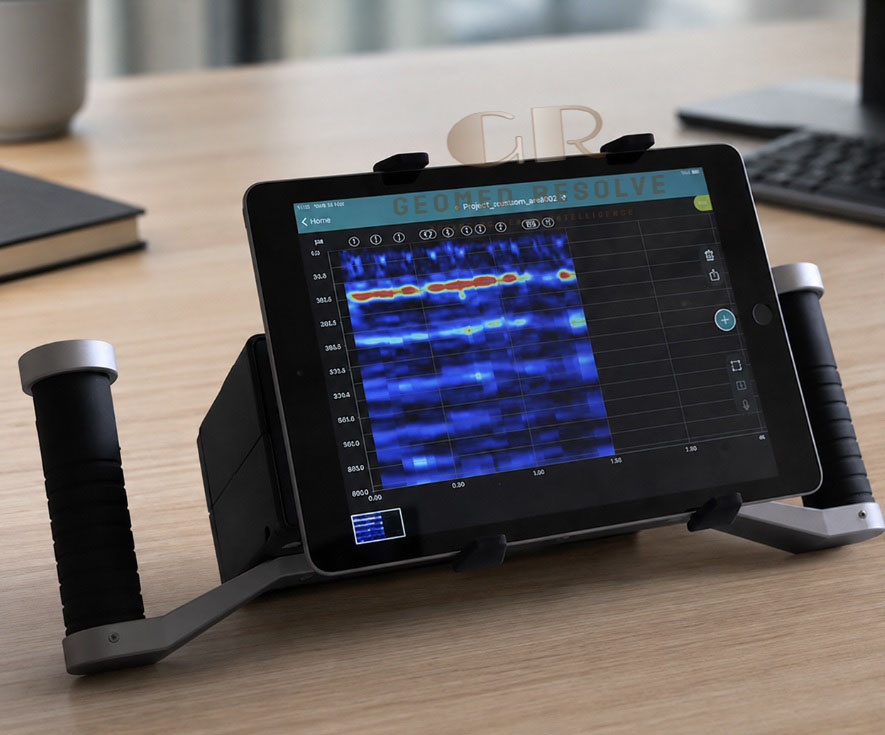

Supports live 2D, 3D, heatmap, and augmented reality imaging for comprehensive analysis.
Cloud-Based Reporting
Automatically synchronizes inspection data for reporting, storage, and collaboration.
Portable Wireless Operation
Lightweight wireless design enables efficient inspections in both laboratory and field environments.
Key Features
Multi-Channel Ultrasonic Pulse Echo Technology
Provides high-definition structural imaging using advanced ultrasonic pulse echo technology.
High-Resolution Imaging
Supports:
A-Scan
B-Scan
C-Scan
Heatmap
3D View
Augmented Reality
for detailed concrete analysis.
Assisted Workflow
Includes intelligent positioning, image stabilization, and AI-assisted feature interpretation.
Multiple Scan Modes
Line Scan
Stripe Scan
Grid Scan
Wide Measuring Range
Measures concrete structures up to 2 m deep depending on concrete quality.
Wireless Connectivity
Encrypted Wi-Fi communication with compatible Apple iPad devices and USB-C support for restricted environments.
Cloud Integration
Supports:
Cloud synchronization
URL sharing
Automatic logbook
Raw data export
HTML report generation

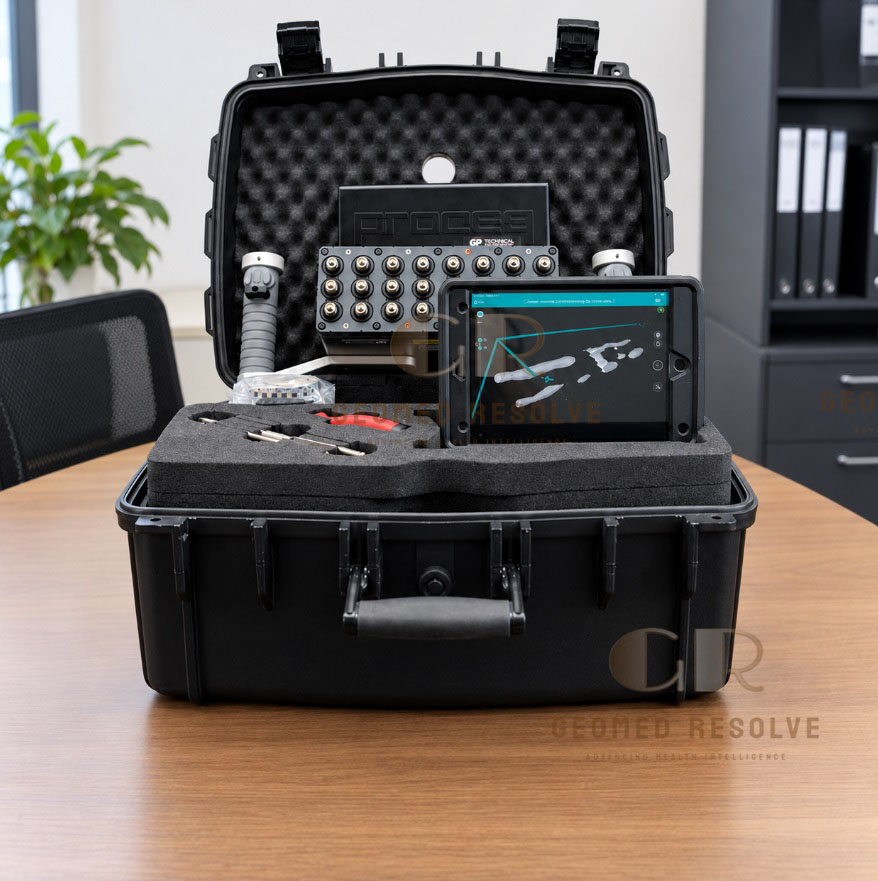

Rugged Portable Design
Battery-powered system designed for demanding field inspections.
Specifications
Product Type: ultrasonic Pulse Echo Concrete Imaging System
Category: NDT Testing Equipment
Subcategory: Ultrasonic Pulse Echo Testers
Manufacturer: Proceq (Screening Eagle)
Measurement Technology
Multi-Channel Ultrasonic Pulse Echo (UPE)
Bandwidth
20–80 kHz
Measuring Range
Up to 2 m (depending on concrete quality)
Measuring Resolution
0.1 μs
Pulse Voltage
±50 to ±150 V
Receiver Gain
1–10,000 (0–80 dB)
Measurement Modes
Line Scan
Stripe Scan
Grid Scan
Review Modes
A-Scan
B-Scan
C-Scan
Heatmap (Depth)
Heatmap (Pulse Velocity)
3D Visualization
Augmented Reality
Connectivity
Encrypted Wi-Fi
USB
USB-C
Battery
Rechargeable battery pack
6 × AA NiMH batteries
Display
Compatible Apple iPad (iOS 11 or later)
Cloud Platform
Screening Eagle Workspace
Applications
Concrete Defect Detection
Locates voids, delaminations, honeycombing, and internal defects.
Structural Imaging
Creates detailed ultrasonic images of reinforced concrete structures.
Thickness Measurement
Measures slab, wall, and structural concrete thickness.
Bond Assessment
Evaluates bond quality between concrete layers and repair materials.
Reinforcement Inspection
Detects closely spaced reinforcement bars and embedded objects.
Infrastructure Inspection
Suitable for bridges, tunnels, highways, parking structures, and public infrastructure.
Building Assessment
Evaluates walls, beams, columns, slabs, and foundations.
Quality Control
Supports inspection during construction, rehabilitation, and maintenance projects.
What is the Proceq Pundit Ultrasonic PD8050?
The PD8050 is an advanced ultrasonic pulse echo imaging system for non-destructive inspection of concrete structures, defect detection, and structural assessment.
What technology does the PD8050 use?
It utilizes Multi-Channel Ultrasonic Pulse Echo (UPE) technology to generate high-resolution images of concrete interiors.
What is the maximum inspection depth?
The system can inspect concrete to depths of up to 2 meters, depending on material quality.
Can the PD8050 create 3D images?
Yes. It supports 3D visualization, heatmaps, and augmented reality for advanced structural analysis.
Is the PD8050 wireless?
Yes. It connects wirelessly to compatible Apple iPad devices using encrypted Wi-Fi and also supports USB-C connectivity.
What industries use the PD8050?
It is widely used in civil engineering, bridge inspection, infrastructure maintenance, structural engineering, concrete quality control, and non-destructive testing.
