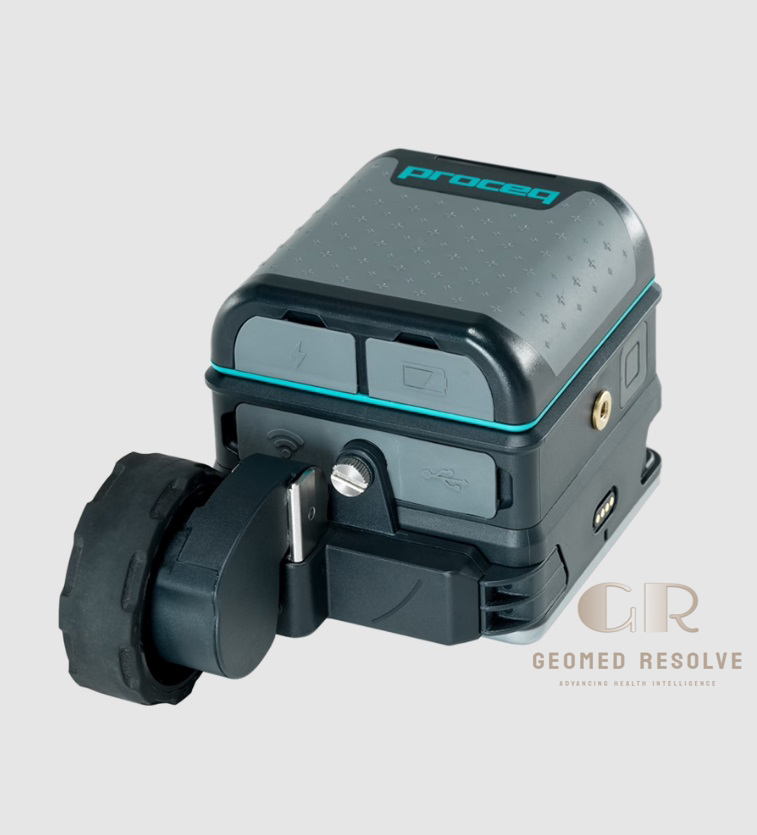

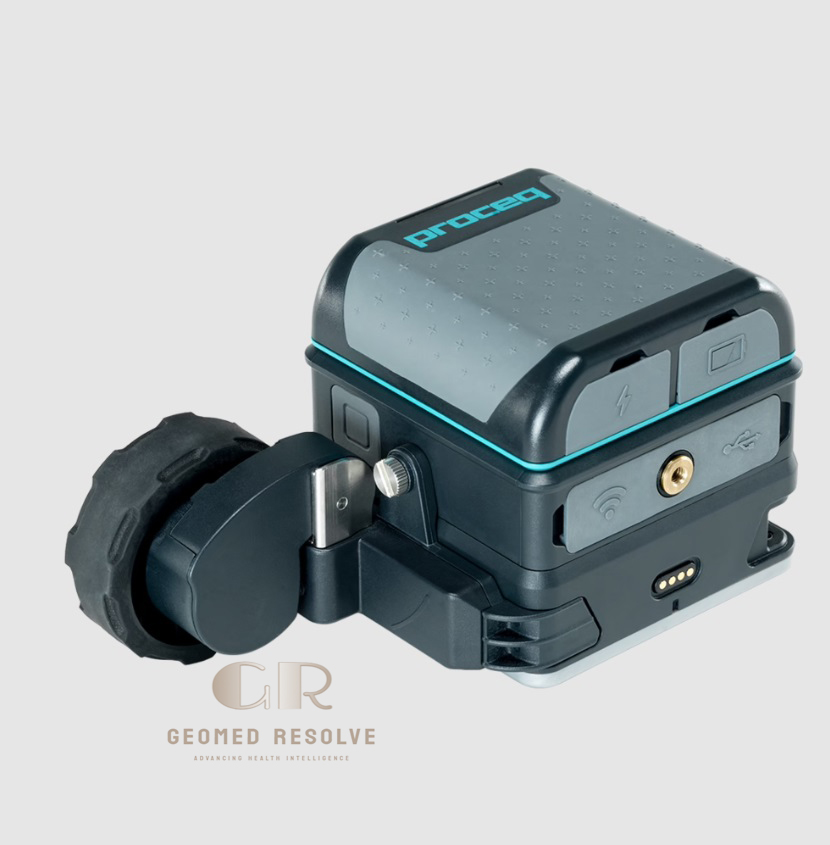

Proceq GP8800 Ground Penetrating Radar
The Proceq GP8800 Ground Penetrating Radar (GPR) is a compact, high-performance NDT Testing Equipment solution engineered for non-destructive concrete inspection, rebar locating, tendon detection, slab thickness measurement, and structural assessment. Utilizing advanced Stepped-Frequency Continuous-Wave (SFCW) radar technology with a frequency range of 400–6000 MHz, the GP8800 delivers exceptional resolution and shallow-depth imaging in a lightweight handheld design.
Designed for civil engineers, infrastructure inspectors, contractors, and structural consultants, the GP8800 integrates seamlessly with the Proceq GPR App, providing real-time visualization, 3D imaging, augmented reality, and cloud-based reporting for faster and more accurate inspections.
Description
Proceq GP8800 Ground Penetrating Radar (GPR) – Ultra-Portable Concrete Inspection & Rebar Detection Scanner
The Proceq GP8800 Ground Penetrating Radar (GPR) is a professional NDT Testing Equipment solution developed for high-resolution concrete inspection and structural evaluation. Featuring advanced Stepped-Frequency Continuous-Wave (SFCW) radar technology, the GP8800 delivers exceptional imaging performance for locating reinforcement bars, tendon ducts, conduits, and embedded utilities while maintaining a compact handheld form factor.
Integrated with the Proceq GPR App, the system provides real-time visualization, cloud connectivity, automated reporting, 3D imaging, and augmented reality to streamline inspection workflows. Its lightweight design, wireless connectivity, IP54 protection, and advanced software capabilities make it an ideal solution for concrete scanning, structural assessment, infrastructure maintenance, bridge inspection, and construction quality control.
The Proceq GP8800 Ground Penetrating Radar is an excellent choice for engineers, contractors, inspection professionals, and infrastructure specialists requiring accurate, portable, and efficient non-destructive testing technology.
Main Benefits
High-Resolution Concrete Imaging
Provides outstanding clarity for locating reinforcement bars, conduits, tendon ducts, and embedded utilities.
Ultra-Portable Design
Compact handheld scanner weighing less than 500 g for easy one-handed operation.
Fast Non-Destructive Inspection
Performs structural inspections without drilling, coring, or damaging concrete.
Real-Time Data Visualization

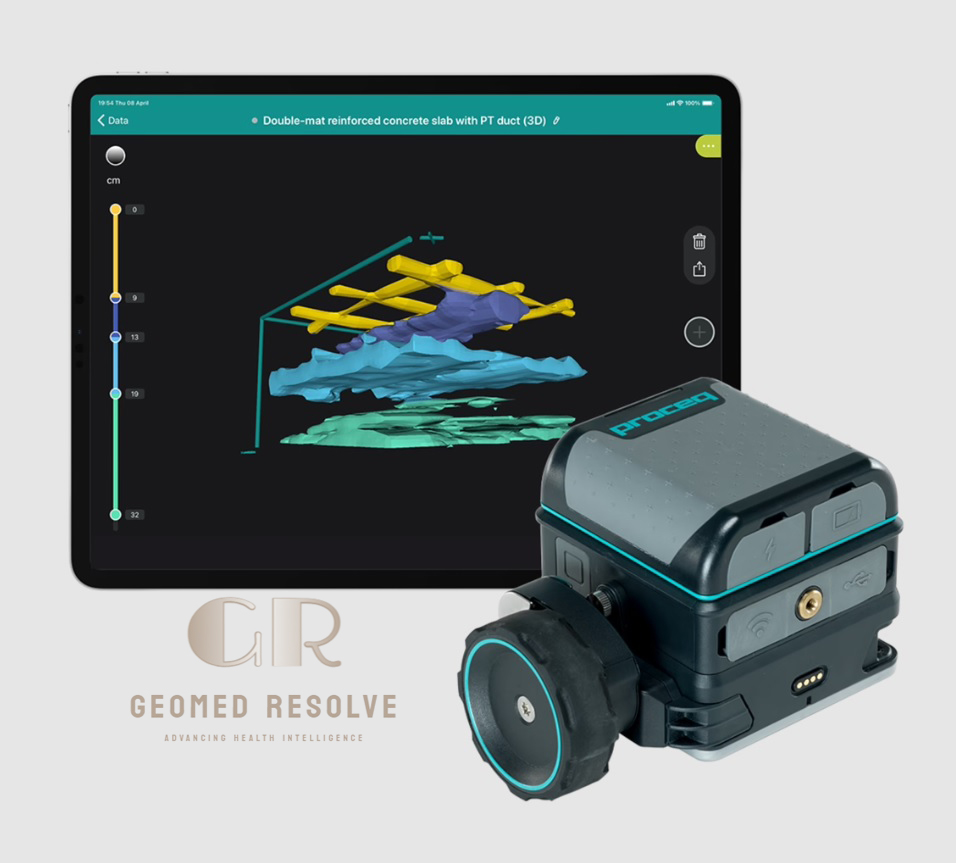

Displays live scans, migrated views, 3D imaging, and augmented reality through the Proceq GPR App.
Cloud-Based Workflow
Supports digital reporting, cloud storage, and easy sharing of inspection data.
Ideal for Tight Spaces
Zero ground clearance and compact dimensions allow scanning close to walls, corners, and beneath obstacles.
Key Features
SFCW Radar Technology
Stepped-Frequency Continuous-Wave radar delivers exceptional resolution for shallow concrete inspections.
Wide Frequency Range
400–6000 MHz
Provides excellent image quality and object detection.
Penetration Depth
Up to 65 cm (25.6 inches) depending on concrete conditions.
High Object Detection Accuracy
Capable of detecting closely spaced rebars with high precision after calibration.
Advanced Scan Modes
Supports:
Line Scan
Superline Scan
Area Scan
A-Scan
B-Scan
3D View
Augmented Reality
Time Slice View
Wireless Connectivity
Supports Wi-Fi and USB-C communication with compatible display devices.
Compact Handheld Design
Weight: 487 g (excluding battery)
Dimensions: 8.9 × 8.9 × 7.6 cm
Rugged Construction
Designed for demanding field environments with IP54 protection.
Specifications
Product Type: Ground Penetrating Radar (GPR)
Category: NDT Testing Equipment
Subcategory: Ground Penetrating Radar (GPR)
Manufacturer: Proceq (Screening Eagle)
Measurement Technology
Stepped-Frequency Continuous-Wave (SFCW) Radar
Frequency Range
400–6000 MHz
Penetration Depth
Up to 65 cm
Antenna
Single integrated antenna
Ground Clearance
0 cm
Accuracy
Depth accuracy: ±5 mm (after calibration)
Connectivity
Wi-Fi
USB-C
Battery
Rechargeable Li-ion battery
Optional AA battery pack
External USB power bank support
Operating Time
Up to 8 hours
Protection Rating
IP54
Weight
487 g (excluding battery)
Dimensions
8.9 × 8.9 × 7.6 cm
Compatible Software
Proceq GPR App
Workspace Cloud
Applications
Concrete Inspection
Locates reinforcement bars, post-tension cables, conduits, and embedded objects.
Rebar Detection
Determines rebar spacing, depth, and concrete cover.
Structural Assessment
Evaluates concrete structures before drilling, cutting, or coring.
Bridge Inspection
Inspects bridge decks, columns, and reinforced concrete structures.
Building Inspection
Assesses slabs, walls, beams, and foundations.
Infrastructure Maintenance
Supports inspection of tunnels, parking structures, highways, and public infrastructure.
Utility Detection
Locates metallic and non-metallic embedded utilities within concrete.
Quality Control
Verifies reinforcement placement during construction and renovation projects.
What is the Proceq GP8800 Ground Penetrating Radar?
The GP8800 is a handheld ground penetrating radar system designed for non-destructive concrete inspection, rebar locating, and structural assessment.
What technology does the GP8800 use?
It uses Stepped-Frequency Continuous-Wave (SFCW) radar technology with a frequency range of 400–6000 MHz.
How deep can the GP8800 scan?
The system can inspect concrete to depths of approximately 65 cm, depending on material conditions.
Can it generate 3D images?
Yes. It supports 3D visualization, augmented reality, and advanced scan modes through the Proceq GPR App.
Is the GP8800 portable?
Yes. Its compact design and lightweight construction make it ideal for handheld field inspections.
What industries use the GP8800?
It is widely used in civil engineering, construction, infrastructure inspection, bridge maintenance, structural engineering, and concrete quality control.
