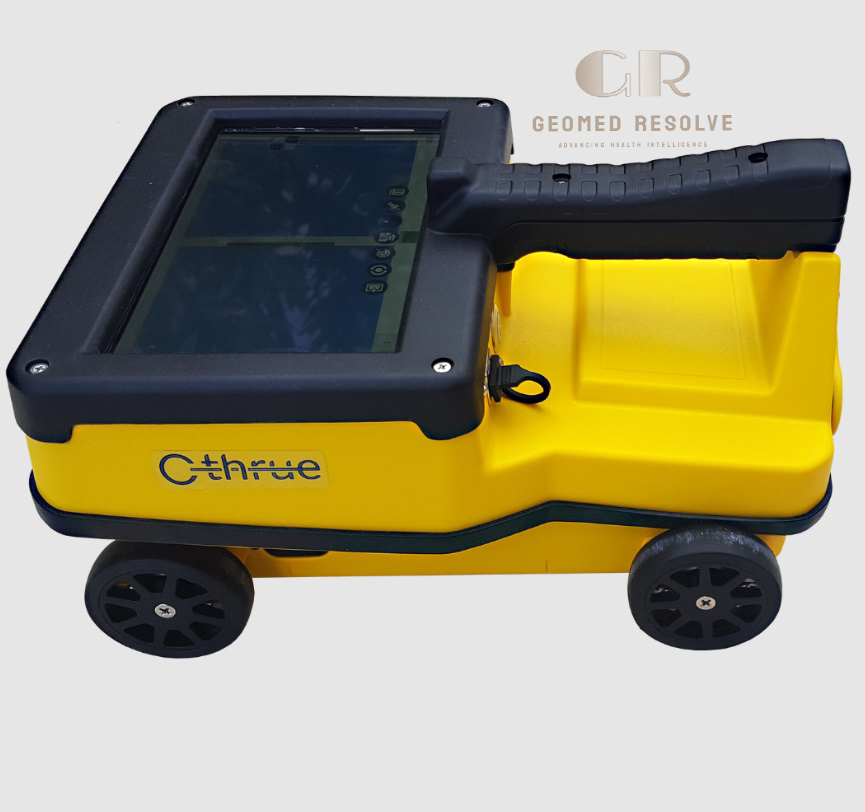

Leica IDS C-thrue Concrete Scanner

Description

Leica IDS C-thrue Concrete Scanner – Professional Ground Penetrating Radar for Concrete Inspection

The Leica IDS C-thrue Concrete Scanner is an advanced NDT Testing Equipment solution developed for professional concrete inspection and structural assessment. Utilizing 2.0 GHz dual-polarized Ground Penetrating Radar (GPR) technology, the system delivers high-resolution subsurface imaging capable of locating rebars, post-tension cables, conduits, voids, and embedded utilities to depths of 80 cm. Its real-time B-scan and C-scan visualization, integrated electromagnetic detection, automatic positioning system, and augmented reality capabilities enable engineers and contractors to make fast, accurate decisions before drilling, cutting, or renovating concrete structures.

With a lightweight 2.4 kg design, 7-inch touchscreen, 32 GB internal storage, Wi-Fi connectivity, and IP65 environmental protection, the C-thrue is built for demanding field conditions. The scanner supports inspections of bridges, tunnels, buildings, parking structures, industrial facilities, and transportation infrastructure while helping improve safety, reduce project risks, and minimize costly structural damage.

The Leica IDS C-thrue Concrete Scanner is an ideal solution for civil engineers, structural consultants, construction companies, infrastructure owners, utility contractors, and NDT professionals seeking a reliable, high-performance concrete scanning system.

Main Benefits

Deep Concrete Inspection
Scans reinforced concrete to detect rebars, voids, conduits, post-tension cables, and hidden utilities up to 80 cm deep.

Dual Polarization Technology
Horizontal and vertical antenna polarization improves detection accuracy and imaging quality of embedded objects.

Safe Drilling & Cutting
Automatically identifies reinforcement and hidden objects before coring or drilling, reducing the risk of structural damage.

Real-Time Visualization
Displays B-scan and C-scan images instantly for immediate decision-making on site.

Lightweight Portable Design
Compact handheld scanner is easy to transport and operate in buildings, bridges, tunnels, and confined areas.

Augmented Reality Support
Optional remote controller provides real-time 3D visualization and augmented reality for enhanced inspection workflows.

Key Features

2.0 GHz Ground Penetrating Radar
High-frequency GPR antenna delivers detailed subsurface concrete imaging.

Dual-Polarized Antennas
Includes:
Horizontal Polarization
Vertical Polarization
for improved object identification and orientation detection.

Four Antenna Configuration
Features:
4 Antennas
2 Radar Channels
for high-resolution concrete scanning.

Automatic Positioning System
Virtual Pad positioning uses integrated Class 1 laser sensors with reflective grids for accurate scan navigation.

Integrated EM Detection
Built-in electromagnetic sensor detects energized AC power conduits operating at 50/60 Hz.

Multi-Touch Display
Large 7-inch TFT touchscreen provides clear visualization and intuitive operation.

Wireless Connectivity
Supports:
Wi-Fi
USB
for data transfer, software updates, and remote operation.

Rugged Construction
IP65-rated enclosure withstands harsh construction site conditions.

Specifications

Product Type: Ground Penetrating Radar Concrete Scanner
Category: NDT Testing Equipment
Subcategory: Concrete Scanners
Manufacturer: Leica Geosystems (IDS GeoRadar)
Model: IDS C-thrue
Technology
Ground Penetrating Radar (GPR)
Antenna Center Frequency
2.0 GHz
Number of Antennas
4
Radar Channels
2
Antenna Polarization
Horizontal
Vertical
Maximum Detection Depth
Up to 80 cm (31.5 in.)
Scan Interval
Up to 10 scans/cm
Positioning System
Virtual Pad
Class 1 Laser Positioning
Power Conduit Detection
Integrated EM Sensor (50/60 Hz)
Display
7-inch TFT Multi-Touch
Storage
32 GB Internal Memory
Connectivity
USB
Wi-Fi
Battery
Li-ion 15 V, 3.2 Ah
Approximately 3 Hours Runtime
Protection Rating
IP65
Dimensions
285 × 200 × 160 mm
Weight
Approximately 2.4 kg (with battery)
Operating Temperature
−20°C to +50°C

Applications
Concrete Inspection
Rebar Detection
Post-Tension Cable Detection
Void Detection
Utility Detection
Structural Assessment
Bridge Inspection
Tunnel Inspection

Recommended Industries
Construction
Civil Engineering
Structural Inspection
Infrastructure Maintenance
Utility Surveying
Building Renovation
Bridge Engineering
NDT Inspection Services

Applications

Reinforced Concrete Inspection
Locates reinforcement bars before drilling and coring.

Bridge & Tunnel Inspection
Evaluates concrete integrity in transportation infrastructure.

Building Renovation
Identifies hidden structural elements before demolition or remodeling.

Utility Detection
Detects embedded conduits and electrical lines inside concrete.

Structural Assessment
Supports condition assessment of concrete walls, slabs, columns, and beams.

Infrastructure Maintenance
Assists engineers in preventive maintenance and rehabilitation projects.

What is the Leica IDS C-thrue Concrete Scanner?
The Leica IDS C-thrue is a professional Ground Penetrating Radar (GPR) system for non-destructive concrete inspection and subsurface imaging.

What can the C-thrue detect?
It detects rebars, post-tension cables, voids, conduits, power cables, and other embedded objects inside concrete structures.

How deep can it scan?
The scanner can inspect concrete structures to depths of up to 80 cm (31.5 inches), depending on material conditions.

Does it support real-time imaging?
Yes. The system provides real-time B-scan and C-scan visualization along with optional augmented reality viewing.

Is it suitable for construction sites?
Yes. Its lightweight, compact, and IP65-rated design makes it ideal for construction, bridge inspections, and infrastructure projects.

Who commonly uses the Leica IDS C-thrue?
It is widely used by civil engineers, structural inspectors, concrete contractors, utility surveyors, bridge engineers, infrastructure consultants, and NDT professionals.
