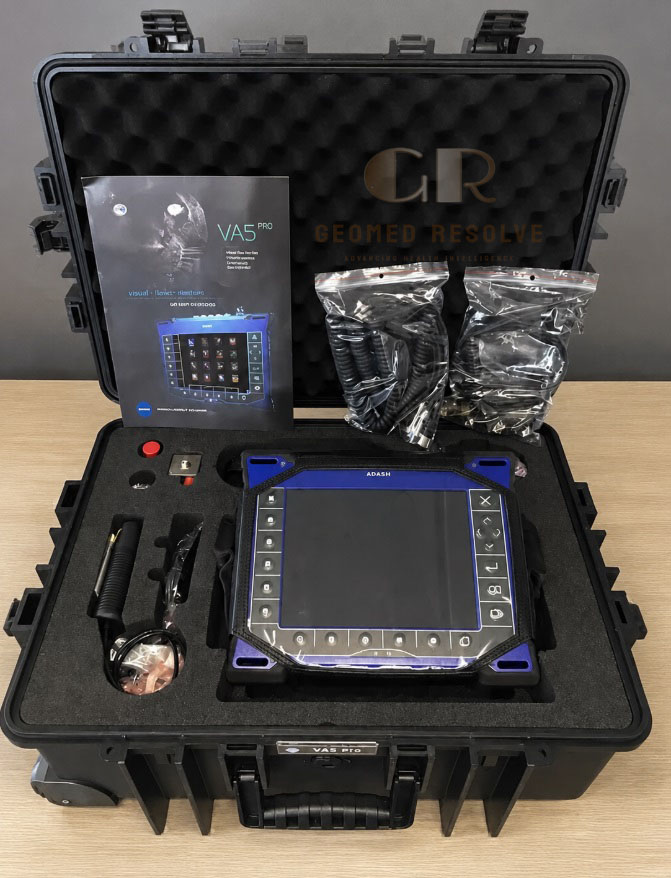

Adash A4500 VA5 Pro Vibration Analyzer

Description

Adash A4500 VA5 Pro Vibration Analyzer – Advanced 4-Channel Machinery Diagnostics, Balancing & Condition Monitoring System

The Adash A4500 VA5 Pro is a professional multifunctional vibration analyzer designed for advanced machinery condition monitoring, predictive maintenance and industrial diagnostics.

Combining 4-channel vibration measurement, vibration analysis, balancing, thermal imaging, ultrasound detection, motor current signature analysis (MCSA), operating deflection shapes (ODS), and route-based data collection, the VA5 Pro provides a complete solution for analyzing rotating machinery performance.

The system is designed for engineers and maintenance professionals who need detailed machine diagnostics directly in the field. Its large touchscreen, backlit keyboard, built-in camera and optional infrared thermal camera support efficient inspection and reporting workflows.

Main Benefits

Advanced 4-Channel Vibration Analysis
Measures four vibration signals simultaneously for comprehensive machinery diagnostics.

High-Resolution FFT Analysis
Supports FFT analysis with up to 3,276,800 lines for detailed fault detection.

Comprehensive Predictive Maintenance
Combines vibration analysis, balancing, route measurements, ultrasound, thermal imaging, and MCSA in one instrument.

Fast On-Site Diagnosis
Large touchscreen enables immediate data review, spectrum analysis, and fault identification directly in the field.

Rugged Industrial Design
Heavy-duty aluminum housing with IP65 protection ensures reliable operation in demanding environments.

Efficient Data Collection
Stores extensive route data and raw vibration recordings for long-term machinery monitoring.

Key Features

Four Simultaneous Input Channels
Supports:
4 × AC ICP vibration inputs
4 × DC process inputs
1 × Tachometer input
for synchronized machinery measurements.

Wide Frequency Range
0.35 Hz to 90 kHz (single channel)
Up to 25 kHz (4-channel mode)
for low- and high-frequency diagnostics.

High Dynamic Range
24-bit A/D conversion
64-bit internal signal processing
120 dB dynamic range
for highly accurate measurements.

Multiple Analysis Modes
Includes:
Vibration Analyzer
Data Collector
Dynamic Balancer
Run-Up / Coast-Down
Recorder
Stethoscope
FASIT Expert System
MCSA
Octave Analysis
Bump Test
Animated Deflection Shapes (ODS)
Ultrasound Analysis

Raw Signal Recording
Records up to 20 hours of four-channel vibration data for detailed post-analysis.

Large Touchscreen Display
High-resolution 1125 × 800 color touchscreen with physical keypad for field operation.

Built-in Camera
Integrated 5 MP autofocus camera for documenting inspection conditions.

Optional:
Thermal Imaging Camera
Ultrasound Measurement Module

USB Connectivity
USB 3.0 interface enables rapid data transfer to DDS analysis software.

Specifications

Product Type: Portable Vibration Data Collector & Analyzer
Category: NDT Testing Equipment
Subcategory: Vibration Analyzers
Manufacturer: Adash
Model: A4500 VA5 Pro
Input Channels
4 × AC ICP
4 × DC Process Inputs
1 × Tachometer
A/D Conversion
24-bit
Signal Processing
64-bit Internal Processing
Dynamic Range
120 dB
Frequency Range
0.35 Hz – 90 kHz
FFT Resolution
100 to 3,276,800 Lines
Sampling
Fully Simultaneous 4 Channels
Display
1125 × 800 Color LCD Touchscreen
Camera
5 MP Autofocus
Optional Camera
384 × 288 Thermal Camera
Memory
64 GB Internal
Raw Recording
Up to 20 Hours (4 Channels)
Interfaces
USB 3.0
USB 2.0 Compatible
Battery Life
Up to 8 Hours
Operating Temperature
−10°C to +50°C
Protection Rating
IP65
Dimensions
295 × 230 × 49 mm
Weight
Approximately 1.98 kg

Applications
Machinery Vibration Analysis
Predictive Maintenance
Dynamic Balancing
Condition Monitoring
Bearing Diagnostics
Motor Analysis
Thermal Inspection
Ultrasound Inspection

Recommended Industries
Manufacturing
Oil & Gas
Mining
Power Generation
Chemical Processing
Cement Plants
Marine
Paper Mills
Food Processing
Industrial Maintenance

Applications

Predictive Maintenance
Monitors rotating equipment to identify developing faults before failure.

Machinery Diagnostics
Detects imbalance, misalignment, looseness, resonance, and bearing defects.

Dynamic Balancing
Performs one-plane and two-plane balancing directly on operating machinery.

Motor Condition Analysis
Evaluates electric motor performance using Motor Current Signature Analysis (MCSA).

Thermal Inspection
Optional infrared camera supports temperature-based equipment inspection.

Ultrasound Inspection
Measures airborne and structure-borne ultrasound for leak detection and bearing evaluation.

Industrial Reliability Programs
Supports route-based inspections for comprehensive asset condition monitoring.

What is the Adash A4500 VA5 Pro?
The Adash A4500 VA5 Pro is a professional portable vibration analyzer and data collector used for predictive maintenance and machinery condition monitoring.

How many vibration channels does it support?
It supports 4 simultaneous vibration input channels, plus process inputs and a tachometer channel.

What is the maximum frequency range?
The analyzer measures vibration frequencies up to 90 kHz in single-channel mode.

Does it include balancing functions?
Yes. It supports both single-plane and two-plane dynamic balancing for rotating machinery.

Can it perform thermal imaging?
Yes. An optional 384 × 288 thermal imaging camera is available for infrared inspections.

Who commonly uses the Adash A4500 VA5 Pro?
It is widely used by vibration analysts, reliability engineers, predictive maintenance specialists, industrial maintenance teams, power plants, oil and gas facilities, manufacturing plants, and machinery service providers.
