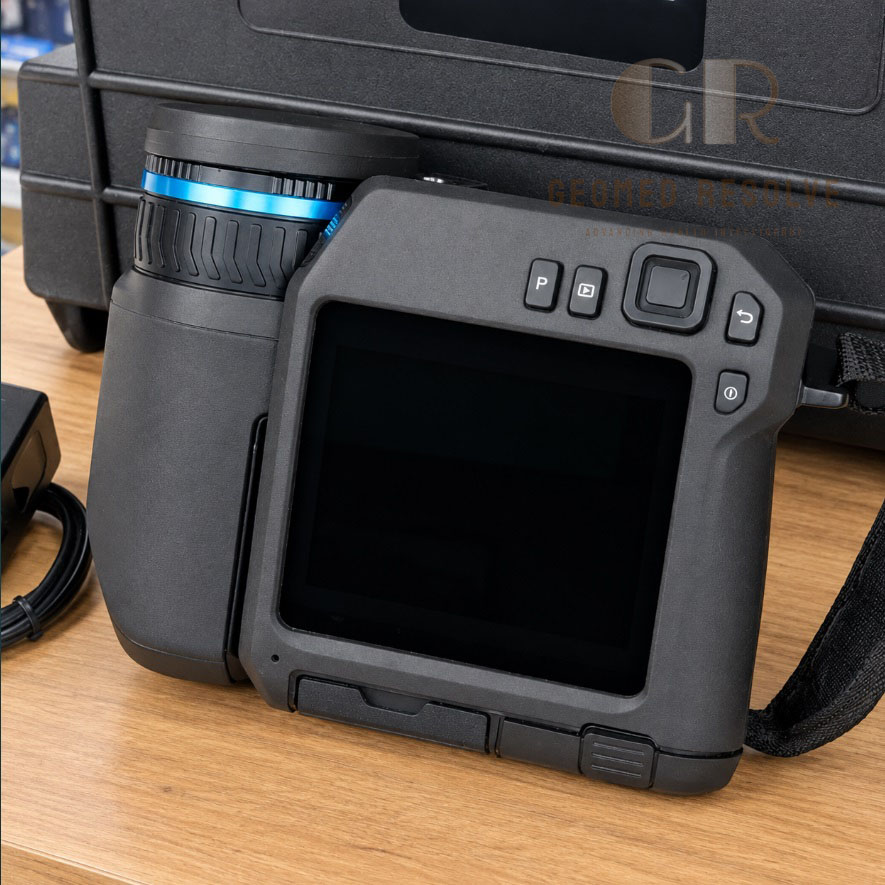

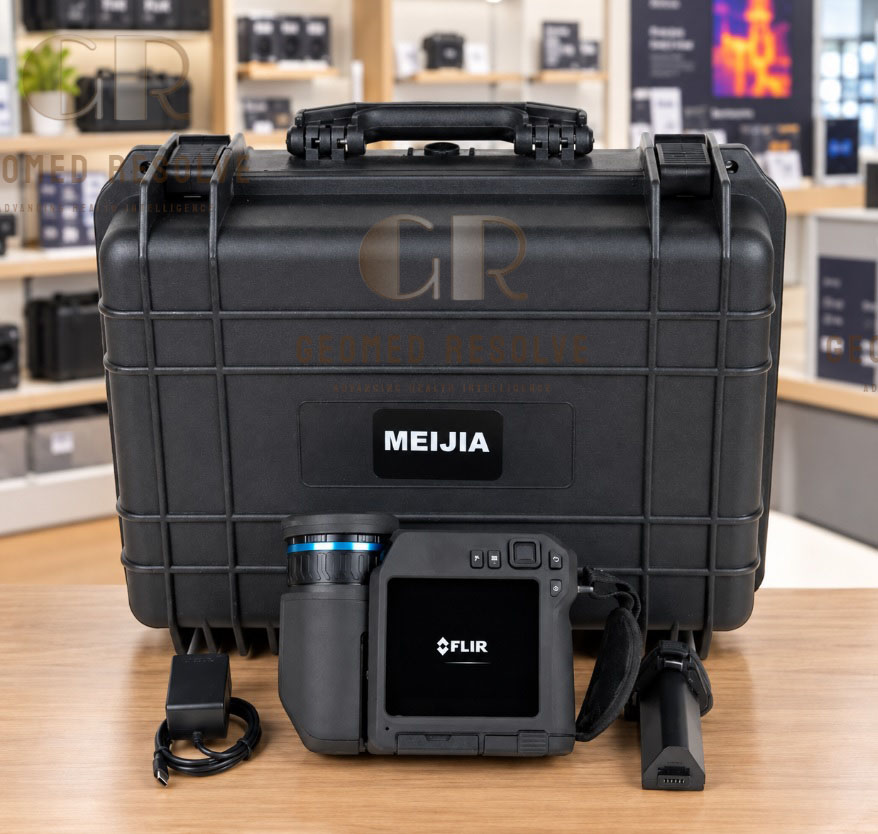

FLIR T540 Thermal Imaging Camera

Description

FLIR T540 24° Thermal Imaging Camera – Professional High-Resolution Infrared Inspection System

The FLIR T540 24° Thermal Imaging Camera is a professional infrared inspection system designed to identify temperature differences and potential faults in electrical, mechanical, industrial, and research applications. Its 464 × 348 infrared resolution provides detailed thermal images for accurate inspection and reporting.

The 24° lens offers a practical balance between coverage and measurement detail, making the camera suitable for inspecting electrical panels, motors, machinery, production equipment, building systems, and other temperature-sensitive components. The T540 includes laser-assisted focusing, a built-in 5-megapixel digital camera, radiometric recording, and compatibility with FLIR analysis and reporting software.

Main Benefits

Captures detailed thermal images for professional inspections.
Helps identify overheating components and abnormal temperature patterns.
Supports electrical, mechanical, industrial, and research applications.
Provides accurate non-contact temperature measurement.
Laser-assisted focusing improves image sharpness and measurement positioning.
Integrated visual imaging supports clearer inspection reports.
Supports radiometric thermal video recording.
Compatible with FLIR Thermal Studio and related software workflows.

Key Features

464 × 348 pixel infrared resolution.
24° field-of-view infrared lens.
Thermal sensitivity of less than 40 mK at 30°C.
5-megapixel digital camera with integrated LED light.
Continuous laser-assisted autofocus.
1-Touch Level/Span image adjustment.
4-inch, 640 × 480 pixel touchscreen display.
30 Hz thermal image refresh rate.
1–6× continuous digital zoom.
Radiometric thermal video recording in CSQ format.
Picture-in-picture image display.
Automatic hot-spot and cold-spot detection.
Emissivity correction and reflected-temperature adjustment.
Color alarms for above, below, interval, condensation, and insulation conditions.
Integrated laser distance measurement and laser alignment.
Compatible with FLIR Thermal Studio Suite, FLIR Route Creator, FLIR Ignite, and FLIR Research Studio.

Key Specifications

Product: FLIR T540 Thermal Imaging Camera
Lens: 24° infrared lens
Infrared resolution: 464 × 348 pixels
Detector type: Uncooled microbolometer
Pixel pitch: 17 µm
Thermal sensitivity: Less than 40 mK at 30°C
Accuracy: ±2°C or ±2% of reading
Field of view: 24° × 18°
Spectral range: 7.5–14 µm
Frame rate: 30 Hz
Minimum focus distance: Approximately 0.18 m with the 24° lens
Digital camera: 5 MP
Digital camera field of view: 53° × 41°
Display: 4-inch IPS touchscreen
Display resolution: 640 × 480 pixels
Digital zoom: 1–6× continuous
Temperature measurement ranges: −20°C to 120°C; 0°C to 650°C; 300°C to 1,500°C
Radiometric video: CSQ format
Visual video: H.264 recording
Storage: Removable SD card
Battery: Rechargeable lithium-ion battery
Battery operating time: Approximately 4 hours under typical conditions
Operating temperature: −15°C to +50°C
Storage temperature: −40°C to +70°C
Protection and housing: PCABS, TPE, and magnesium construction
Tripod mounting: UNC 1/4″-20
Dimensions: Approximately 140 × 201.3 × 167.3 mm
Weight with battery: Approximately 1.4 kg
Laser pointer: Class 2
Compatible software: FLIR Thermal Studio Suite, FLIR Route Creator, FLIR Ignite, FLIR Research Studio, and FLIR Atlas SDK.

Applications

Electrical panel and switchgear inspection.
Motor and bearing condition monitoring.
Mechanical equipment diagnostics.
Industrial maintenance.
Predictive and preventive maintenance.
HVAC and building inspection.
Thermal testing in research and development.
Production-line quality control.
Transformer and power-distribution inspection.
Overheating component detection.
Insulation and moisture-related investigations.
Heat-loss and thermal-performance analysis.
Industrial troubleshooting and repair verification.

Typical Users
Electrical engineers.
Maintenance technicians.
Reliability engineers.
Industrial inspection specialists.
Mechanical engineers.
HVAC professionals.
Building inspectors.
Research and development teams.
Manufacturing companies.
Energy and utility providers.
NDT technicians.
Predictive maintenance service providers.

What is the FLIR T540 used for?
The FLIR T540 is used for non-contact thermal inspection, electrical and mechanical troubleshooting, industrial condition monitoring, research, building inspection, and temperature analysis.

What is the infrared resolution of the T540?
The FLIR T540 provides a 464 × 348 pixel infrared resolution.

What is the field of view of the 24° lens?
The 24° lens provides a field of view of approximately 24° × 18°.

Can the T540 measure high temperatures?
Yes. Depending on the selected measurement range, the camera supports temperature measurement up to 1,500°C.

Does the FLIR T540 include a visual camera?
Yes. It includes a 5-megapixel digital camera with an integrated LED photo and video light.

Does the camera support radiometric video?
Yes. The T540 supports radiometric thermal video recording in CSQ format for later analysis.

What software is compatible with the T540?
The camera is compatible with FLIR Thermal Studio Suite, FLIR Route Creator, FLIR Ignite, FLIR Research Studio, and FLIR Atlas SDK.
