FLIR Si124 LD Plus Acoustic Imaging Camera

Description

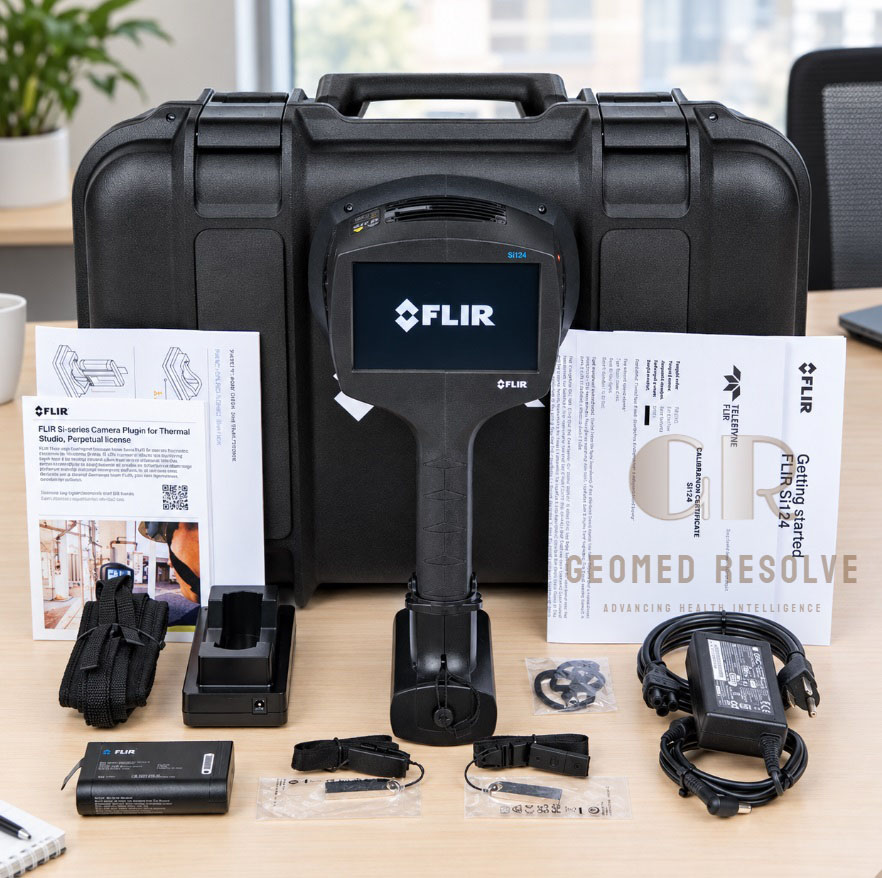

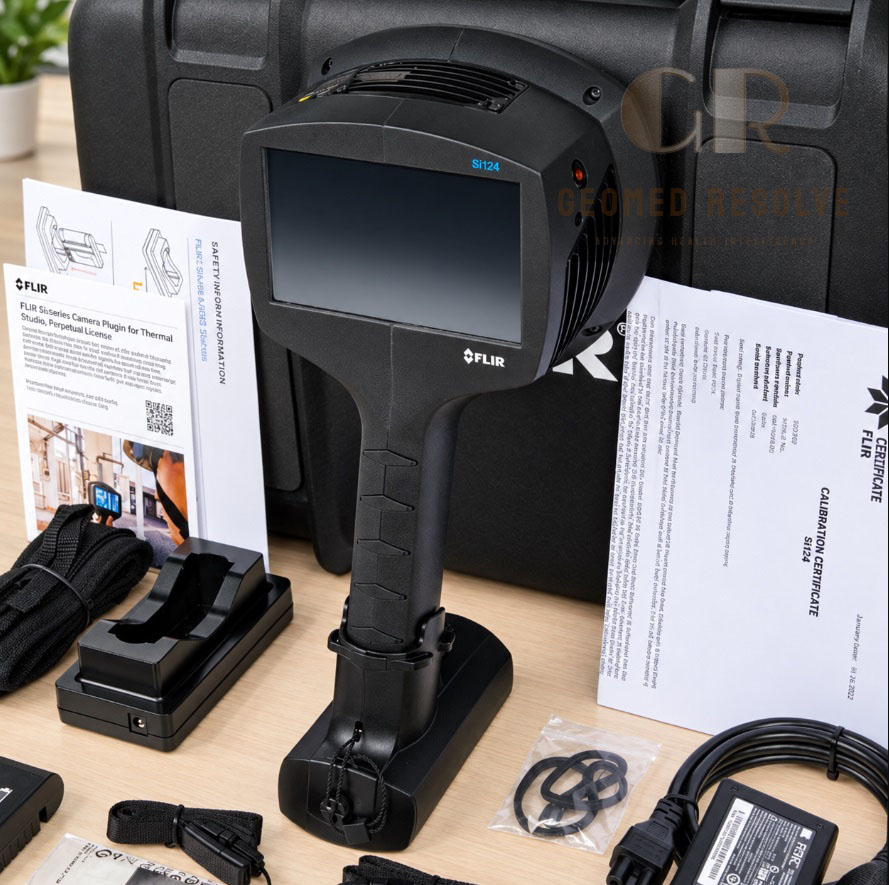

FLIR Si124-LD Plus Acoustic Imaging Camera – Industrial Compressed Air Leak Detection System with 124-Microphone Array

The FLIR Si124-LD Plus Acoustic Imaging Camera is a professional industrial acoustic imaging system designed to quickly locate and quantify compressed-air and pressurized gas leaks in demanding industrial environments.

The camera uses 124 low-noise MEMS microphones to capture ultrasonic sound and generate a real-time acoustic image. The acoustic image is overlaid onto the digital camera view, allowing operators to visually pinpoint the location of a leak even in noisy industrial environments. FLIR states that the Si124-LD Plus can help users identify leaks up to 10 times faster than traditional methods.

The system supports automatic distance measurement and filtering and can detect very small leaks. FLIR specifies a typical detection capability of more than 0.011 L/min at 3 bar from 3 m and more than 0.024 L/min at 3 bar from 10 m, with an absolute minimum detection level of 0.004 L/min at 1.2 bar from less than 1 m in quiet conditions.

Main Benefits

124 low-noise MEMS microphones
Real-time acoustic imaging
Designed for compressed-air leak detection
Detects leaks in noisy industrial environments
Automatic distance measurement
Automatic filtering
Quantitative leak-rate estimation
Digital camera image with acoustic overlay
Detection distance from 0.3 m to 130 m
2 kHz–65 kHz adjustable acoustic bandwidth
5-inch touchscreen display
Lightweight handheld operation
Wi-Fi connectivity
FLIR Acoustic Camera Viewer compatibility
FLIR Thermal Studio Suite compatibility
Suitable for preventive maintenance and energy-loss inspections

Key Features

124-Microphone Acoustic Array
The Si124-LD Plus incorporates 124 low-noise MEMS microphones to capture ultrasonic sound and create an acoustic image in real time.

This microphone array allows operators to locate the source of compressed-air leaks visually instead of relying solely on audible ultrasonic signals.

Compressed-Air Leak Detection
The Si124-LD Plus is specifically designed for finding and quantifying leaks in compressed-air systems.

Typical inspection targets include:
Compressed-air lines
Pneumatic equipment
Fittings
Valves
Couplings
Hoses
Connectors
Pressure systems
Manufacturing equipment

Acoustic Image Overlay
The acoustic image is displayed over the digital camera image in real time, making it easier to identify the exact physical location of a sound source.

Automatic Distance Measurement
The system supports measurements from approximately 0.3 m to 130 m, helping operators estimate the location and severity of detected leaks from a practical inspection distance.

Automatic Filtering
The Si124-LD Plus includes automatic filtering designed to help isolate relevant acoustic signals from background industrial noise.

Leak Quantification
The system provides leak-rate information that can help maintenance teams estimate the amount of compressed air being lost and prioritize repairs.

This can support energy-efficiency programs by identifying leaks that contribute to unnecessary compressor load and operating costs.

FLIR Software Support
The Si124-LD Plus supports the FLIR Acoustic Camera Viewer for web-based acoustic analysis and reporting. Acoustic images can also be imported into FLIR Thermal Studio Suite for offline editing, analysis and advanced reporting.

Key Specifications

Brand: FLIR
Model: Si124-LD Plus
Product Type: Industrial Acoustic Imaging Camera
Primary Application: Compressed-Air Leak Detection
Microphones: 124 low-noise MEMS microphones
Acoustic Bandwidth: 2 kHz–65 kHz
Detection Distance: 0.3 m–130 m
Typical Leak Detection: >0.011 L/min at 3 bar from 3 m
Typical Leak Detection: >0.024 L/min at 3 bar from 10 m
Minimum Detection: 0.004 L/min at 1.2 bar from less than 1 m in quiet conditions
Digital Camera Field of View: 62° × 49°
Video Resolution: 800 × 480
Video Frame Rate: 25 fps
Zoom: 2× digital zoom
Display: 5-inch color display
Display Resolution: 800 × 480
Touchscreen: Resistive touchscreen
Acoustic Imaging: Real-time
Acoustic Image Frame Rate: Up to 30 fps
Battery: RRC 2040 rechargeable Li-ion battery
Battery Voltage: 10.8 VDC
Battery Capacity: 3.35 Ah / 36.2 Wh
Typical Battery Operation: Up to approximately 2.5 hours
Typical Charging Time: Approximately 2 hours
Operating Temperature: -10°C to 50°C
Storage Temperature: -20°C to 70°C
Recommended Humidity: 0–90%
Protection Rating: IP51
Data/Analysis Software: FLIR Acoustic Camera Viewer
Desktop Software Compatibility: FLIR Thermal Studio Suite
Wireless Connectivity: Wi-Fi

Applications

The FLIR Si124-LD Plus is suitable for:
Compressed-air leak detection
Industrial maintenance
Predictive maintenance
Preventive maintenance
Manufacturing facilities
Pneumatic-system inspection
Energy-loss detection
Factory utility inspections
Compressed-air system audits
Equipment maintenance
Leak-rate assessment
Industrial acoustic inspections

Typical Users
The system is particularly useful for:
Maintenance engineers
Reliability engineers
Plant maintenance teams
Energy-management teams
Manufacturing engineers
Industrial inspectors
Facility managers
Compressed-air service specialists

What is the FLIR Si124-LD Plus used for?
It is designed primarily for locating and quantifying compressed-air and pressurized gas leaks in industrial environments.

How many microphones does the Si124-LD Plus have?
It has 124 low-noise MEMS microphones arranged to provide real-time acoustic imaging.

What is the acoustic frequency range?
The adjustable acoustic bandwidth is 2 kHz to 65 kHz.

How far away can it detect leaks?
The specified operating distance is approximately 0.3 m to 130 m, depending on conditions.

Can it quantify the size of an air leak?
Yes. The Si124-LD Plus provides leak-rate information that can help users assess the severity and potential energy loss associated with compressed-air leaks.

Is the FLIR Si124-LD Plus discontinued?
Yes. FLIR identifies the Si124-LD Plus as discontinued and recommends the Si2-Pro as a replacement.

What software can be used with the Si124-LD Plus?
The system supports FLIR Acoustic Camera Viewer for acoustic analysis and reporting and can integrate acoustic images with FLIR Thermal Studio Suite for more advanced offline analysis and reporting.
