SIUI SyncScan 3 Ultrasonic Flaw Detector

Description

SIUI SyncScan 3 Ultrasonic Flaw Detector – 64:128PR Phased Array PAUT, TFM & 4-Channel TOFD NDT System

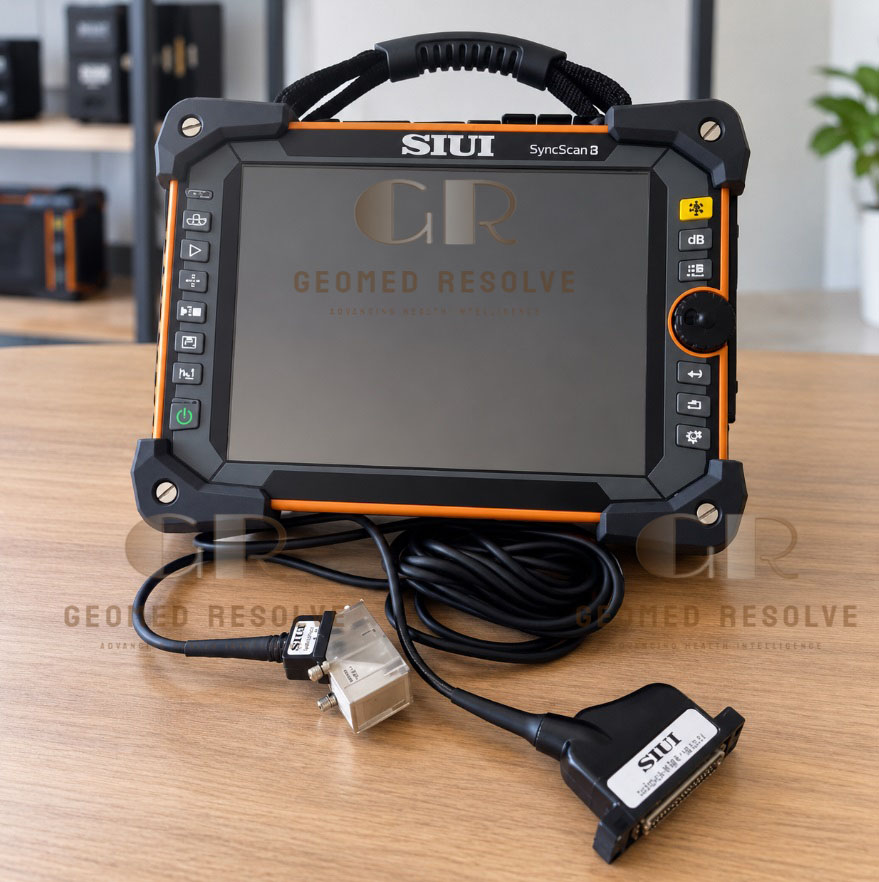

The SIUI SyncScan 3 Ultrasonic Flaw Detector is an advanced portable ultrasonic NDT system combining 64-channel Phased Array Ultrasonic Testing (PAUT), Total Focusing Method (TFM), Full Matrix Capture (FMC), and 4-channel TOFD in one instrument.

Designed for demanding inspection applications, the SyncScan 3 provides real-time TFM imaging with resolutions up to 1024 × 1024, up to six simultaneous TFM propagation modes, and raw FMC data recording for post-inspection analysis. Its 64-channel PAUT architecture is particularly suited to thick welds and complex materials.

The instrument is designed for applications across oil and gas, power generation, transportation, aerospace, shipbuilding and manufacturing, with inspection capabilities for welds, pipelines, pressure equipment, composites and other critical components.

Main Benefits

64-channel phased-array ultrasonic testing
128-element PAUT support
Real-time Total Focusing Method
TFM image resolution up to 1024 × 1024
Up to 6 simultaneous TFM modes
Full Matrix Capture support
Raw FMC data recording
4-channel TOFD
Simultaneous PAUT, TOFD and UT inspection capabilities
Designed for thick weld inspection
Advanced ultrasonic imaging
Encoded scanning support
12.1-inch touchscreen
IP65 field-ready construction
Dual-battery operation
Portable design for industrial inspections

Key Features

64:128PR Phased Array
The SyncScan 3 provides a 64:128PR PAUT configuration, giving inspectors greater channel capacity and improved coverage for demanding inspections. SIUI describes the 64-channel PAUT system as particularly suitable for welds of 100 mm or greater thickness.

Total Focusing Method

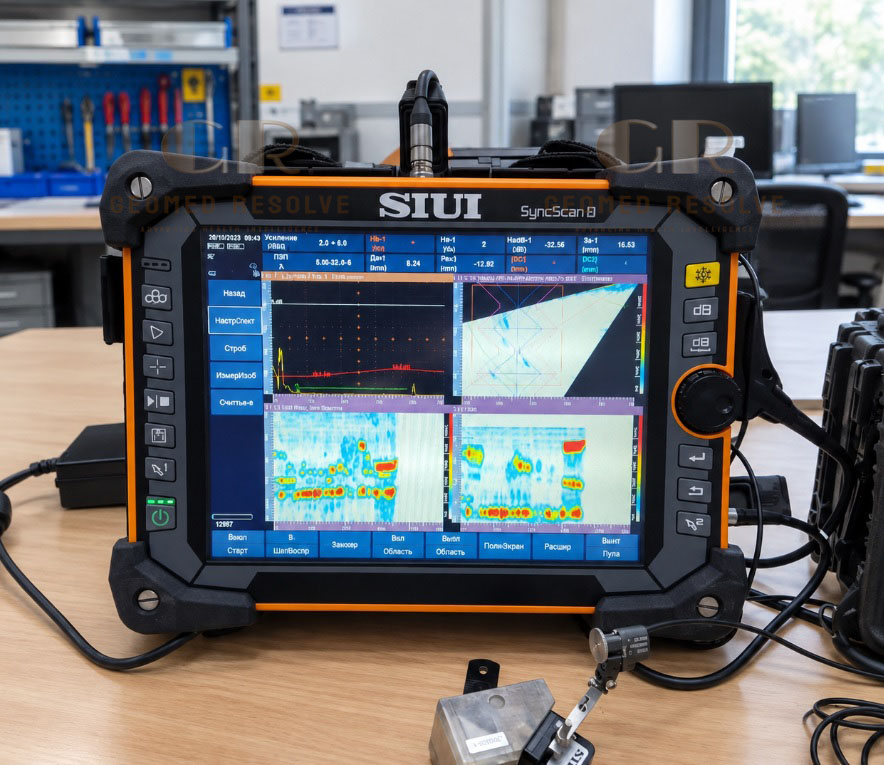

The SyncScan 3 supports real-time TFM imaging with selectable image resolution up to 1024 × 1024 pixels. Up to six TFM propagation modes can be displayed simultaneously, helping inspectors characterize indications from different propagation paths.

Full Matrix Capture
The system can record raw FMC data, allowing TFM images to be generated or reviewed using different propagation modes without necessarily repeating the physical scan.

4-Channel TOFD
The SyncScan 3 incorporates 4-channel TOFD for advanced weld inspection. SIUI documentation indicates that TOFD can be used for weld thicknesses up to approximately 300 mm, depending on the inspection configuration.

PAUT, TOFD and UT
Combining multiple ultrasonic inspection technologies in one platform makes the SyncScan 3 suitable for comprehensive inspection workflows where different techniques are required.

3D and Advanced Imaging
The system supports 3D PA and real-time TFM imaging, providing enhanced visualization of probes, wedges, beams and detected indications.

Smart Inspection Workflow
The SyncScan 3 incorporates dedicated controls and inspection wizards intended to simplify setup, scanning and data management.

Key Specifications

Brand: SIUI
Model: SyncScan 3
Product Type: Ultrasonic Phased Array Flaw Detector
PAUT Configuration: 64:128PR
PAUT Channels: 64
Maximum PA Elements: 128
TOFD Channels: 4
TFM: Real-time Total Focusing Method
TFM Resolution: Up to 1024 × 1024
Simultaneous TFM Modes: Up to 6
FMC: Supported
Raw FMC Recording: Supported
PA Scanning: Linear, sector and compound scanning
PA Frequency Range: Approximately 0.7–20 MHz
Display: 12.1-inch high-resolution touchscreen
Display Resolution: 1024 × 768
Data Storage: SD card
USB: 2 × USB 3.0
Video Outputs: VGA and HDMI
Connectivity: Ethernet
Wireless Options: Wi-Fi/Bluetooth; 4G and GPS options depending on configuration
Encoder: Encoder input/output with support for multi-axis coding
Battery: Two rechargeable lithium batteries
Battery Capacity: Approximately 7.5 Ah each
Protection Rating: IP65
Operating Temperature: Approximately -10°C to +45°C
Dimensions: Approximately 365 × 270 × 115 mm
Weight: Approximately 6 kg with two batteries

Applications

The SIUI SyncScan 3 is suitable for:
Weld inspection
Pipeline inspection
Pressure-vessel inspection
Corrosion inspection
Power-generation equipment inspection
Oil and gas inspection
Aerospace NDT
Shipbuilding inspection
Railway and transportation inspection
Composite inspection
Thick-wall weld inspection
Manufacturing quality control
Structural inspection
Encoded ultrasonic inspection
Advanced PAUT inspection
TOFD inspection

Typical Inspection Applications

Weld Inspection
PAUT and TOFD can provide complementary information for detecting and characterizing weld discontinuities.

Thick-Wall Inspection
The 64-channel PAUT architecture is designed for demanding inspections, including thick welds and complex materials.

Pipeline Inspection
The portable design and encoded inspection capabilities make the system suitable for pipeline weld inspection and other field NDT applications.

Composite Inspection
PAUT and TFM can be used for selected composite inspection applications where advanced ultrasonic imaging is required.

What is the SIUI SyncScan 3 used for?
The SyncScan 3 is used for advanced ultrasonic NDT, including PAUT, TFM, FMC and TOFD inspections of welds, pipelines, pressure equipment and other industrial components.

How many PAUT channels does the SyncScan 3 have?
The system provides 64 PAUT channels and supports up to 128 phased-array elements.

Does the SyncScan 3 support TFM?
Yes. It provides real-time Total Focusing Method imaging with resolution up to 1024 × 1024 and up to six simultaneous propagation modes.

Does it support FMC?
Yes. The SyncScan 3 can record raw Full Matrix Capture data for further TFM analysis.

How many TOFD channels does it have?
The standard SyncScan 3 configuration provides 4-channel TOFD.

Is the SyncScan 3 suitable for field inspection?
Yes. It has a portable design, dual-battery operation and IP65 protection, making it suitable for industrial field inspections.
