Eddyfi Mantis Phased Array Ultrasonic Inspection

Description

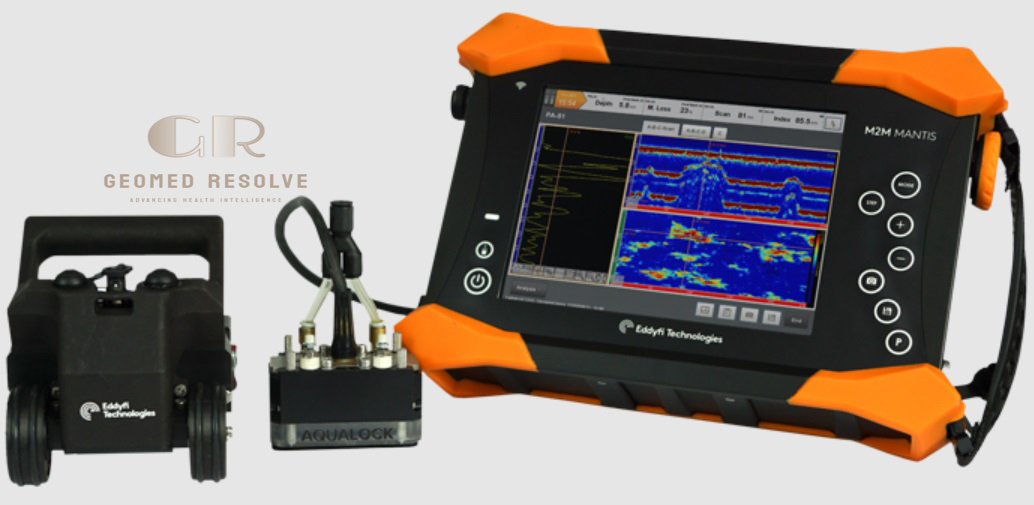

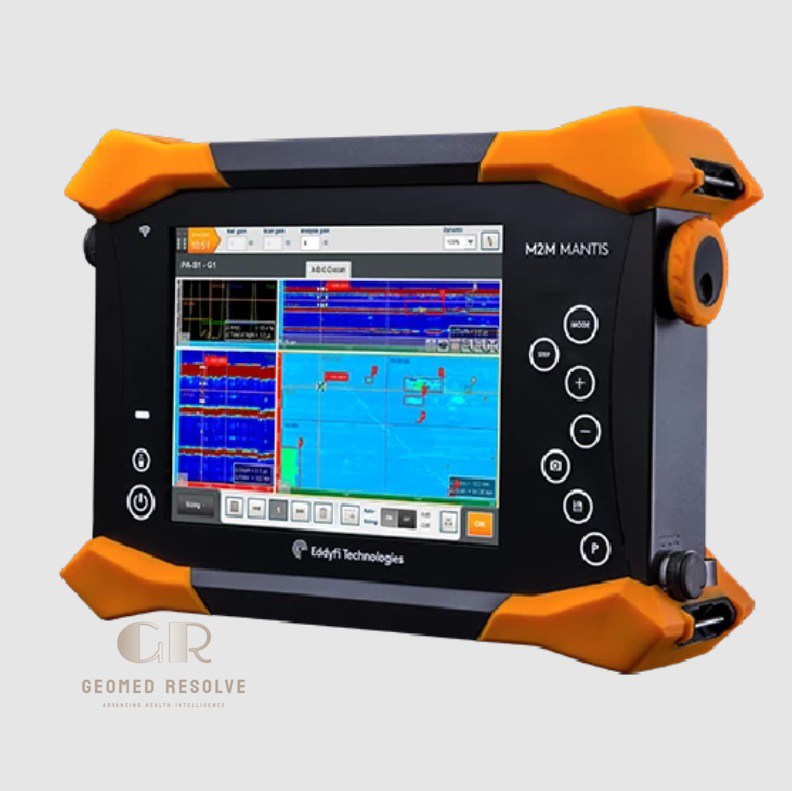

Eddyfi Mantis Phased Array Ultrasonic Inspection – Portable PAUT Flaw Detector

The Eddyfi Mantis Phased Array Ultrasonic Inspection is an advanced NDT Testing Equipment solution engineered for precise ultrasonic flaw detection and industrial asset integrity inspections. Combining Phased Array Ultrasonic Testing (PAUT) and Conventional Ultrasonic Testing (UT) in a lightweight portable platform, the system provides outstanding imaging quality, rapid inspection performance, and reliable defect characterization for demanding industrial environments.

Featuring high-resolution ultrasonic imaging, intuitive touchscreen controls, rechargeable battery operation, and compatibility with Capture™ and Analyze™ software, the Mantis streamlines inspection workflows while delivering accurate results for weld inspections, corrosion assessments, pipeline evaluations, pressure vessel examinations, and manufacturing quality control.

The Eddyfi Mantis Phased Array Ultrasonic Inspection is an excellent solution for NDT service providers, aerospace manufacturers, oil & gas companies, power plants, petrochemical facilities, and industrial maintenance teams seeking a compact, high-performance phased array ultrasonic inspection system for critical non-destructive testing applications.

Main Benefits

Advanced Phased Array Inspection
Performs high-resolution phased array ultrasonic inspections for accurate flaw detection and sizing.

Compact & Portable Design
Lightweight instrument enables convenient inspections in confined spaces and challenging field environments.

High Inspection Accuracy
Provides reliable detection of cracks, lack of fusion, porosity, laminations, and other material defects.

Fast Data Acquisition
High-speed ultrasonic processing improves inspection efficiency and productivity.

User-Friendly Operation
Large touchscreen interface simplifies instrument setup, calibration, data acquisition, and reporting.

Rugged Industrial Performance
Engineered for demanding industrial environments with durable construction and dependable operation.

Key Features

Phased Array Ultrasonic Testing (PAUT)
Supports advanced phased array inspections with electronic beam steering and focusing.

Conventional Ultrasonic Testing (UT)
Performs traditional ultrasonic inspections using single-element probes.

High-Resolution Imaging
Produces detailed A-scan, B-scan, S-scan, and sectorial scan images for accurate defect evaluation.

Multi-Group Inspection
Supports multiple inspection groups for complex inspection procedures.

Large Color Touchscreen
Bright high-resolution display provides clear imaging indoors and outdoors.

Eddyfi Software Compatibility
Compatible with Capture™ and Analyze™ software for inspection planning, data analysis, and reporting.

Portable Battery Operation
Rechargeable lithium-ion battery supports extended field inspections.

Rugged Construction
Designed for industrial field use with durable housing resistant to harsh operating conditions.

Specifications

Product Type: Portable Phased Array Ultrasonic Flaw Detector
Category: NDT Testing Equipment
Subcategory: Phased Array Ultrasonic Flaw Detectors
Manufacturer: Eddyfi Technologies
Model: Mantis
Inspection Technologies
Phased Array Ultrasonic Testing (PAUT)
Conventional Ultrasonic Testing (UT)

Inspection Modes
A-Scan
B-Scan
S-Scan
Sectorial Scan

Display
High-Resolution Color Touchscreen
Software Compatibility
Capture
Analyze
Data Storage
Internal Digital Storage
Connectivity
USB
Ethernet
Wi-Fi (configuration dependent)
Power Supply
Rechargeable Lithium-Ion Battery
AC Power Adapter

Applications
Weld Inspection
Corrosion Inspection
Structural Inspection
Pipeline Inspection
Pressure Vessel Inspection
Manufacturing Quality Control

Recommended Industries
Oil & Gas
Petrochemical
Power Generation
Aerospace
Manufacturing
Heavy Industry
Industrial Inspection Services

Applications

Weld Inspection
Detects cracks, lack of fusion, porosity, inclusions, and weld discontinuities.

Pressure Vessel Inspection
Evaluates weld quality and structural integrity of pressure vessels and storage tanks.

Pipeline Inspection
Performs ultrasonic inspections on pipelines for corrosion and welding defects.

Structural Integrity Assessment
Examines critical industrial structures for fatigue damage and material degradation.

Manufacturing Quality Control
Verifies production quality and dimensional integrity of manufactured components.

Aerospace Inspection
Inspects aircraft structures and high-value aerospace components using advanced ultrasonic techniques.

Preventive Maintenance
Supports predictive maintenance and long-term asset integrity programs.

What is the Eddyfi Mantis Phased Array Ultrasonic Inspection?
The Eddyfi Mantis is a portable phased array ultrasonic flaw detector designed for advanced PAUT and conventional UT inspections across a wide range of industrial applications.

What inspection methods does the Mantis support?
The system supports Phased Array Ultrasonic Testing (PAUT) and Conventional Ultrasonic Testing (UT).

What types of defects can it detect?
It detects cracks, porosity, lack of fusion, laminations, corrosion, inclusions, and other internal material discontinuities.

What industries commonly use the Mantis?
It is widely used in oil & gas, petrochemical, aerospace, manufacturing, power generation, and heavy industry.

What software is compatible with the Mantis?
The system is compatible with Capture™ and Analyze™ software for inspection planning, analysis, and reporting.

Is the Mantis suitable for field inspections?
Yes. Its compact design, rechargeable battery, rugged construction, and portable operation make it ideal for field inspections.
