PURERAY XRF-A7 Precious Metal Analyzer

Description

PURERAY XRF-A7 Precious Metal Analyzer – High-Precision XRF Gold Purity Testing System

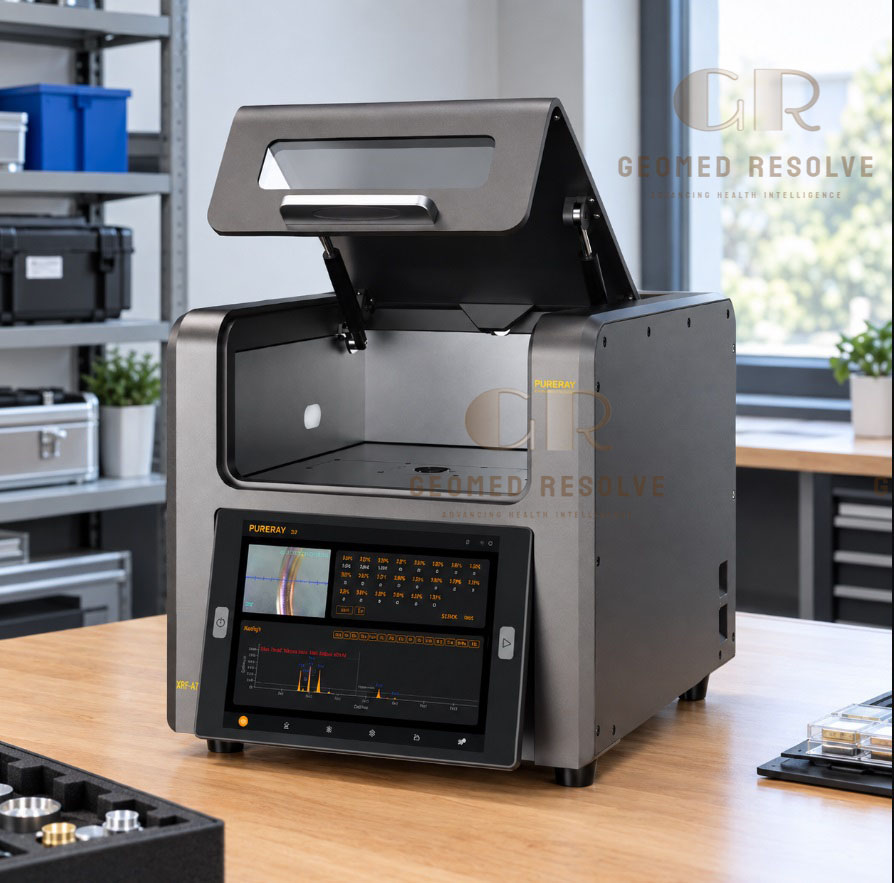

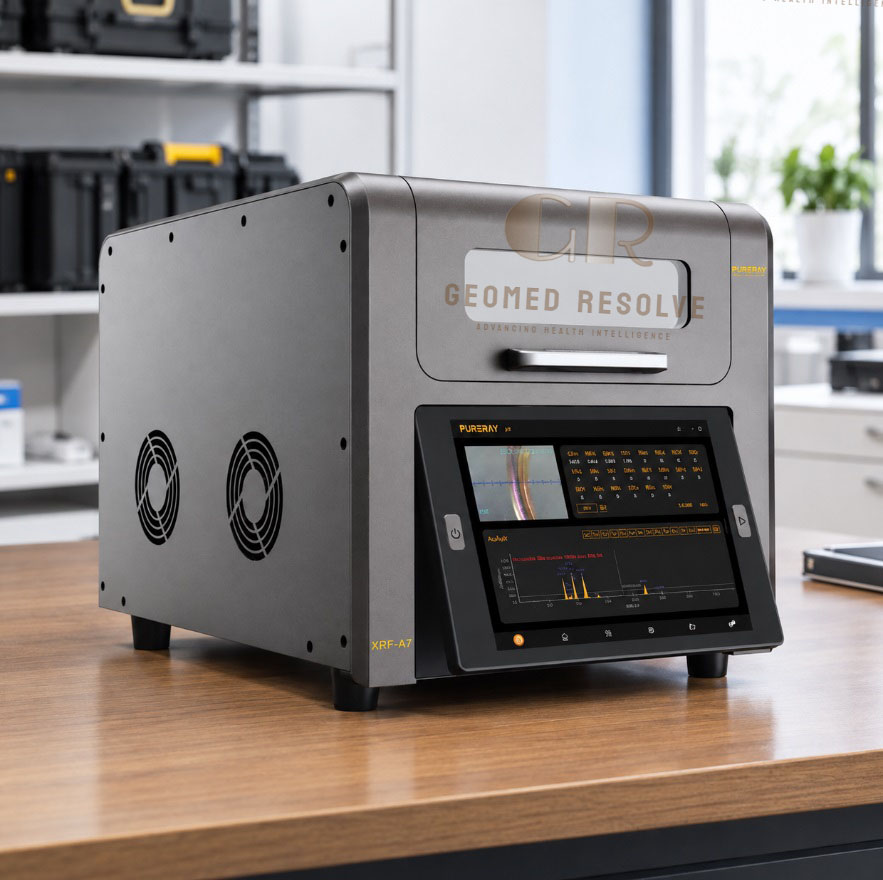

The PURERAY XRF-A7 Precious Metal Analyzer is a benchtop X-ray fluorescence (XRF) spectrometer designed for rapid, non-destructive analysis of precious metals and gemstones.

The XRF-A7 uses a customized AMPTEK Si-PIN detector, a 50 kV X-ray tube and an integrated touchscreen computer. It can analyze elements from potassium (K, atomic number 19) through uranium (U, atomic number 92) and measure up to 30 elements simultaneously.

The analyzer is designed for applications including gold recycling, jewelry manufacturing, jewelry retail, banks, exhibition halls and quality inspection centers. PURERAY also specifies coating warnings, rhenium and tungsten detection warnings, multi-point continuous testing and scale connectivity for weight-related applications.

Main Benefits

Fast, non-destructive precious metal analysis
Designed for gold purity testing
Supports analysis of multiple elements simultaneously
Si-PIN semiconductor detector
High-resolution detection
Built-in touchscreen computer
Supports metal and gemstone samples
Coating warning function
Rhenium and tungsten detection warning
Multi-point continuous testing
Optional scale connection
Suitable for jewelry and gold-recycling businesses
Compact benchtop laboratory design

Key Features

Precious Metal Analysis
The XRF-A7 is designed to analyze precious-metal compositions without damaging the sample. It can be used for testing gold and other metallic materials encountered in jewelry, recycling and quality-control applications.

Si-PIN Detector
The system uses a customized AMPTEK Si-PIN detector with a detector area of 6 mm² and published energy resolution of 145 ± 5 eV.

Multi-Element Analysis
The analyzer covers elements from K to U and can analyze up to 30 elements simultaneously, allowing users to obtain a broader composition profile from a single measurement.

Gold Purity Testing
PURERAY specifies a test accuracy of approximately ±0.03% for 9999 gold, making the XRF-A7 suitable for precious-metal purity verification and quality-control applications.

Gemstone Analysis Support
The XRF-A7 supports analysis solutions for natural and synthetic gemstones, in addition to metal samples.

Coating and Adulteration Warnings
The system provides coating warnings and specific rhenium and tungsten detection warnings, useful when screening precious-metal products for surface treatments or certain adulteration concerns.

Multi-Point Testing
The XRF-A7 supports continuous multi-point testing, helping improve efficiency when several areas of a sample or multiple samples need to be examined.

Key Specifications

Brand: PURERAY Instrument
Model: XRF-A7
Product Type: Precious Metal Analyzer
Technology: X-ray Fluorescence (XRF)
Detector: Customized AMPTEK Si-PIN
Detector Area: 6 mm²
Energy Resolution: 145 ± 5 eV
Analysis Elements: K (No. 19) to U (No. 92)
Maximum Elements Analyzed Simultaneously: 30
Test Accuracy: ±0.03% for 9999 gold
Test Samples: Metal and gemstone
Collimator: Ø2.0 mm
X-Ray Tube: 50 kV / 1 mA
High-Voltage Supply: 50 kV / 1 mA digital
Target Material: Tungsten
Tube Window: Aluminum
Focus: Ø0.5 mm
Rated Power: 150 W
Test Chamber: Approximately 306 × 248 × 124 mm
Machine Dimensions: Approximately 345 × 477 × 350 mm
Net Weight: Approximately 36 kg
Gross Weight: Approximately 53 kg
Input Voltage: AC 100–240 V
Input Frequency: 50 Hz
Noise Level: <65 dB
Computer: Integrated Intel i3-based computer
Display: Integrated touchscreen monitor
Testing: Multi-point continuous testing
Additional Functions: Coating warning, rhenium/tungsten warning and scale connectivity

Applications

The PURERAY XRF-A7 is suitable for:
Gold purity testing
Precious-metal analysis
Jewelry testing
Gold recycling
Jewelry manufacturing
Jewelry retail
Goldsmith workshops
Precious-metal quality control
Jewelry exhibition halls
Bank precious-metal testing
Quality inspection centers
Metal alloy analysis
Gemstone analysis
Incoming material inspection
Precious-metal verification

PURERAY specifically identifies gold recycling, jewelry factories, exhibition halls, banks and quality inspection centers as application areas for the XRF-A7.

Typical Users
Jewelry manufacturers
Goldsmiths
Precious-metal dealers
Gold recycling businesses
Jewelry retailers
Assay and quality-control laboratories
Banks
Precious-metal inspection centers
Jewelry testing professionals

The PURERAY XRF-A7 Precious Metal Analyzer is a benchtop XRF system designed for fast, non-destructive analysis of gold and other precious metals. Featuring a customized Si-PIN detector, 50 kV X-ray tube, touchscreen computer and analysis of up to 30 elements simultaneously, it is suitable for jewelry, gold recycling, quality-control and precious-metal testing applications.

What is the PURERAY XRF-A7 used for?
The XRF-A7 is used for non-destructive analysis of precious metals and gemstones, particularly in jewelry, gold recycling and quality-control applications.

Can the XRF-A7 test gold purity?
Yes. It is designed for precious-metal composition and purity analysis, with PURERAY specifying approximately ±0.03% accuracy for 9999 gold.

How many elements can the XRF-A7 analyze?
The analyzer can analyze up to 30 elements simultaneously and covers elements from K through U.

Does the XRF-A7 use a Si-PIN detector?
Yes. It uses a customized AMPTEK Si-PIN detector.

Can it test gemstones?
Yes. PURERAY states that the XRF-A7 supports analysis solutions for natural and synthetic gemstones.

Can it detect tungsten and rhenium?
The system includes rhenium and tungsten detection warnings, which can be useful when screening precious-metal products.
