Waygate Krautkramer USM 36 Ultrasonic Flaw Detector

Description

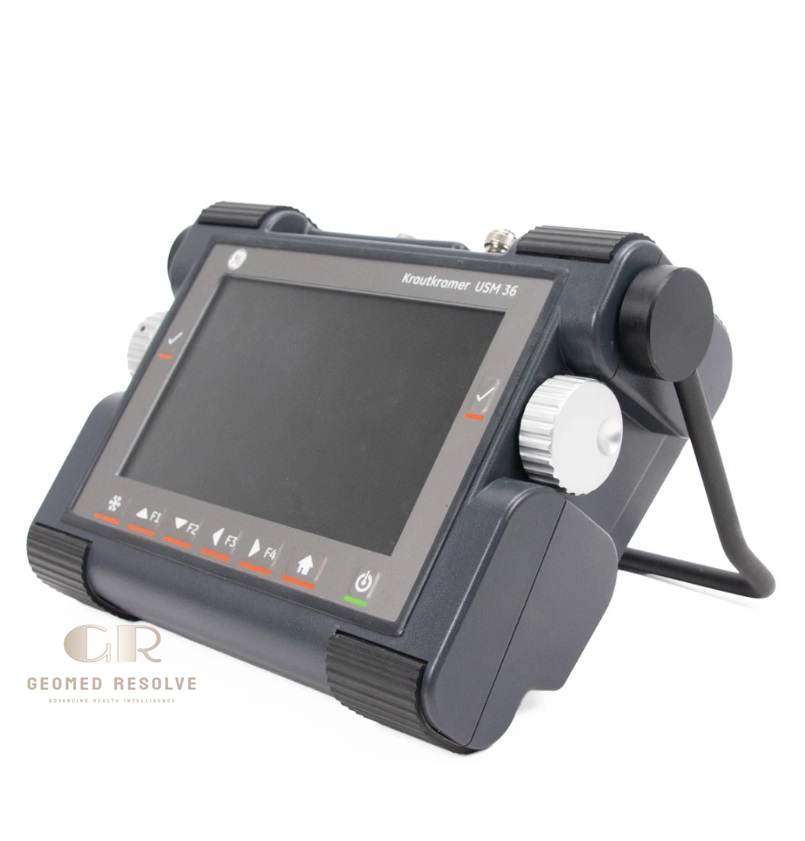

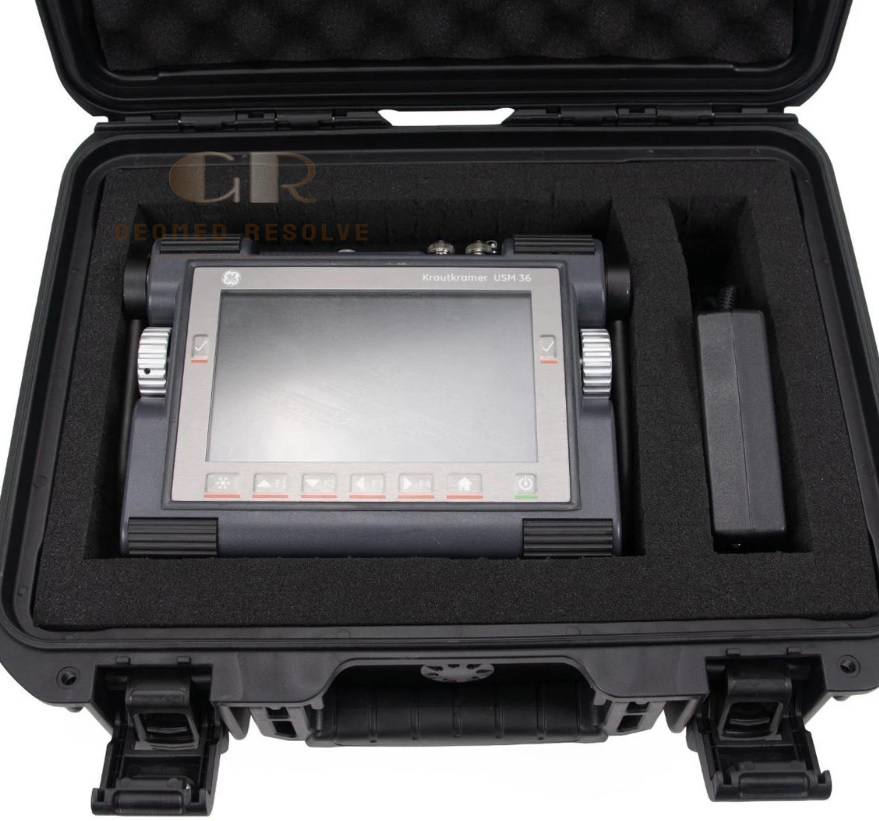

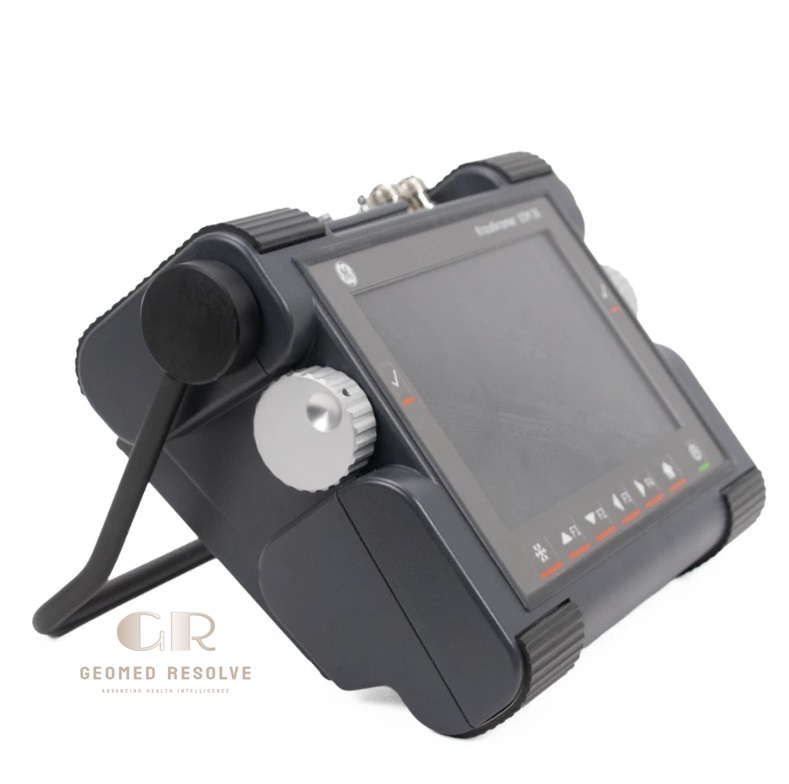

Waygate Krautkramer USM 36 Ultrasonic Flaw Detector – Portable NDT Inspection System

The Waygate Krautkramer USM 36 Ultrasonic Flaw Detector is a professional portable ultrasonic testing instrument designed for reliable Non-Destructive Testing (NDT) inspections. It combines rugged construction with advanced ultrasonic testing capabilities for demanding industrial inspection environments.

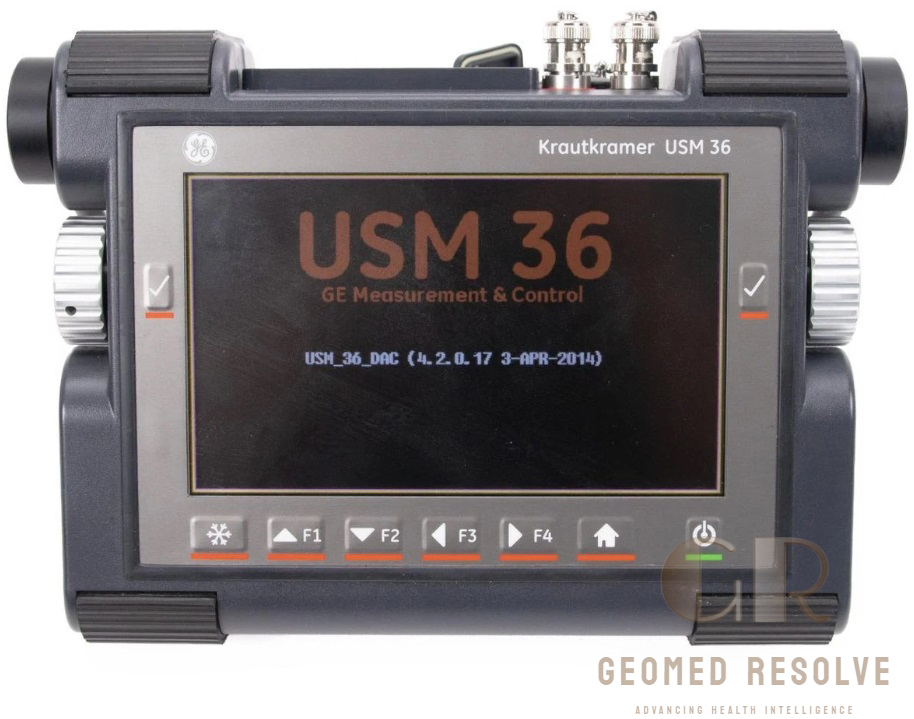

The USM 36 features a large 7-inch, 800 × 480 pixel display, providing a clear A-scan view for easier interpretation of ultrasonic signals, including in bright outdoor environments. Its familiar rotary controls and simplified six-key interface help inspectors operate the instrument efficiently in the field.

Depending on configuration, the USM 36 is available with advanced DAC, AWS, and DGS functions, as well as a powerful square-wave pulser and support for Waygate trueDGS probe technology.

Main Benefits

Reliable ultrasonic flaw detection
Large, easy-to-read A-scan display
Rugged design for demanding industrial environments
Suitable for weld and corrosion inspection
Accurate thickness measurement
Long battery operating time
Simple rotary-control operation
Flexible inspection data storage
Supports advanced DAC, AWS, and DGS functions depending on version
Suitable for field and plant inspections

Key Features

7-inch high-resolution color display
800 × 480 pixel resolution
Large full-screen A-scan display
Intuitive six-key keypad
Familiar rotary control knobs
A-scan video recording
Screenshot capture
SD card storage
USB connectivity
VGA external display connection
IP66 dust and water protection
Rechargeable Li-ion battery
More than 13 hours of operating time
Three available versions
DAC, AWS and DGS capability on advanced versions
Square-wave pulser available on advanced configuration
trueDGS probe compatibility on advanced configuration

Key Specifications

Product Type: Portable Ultrasonic Flaw Detector
Model: Krautkramer USM 36
Technology: Conventional Ultrasonic Testing (UT)
Display: 7-inch color display
Display Resolution: 800 × 480 pixels
A-Scan: Full-screen display
Data Storage: Removable SD card and USB storage
External Display: VGA
Protection Rating: IP66
Operating Temperature: -10°C to +55°C
Battery: Rechargeable Li-ion
Battery Runtime: More than 13 hours
Weight: Approximately 2.2 kg
Versions: Three configurations available
Advanced Functions: DAC, AWS, DGS, depending on configuration

Applications

The Waygate Krautkramer USM 36 is suitable for:
Weld inspection
Corrosion measurement
Thickness measurement
Pipeline inspection
Pressure vessel inspection
Power generation equipment inspection
Oil and gas inspection
Petrochemical inspection
Forging inspection
Aerospace component inspection
Automotive material inspection
Fine-grained material inspection
Industrial quality control
General ultrasonic NDT inspection

What is the Waygate Krautkramer USM 36 used for?
The USM 36 is used for ultrasonic flaw detection, weld inspection, corrosion measurement, thickness measurement, forging inspection, and material evaluation.

Does the USM 36 support weld inspection?
Yes. Weld inspection is one of its primary applications, particularly in oil and gas, power generation, and petrochemical industries.

What type of display does it have?
The USM 36 has a 7-inch display with 800 × 480 pixel resolution, providing a large viewing area for A-scan signals.

Does the USM 36 support DAC, AWS, and DGS?
Yes, the most advanced version supports DAC, AWS, and DGS inspection modes. Capabilities can vary according to the specific USM 36 configuration.

Is the USM 36 suitable for outdoor inspections?
Yes. The instrument has IP66 protection and an operating temperature range of approximately -10°C to +55°C, making it suitable for demanding field environments.

How long can the battery operate?
The rechargeable Li-ion battery provides more than 13 hours of operating time, depending on operating conditions and configuration.
