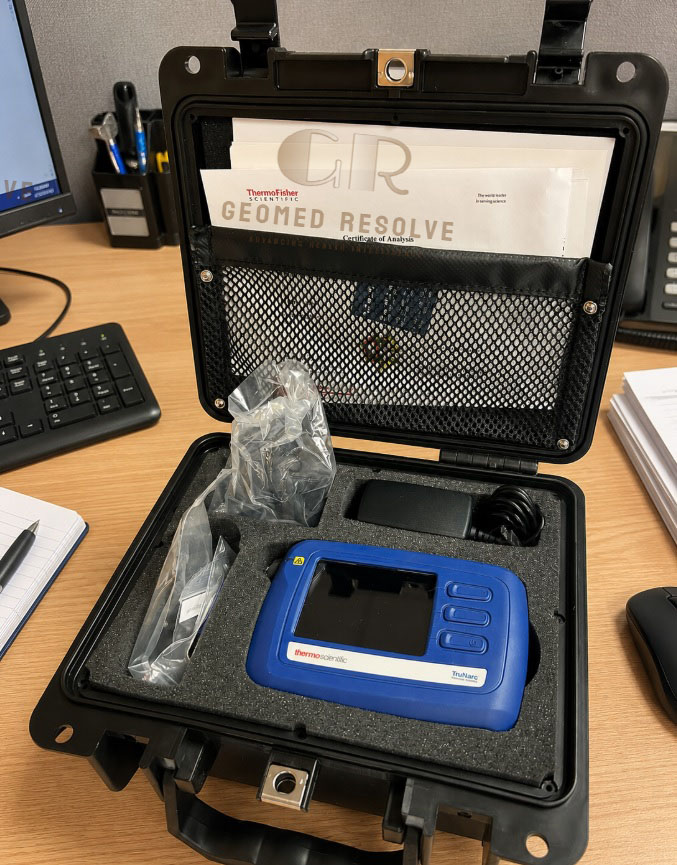

Thermo Scientific TruNarc Narcotics Analyzer

Description

Thermo Scientific TruNarc Handheld Narcotics Analyzer – Portable Raman Spectroscopy System for Rapid Presumptive Substance Identification

The Thermo Scientific TruNarc Handheld Narcotics Analyzer is a portable Raman spectroscopy instrument designed for rapid, presumptive identification of suspected narcotics, controlled substances, precursors and cutting agents.

The compact analyzer is designed for field use by authorized law-enforcement, customs, border-control and security personnel. Raman spectroscopy provides a chemical fingerprint that allows the instrument to compare a sample against its substance library and produce results in seconds for many samples.

A major advantage of TruNarc is its non-contact sampling capability for most samples. The instrument can analyze substances through suitable plastic or glass containers, helping minimize direct handling of potentially hazardous materials and preserve evidence.

Main Benefits

Portable handheld Raman analyzer
Rapid presumptive substance identification
Non-contact analysis for most samples
Designed for field-based operation
Controlled-substance and precursor library
Single test can screen for multiple substances
Automated scan-result records
Time-and-date stamping
Built-in system self-check
Rechargeable battery operation
Compact and lightweight design
Data export through supported formats
TruNarc Admin software compatibility
Optional reachback spectral-analysis support

Key Features

Raman Spectroscopy
The TruNarc uses laboratory-proven Raman spectroscopy to identify substances based on their molecular spectral fingerprints. Raman technology is particularly useful for rapid identification because different chemical substances produce characteristic spectral patterns.

Non-Contact Sampling
For most suitable samples, TruNarc can perform analysis without direct contact with the substance.

This can help:
Reduce handling
Minimize contamination
Preserve evidence
Improve operator safety
Speed up field screening

Rapid Testing
TruNarc is designed to provide results quickly. Thermo Fisher states that point-and-shoot results are often available within seconds, although some samples can require up to approximately one minute.

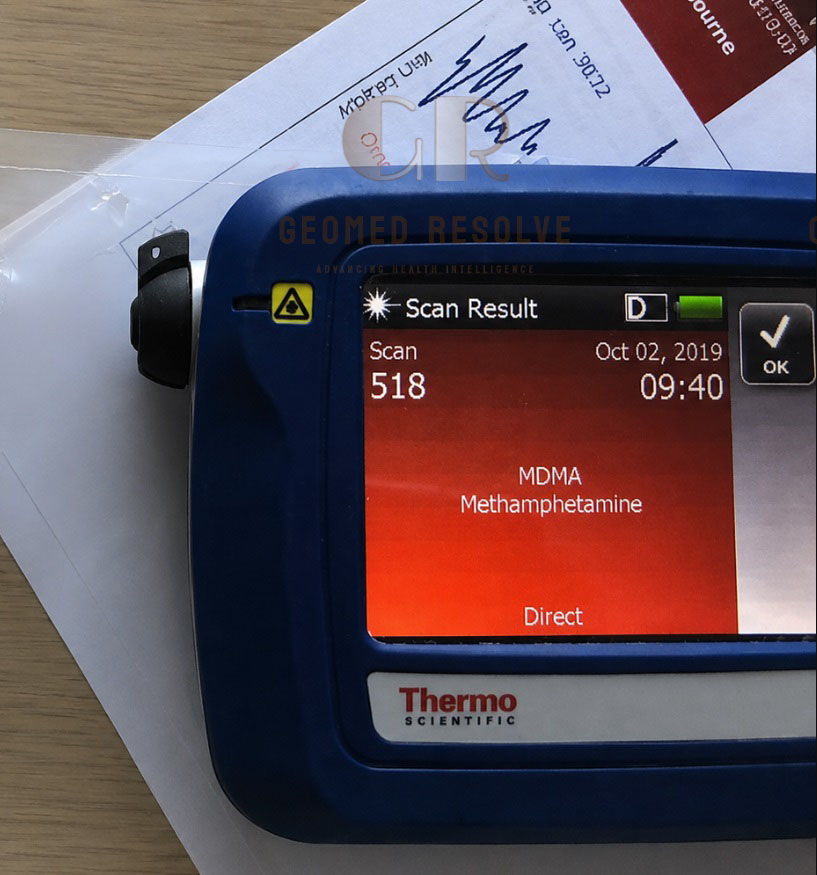

Automated Records
Scan results can be automatically stored with information such as:
Scan result
Date and time
System self-check information
Sample information
Report data
This can simplify documentation and evidence-management workflows.

Substance Library
The original TruNarc platform includes a library covering:
Controlled substances
Cutting agents
Precursors
Selected emerging threats

Key Specifications

Specification                      Detail
Brand                                   Thermo Scientific
Model                                   TruNarc
Product Type                        Handheld Raman Spectrometer / Narcotics Analyzer
Technology                           Raman Spectroscopy
Primary Application               Presumptive narcotics identification
Library                                   Controlled substances, cutting agents and precursors
Weight                                   Approximately 1.25 lb / 0.57 kg
Dimensions                           6.4 × 4.1 × 2.0 in / 16.26 × 10.41 × 5.10 cm
Battery                                   Rechargeable internal 3.7 V battery
Battery Life                            Approximately 10 hours
Power Adapter                      5 V DC, 1.5 A
Optional Power                     Car charger
Operating Temperature       -10°C to +50°C
Data Export                          CSV, SPC, PDF and other supported formats depending on software
Administration Software       TruNarc Admin
Computer Connection           MicroUSB to USB
Sampling                               Non-contact for most suitable samples
Reachback Support              Spectral analysis by staff chemists available

Applications

The Thermo Scientific TruNarc is designed for authorized professional applications including:
Law-enforcement field screening
Customs inspections
Border-control operations
Evidence screening
Forensic field investigations
Controlled-substance screening
Security operations
Presumptive identification of suspected narcotics

Typical Use Cases

The analyzer can be used to screen suitable suspected materials including:
Powders
Tablets
Capsules
Plant-based materials
Substances inside suitable transparent containers

What is the Thermo Scientific TruNarc used for?
TruNarc is designed for presumptive field identification of suspected narcotics, controlled substances, cutting agents and precursors using Raman spectroscopy.

Does TruNarc use Raman spectroscopy?
Yes. Raman spectroscopy is the core analytical technology used by the TruNarc system.

Can TruNarc test substances without touching them?
For most suitable samples, yes. The system supports non-contact analysis and can scan through appropriate plastic or glass containers.

How quickly does TruNarc provide results?
Many tests produce results within seconds, although some samples can take up to approximately one minute.

Is TruNarc a definitive laboratory test?
No. TruNarc is intended for presumptive identification. Confirmatory testing may be required depending on applicable procedures and jurisdiction.

How long does the battery last?
The legacy TruNarc specification lists approximately 10 hours of battery operation.

Can results be exported?
Yes. The system supports data export through formats including CSV, SPC and PDF, with available formats depending on the software/version.
