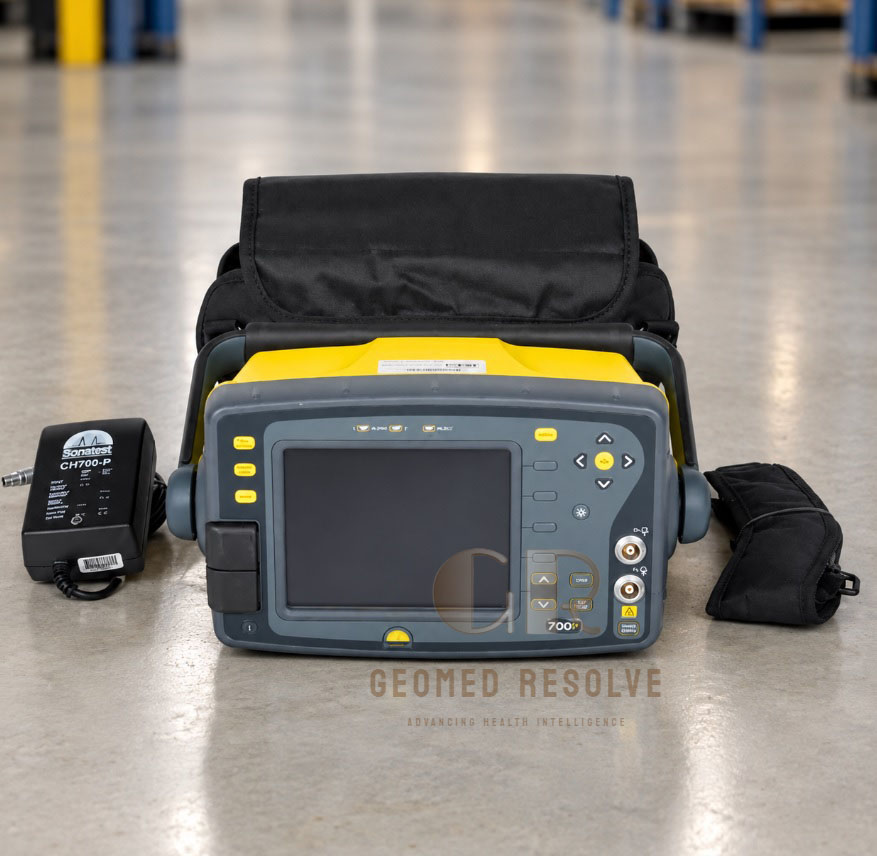

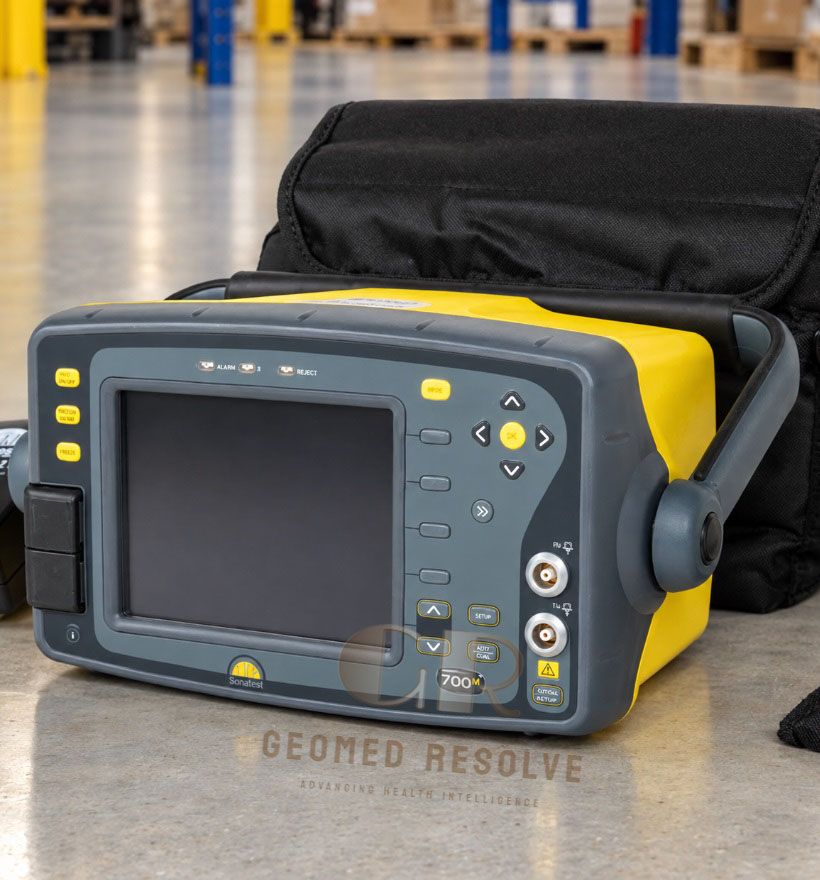

Sonatest Masterscan 700M Digital Ultrasonic Flaw Detector

Description

Sonatest Masterscan 700M Digital Ultrasonic Flaw Detector – Professional Portable UT Inspection and Material Testing System

The Sonatest Masterscan 700M Digital Ultrasonic Flaw Detector is a high-performance narrowband ultrasonic testing instrument designed for professional non-destructive testing. It combines a full VGA display, powerful 100–450 V spike and square-wave pulser, advanced defect-sizing functions, and a wide measurement range for demanding inspection applications.

The Masterscan 700M is designed for weld inspection, corrosion detection, composite inspection, bond testing, forgings, castings, power-generation applications, and general ultrasonic testing. Its modular software architecture allows additional inspection functions to be added or upgraded in the field.

Main Benefits

High-performance ultrasonic flaw detection for industrial inspection.
Powerful 450 V pulser for improved penetration.
Excellent near-surface resolution using Active Edge technology.
Wide measurement range up to 20,000 mm in steel.
Supports both pulse-echo and transmit/receive testing.
Suitable for single-crystal, dual-crystal, and pitch-catch probes.
Advanced DAC and optional defect-sizing software.
Rugged construction for demanding field environments.
Up to approximately 13.5 hours of battery operation according to the current Sonatest product specification.

Key Features

Full VGA color display.
7 measurement modes.
RF, full-wave, positive half-wave, and negative half-wave rectification.
Active Edge near-surface resolution technology.
Active Peak Memory for echo-dynamic pattern analysis.
Reference waveform comparison.
Automatic calibration using two reference echoes.
Automatic Gain Control.
Two independent measurement gates.
Standard DAC capability.
Optional Split DAC and DGS/AVG.
Optional TCG, AWS, API, BEA, corrosion T-Log, B-Chart, and Dryscan functions.
Adjustable 5 Hz–5 kHz PRF on the current Sonatest specification.
External synchronization.
Proportional output.
External video output.
USB data connection.
BNC or LEMO transducer connections depending on factory configuration.
UT-Lity software for inspection-data management.

Key Specifications

Manufacturer: Sonatest.
Model: Masterscan 700M.
Instrument type: Digital ultrasonic flaw detector.
Testing method: Conventional ultrasonic testing (UT).
Measurement modes: 7.
Test range: Approximately 0–20,000 mm in steel at 5,930 m/s.
Material velocity: Continuously adjustable from 256 to 16,000 m/s.
Probe zero: 0–1,000 µs.
Delay: Up to 20,000 m in steel at 5,930 m/s.
Gain: 0–110 dB.
Gain steps: 0.1, 0.5, 1, 2, 6, 14, and 20 dB.
Test modes: Pulse-echo and transmit/receive.
Probe types: Single crystal, double crystal, and pitch-catch.
Damping: 50 and 400 Ω selectable.
Pulser voltage: 100–450 V, negative spike and square wave.
Pulse width: Approximately 30 ns–2,500 ns.
PRF: Adjustable; current Sonatest specification lists 5 Hz–5 kHz.
Screen update rate: 60 Hz.
Rectification: RF, full wave, positive half-wave, and negative half-wave.
Frequency filters: 8 selectable filter bands, from low-frequency ranges through a wideband 1.6–33 MHz setting.
Gates: 2.
DAC: Standard.
TCG: Optional.
DGS/AVG: Optional.
AWS: Optional.
API: Optional.
Corrosion software: Optional.
Dryscan: Optional.
Storage: Internal storage accessible through USB.
Transducer connections: BNC or LEMO, depending on configuration.
Battery: 14.4 V lithium-ion battery pack.
Battery life: Up to approximately 13.5 hours according to Sonatest’s current product page; some legacy documentation specifies up to 16 hours depending on configuration and battery condition.
Dimensions: Approximately 145 × 255 × 145 mm.
Weight: Approximately 2.2–2.5 kg with battery, depending on configuration.
Environmental protection: Designed for harsh industrial environments; historical specifications identify IP67 protection and MIL-STD environmental testing.

Applications

Weld inspection.
Corrosion detection.
Pipe inspection.
Composite inspection.
Bond testing.
Forging inspection.
Casting inspection.
Power-generation inspection.
General ultrasonic flaw detection.
Thickness and corrosion monitoring.
Storage-tank inspection.
Industrial fabrication quality control.

Typical Users
NDT inspection companies.
Welding inspectors.
Oil and gas companies.
Power-generation facilities.
Manufacturing companies.
Aerospace and composite inspection teams.
Petrochemical maintenance teams.
Industrial maintenance departments.
Quality-control professionals.
Non-destructive testing laboratories.

What is the Sonatest Masterscan 700M used for?
It is used for ultrasonic inspection of welds, pipes, castings, forgings, composites, bonds, and other materials where internal defects or discontinuities need to be detected.

What is the maximum test range?
The documented test range extends up to approximately 20,000 mm in steel at a material velocity of 5,930 m/s.

What pulser voltage does the Masterscan 700M provide?
The pulser operates from 100 to 450 V and supports both negative spike and square-wave excitation.

What is Active Edge?
Active Edge is Sonatest technology designed to improve near-surface resolution, helping inspectors distinguish indications located close to the surface.

Does it support DAC?
Yes. DAC is included as a standard measurement capability. Additional functions such as Split DAC, DGS/AVG, TCG, AWS, API, and BEA are available as options.

Can it perform corrosion inspection?
Yes. Corrosion software and T-Log/B-Chart functionality are available as options for applications such as corrosion mapping and thickness monitoring.
