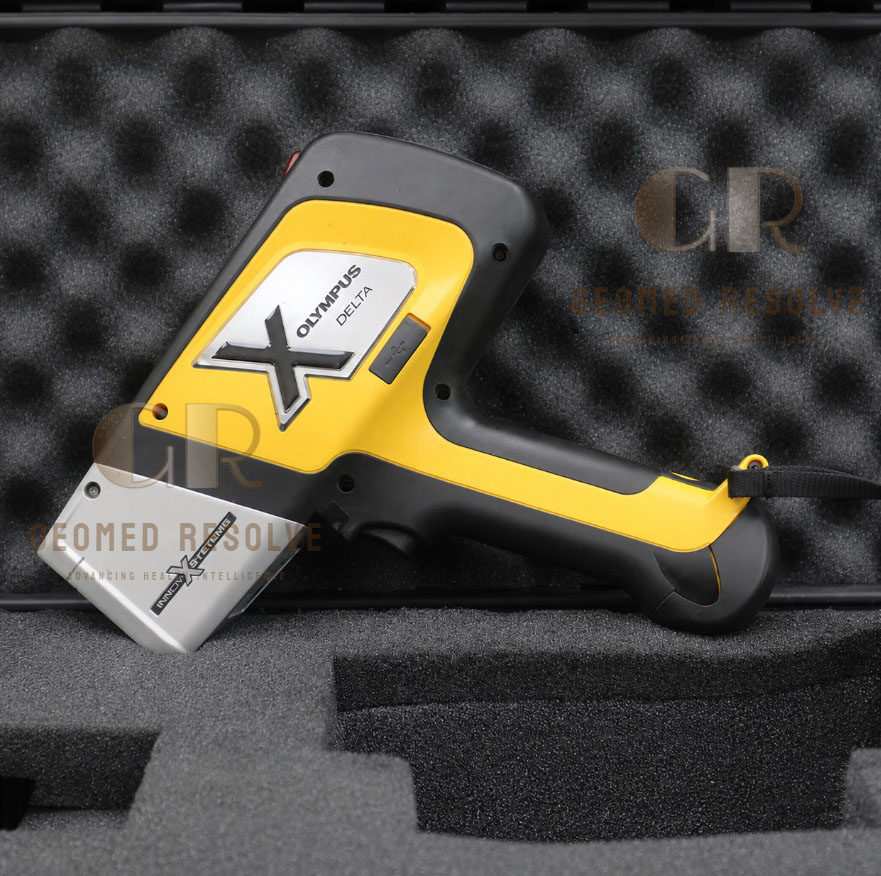

Olympus DP-4000 Delta Premium Alloy XRF Analyzer

Description

Olympus DP-4000 Delta Premium Alloy XRF Analyzer – High-Performance Handheld Elemental Analysis and Material Identification System

The Olympus DP-4000 Delta Premium Alloy XRF Analyzer is a handheld X-ray fluorescence instrument designed for rapid, non-destructive alloy identification and elemental analysis. It is suitable for positive material identification, scrap sorting, incoming-material inspection, metal recycling, and industrial quality control.

The Olympus DP-4000 Delta Premium Alloy XRF Analyzer is a professional handheld X-ray fluorescence instrument designed for fast, non-destructive elemental analysis. Its large-area silicon drift detector and application-optimized 4-watt X-ray tube support demanding alloy, metallurgical, mining, and light-element analysis applications. Depending on the installed configuration, the DELTA Premium platform may use rhodium, gold, or tantalum anode tubes.

Main Benefits

Provides rapid, non-destructive material analysis.
Supports alloy identification and positive material identification.
Offers improved sensitivity for demanding elemental analysis.
Helps analyze light elements in suitable applications.
Suitable for workshop, laboratory, recycling, and field use.
Reduces the need for routine laboratory sampling.
Supports long operating periods with hot-swappable batteries.
Stores and transfers measurement data for reporting.

Key Features

Large-area silicon drift detector.
Application-optimized 4-watt X-ray tube.
Alloy analysis capability.
Optional mining, soil, environmental, or other analytical modes depending on configuration.
Color touchscreen interface.
Automatic barometric pressure correction for light-element measurements.
Built-in accelerometer for power management and impact logging.
USB and Bluetooth data transfer.
1 GB microSD storage.
DELTA PC software compatibility.
Rugged handheld housing with ergonomic rubberized grip.
Docking station and hot-swappable battery system.

Key Specifications

Manufacturer: Olympus / Innov-X.
Model: DP-4000 Delta Premium.
Analyzer type: Handheld energy-dispersive X-ray fluorescence analyzer.
Primary application: Alloy and elemental analysis.
X-ray tube: 4-watt application-optimized tube.
Possible anode materials: Rhodium, gold, or tantalum, depending on configuration.
Detector: Large-area silicon drift detector.
Analytical range: Mg and higher for Rh/Ag configurations; Al and higher for Ta/Au configurations, depending on application.
Processor: 530 MHz CPU with integrated floating-point processor.
Memory: 128 MB RAM.
Digital pulse processing: Olympus X-act Count digital pulse processor.
Display: 32-bit color QVGA backlit touchscreen.
Display area: Approximately 57 × 73 mm.
Data storage: 1 GB microSD card, storing approximately 75,000 readings.
Connectivity: USB and Bluetooth.
Power: Rechargeable lithium-ion battery.
Battery feature: Hot-swappable battery replacement.
Dimensions: Approximately 260 × 240 × 90 mm.
Weight: Approximately 1.5 kg without battery.
Operating temperature: Approximately −10°C to 50°C.
Smart electronics: Accelerometer and barometer.
Software: DELTA PC software.

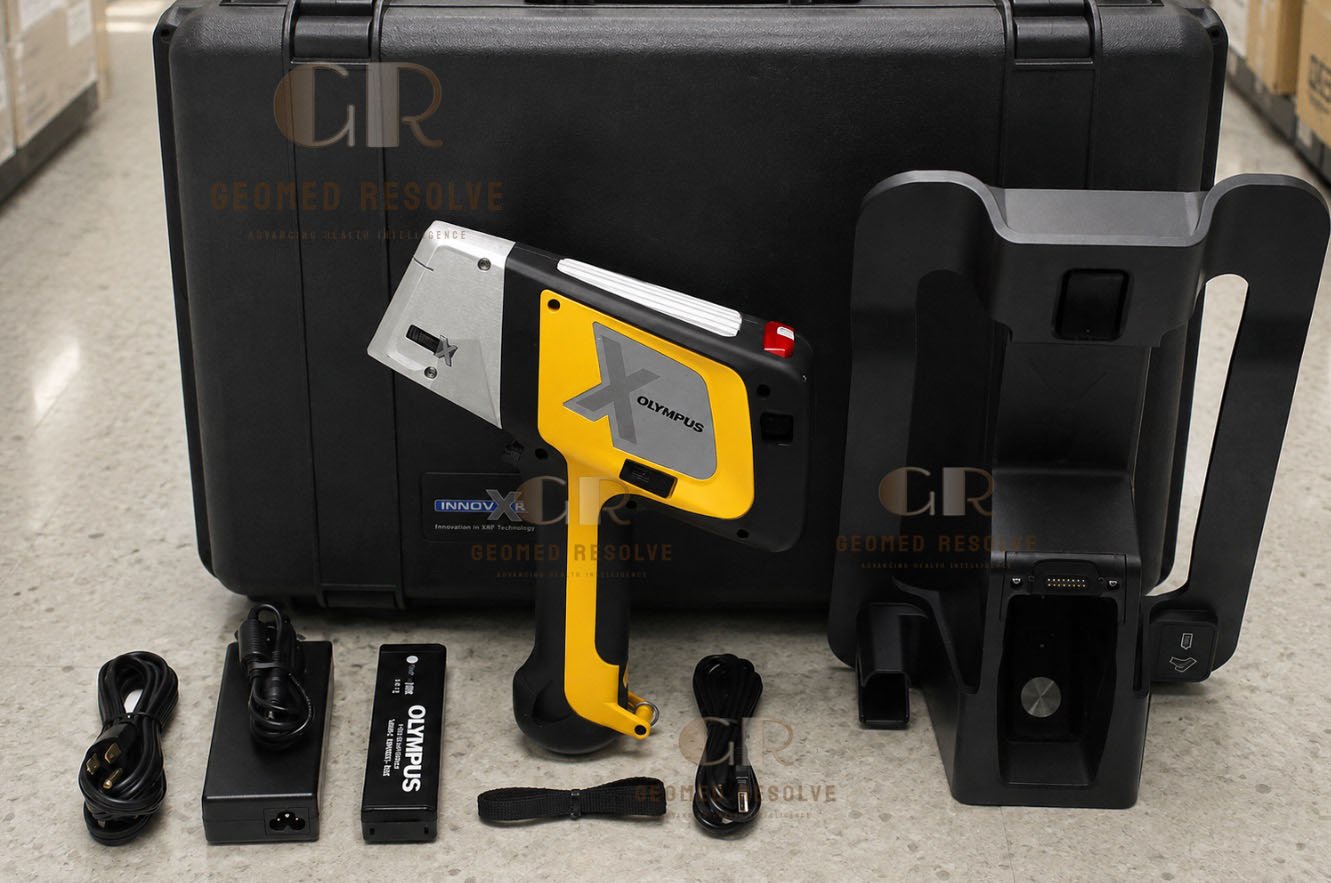

Accessories: Waterproof carrying case, two lithium-ion batteries, docking station, charger, USB cable, calibration reference coin, spare measurement windows, wrist strap, and documentation.

Applications

Alloy identification.
Positive material identification.
Scrap-metal sorting.
Metal recycling.
Incoming-material inspection.
Metallurgical analysis.
Mining and geological screening.
Soil and environmental analysis when the appropriate mode is installed.
Manufacturing quality control.
Welding and fabrication inspection.
Trace-element screening.
Field-based material verification.

Typical Users

Metal manufacturers.
Fabrication and welding companies.
Recycling facilities.
Quality-control departments.
Industrial inspection providers.
Mining and geological teams.
Environmental testing professionals.
Metallurgical laboratories.
Manufacturing and engineering companies.

What is the Olympus DP-4000 used for?
It is used for alloy identification, elemental analysis, positive material identification, scrap sorting, metallurgy, mining, and other industrial testing applications.

Is the DP-4000 non-destructive?
Yes. XRF analysis generally allows samples to be tested without cutting, drilling, or damaging them.

What makes the Delta Premium different?
The DELTA Premium model uses a large-area silicon drift detector and optimized 4-watt X-ray tube for higher sensitivity and faster analysis in demanding applications.

What elements can it analyze?
The analytical range depends on the installed X-ray tube and application. Documented configurations cover magnesium and higher with certain Rh/Ag configurations and aluminum and higher with Ta/Au configurations.

Can it be used for mining or soil analysis?
Yes, when the appropriate mining, soil, or environmental application mode is installed and calibrated.

Is it suitable for field use?
Yes. Its handheld format, battery operation, rugged housing, touchscreen, and portable data storage support field inspections.
