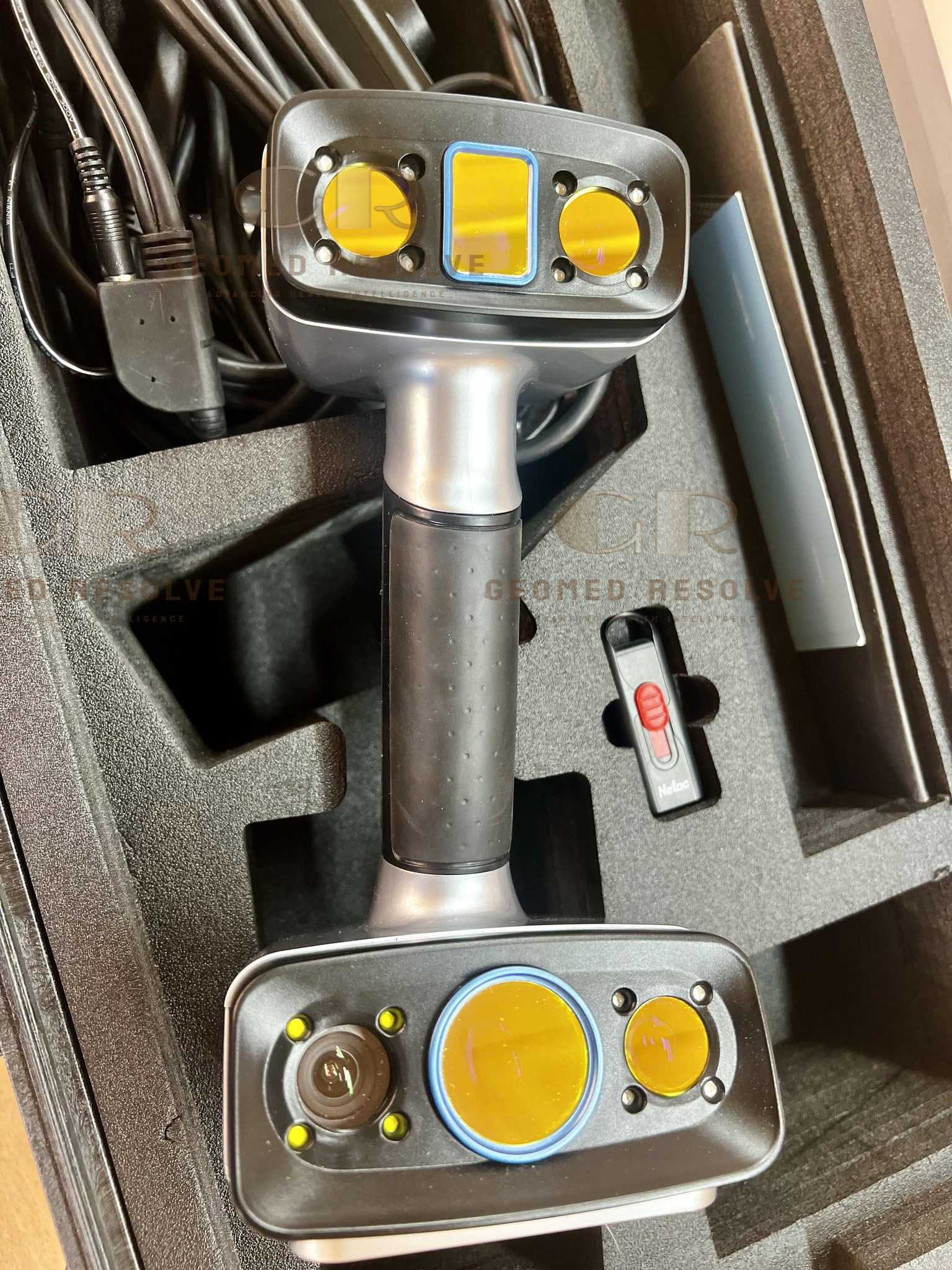

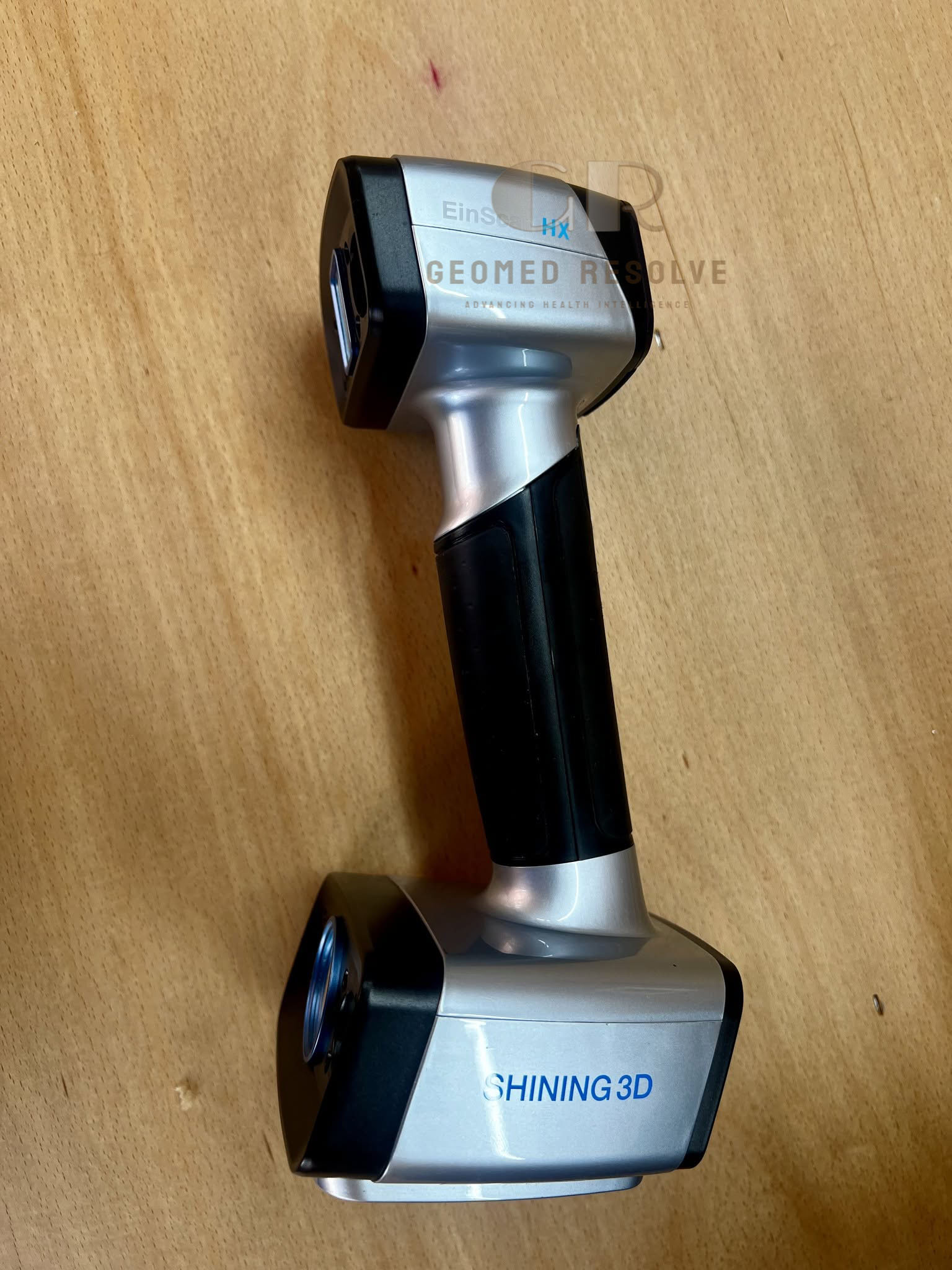

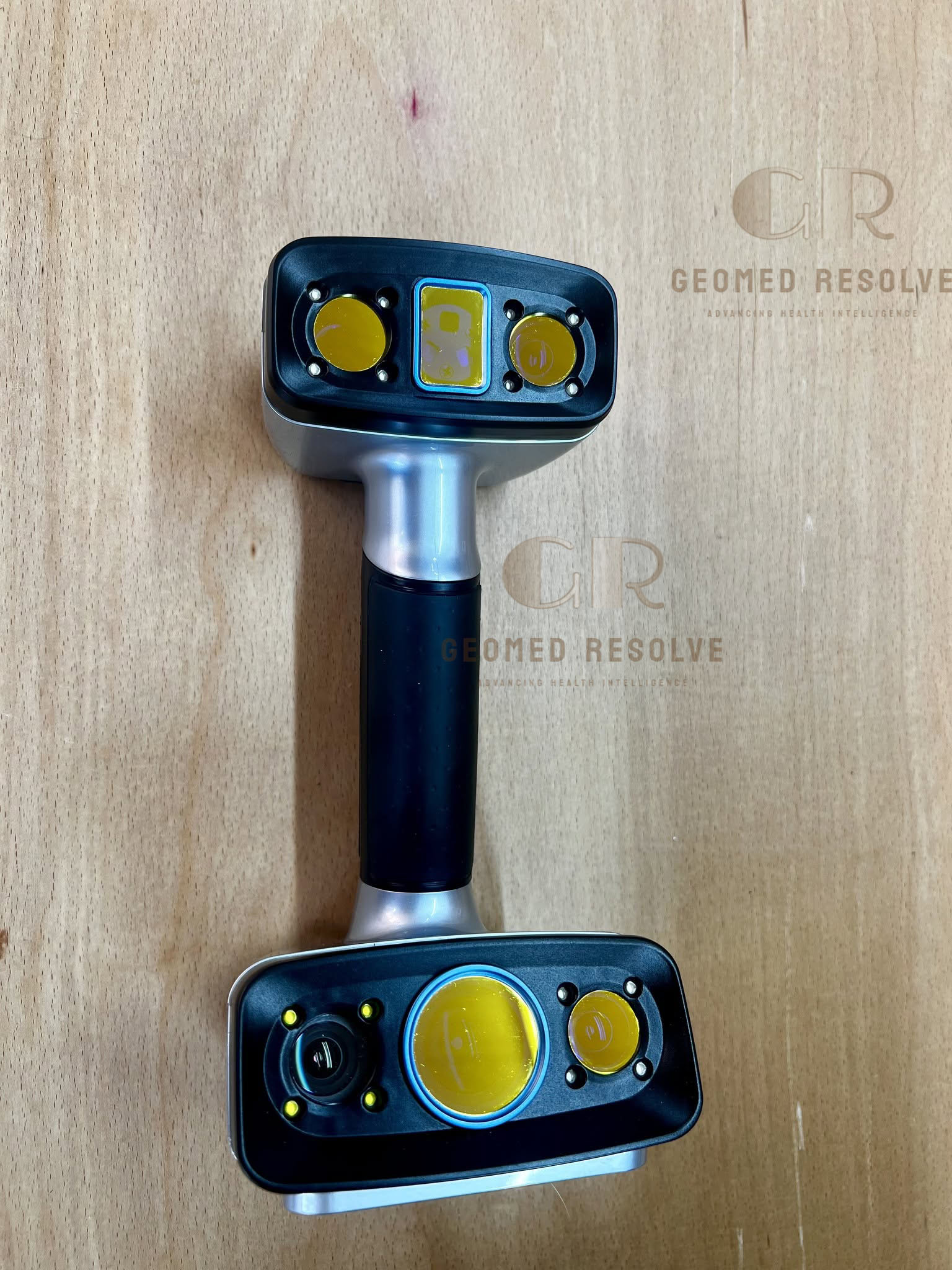

SHINING 3D EinScan HX 3D Scanner

Description

SHINING 3D EinScan HX 3D Scanner – Professional Hybrid Blue Laser & LED Handheld Scanner for Reverse Engineering, Inspection & Metrology

The SHINING 3D EinScan HX 3D Scanner is a professional handheld 3D scanning system that combines blue LED light and blue laser technology in one portable scanner. This hybrid design provides flexibility for scanning different object sizes, shapes, colors, and surface conditions.

The EinScan HX is particularly suitable for industrial inspection, reverse engineering, dimensional measurement, CAD/CAM, manufacturing, and 3D printing. Its blue laser mode is less sensitive to ambient light and performs better on dark and reflective surfaces than conventional visible-light scanning.

Main Benefits

Professional handheld 3D scanning
Hybrid blue LED and blue laser technology
Accuracy up to 0.04 mm
Minimum point distance of 0.05 mm
Scanning speed up to 1,200,000 points/s
Full-color texture capture
Suitable for dark and reflective surfaces
Multiple alignment methods
Lightweight ergonomic design
Suitable for reverse engineering and inspection
Compatible with CAD/CAM workflows

Key Features

Hybrid blue LED + blue laser light sources
Rapid Scan mode
Laser Scan mode
Seven blue laser lines
Built-in color camera
Full-color texture capture
Geometry alignment
Marker alignment
Texture alignment
Hybrid alignment
USB 3.0 connection
Ergonomic handheld design
Scanner weight approximately 710 g

Key Specifications

Brand: SHINING 3D
Model: EinScan HX
Product Type: Handheld 3D Scanner
Technology: Blue LED + Blue Laser
Rapid Scan Accuracy: Up to 0.05 mm
Laser Scan Accuracy: Up to 0.04 mm
Rapid Scan Volumetric Accuracy: 0.05 + 0.1 mm/m
Laser Scan Volumetric Accuracy: 0.04 + 0.06 mm/m
Rapid Scan Speed: Up to 1,200,000 points/s
Laser Scan Speed: Up to 480,000 points/s
Rapid Scan Point Distance: 0.25–3 mm
Laser Scan Point Distance: 0.05–3 mm
Rapid Scan Field of View: Up to 420 × 440 mm
Laser Scan Field of View: Up to 380 × 400 mm
Working Distance: Approximately 470 mm
Rapid Scan Depth of Field: 200–700 mm
Laser Scan Depth of Field: 350–610 mm
Color Camera: Built-in
Connection: USB 3.0
Weight: Approximately 710 g

Blue Laser Scanning
The blue laser mode is particularly useful for industrial components requiring higher accuracy and finer detail.
SHINING 3D specifies a minimum point distance of 0.05 mm and accuracy up to 0.04 mm in Laser Scan mode. The laser is also less affected by ambient lighting and is designed to perform better on dark and reflective surfaces.

Rapid LED Scanning
The blue LED Rapid Scan mode provides faster scanning for larger surfaces and general 3D digitization.
It can capture up to 1.2 million points per second at up to 20 FPS, making it useful when scanning larger components where speed is more important than the finest possible resolution.

Full-Color 3D Scanning
The EinScan HX incorporates a built-in color camera, allowing users to capture full-color textures and use texture information for alignment.

This can be useful for:
Product documentation
Automotive interiors
Design visualization
Cultural objects
Color-textured 3D models
Digital archiving

Applications

The SHINING 3D EinScan HX is suitable for:
Industrial 3D inspection
Reverse engineering
Quality control
Dimensional measurement
CAD reconstruction
Automotive components
Motorcycle components
Aerospace parts
Mechanical components
Mold and tooling inspection
Manufacturing
Product development
3D printing
Shipbuilding
Research and engineering
SHINING 3D specifically identifies applications including automotive, shipbuilding, machining, research, reverse engineering, and measurement.

Reverse Engineering
The EinScan HX is particularly suitable for reverse engineering because it can capture high-resolution 3D geometry and generate data for subsequent CAD processing.

It can be used to digitize existing parts for:
CAD reconstruction
Replacement-part development
Product modification
Engineering analysis
Manufacturing preparation
3D printing

Inspection & Metrology
The scanner’s high-accuracy laser mode makes it suitable for professional measurement and inspection applications.
Typical workflows include:
Scan the physical component.
Generate the 3D mesh.
Compare the scan with CAD or reference geometry.
Identify dimensional deviations.
Export the data for engineering or manufacturing.

What is the EinScan HX used for?
It is used for industrial 3D scanning, reverse engineering, inspection, measurement, manufacturing, CAD/CAM, and 3D printing.

How accurate is the EinScan HX?
Laser Scan mode provides accuracy of up to 0.04 mm, while Rapid Scan mode provides accuracy of up to 0.05 mm.

How fast can it scan?
Rapid Scan mode can reach up to 1,200,000 points per second.

Can the EinScan HX scan black or reflective objects?
Yes. SHINING 3D states that its blue laser mode is less sensitive to ambient light and provides better performance when scanning dark and reflective surfaces.

Does it capture color?
Yes. The scanner has a built-in color camera and supports full-color texture capture.

Is the EinScan HX suitable for reverse engineering?
Yes. Its high-resolution laser scanning mode is specifically suited to reverse engineering and measurement applications.

Is the scanner lightweight?
Yes. The scanner weighs approximately 710 g, making it suitable for prolonged handheld scanning.
