EinScan Pro 2X Plus 3D Scanner

Description

SHINING 3D EinScan Pro 2X Plus 3D Scanner – Professional Handheld HD Scanner for Reverse Engineering, Inspection & 3D Measurement

The SHINING 3D EinScan Pro 2X Plus is a professional multifunctional handheld 3D scanner designed for reverse engineering, inspection, quality control, product development, 3D measurement, and digital modeling.

The Pro 2X Plus supports multiple scanning configurations, including Handheld HD Scan, Handheld Rapid Scan, and fixed scanning with the optional Industrial Pack. This makes it suitable for scanning a wide range of object sizes and geometries.

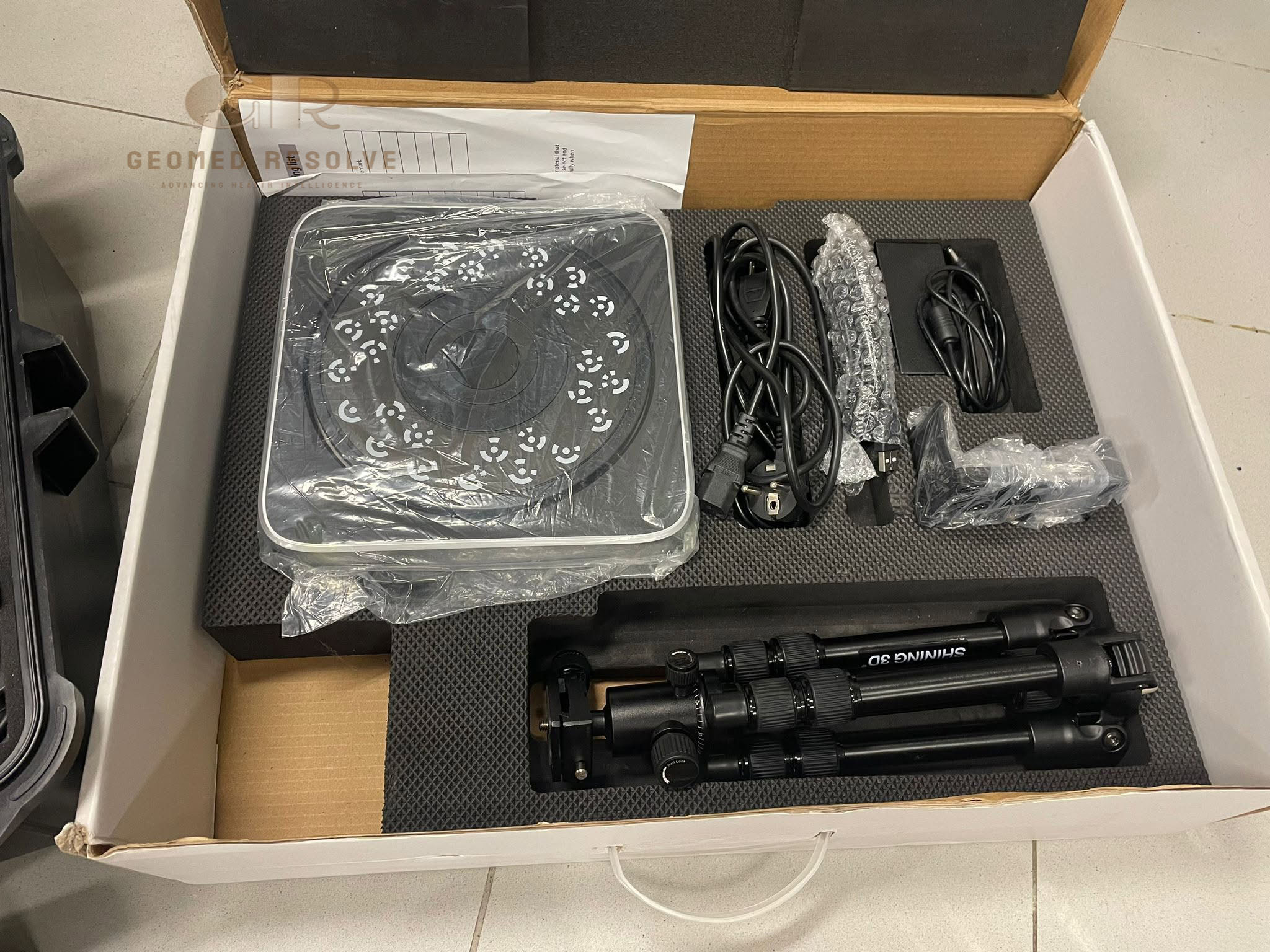

Its modular design can also be expanded with optional accessories such as the HD Prime Pack, Industrial Pack, and Color Pack, depending on the exact configuration of the unit.

Main Benefits

Professional handheld 3D scanning
Up to 0.05 mm accuracy in Handheld HD mode
Up to 1.5 million points/s in Rapid Scan mode
Multiple scanning modes
Optional industrial fixed scanning
Optional color/texture scanning
Suitable for reverse engineering
Suitable for dimensional inspection
Portable design
Supports 3D-printing workflows
Compatible with professional CAD and reverse-engineering software

Key Features

Handheld HD scanning
Handheld Rapid scanning
Fixed scanning with optional Industrial Pack
LED light source
Marker alignment
Feature alignment
Manual alignment
Texture alignment with Color Pack
Hybrid alignment with supported configurations
3D-printable watertight model generation
USB 3.0 connectivity
Lightweight scanner body

Key Specifications

Brand: SHINING 3D
Model: EinScan Pro 2X Plus
Product Type: Multifunctional Handheld 3D Scanner
Light Source: LED
Handheld HD Accuracy: Up to 0.05 mm
Handheld Rapid Accuracy: Up to 0.1 mm
Fixed Scan Accuracy: 0.04 mm single-shot accuracy
Volumetric Accuracy: 0.3 mm/m with marker alignment
Handheld HD Scan Speed: Up to 1.1 million points/s
Handheld Rapid Scan Speed: Up to 1.5 million points/s
Handheld HD Frame Rate: Up to 20 fps
Handheld Rapid Frame Rate: Up to 30 fps
Point Distance: 0.2–3.0 mm in HD mode
Rapid Scan Point Distance: 0.25–3.0 mm
Single Scan Range: Approximately 208 × 136 mm to 312 × 204 mm
Depth of Field: ±100 mm
Working Distance: 510 mm
Scanner Weight: Approximately 1.13 kg
Interface: USB 3.0
Output Formats: OBJ, STL, ASC, PLY, P3
Operating System: Windows 64-bit

Applications

The EinScan Pro 2X Plus is suitable for:
Reverse engineering
Industrial 3D inspection
Quality control
Dimensional measurement
Product development
CAD reconstruction
Manufacturing inspection
Automotive components
Mechanical parts
Mold and tooling inspection
Prototype development
3D printing
Digital archiving
Product design
Research and development

Reverse Engineering
The scanner is particularly useful for reverse-engineering workflows, allowing physical components to be digitized into 3D models for subsequent CAD processing.

It can be integrated with professional software such as EXModel and Geomagic Design X, depending on the software configuration. SHINING 3D currently lists these software integrations for its Pro-series workflow.

Inspection & Quality Control
The Pro 2X Plus can capture detailed 3D geometry for:
CAD comparison
Dimensional verification
Part inspection
Prototype validation
Mold inspection
Manufacturing quality control
Surface deviation analysis
Its marker-based and feature-based alignment options provide flexibility when scanning different types of components.

What is the EinScan Pro 2X Plus used for?
It is used for 3D inspection, reverse engineering, quality control, product development, dimensional measurement, and 3D printing workflows.

How accurate is the EinScan Pro 2X Plus?
In Handheld HD mode, SHINING 3D specifies accuracy of up to 0.05 mm. Fixed scanning with the Industrial Pack is specified at 0.04 mm single-shot accuracy.

How fast can it scan?
Handheld Rapid Scan mode can reach 1.5 million points per second, while Handheld HD mode is specified at up to 1.1 million points per second.

Does it scan in color?
Yes, but color/texture scanning requires the optional Color Pack according to the original specifications.

Can it be used for reverse engineering?
Yes. It is well suited for reverse engineering and can be used with compatible CAD/reverse-engineering software.

Can it scan without markers?
Depending on the scanning mode and surface geometry, the Pro 2X Plus supports feature and manual alignment as well as marker alignment. Texture alignment is available with the Color Pack.
