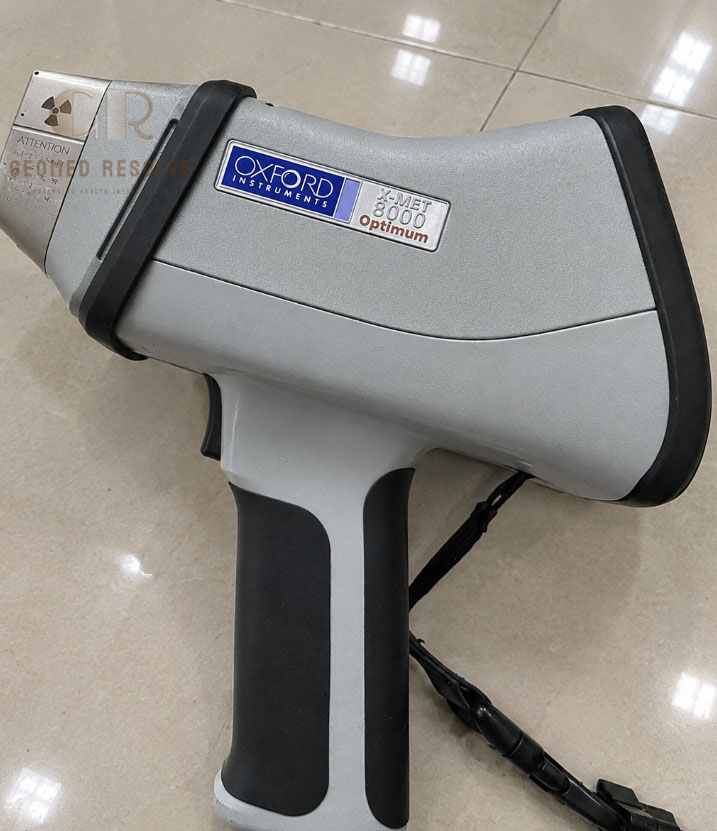

Oxford Instruments X-MET 8000 Optimum XRF Analyzer

Description

Oxford Instruments X-MET 8000 Optimum Handheld XRF Analyzer for Alloy Identification and Industrial Material Testing

The Oxford Instruments X-MET 8000 Optimum XRF Analyzer is a professional handheld X-ray fluorescence instrument designed for fast, nondestructive elemental analysis and alloy identification. It combines a high-performance X-ray tube, large-area silicon drift detector, and six-position filter wheel to support positive material identification (PMI), scrap metal sorting, manufacturing quality control, and precious metal analysis. Its compact, rugged design makes it suitable for both on-site inspections and industrial testing environments.

Main Benefits

Rapid, nondestructive material identification.
Supports elemental analysis from magnesium to uranium, depending on the application.
Six-position filter wheel for optimized analysis.
Lightweight, ergonomic design for field use.
Suitable for industrial quality control and PMI inspections.

Key Features

Advanced XRF Analysis
The X-MET 8000 Optimum uses energy-dispersive X-ray fluorescence technology to identify elements and determine material composition without damaging the sample.

Large-Area Silicon Drift Detector
The high-resolution silicon drift detector supports fast and reliable elemental analysis across a wide range of industrial materials.

Six-Position Filter Wheel
The automatic filter wheel optimizes analysis across elements from magnesium to uranium, supporting a broad range of alloy and material testing applications.

Portable and Rugged Design
The handheld analyzer weighs approximately 1.5 kg with batteries and features an IP54 rating for protection against dust and water splashes. It is designed for demanding industrial environments.

Easy-to-Use Touchscreen
The 4.3-inch color touchscreen and icon-driven interface provide clear results and straightforward operation, including use with gloves.

Data Management and Reporting
The instrument supports onboard result storage, report generation, and data transfer through USB, Bluetooth, or Wi-Fi, depending on configuration.

Key Specifications

Product Name: Oxford Instruments X-MET 8000 Optimum XRF Analyzer
Product Type: Handheld X-ray fluorescence analyzer
Technology: Energy-dispersive X-ray fluorescence (EDXRF)
Detector: Large-area silicon drift detector (SDD)
X-ray Tube: 40 kV or 50 kV, depending on configuration
Filter System: Automatic six-position filter wheel
Elemental Range: Mg–U, depending on application
Weight: Approximately 1.5 kg with batteries
Ingress Protection: IP54
Display: 4.3-inch color touchscreen
Battery Life: Approximately 10–12 hours, depending on operating conditions
Operating Temperature: Approximately -10°C to +50°C
Maximum Standard Sample Temperature: 100°C
Optional HERO™ Window: Supports sample temperatures up to 400°C
Connectivity: USB, Bluetooth, and Wi-Fi, depending on configuration
Calibration: Standardless fundamental parameters (FP), including light-element analysis

Applications

The Oxford Instruments X-MET 8000 Optimum XRF Analyzer is suitable for:
Positive material identification (PMI)
Scrap metal sorting and recycling
Manufacturing quality assurance and quality control
Alloy identification and verification
Precious metal and jewelry analysis
Metal coating thickness measurements
Regulatory compliance screening
Industrial maintenance and material inspection

What is the Oxford Instruments X-MET 8000 Optimum used for?
It is used for rapid, nondestructive elemental analysis, alloy identification, PMI inspections, and industrial material verification.

What elements can the X-MET 8000 Optimum analyze?
Its analytical range extends from magnesium (Mg) to uranium (U), depending on the application and instrument configuration.

Is the X-MET 8000 Optimum portable?
Yes. It is a handheld analyzer weighing approximately 1.5 kg with batteries, designed for field and industrial use.

Can it analyze aluminum and stainless steel alloys?
Yes. The analyzer is designed for alloy identification and analysis, including aluminum alloys, bronzes, stainless steels, and other commercial metals.

Does the X-MET 8000 Optimum perform nondestructive testing?
Yes. XRF analysis is generally nondestructive when performed under suitable testing conditions.
