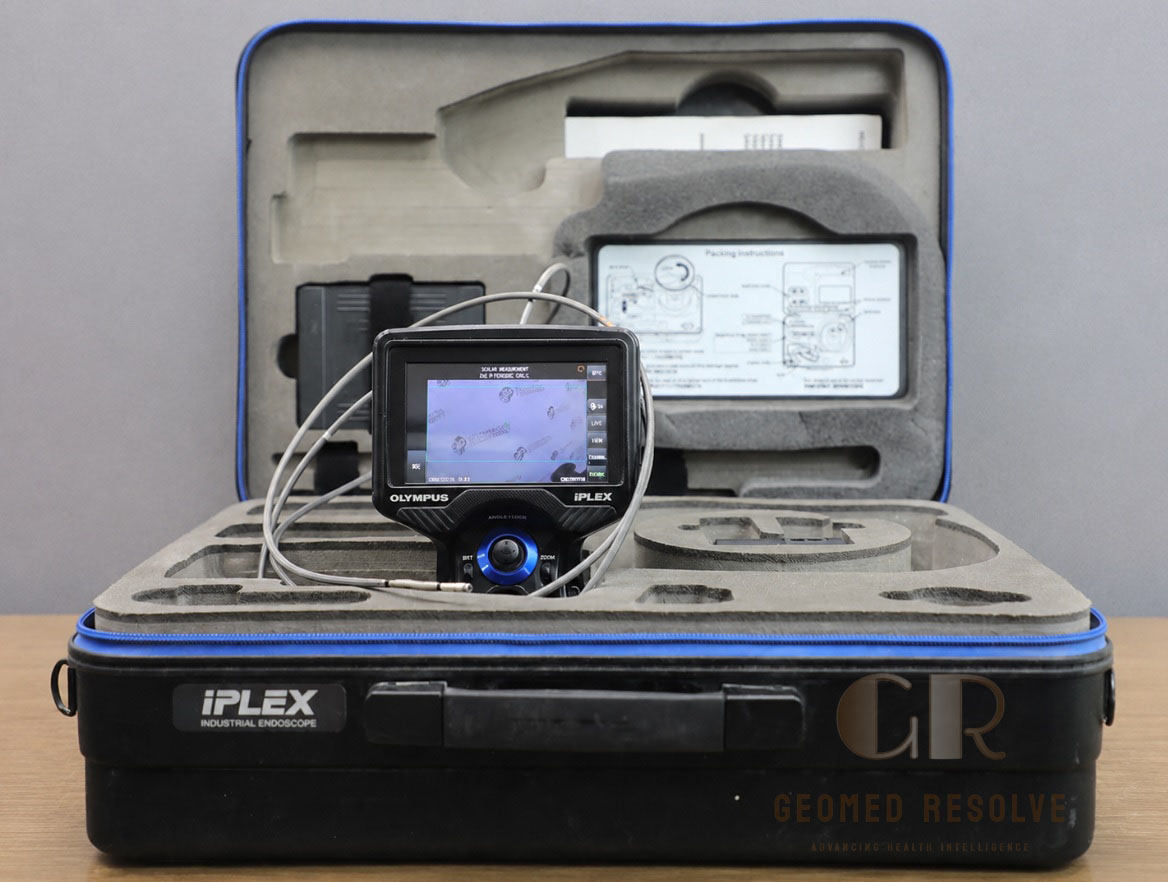

Olympus IPLEX G Lite Videoscope

Description

Olympus IPLEX G Lite Industrial Videoscope – Portable High-Resolution Remote Visual Inspection System for NDT Applications

The Olympus IPLEX G Lite Industrial Videoscope is a compact and rugged remote visual inspection (RVI) system designed for non-destructive testing and maintenance inspections in demanding industrial environments.

Combining advanced image processing, bright LED illumination, electronic scope articulation and lightweight portability, the IPLEX G Lite allows technicians to inspect difficult-to-access areas without dismantling equipment. It is widely used for aircraft engines, power generation equipment, automotive components, industrial machinery and infrastructure inspection.

The system features a lightweight handheld design, a daylight-view touchscreen display, TrueFeel scope-tip articulation, image recording functions and optional measurement capabilities for defect evaluation.

Main Benefits

Portable industrial inspection solution
High-quality remote visual inspection
Inspect inaccessible internal components
Reduces equipment disassembly time
Improves maintenance efficiency
Supports preventive maintenance programs
Electronic joystick-controlled articulation
Bright LED illumination
Image and video recording
Optional stereo measurement capability
Rugged design for harsh industrial environments
Lightweight one-hand operation

Key Features

Advanced Imaging System
The IPLEX G Lite uses Olympus image-processing technologies to improve defect visibility and inspection efficiency.

Features include:
PulsarPic image processing
Dynamic Noise Reduction
WiDER image enhancement
Bright LED illumination
Adjustable brightness control
These functions help inspectors identify cracks, corrosion, wear and foreign object damage more easily.

TrueFeel Electronic Articulation
The scope tip uses TrueFeel electronic articulation, providing responsive control for positioning the insertion tube inside complex inspection areas.

Benefits:
Smooth probe movement
Accurate positioning
Easier one-handed operation
Improved inspection workflow

Interchangeable Viewing Tip Adaptors
The IPLEX G Lite supports different optical tip adaptors to suit various inspection requirements.

Available options include:
Forward viewing
Side viewing
Wide-angle viewing
Stereo measurement tips

Applications:
Engine inspection
Turbine inspection
Weld inspection
Internal component inspection

Image & Video Recording
The system supports inspection documentation through:
Still image capture
Video recording
Thumbnail review
Image annotations
Date/time overlays
HDMI output
Video recording supports MPEG-4 AVC/H.264 format with selectable 60 fps or 30 fps recording.

Measurement Capability
The IPLEX G Lite includes standard scalar measurement and optional stereo measurement functions.

Optional measurement functions include:
Distance measurement
Point-to-line measurement
Depth measurement
Area and line measurement

Rugged Industrial Design
Designed for field inspections, the IPLEX G Lite provides:
IP65 protection
Shock-resistant construction
Dust-resistant housing

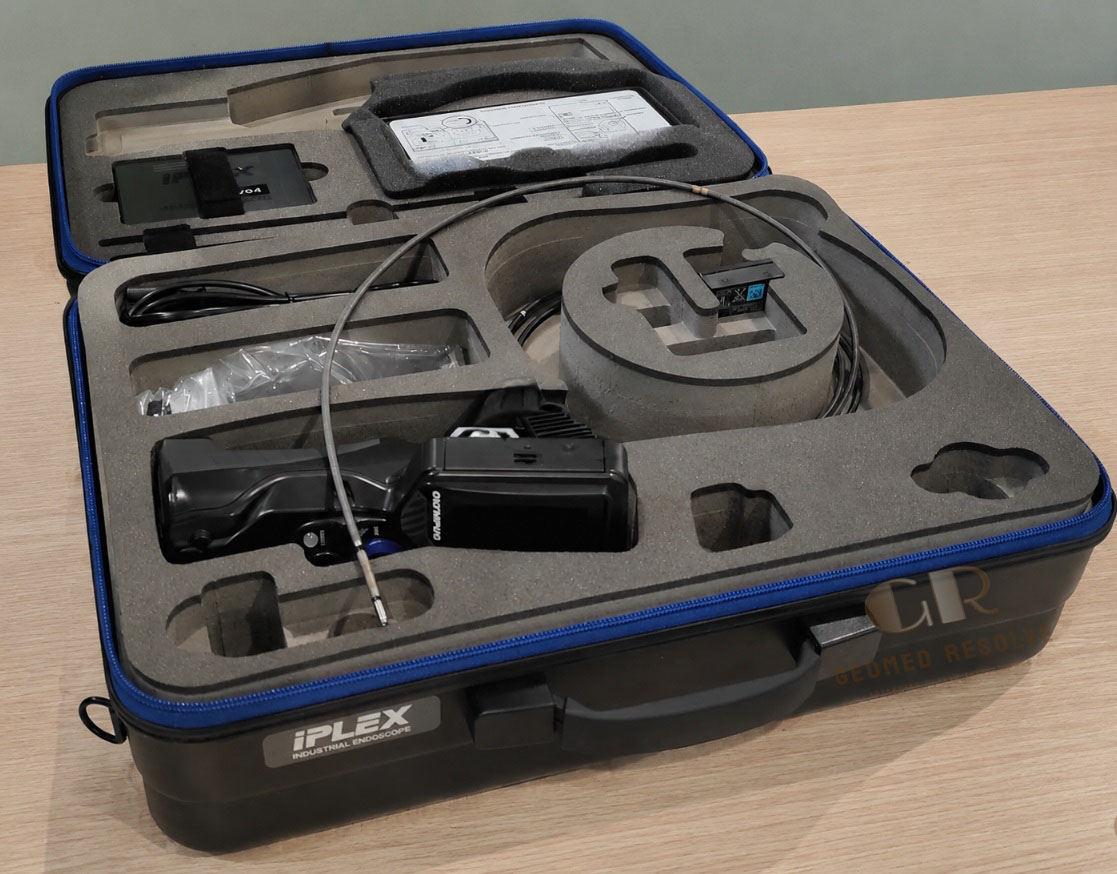

Portable carry case design
It is suitable for demanding inspection environments including industrial plants and maintenance sites.

Key Specifications

Brand: Olympus
Model: IPLEX G Lite
Product Type: Industrial Videoscope / Remote Visual Inspection System
Inspection Method: Non-destructive visual inspection
Scope Options
Model          Diameter     Length
IV9420GL     4.0 mm       2.0 m
IV9435GL     4.0 mm       3.5 m
IV9620GL     6.0 mm       2.0 m
IV9635GL     6.0 mm       3.5 m
IV96100GL   6.0 mm      10.0 m

Imaging System
Display: 4.3-inch WVGA touchscreen LCD
Resolution: 800 × 480 pixels
Image Recording: JPEG
Video Recording: MPEG-4 AVC/H.264
Frame Rate: 60 fps / 30 fps
Digital Zoom: 5×
Illumination: LED light source

Articulation
IV94 series: Up to approximately 130°
IV96 series: Up to approximately 150°
Electronic TrueFeel articulation

Power
Battery: 7.4 V lithium-ion battery
Battery Runtime: Approximately 90 minutes
AC Power: 100–240 V

Environmental
Operating Temperature:
Insertion tube: -25°C to 100°C in air
Main unit: -10°C to 40°C
Humidity: 15–90% RH
Liquid resistance and industrial protection features

Applications

The Olympus IPLEX G Lite Videoscope is suitable for:
Aerospace inspection
Aircraft engine inspection
Gas turbine inspection
Power generation maintenance
Automotive inspection
Welding inspection
Casting inspection
Boiler inspection
Pipeline inspection
Industrial machinery inspection
Manufacturing quality control
Preventive maintenance

Typical Inspection Areas
Used for inspecting:
Turbine blades
Engine combustion chambers
Gearboxes
Bearings
Pipes
Weld joints
Heat exchangers
Internal machinery components

What is the Olympus IPLEX G Lite used for?
The IPLEX G Lite is used for remote visual inspection of internal equipment and components without disassembly, especially in aerospace, power generation, automotive and industrial maintenance applications.

Is the IPLEX G Lite suitable for NDT inspection?
Yes. It is commonly used as an industrial videoscope for non-destructive testing and condition inspection.

What probe sizes are available?
The IPLEX G Lite is available with 4 mm and 6 mm diameter insertion tubes with multiple length options.

Can it measure defects?
Yes. Standard scalar measurement is available, with optional stereo measurement functions for distance, depth, area and point-to-line measurements.

Does it record images and videos?
Yes. The system records JPEG images and H.264 video files for inspection documentation.

Is it portable?
Yes. The IPLEX G Lite weighs approximately 1.15–1.83 kg depending on configuration, making it suitable for field inspection work.
