Fixturlaser NXA Pro Laser Shaft Alignment System

Description

Fixturlaser NXA Pro Laser Shaft Alignment System – Advanced Precision Alignment Tool for Rotating Machinery Maintenance

The Fixturlaser NXA Pro Laser Shaft Alignment System is a professional laser alignment solution designed for accurate alignment of rotating machinery such as motors, pumps, compressors and industrial drive systems.

Developed for demanding maintenance environments, the NXA Pro combines dual digital sensor technology, wireless communication, intelligent alignment guidance and 3D graphical workflow to simplify shaft alignment operations and improve machine reliability.

The system helps technicians detect and correct shaft misalignment, soft foot conditions and machine positioning errors, reducing vibration, energy losses and premature component failures.

With its adaptive GuideU user interface, large touchscreen display and automated measurement guidance, the NXA Pro allows both experienced alignment specialists and maintenance teams to complete alignment tasks efficiently.

Main Benefits

High-precision laser shaft alignment
Faster installation and measurement process
Wireless communication between display and sensors
Reduces rotating machinery vibration
Improves bearing and coupling lifespan
Supports horizontal and vertical machine alignment
Machine train alignment capability
Soft foot detection and correction
Real-time alignment adjustment guidance
Reduces maintenance downtime
Creates professional alignment reports
Suitable for industrial predictive maintenance programs

Key Features

Dual Digital Sensor Laser Technology
The Fixturlaser NXA Pro uses advanced smart sensor technology with dual digital sensors and visible line lasers.

Benefits:
Improved measurement accuracy
Better tolerance against ambient light
Reduced setup time
Automatic measurement registration
Reliable results in industrial environments

GuideU Adaptive User Interface
The NXA Pro features an intuitive graphical alignment interface designed to guide operators through the complete workflow.

Features include:
3D animated graphics
Color-coded alignment status
Step-by-step instructions
Real-time correction values
Easy-to-understand alignment reports

Wireless Smart Sensors
The smart sensors communicate wirelessly with the display unit through Bluetooth technology.

Advantages:
Faster setup
Reduced cables around machinery
Improved workplace safety
Easier operation in restricted spaces

Live Alignment Adjustment
The system provides real-time alignment values during machine movement.

Applications:
Horizontal alignment correction
Vertical alignment correction
Shim adjustment
Machine positioning

Soft Foot Check
The NXA Pro includes Softcheck functionality to identify uneven machine mounting conditions.

Soft foot problems can cause:
Shaft misalignment
Increased vibration
Bearing stress
Coupling wear

Machine Train Alignment
The system supports alignment of multiple connected machines.

Suitable for:
Motor-pump systems
Compressor trains
Generator systems
Industrial production lines

Key Specifications

Brand: Fixturlaser
Model: NXA Pro
Product Type: Laser Shaft Alignment System
Application: Rotating machinery alignment

Display Unit
Display size: 6.5-inch touchscreen
Weight: Approximately 1.2 kg with battery
Protection rating: IP65
Operating time: Approximately 10 hours
Gyroscope: 6-axis MEMS inertial motion sensor
Wireless communication: Bluetooth

Laser Sensor Units
Sensor type: Digital smart sensors
Detector: 2nd generation Ultra HD CCD
Detector length: 30 mm
Detector resolution: 1 µm
Measurement accuracy: Approximately 0.3% ± 7 µm
Measurement distance: Up to 10 m
Protection rating: IP65
Operating time: Approximately 17 hours

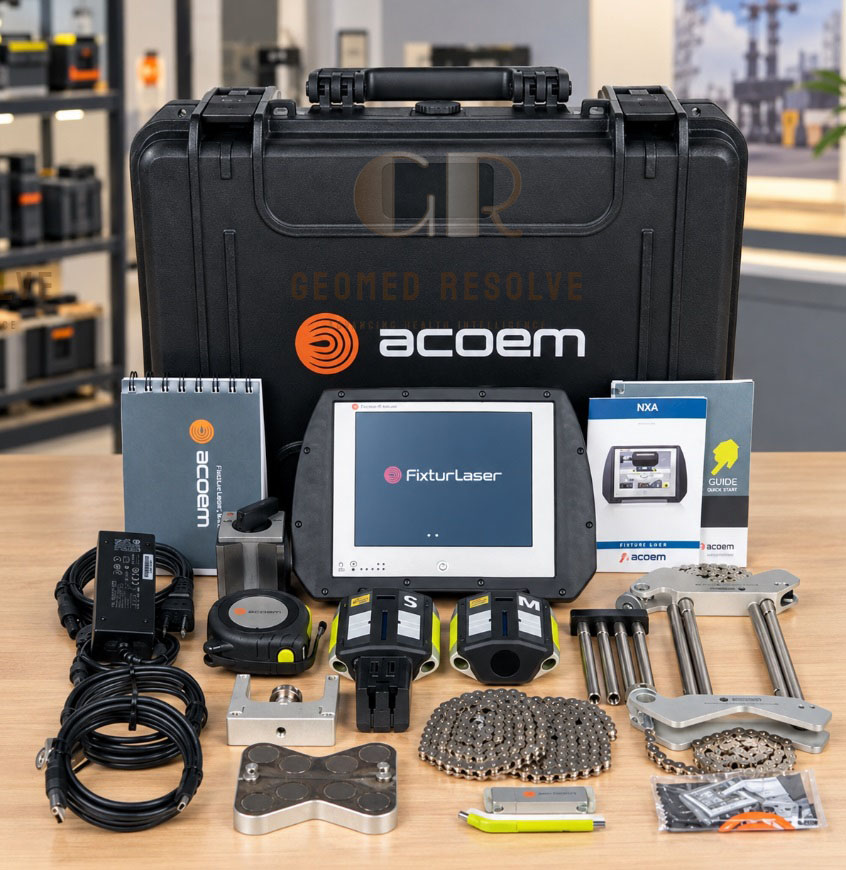

Shaft Fixtures
Shaft diameter range:
Approximately Ø20–450 mm depending on fixture configuration
Includes:
V-brackets
Chains
Extension rods
Magnetic accessories

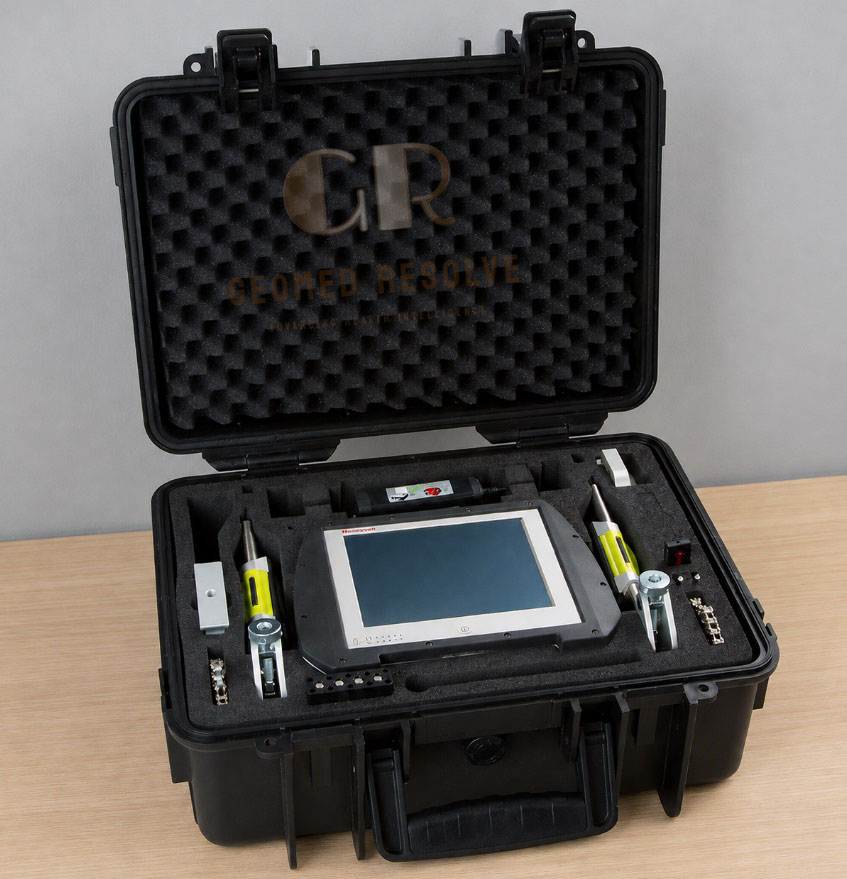

Complete System Weight
Carrying case with standard accessories:
Approximately 7.7 kg

Applications

The Fixturlaser NXA Pro Laser Shaft Alignment System is suitable for:
Industrial motor alignment
Pump alignment
Compressor alignment
Generator alignment
Turbine alignment
Gearbox alignment
Rotating equipment maintenance
Manufacturing plants
Power generation facilities
Marine equipment
Oil and gas machinery
Process industries

Typical Machines
Used for alignment of:
Electric motors
Centrifugal pumps
Fans
Blowers
Compressors
Gear drives
Rotating production equipment

What is the Fixturlaser NXA Pro used for?
The NXA Pro is used for precision shaft alignment of rotating machinery, including motors, pumps, compressors and industrial drive systems.

What type of technology does the NXA Pro use?
It uses laser-based alignment technology with digital smart sensors, wireless communication and advanced measurement processing.

Does the NXA Pro support soft foot measurement?
Yes. The system includes Softcheck functionality for detecting soft foot conditions.

Can it align machine trains?
Yes. The NXA Pro supports machine train alignment applications for multiple connected rotating machines.

Is the system suitable for industrial environments?
Yes. The sensors and display unit feature IP65 protection against dust and water exposure.

What is the maximum measurement distance?
The sensor system supports measurements up to approximately 10 meters.
