GE Waygate Phasor XS 16:64

Description

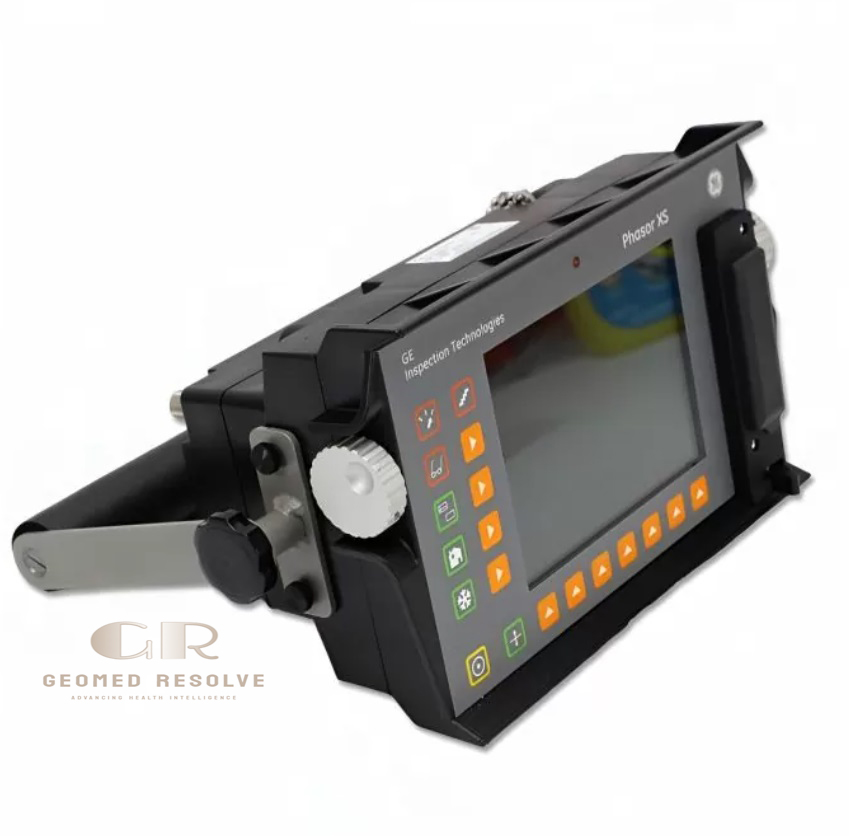

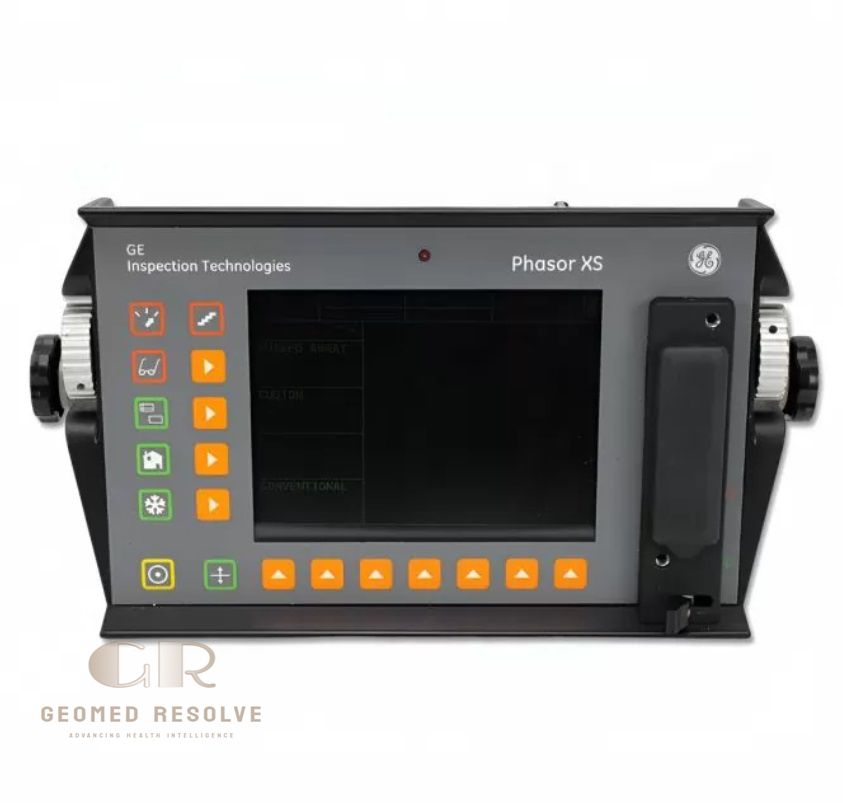

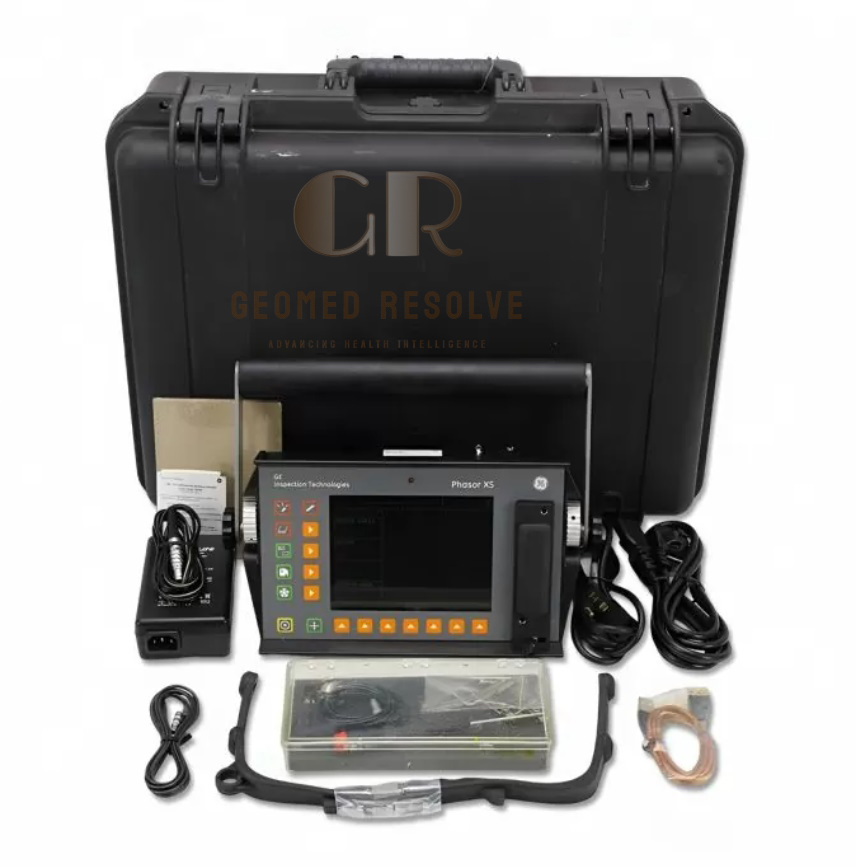

GE Waygate Phasor XS 16:64 Ultrasonic Flaw Detector – Portable Phased Array NDT Inspection System

The GE Waygate Phasor XS 16:64 Ultrasonic Flaw Detector is a portable Phased Array Ultrasonic Testing (PAUT) instrument designed for advanced Non-Destructive Testing (NDT) inspections. It combines conventional ultrasonic testing capability with phased array technology, allowing inspectors to perform detailed defect detection, weld evaluation, and material inspection from a single portable device.

With electronically controlled beam steering, sector scan imaging, real-time A-scan display, and support for phased array probes, the Phasor XS 16:64 provides efficient inspection solutions for industrial applications where accuracy, portability, and reliability are required.

Main Benefits

Advanced phased array ultrasonic inspection
Portable design for field applications
Combines conventional UT and PAUT functions
Improves defect detection accuracy
Real-time sector scan imaging
Reduces inspection time compared with traditional methods
Suitable for weld and structural inspection
Rugged design for industrial environments

Key Features

Phased Array Ultrasonic Testing (PAUT) capability
Conventional ultrasonic flaw detection mode
Supports 16/64 phased array probes
Up to 128 programmable focal laws
Electronic beam steering and focusing
Real-time sector scan display
Full-screen A-scan waveform display
B-scan imaging capability
DAC and TCG evaluation functions
Data storage via SD card
JPEG inspection reporting
Portable lightweight construction
Multiple language support

Key Specifications

Product Type: Portable Phased Array Ultrasonic Flaw Detector
Technology:
Phased Array Ultrasonic Testing (PAUT)
Conventional Ultrasonic Testing (UT)
Phased Array Configuration: 16/64 channels
Maximum Focal Laws: Up to 128
Display:
6.5-inch VGA color TFT
640 × 480 pixel resolution
60 Hz refresh rate
Pulser Type:
Spike pulser
Bipolar square wave pulser
Pulser Voltage:
Conventional UT: Up to 300 V
Phased Array: ±25 V to ±75 V
Frequency Range: 0.3 MHz – 15 MHz
Gain Range: 0–110 dB
Battery Operation: Approximately 4 hours minimum
Memory: SD card storage
Weight: Approximately 3.8 kg with battery
Dimensions: Approximately 282 × 171 × 159 mm

Applications

The GE Waygate Phasor XS 16:64 Ultrasonic Flaw Detector is ideal for:
Weld inspection
Pipeline inspection
Pressure vessel inspection
Crack detection
Corrosion evaluation
Aerospace component testing
Power plant maintenance
Oil and gas inspection
Structural steel inspection
Manufacturing quality control
Casting and forging inspection
Industrial asset integrity management

What is the GE Waygate Phasor XS 16:64 used for?
It is used for phased array and conventional ultrasonic inspection, including weld testing, crack detection, corrosion evaluation, and material thickness measurement.

What is the advantage of phased array technology?
Phased array technology allows electronic control of ultrasonic beams, enabling faster scanning, improved defect positioning, and detailed inspection imaging.

Can the Phasor XS inspect welds?
Yes. It is designed for weld inspection using phased array probes and sector scan imaging for accurate defect evaluation.

Is the Phasor XS suitable for field inspection?
Yes. Its compact and rugged design makes it suitable for onsite inspections in industrial environments.

What industries use this ultrasonic flaw detector?
It is commonly used in oil and gas, aerospace, power generation, manufacturing, petrochemical, and industrial maintenance applications.
