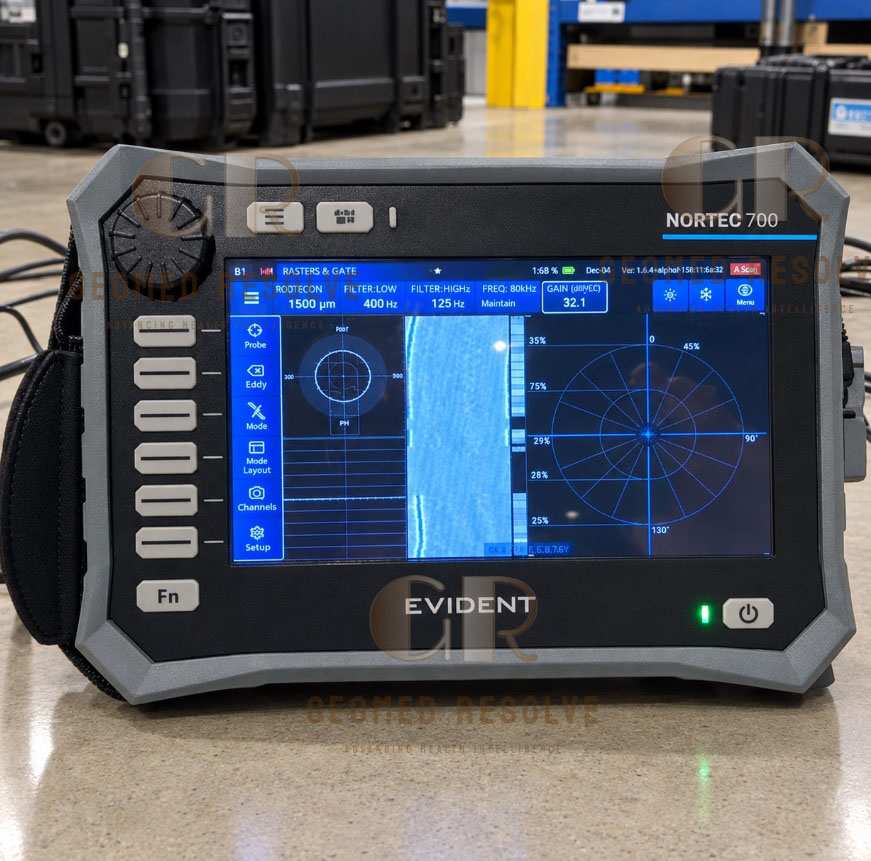

Evident NORTEC 700 Eddy Current Flaw Detector

Description

Evident NORTEC 700 Eddy Current Flaw Detector | N700 N700D N700i

The Evident NORTEC 700 is a portable and rugged Eddy Current Flaw Detector designed for reliable nondestructive testing (NDT) in aerospace, aircraft maintenance, industrial, manufacturing, weld inspection, and other demanding applications.

The NORTEC 700 combines advanced eddy current technology with simple controls, a high-resolution 7-inch display, high-fidelity imaging, and a durable design for field and workshop inspections.

The NORTEC 700 is available in three models: N700, N700D, and N700i.

NORTEC N700
The N700 is designed for conventional single-frequency Eddy Current Testing (ECT).
It is suitable for surface crack detection, subsurface crack detection, weld inspection, conductivity measurement, coating-thickness measurement, and general eddy current inspections.

NORTEC N700D
The N700D provides enhanced inspection capabilities with dual-frequency Eddy Current Testing and bolt-hole inspection.
It is suitable for aerospace and aircraft maintenance applications, including fastener-hole inspection, critical-hole inspection, rotary scanner inspection, surface crack detection, and subsurface crack detection.

NORTEC N700i
The N700i combines conventional Eddy Current Testing with advanced Eddy Current Array (ECA) technology.
It provides ECA imaging, automatic layer detection, Defect Viewer functionality, dual-frequency inspection, bolt-hole inspection, and advanced inspection capabilities for demanding aerospace and industrial applications.
The N700i supports ECA probes with up to 256 channels, depending on the probe and configuration.

Key Features

Conventional Eddy Current Testing (ECT)
Eddy Current Array (ECA) on N700i
Single-frequency inspection
Dual-frequency inspection on N700D and N700i
Surface crack detection
Subsurface crack detection
Bolt-hole inspection on N700D and N700i
Rotary scanner inspection
Critical-hole inspection
Conductivity measurement
Coating-thickness measurement
Automatic layer detection on N700i
Defect Viewer on N700i
High-fidelity inspection imaging
7-inch high-brightness TFT LCD display
64 GB internal storage
Up to 12.5 MHz inspection frequency
Three independent alarms
Rugged IP65-rated housing
Lightweight and portable design
Lithium-ion battery
Minimum 8-hour battery life for standard ECT inspections

Technical Specifications

Manufacturer: Evident Scientific
Product: NORTEC 700 Eddy Current Flaw Detector
Models: N700, N700D, N700i
Technology: Eddy Current Testing (ECT) and Eddy Current Array (ECA) depending on model
Frequency Range: 5 Hz to 12.5 MHz
Gain: 0 to 100 dB
Display: 7-inch TFT LCD
Internal Storage: 64 GB
Battery: Lithium-ion 600-BAT-L-2
Battery Life: Minimum 8 hours for standard ECT inspections
Dimensions: 230.7 × 166.9 × 71.9 mm
Weight: Approximately 1.79 kg including battery
Protection Rating: IP65
Operating Temperature: -10°C to 50°C
Drive Voltage: 2 V p-p, 4 V p-p, 8 V p-p
Alarms: 3 independent alarms
Probe Compatibility: Absolute and differential probes in bridge or reflection configurations
ECA Capability: Up to 256 channels depending on configuration
Connectors: BNC ECT, 16-pin LEMO, ECA, and I/O

Applications

The Evident NORTEC 700 is suitable for:
Aerospace inspection
Aircraft maintenance and MRO
Aircraft fastener and bolt-hole inspection
Surface crack inspection
Subsurface crack inspection
Weld inspection
Conductivity testing
Coating-thickness measurement
Critical-hole inspection
Industrial NDT
Manufacturing inspection
Multi-layer material inspection
Eddy Current Array inspection
NORTEC 700 N700, N700D and N700i

The N700 is designed for conventional single-frequency ECT.

The N700D adds enhanced dual-frequency capability and bolt-hole inspection.

The N700i combines conventional ECT with advanced ECA technology, including ECA imaging, automatic layer detection, and Defect Viewer functionality.

The NORTEC 700 series provides a flexible solution for professional nondestructive testing, allowing users to select the model and accessories that best match their inspection requirements.

Why Choose the Evident NORTEC 700?

The NORTEC 700 provides a combination of portable design, advanced eddy current technology, high-frequency performance, intuitive operation, and flexible inspection capabilities.

With three configurations—N700, N700D, and N700i—users can select conventional ECT, enhanced dual-frequency and bolt-hole inspection, or advanced ECA inspection according to their requirements.

Its rugged IP65 construction, 7-inch display, 64 GB internal storage, long battery life, and broad frequency range make the NORTEC 700 suitable for both field and workshop NDT applications.
