Eddyfi PACE

Description

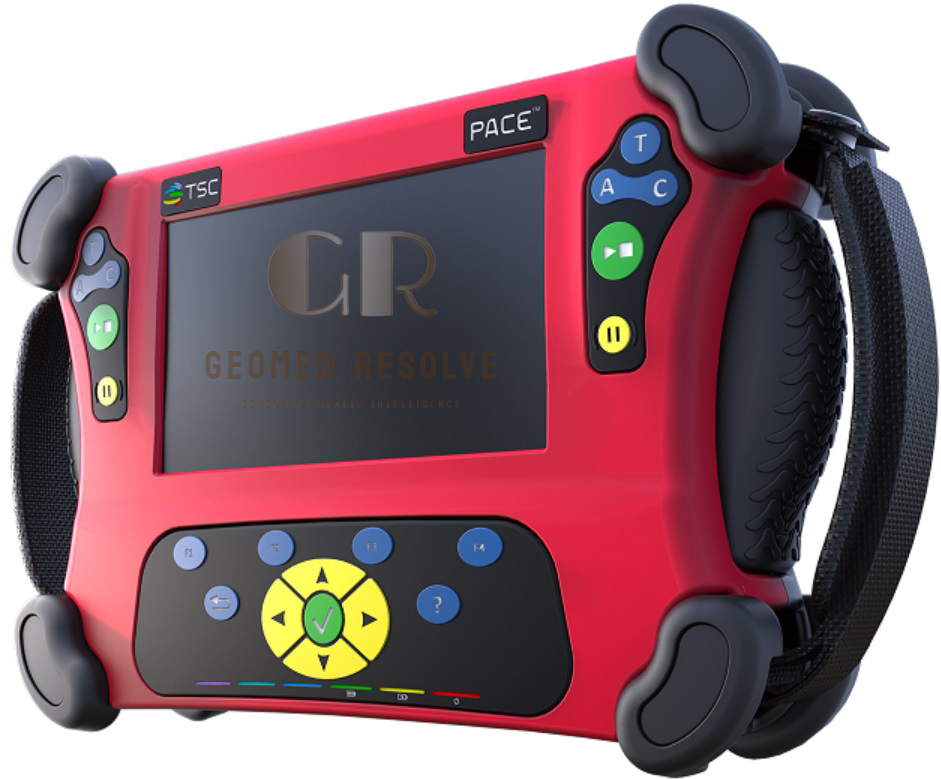

Eddyfi PACE – Portable ACFM Surface Crack Detection System

The Eddyfi PACE is a high-performance NDT Testing Equipment solution engineered for accurate surface crack detection using advanced Alternating Current Field Measurement (ACFM) technology. Designed to detect and size cracks without removing paint or protective coatings, the system significantly reduces inspection time while improving the reliability of weld inspections, offshore asset evaluations, and structural integrity assessments. Its rugged portable design, integrated 7-inch display, built-in camera, and long battery life make it well suited for demanding industrial environments.

Compatible with interchangeable SENSU™ ACFM probes, the PACE delivers precise inspection performance across pipelines, pressure vessels, storage tanks, offshore structures, and welded components. Combined with intuitive operation and efficient data management, it enables inspectors to perform fast, repeatable, and reliable crack assessments while minimizing downtime and maintenance costs.

The Eddyfi PACE is an excellent solution for NDT service providers, offshore inspection teams, oil & gas operators, petrochemical facilities, power plants, and industrial maintenance professionals seeking a portable ACFM crack detection system for advanced surface inspection.

Main Benefits

Advanced ACFM Technology
Detects and sizes surface-breaking cracks without removing paint or protective coatings.

Accurate Crack Sizing
Measures crack length and depth in a single inspection, reducing the need for additional testing.

Minimal Surface Preparation
Inspects coated welds with little or no coating removal, saving inspection time and cost.

Portable Field Operation
Compact lightweight instrument designed for demanding industrial and offshore environments.

Long Battery Life
Rechargeable battery provides over 8 hours of continuous operation for extended inspections.

Reliable Industrial Performance
Ideal for integrity management, preventive maintenance, and safety inspections of critical assets.

Key Features

Alternating Current Field Measurement (ACFM)
Uses electromagnetic field measurement technology for accurate surface crack detection without removing coatings.

SENSU Probe Compatibility
Compatible with interchangeable:
Straight Probes
Right-Angled Probes
Transverse Probes
Available in 5 kHz and 50 kHz configurations.

Integrated 7-Inch Display
High-visibility TFT touchscreen provides clear signal visualization and easy instrument operation.

Onboard Digital Camera
Built-in 5 MP camera allows visual documentation of inspection locations.

Internal Data Storage
Includes 32 GB internal memory with USB support for inspection data storage and transfer.

Rugged IP65 Design
Sealed housing protects against dust, water, and harsh industrial environments.

Long Operating Time
Rechargeable lithium-ion battery supports 8+ hours of operation.

Portable Inspection Platform
Compact ergonomic design simplifies transportation and field deployment.

Specifications

Product Type: Portable ACFM Crack Detection System
Category: NDT Testing Equipment
Subcategory: ACFM Crack Detection Systems
Manufacturer: Eddyfi Technologies
Model: PACE
Inspection Technology
Alternating Current Field Measurement (ACFM)
Compatible Probes
SENSU Straight Probe
SENSU Right-Angled Probe
SENSU Transverse Probe
Probe Frequencies
5 kHz
50 kHz
Display
7-inch TFT Display
Data Storage
32 GB Internal Memory
USB External Storage Support
Camera
Integrated 5 MP Camera
Battery Life
More than 8 Hours
Protection Rating
IP65
Operating Temperature
-20°C to 60°C
Weight
Approximately 2.5 kg

Applications
Weld Crack Inspection
Offshore Structure Inspection
Pipeline Inspection
Pressure Vessel Inspection
Storage Tank Inspection
Structural Steel Inspection

Recommended Industries
Oil & Gas
Offshore
Marine
Petrochemical
Power Generation
Heavy Industry
Infrastructure Inspection

Applications

Weld Inspection
Detects and sizes surface-breaking cracks in welded joints without removing coatings.

Offshore Structure Inspection
Evaluates offshore platforms, subsea structures, and marine assets.

Pipeline Inspection
Inspects coated pipelines for fatigue cracks and stress corrosion cracking.

Pressure Vessel Inspection
Assesses welded pressure vessels and process equipment.

Storage Tank Inspection
Examines storage tanks for surface cracks and structural defects.

Structural Steel Inspection
Supports bridges, cranes, and industrial steel structure inspections.

Asset Integrity Management
Provides reliable crack detection for preventive maintenance and long-term structural monitoring.

What is the Eddyfi PACE?
The Eddyfi PACE is a portable ACFM crack detection instrument designed for detecting and sizing surface-breaking cracks without removing protective coatings.

What inspection technology does the PACE use?
It uses Alternating Current Field Measurement (ACFM) technology for non-destructive crack detection and sizing.

Can the PACE inspect through coatings?
Yes. ACFM technology allows inspection through most paint and protective coatings with minimal surface preparation.

What types of defects can it detect?
It detects and sizes fatigue cracks, stress corrosion cracks, toe cracks, and other surface-breaking defects.

Which industries commonly use the PACE?
It is widely used in oil & gas, offshore, petrochemical, marine, power generation, and industrial maintenance.

What probes are compatible with the PACE?
The system supports SENSU™ Straight, Right-Angled, and Transverse ACFM probes in multiple frequency options.
