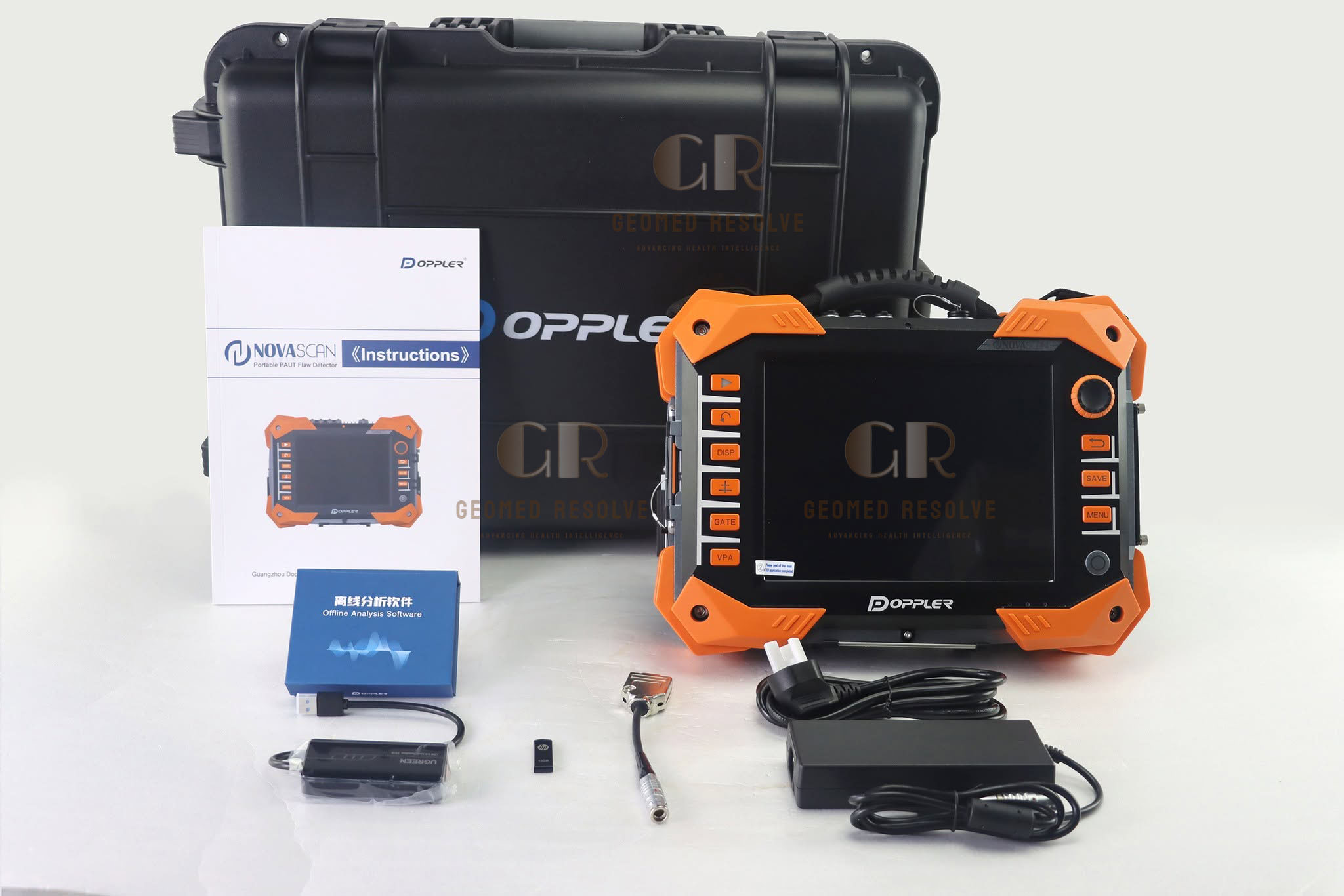

Doppler NovaScan Ultrasonic Phased Array Flaw Detector
The Doppler NovaScan Ultrasonic Phased Array Flaw Detector is a professional portable NDT system combining PAUT, conventional UT, FMC-TFM and TOFD capabilities. Designed for weld inspection, corrosion detection, thickness measurement and industrial flaw detection, it provides advanced ultrasonic imaging and analysis for demanding field and engineering applications.
Description
Doppler NovaScan Ultrasonic Phased Array Flaw Detector – Portable PAUT, TFM, FMC & TOFD NDT Inspection System
The Doppler NovaScan Ultrasonic Phased Array Flaw Detector is a professional portable NDT instrument designed for advanced phased array ultrasonic testing (PAUT) and industrial flaw detection.
The NovaScan platform combines phased array, conventional ultrasonic testing, FMC-TFM and TOFD technologies, providing inspectors with multiple inspection and imaging methods in one system. Doppler describes NovaScan as a portable instrument for on-site inspection and engineering applications.
Main Benefits
Professional portable phased-array ultrasonic testing
PAUT and conventional UT in one instrument
FMC-TFM imaging capability
TOFD inspection capability
Advanced ultrasonic flaw detection
Weld inspection
Corrosion and thickness inspection
High-speed data acquisition
Multiple scanning and imaging modes
Suitable for field and engineering applications
Advanced inspection data analysis
Key Features
Phased Array Ultrasonic Testing
Conventional UT
FMC-TFM imaging
TOFD
Linear scanning
Sectorial scanning
Compound scanning on applicable versions
A-scan, B-scan, S-scan and C-scan displays
TFM imaging
3D imaging on applicable NovaScan versions
DAC and TCG
Multiple inspection groups
Scan planning
Data recording and analysis
Portable field operation
Key Specifications
Brand: Doppler
Product Family: NovaScan
Product Type: Phased Array Ultrasonic Flaw Detector
PA Configurations: 32/128PR, 32/64PR, 16/128PR, 16/64PR
Conventional UT: 2/2
Velocity Range: 340–15,240 m/s
PA Test Modes: PE / PC / TT
Conventional UT: PE / PC / TT / TOFD
PA Voltage: 50 V / 100 V
UT Voltage: 100 V / 200 V / 400 V
PA PRF: Up to 40 kHz
Sampling Rate: 100 MHz
Maximum A-Scan: 16,384 points
ADC Resolution: Up to 10-bit PA / 12-bit conventional UT
Focal Laws: Up to 512
Display/Scanning: A / B / S / C and related imaging modes
Focus Types: True depth, half path, projection and arbitrary surface
Current NovaScan V3 example
PAUT Inspection
The NovaScan is designed for advanced phased-array ultrasonic inspection, where multiple ultrasonic elements are electronically controlled to steer and focus the ultrasonic beam.
This enables inspectors to perform:
Sectorial scans
Linear scans
Depth-focused inspection
Weld inspection
Internal flaw detection
Complex component inspection
FMC-TFM Imaging
One of the major advantages of the NovaScan platform is its support for FMC-TFM.
Full Matrix Capture collects ultrasonic data from multiple transmit/receive combinations, while Total Focusing Method processing creates highly focused images across the selected inspection region.
This can help inspectors visualize and characterize small or complex indications more effectively.
The NovaScan platform is documented as supporting TFM imaging, with some versions offering advanced 3D and multi-group capabilities.
TOFD Inspection
The NovaScan also supports Time of Flight Diffraction (TOFD) on configurations that include the conventional UT/TOFD module.
TOFD can be used alongside PAUT to improve flaw detection and sizing during weld inspection.
Applications
The Doppler NovaScan is suitable for:
Weld inspection
Pipeline inspection
Pressure vessel inspection
Corrosion detection
Thickness measurement
Material flaw detection
Oil and gas inspection
Aerospace NDT
Power-generation equipment
Railway inspection
Automotive manufacturing
Heavy machinery
Steel structures
Industrial manufacturing
Quality control
Research and engineering
Weld Inspection
The NovaScan is particularly useful for advanced weld inspection.
Potential indications include:
Lack of fusion
Lack of penetration
Cracks
Porosity
Slag/inclusions
Weld discontinuities
Internal material defects
Using PAUT, TFM and TOFD together can provide complementary information for detection and characterization.
What is the Doppler NovaScan used for?
It is used for phased-array ultrasonic testing, weld inspection, flaw detection, corrosion inspection, thickness measurement and advanced NDT.
Does NovaScan support TFM?
Yes. NovaScan is designed with FMC-TFM capability, although the exact TFM functions depend on the specific NovaScan generation and configuration.
Does it support TOFD?
Yes. NovaScan configurations include TOFD functionality through the conventional UT module.
Is NovaScan portable?
Yes. The NovaScan family is designed for portable/on-site ultrasonic inspection. Doppler specifically describes the NovaScan L3 as a lightweight portable system for on-site inspection.
What PA configurations are available?
This depends on the version. NovaScan V1 includes configurations such as 32/128PR and 16/128PR, while newer versions offer higher channel configurations.
