VUMAN E3/E3+ Inspection Borescope

Description

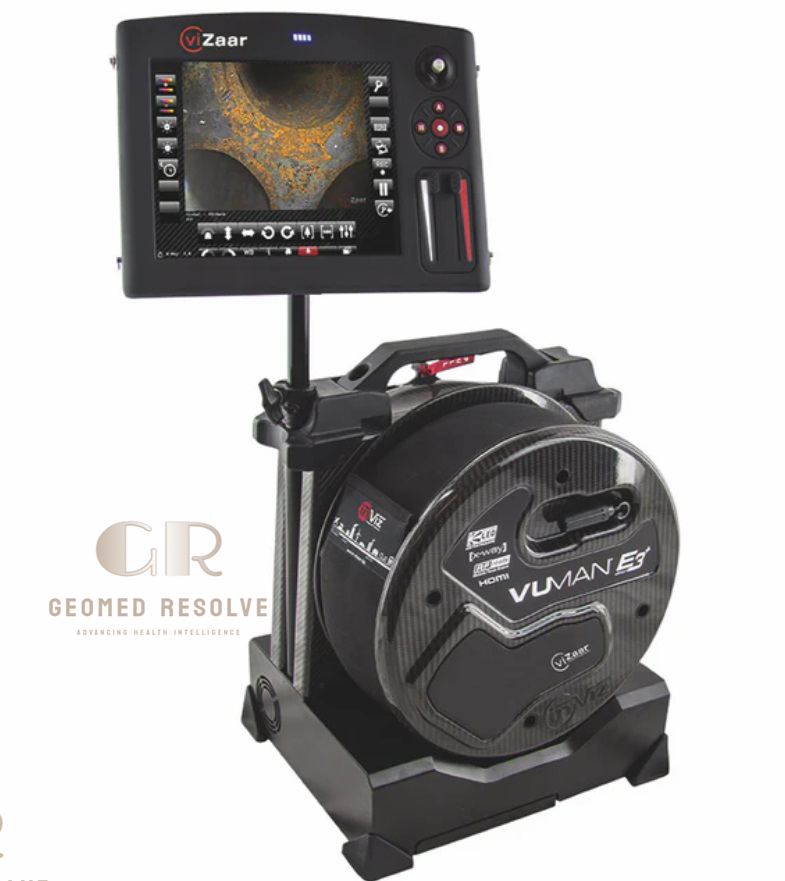

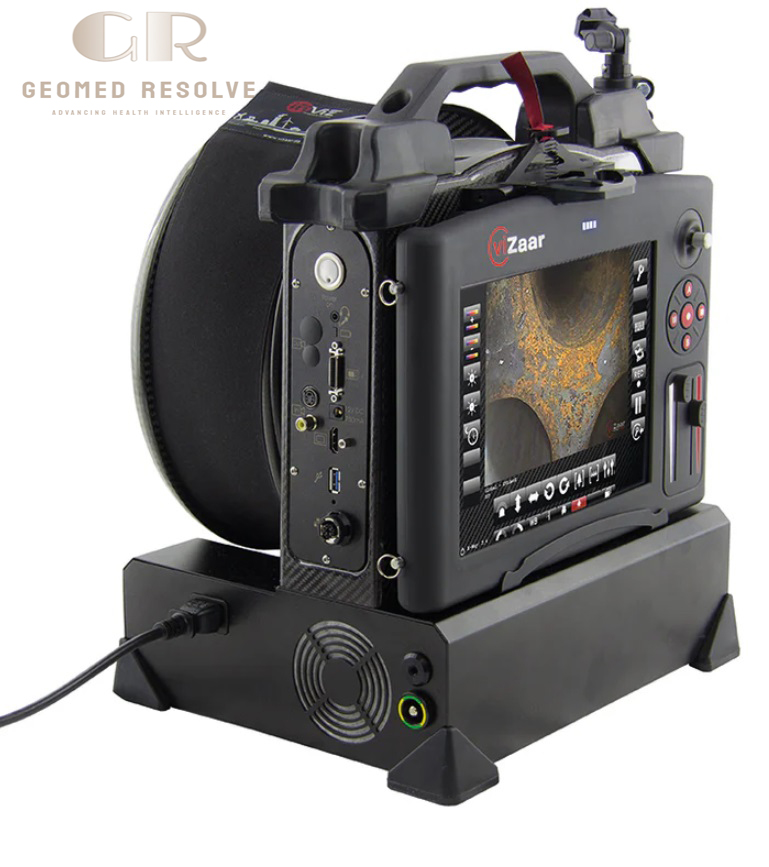

VUMAN E3/E3+ Industrial Inspection Borescope – Long-Range Portable Video Borescope System

The VUMAN E3/E3+ Inspection Borescope is a premium NDT Testing Equipment solution engineered for advanced remote visual inspection of critical industrial assets. Combining long-range interchangeable probes, Remote Focus technology, X-WAY articulation, and high-definition imaging, the system enables inspectors to perform detailed examinations of turbines, pipelines, boilers, heat exchangers, pressure vessels, and other confined spaces without costly disassembly.

Designed for maximum flexibility, the VUMAN E3/E3+ accommodates multiple probe diameters and lengths up to 30 meters, allowing users to inspect a wide variety of equipment from a single portable platform. The intuitive touchscreen interface, integrated LED illumination, high-capacity SSD storage, and rugged carbon fiber construction ensure reliable operation in demanding industrial environments.

The VUMAN E3/E3+ Inspection Borescope is an ideal solution for inspection companies, power plants, aerospace maintenance facilities, oil & gas operators, petrochemical plants, and manufacturing industries requiring accurate, high-resolution remote visual inspection for preventive maintenance, quality control, and asset integrity management.

Main Benefits

Long-Range Inspection Capability
Supports interchangeable probes up to 30 meters for inspecting deep or inaccessible areas.

Exceptional Image Quality
Remote Focus technology provides sharp images from 3 mm to infinity without changing optical adapters.

Flexible Probe System
Compatible with multiple probe diameters and interchangeable probe configurations for various inspection applications.

Precise Camera Control
4-way X-WAY articulation enables accurate navigation through complex internal structures.

Portable Inspection Solution
Compact carbon fiber housing and optional battery operation make it ideal for field inspections.

Professional Industrial Performance
Designed for demanding remote visual inspections across numerous industrial sectors.

Key Features

Interchangeable Video Probes
Supports interchangeable inspection probes from 5 to 30 meters in length.

Remote Focus Technology
Maintains crystal-clear image quality from close-up inspection to long-distance viewing.

X-WAY 4-Way Articulation
Provides up to 160° articulation for precise camera positioning inside complex components.

High-Resolution Display
Features a 10.4-inch trans-reflective touchscreen that remains easy to view even in bright environments.

Dual LED Illumination
Integrated LED lighting provides bright, uniform illumination for detailed inspections.

High-Capacity Storage
Internal SSD storage allows recording of high-resolution images and inspection videos.

USB & HDMI Connectivity
Supports USB 3.0 and HDMI connections for data transfer and external display integration.

Rugged Carbon Fiber Construction
Lightweight yet durable housing engineered for industrial field environments.

Specifications

Product Type: Industrial Video Borescope
Category: NDT Testing Equipment
Subcategory: Industrial Video Borescopes
Manufacturer: viZaar
Model: VUMAN E3/E3+
Inspection Technology
Remote Visual Inspection (RVI)
Probe Length
Up to 30 m
Probe Diameters
6.1 mm
8.4 mm
12.7 mm
Camera Articulation
4-Way X-WAY
Up to 160°
Focus Range
3 mm to Infinity
Display
10.4-inch Touchscreen
Resolution
Up to 1440 × 1080
Storage
SSD Internal Storage
Connectivity
USB 3.0
HDMI
Power Supply
AC Power
Optional Battery Operation

Applications
Remote Visual Inspection
Turbine Inspection
Pipeline Inspection
Heat Exchanger Inspection
Weld Inspection
Foreign Object Retrieval

Recommended Industries
Oil & Gas
Power Generation
Aerospace
Petrochemical
Manufacturing
Heavy Industry

Applications

Turbine Inspection
Inspects gas and steam turbines for wear, cracks, corrosion, and foreign objects.

Pipeline Inspection
Evaluates internal pipeline conditions without system disassembly.

Heat Exchanger Inspection
Examines heat exchanger and condenser tubes for corrosion and deposits.

Weld Inspection
Verifies weld quality and detects surface defects in difficult-to-access areas.

Manufacturing Inspection
Supports quality assurance and internal component verification.

Preventive Maintenance
Helps detect defects early to reduce unexpected equipment failures.

Foreign Object Inspection
Locates debris and foreign objects inside engines, machinery, and industrial systems.

What is the VUMAN E3/E3+ Inspection Borescope?
The VUMAN E3/E3+ is a professional industrial video borescope designed for long-range remote visual inspections of pipelines, turbines, heat exchangers, welds, and other inaccessible components.

What is the maximum probe length?
The system supports interchangeable inspection probes up to 30 meters long.

What is Remote Focus technology?
Remote Focus allows operators to achieve sharp images from 3 mm to infinity without changing optical adapters.

Which industries commonly use the VUMAN E3/E3+?
It is widely used in oil & gas, aerospace, power generation, petrochemical, manufacturing, and heavy industrial maintenance.

Is the borescope portable?
Yes. Its lightweight carbon fiber housing and optional battery operation make it suitable for portable field inspections.

What inspections can it perform?
The system is commonly used for turbine inspections, heat exchanger inspections, weld inspections, pipeline inspections, foreign object detection, and general industrial remote visual inspections.
