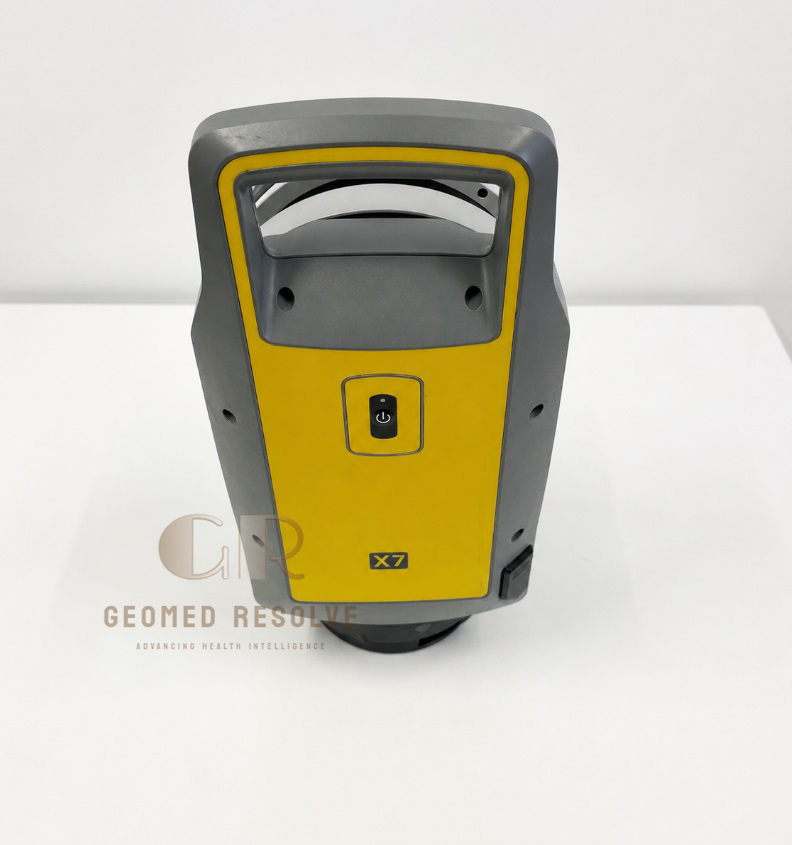

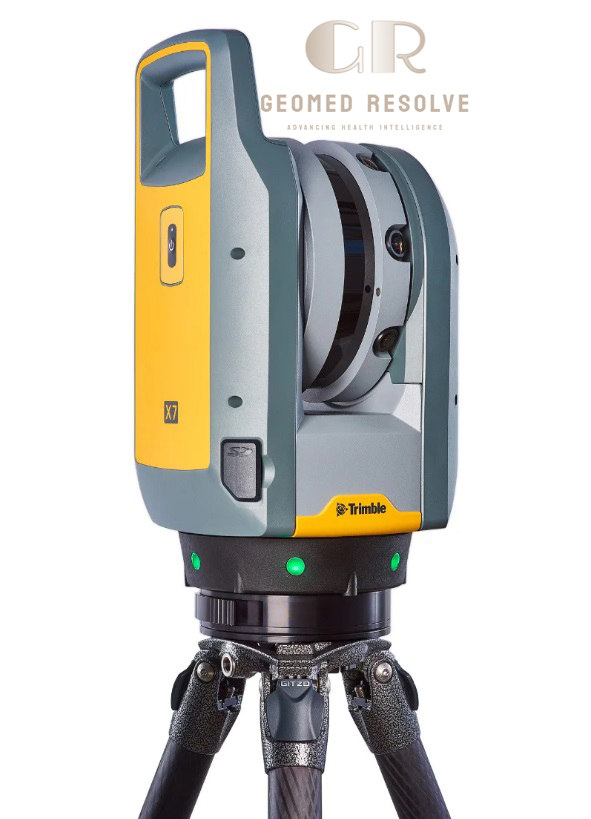

Trimble X7 Laser Scanner

Description

Trimble X7 3D Laser Scanner – Survey-Grade Reality Capture and BIM Laser Scanning System

The Trimble X7 Laser Scanner is an advanced LiDAR & Laser Scanning Equipment solution developed for professionals who require fast, accurate, and dependable 3D reality capture. Combining Time-of-Flight laser technology, automatic self-calibration, automatic self-leveling, and intelligent Registration Assist, the Trimble X7 simplifies field operations while delivering high-quality point clouds with survey-grade precision. With scanning speeds of up to 500,000 points per second, a measurement range of 0.6–80 meters, and integrated panoramic imaging, the X7 provides efficient workflows for construction, surveying, industrial documentation, BIM, and infrastructure projects.

Designed for maximum productivity, the scanner features a lightweight 5.8 kg design, IP55 environmental protection, integrated laser pointer, wireless connectivity, and seamless integration with Trimble Perspective and Trimble RealWorks software. Automatic field registration, high-resolution imaging, and reliable performance make the Trimble X7 an ideal solution for creating accurate digital twins, as-built documentation, engineering surveys, and facility management projects.

The Trimble X7 Laser Scanner is an excellent choice for surveyors, engineers, architects, contractors, industrial inspection teams, and BIM professionals seeking a compact, high-performance terrestrial laser scanner for professional 3D reality capture.

Main Benefits

Survey-Grade Accuracy
Provides highly accurate 3D measurements for surveying, engineering, BIM, and construction documentation.

Automatic Self-Calibration
Trimble X-Drive technology performs automatic calibration, eliminating downtime for manual calibration and ensuring consistent accuracy.

Fast Data Collection
Captures up to 500,000 points per second, reducing field time while maintaining high-quality point clouds.

Automatic Registration
Trimble Registration Assist automatically registers and validates scans directly in the field, improving productivity.

Lightweight and Portable
Weighing only 5.8 kg, the X7 is easy to transport and ideal for indoor and outdoor projects.

Integrated Imaging
Three calibrated 10 MP cameras produce high-quality panoramic images for realistic colorized point clouds.

Key Features

Time-of-Flight Laser Technology
High-speed digital Time-of-Flight laser measurement delivers accurate long-range scanning.

Automatic Calibration
Built-in Trimble X-Drive continuously performs automatic calibration without user intervention.

Self-Leveling System
Automatic tilt compensation of ±5° provides survey-grade leveling for reliable measurements.

High Scan Speed
Up to 500,000 points per second
Fast scan in approximately 1 minute 34 seconds (without images).

Integrated Imaging System
Includes:
Three calibrated 10 MP cameras
Up to 316 MP panoramic color images
Automatic scan colorization

Integrated Laser Pointer
Laser pointer simplifies georeferencing, point verification, and field workflows.

Wireless Operation
Supports Wi-Fi communication with Trimble Perspective software on compatible tablets and mobile devices.

Rugged Design
IP55-rated housing provides reliable operation in demanding construction and industrial environments.

Specifications

Product Type: Terrestrial 3D Laser Scanner
Category: LiDAR & Laser Scanning Equipment
Subcategory: Terrestrial 3D Laser Scanners
Manufacturer: Trimble
Model: X7
Scanning Technology
High-Speed Digital Time-of-Flight (ToF)
Laser Class
Class 1 (IEC EN 60825-1)
Laser Wavelength
1550 nm
Measurement Range
0.6–80 m
Scan Speed
Up to 500,000 points per second
Range Accuracy
2 mm
Range Noise
Less than 3 mm at 60 m
3D Point Accuracy
2.4 mm at 10 m
3.5 mm at 20 m
6.0 mm at 40 m
Field of View
Horizontal: 360°
Vertical: 282°
Camera
Three 10 MP calibrated cameras
Up to 316 MP panoramic images
Automatic Level Compensation
±5°
Internal Storage
SD Card (32 GB supplied)
Connectivity
Wi-Fi
USB
SD Card
Protection Rating
IP55
Operating Temperature
–20°C to +50°C
Weight
Approximately 5.8 kg

Applications
3D Surveying
BIM
Construction Documentation
Industrial Facilities
Architecture
Heritage Preservation
Forensic Investigation
Quality Control

Recommended Industries
Surveying
Civil Engineering
Construction
Architecture
Manufacturing
Industrial Inspection
Oil & Gas
Mining

Applications

Building Information Modeling (BIM)
Captures precise point clouds for BIM modeling, renovation, and as-built documentation.

Land Surveying
Produces accurate 3D survey data for topographic and engineering projects.

Construction Documentation
Monitors construction progress and verifies structural dimensions.

Industrial Plant Scanning
Creates detailed digital models of factories, plants, and processing facilities.

Heritage Documentation
Digitally preserves historical buildings and cultural landmarks.

Forensic Investigation
Captures accurate 3D evidence for accident reconstruction and crime scene documentation.

Facility Management
Supports asset management, maintenance planning, and digital twin creation.

What is the Trimble X7 Laser Scanner?
The Trimble X7 is a professional terrestrial 3D laser scanner designed for surveying, BIM, construction, industrial documentation, and reality capture.

How fast can the Trimble X7 scan?
The scanner captures up to 500,000 points per second for efficient field data collection.

What is the maximum scanning range?
The Trimble X7 measures from 0.6 m to 80 m while maintaining survey-grade accuracy.

Does the Trimble X7 calibrate automatically?
Yes. Trimble X-Drive technology performs automatic calibration before scanning to ensure reliable accuracy.

Which software is compatible with the Trimble X7?
The X7 works with Trimble Perspective, Trimble FieldLink, Trimble RealWorks, and exports standard point cloud formats for other software platforms.

Who commonly uses the Trimble X7?
It is widely used by surveyors, civil engineers, architects, BIM specialists, construction companies, industrial inspectors, and forensic professionals.
