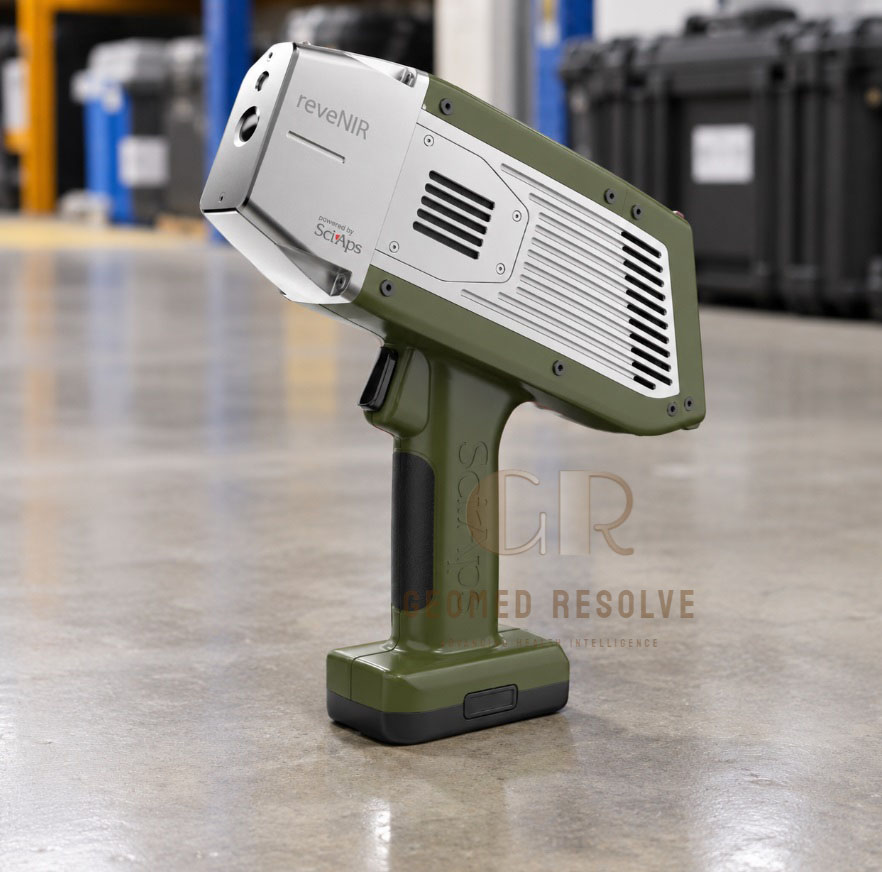

SciAps reveNIR Handheld Vis-NIR Mineral Analyzer

Description

SciAps reveNIR Handheld Vis-NIR Analyzer for Mineral Exploration, Geological Mapping & Field Mineral Identification

The NEW SciAps reveNIR Handheld Analyzer is a portable Vis-NIR spectrometer designed for fast mineralogical analysis in the field. With a 350–2500 nm spectral range, built-in mineral libraries, custom library support, and real-time spectral calculations, it helps geologists and exploration teams identify minerals and evaluate geological formations without relying solely on laboratory testing. Its compact design, IP54 protection, wireless connectivity, and up to 6 hours of continuous battery operation make it suitable for demanding field environments.

Main Benefit

Fast, portable mineral analysis in the field, helping exploration professionals obtain real-time spectral information and make informed decisions without waiting for laboratory results.

Key Features

Vis-NIR spectroscopy for non-destructive reflectance spectral analysis.
350–2500 nm spectral range for broad mineralogical characterization.
Includes a basic library of 250 important exploration minerals.
Supports custom NIR spectral libraries.
Allows user spectral additions and subtractions.
Supports conversion of publicly available USGS SpecLib 7a data.
Real-time Al-OH, Mg-OH, Fe3t and Illite Spectral Maturity (ISM) calculations.
Compact handheld design for remote fieldwork.
IP54-rated dust and water resistance.
Built-in Wi-Fi, GPS and Bluetooth.
Up to 6 hours of continuous battery operation.
Supports on-device storage, PC downloads and cloud connectivity.
Industrial version available for core-scan mounting.

Key Specifications

Technology: Vis-NIR / Near-Infrared Spectroscopy
Spectral Range: 350–2500 nm
Spectrometer Resolution: VIS1 3 nm; NIR1 8 nm; NIR2 8 nm
Weight: Approximately 4.5 lb / 2.04 kg with battery
Protection Rating: IP54
Battery Life: Up to 6 hours continuous use
Wireless: Wi-Fi, GPS and Bluetooth
Spectral Libraries: Multiple NIR and custom libraries
Mineral Library: 250 exploration minerals included
Data & Reporting: Display, onboard storage, PC download and cloud
Cloud Connectivity: Supported
Mounting: Industrial core-scan mounting option

Applications

Mineral exploration and reconnaissance
Geological mapping
Mineral identification
Pathfinder mineral detection
Rock and rock-chip analysis
Drill-core logging
Core scanning
Outcrop analysis
Exploration target identification
Mining and geoscience field studies
Complementary analysis alongside portable XRF and laboratory assays

Why Choose the SciAps reveNIR?
The reveNIR combines broad Vis-NIR spectral coverage with a lightweight handheld format. It is designed to bring mineralogical analysis closer to the exploration site, helping users collect spectral information and evaluate potential mineralization efficiently in challenging environments.

What is the SciAps reveNIR used for?
It is primarily designed for mineral exploration, geological reconnaissance, mineral identification, mapping, rock analysis and drill-core applications.

What is the spectral range of the reveNIR?
The analyzer covers 350 to 2500 nm.

How much does the reveNIR weigh?
It weighs approximately 4.5 lb (2.04 kg) with battery.

How long does the battery last?
The battery provides up to 6 hours of continuous operation, depending on use conditions.

Does the reveNIR include mineral libraries?
Yes. SciAps states that a basic library containing 250 important exploration minerals is included.

Can users add custom libraries?
Yes. The reveNIR supports multiple NIR libraries and custom spectral libraries.

Is the reveNIR suitable for fieldwork?
Yes. Its compact design, approximately 4.5 lb weight, IP54 protection and wireless connectivity are designed for field use.

Can it connect to the cloud?
Yes. The analyzer supports cloud connectivity for external libraries and real-time results.

Can the reveNIR be used with XRF?
Yes. SciAps describes the reveNIR as complementary to portable XRF and laboratory analysis for broader exploration workflows.
