OptimScan-5M Metrology 3D Scanner

Description

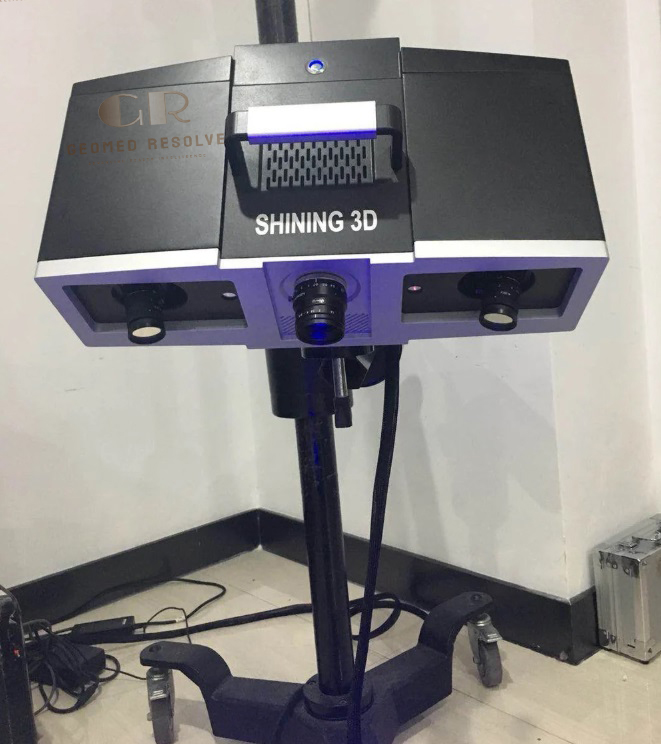

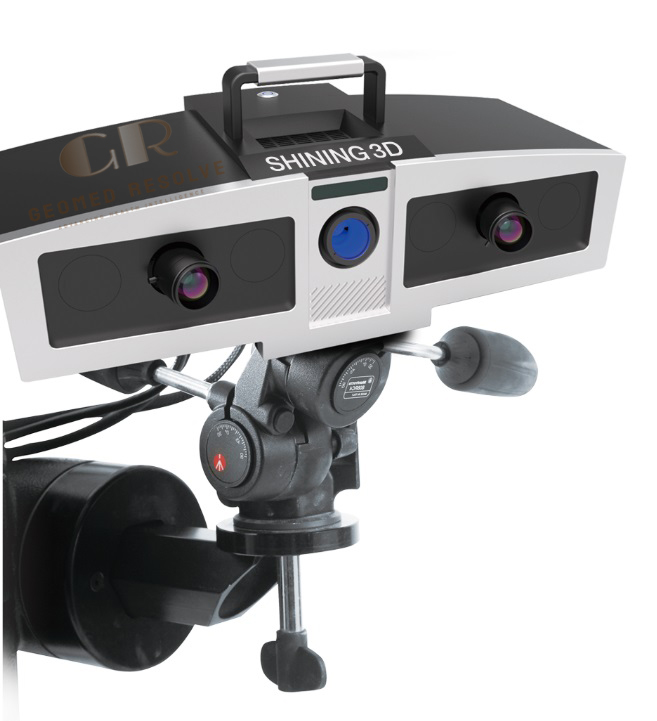

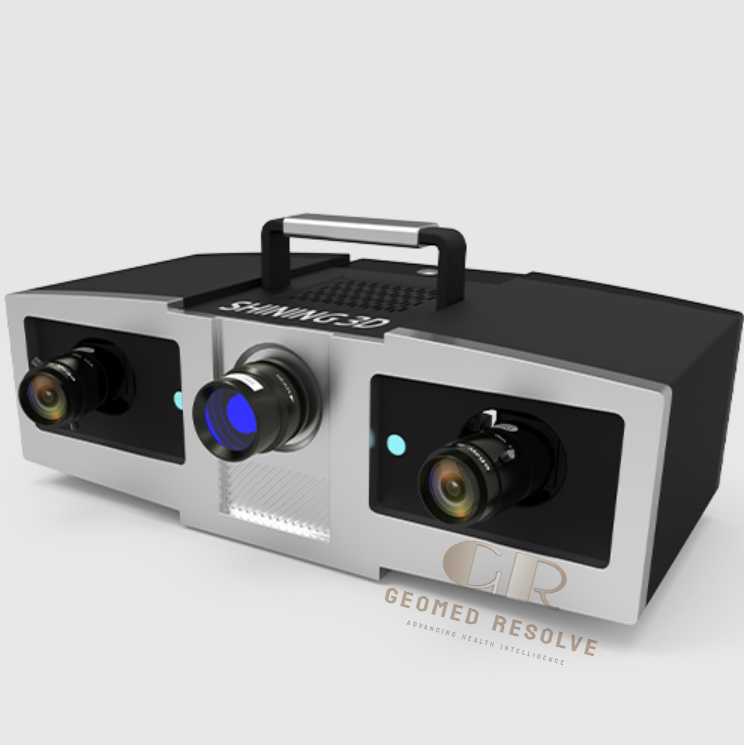

OptimScan-5M Metrology 3D Scanner – High-Accuracy Blue Light Industrial 3D Scanner

The OptimScan-5M Metrology 3D Scanner is a professional industrial structured light scanner engineered for high-precision 3D measurement and inspection. Equipped with dual 5 MP industrial cameras and advanced blue LED light technology, it delivers outstanding accuracy, repeatability, and reliable measurement performance for manufacturing, aerospace, automotive, tooling, and research applications.

Designed for metrology-grade inspection, the OptimScan-5M captures highly detailed 3D data quickly while maintaining exceptional measurement precision. It is ideal for reverse engineering, dimensional analysis, first article inspection, mold verification, and quality assurance.

Main Benefits

Metrology-grade measurement accuracy
High-resolution blue light scanning
Fast non-contact 3D digitization
Excellent repeatability for inspection
Suitable for complex industrial parts
Supports reverse engineering workflows
Easy integration with CAD software
Reliable solution for manufacturing quality control

Key Features

Blue LED structured light technology
Dual 5.0 MP industrial cameras
Non-contact optical measurement
Single scan time under 1.5 seconds
Automatic and manual alignment modes
Multiple scan volume options
High-density point cloud generation
Compatible with mainstream inspection software
Supports optional 3D probing system
Portable carbon fiber frame design

Key Specifications

Product Type: Industrial Metrology 3D Scanner
Scanning Technology: Blue LED Structured Light
Camera Resolution: Dual 5.0 MP Cameras
Single Shot Accuracy: 0.005–0.015 mm
Volumetric Accuracy: 0.08 mm/m
Single Scan Speed: Less than 1.5 seconds
Point Distance: 0.04–0.16 mm
Single Scan Area:
100 × 75 mm
200 × 150 mm
400 × 300 mm
Scan Depth: 100–400 mm
Working Distance: Approximately 560 mm
Alignment Methods:
Reference marker automatic alignment
Manual alignment
Output Formats:
STL
OBJ
ASC
PLY
RGE
P3
PF
Operating System: Windows 10 (64-bit)
Operating Temperature: 0°C to 45°C
Weight: Approximately 6.8 kg

Applications

The OptimScan-5M Metrology 3D Scanner is ideal for:
Industrial quality inspection
Reverse engineering
CAD model generation
Dimensional inspection
Mold and die inspection
Precision manufacturing
Aerospace component inspection
Automotive quality control
Product development
Tool and fixture inspection
Research laboratories
Mechanical engineering

What is the OptimScan-5M used for?
The OptimScan-5M is used for industrial metrology, quality inspection, reverse engineering, dimensional measurement, and precision manufacturing.

What scanning technology does it use?
It uses blue LED structured light scanning, providing highly accurate, non-contact 3D measurements suitable for industrial applications.

How accurate is the OptimScan-5M?
The scanner offers single-shot accuracy from 0.005 mm to 0.015 mm with volumetric accuracy of 0.08 mm/m, depending on the selected measurement volume.

Which file formats are supported?
The scanner exports data in STL, OBJ, ASC, PLY, RGE, P3, and PF formats for compatibility with major CAD and inspection software.

Which industries use the OptimScan-5M?
It is widely used in aerospace, automotive, precision manufacturing, mold making, industrial inspection, research, and engineering applications
