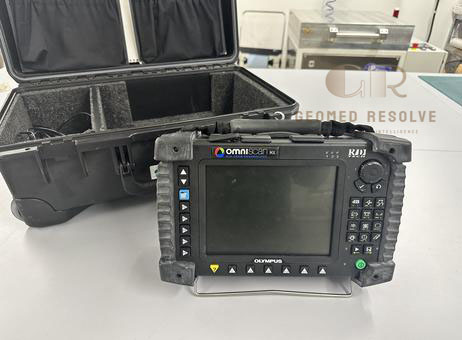

Olympus OmniScan MX Phased Array Module Used
The Olympus OmniScan MX Phased Array Module Used is a professional ultrasonic NDT module designed to provide advanced phased array inspection capabilities when installed in an OmniScan MX system. It supports electronically controlled beam steering, multiple-angle inspection, and advanced A-scan, B-scan, C-scan, and S-scan imaging for industrial flaw detection and inspection
Description
Olympus OmniScan MX Phased Array Module Used – Portable Ultrasonic NDT Inspection Module
The Olympus OmniScan MX Phased Array Module is a professional ultrasonic inspection module designed for use with the OmniScan MX portable NDT platform. It provides advanced Phased Array Ultrasonic Testing (PAUT) capabilities for detecting and evaluating discontinuities in welds, components, and industrial materials.

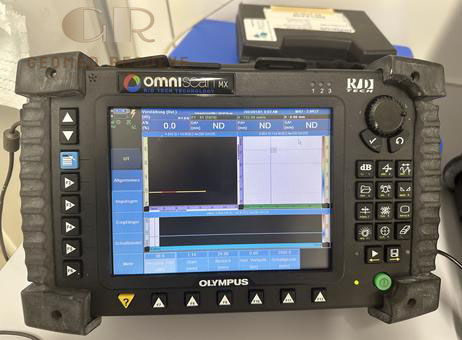

The OmniScan MX phased-array platform provides electronically controlled ultrasonic beam steering and focusing, allowing inspectors to examine a component from multiple angles without mechanically moving the ultrasonic beam. Supported imaging modes include A-scan, B-scan, C-scan, and S-scan, depending on the configuration and software.
Main Benefits
Professional phased array ultrasonic testing
Electronic beam steering and focusing
Multiple-angle inspection
Detailed ultrasonic imaging
Suitable for weld inspection
Advanced flaw detection
Portable NDT inspection capability
Supports manual and automated scanning
Suitable for demanding industrial inspection applications
Key Features
Phased array ultrasonic technology
Multiple-element probe support
Electronic beam steering
Electronic focusing
Sectorial scanning
Linear scanning
A-scan display
B-scan imaging
C-scan imaging
S-scan imaging
Programmable focal laws
Gain adjustment
Time-Corrected Gain capability
Encoder support for scanning applications
Designed for OmniScan MX systems
Key Specifications
Module Type: Phased Array Acquisition Module
Number of Elements: 128
Maximum Aperture: 32 elements
Scan Types: Sectorial and linear
Pulser Voltage: 45 V low / 90 V high
Pulse Width: 30–500 ns
Receiver Gain: 0–74 dB
System Bandwidth: Approximately 0.53–21 MHz
Focal Laws: Up to 256
A-scan, B-scan, C-scan and S-scan capabilities
Applications
The Olympus OmniScan MX Phased Array Module is suitable for:
Weld inspection
Phased array ultrasonic testing
Ultrasonic flaw detection
Pipeline inspection
Pressure vessel inspection
Oil and gas inspection
Power generation inspection
Aerospace inspection
Structural inspection
Corrosion evaluation
Industrial quality control
Automated ultrasonic inspection
Manual ultrasonic inspection
Complex geometry inspection
What is the Olympus OmniScan MX Phased Array Module used for?
It is used for phased array ultrasonic testing, weld inspection, flaw detection, material inspection, and industrial NDT.
Is it a complete ultrasonic flaw detector?
No. This product is a phased array acquisition module designed for an OmniScan MX system. The main instrument, probes, cables, and other accessories may need to be purchased separately.
Can it inspect welds?
Yes. The OmniScan MX phased-array platform is designed for advanced ultrasonic inspection applications including weld inspection.
Does it support sectorial scanning?
Yes. Supported phased-array configurations provide sectorial and linear scanning, with electronically controlled beam angles and focal laws.
Are there different OmniScan MX phased-array modules?
Yes. Several configurations were available, including 16:16, 16:128, 32:128, and 32:128PR variants. Therefore, the exact module number should be confirmed before listing specifications.
