MOTIX Base Crawler Scanner

Description

MOTIX Base Crawler Scanner – Automated NDT Inspection Crawler for Pipe and Weld Testing

The MOTIX Base Crawler Scanner is an automated robotic inspection system designed for advanced Non-Destructive Testing (NDT) applications, including corrosion mapping, weld inspection, and ultrasonic testing. Developed for industrial inspection environments, the MOTIX crawler provides controlled movement of inspection probes across pipe surfaces, helping operators achieve repeatable and accurate inspection results.

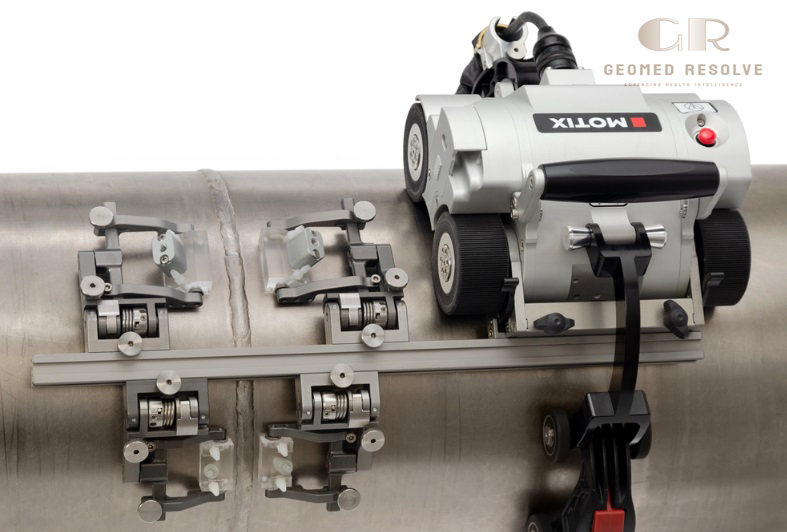

With a modular design, the MOTIX Base Crawler can be configured with different probe holders, raster arms, and scanning accessories to support applications such as phased array ultrasonic testing (PAUT), TOFD inspection, and corrosion thickness measurement. It is suitable for industries including oil & gas, petrochemical, power generation, marine, and heavy manufacturing.

Main Benefits

Automated robotic NDT inspection workflow
Improves inspection repeatability and measurement consistency
Supports corrosion and weld inspection applications
Suitable for ferrous and non-ferrous surfaces
Reduces manual scanning effort
Flexible modular probe configurations
Designed for industrial pipe inspection
Reliable solution for demanding environments

Key Features

Motorized crawler movement system

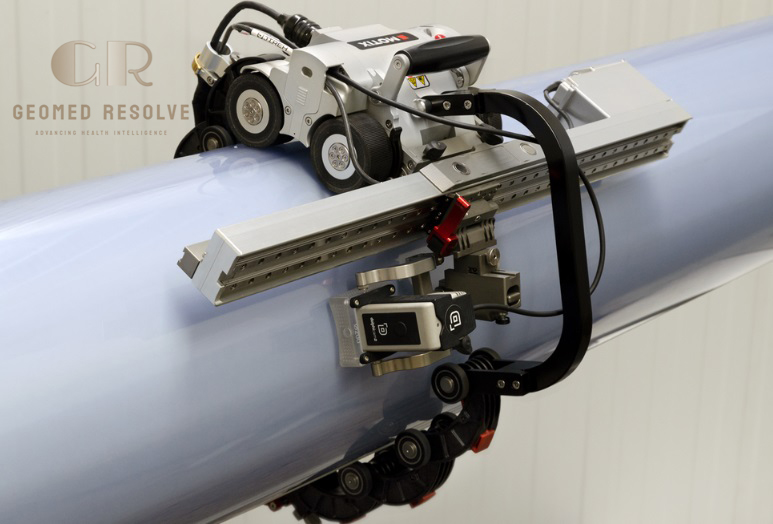

Quick-release chain system for pipe attachment
Supports multiple NDT inspection configurations
Compatible with corrosion mapping probes

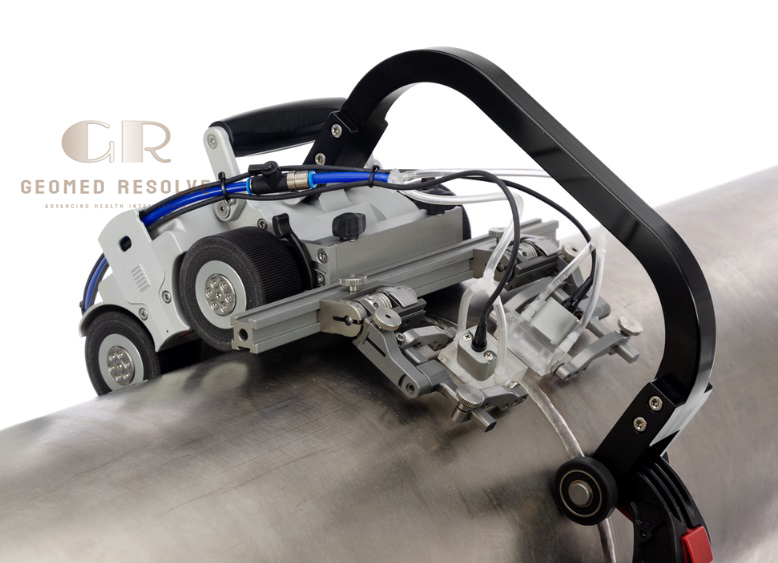

Supports phased array and TOFD weld inspection setups
Encoder-controlled positioning
Adjustable scanning speed
Operates on curved and flat inspection surfaces
Dust-tight and water-resistant design
Long umbilical cable options for extended inspection areas

Key Specifications

Product Type: Automated NDT Inspection Crawler
Inspection Technology Support:
Ultrasonic Testing (UT)
Phased Array Ultrasonic Testing (PAUT)
TOFD Inspection
Corrosion Mapping
Inspection Surface:
Ferrous materials
Non-ferrous materials
Maximum Payload: 9 kg (20 lb)
Maximum Speed: 0–14.2 cm/sec (0–5.6 in/sec)
Encoder Resolution: 220.4 counts/mm
Power Requirement: 100–240 VAC, 50/60 Hz, 3.5 A
Umbilical Length Options: 5 m to 30 m
Pipe Diameter Range:
Standard link: approximately 15.2 cm to 106.7 cm diameter
Large link: approximately 20.3 cm to 106.7 cm diameter

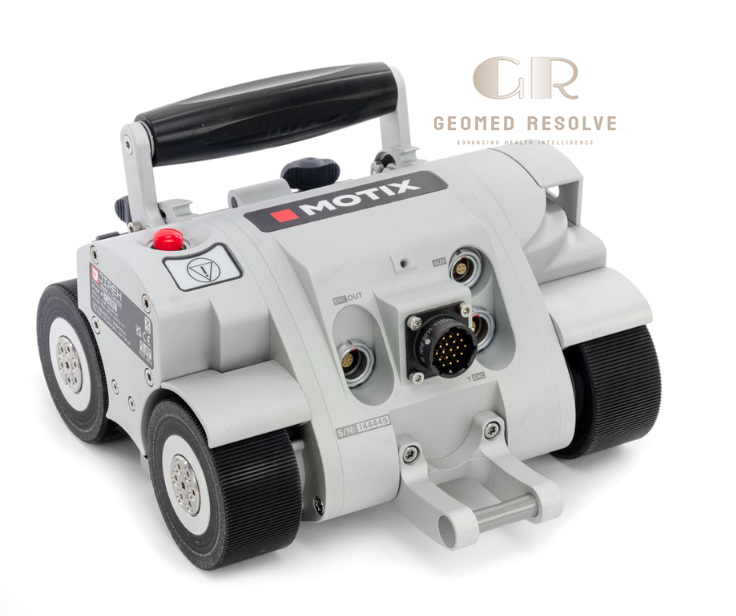

Crawler Dimensions:
Height: 14 cm
Width: 20.6 cm
Depth: 23.8 cm
Crawler Weight: Approximately 4.6 kg
Operating Temperature: -20°C to 50°C
Environmental Protection: Dust-tight and water-resistant

Applications

The MOTIX Base Crawler Scanner is ideal for:
Pipe corrosion inspection
Weld inspection
Ultrasonic thickness measurement
Phased array ultrasonic testing
TOFD inspection
Pressure vessel inspection
Pipeline maintenance
Oil and gas infrastructure inspection
Petrochemical equipment inspection
Power plant inspection
Industrial fabrication quality control
Offshore and marine inspection

What is the MOTIX Base Crawler Scanner used for?
The MOTIX Base Crawler is used for automated NDT inspections, including corrosion mapping, weld inspection, ultrasonic testing, and pipeline assessment.

What materials can the MOTIX inspect?
The system can operate on both ferrous and non-ferrous inspection surfaces, depending on the selected configuration.

Can MOTIX perform weld inspections?
Yes. With compatible probe holders, the MOTIX can support phased array and TOFD weld inspection applications.

What pipe sizes can MOTIX inspect?
The MOTIX supports pipe diameters from approximately 6 inches up to 42 inches using the appropriate links and accessories.

Is MOTIX suitable for industrial environments?
Yes. It is designed for demanding industrial inspection applications with dust-tight and water-resistant protection
