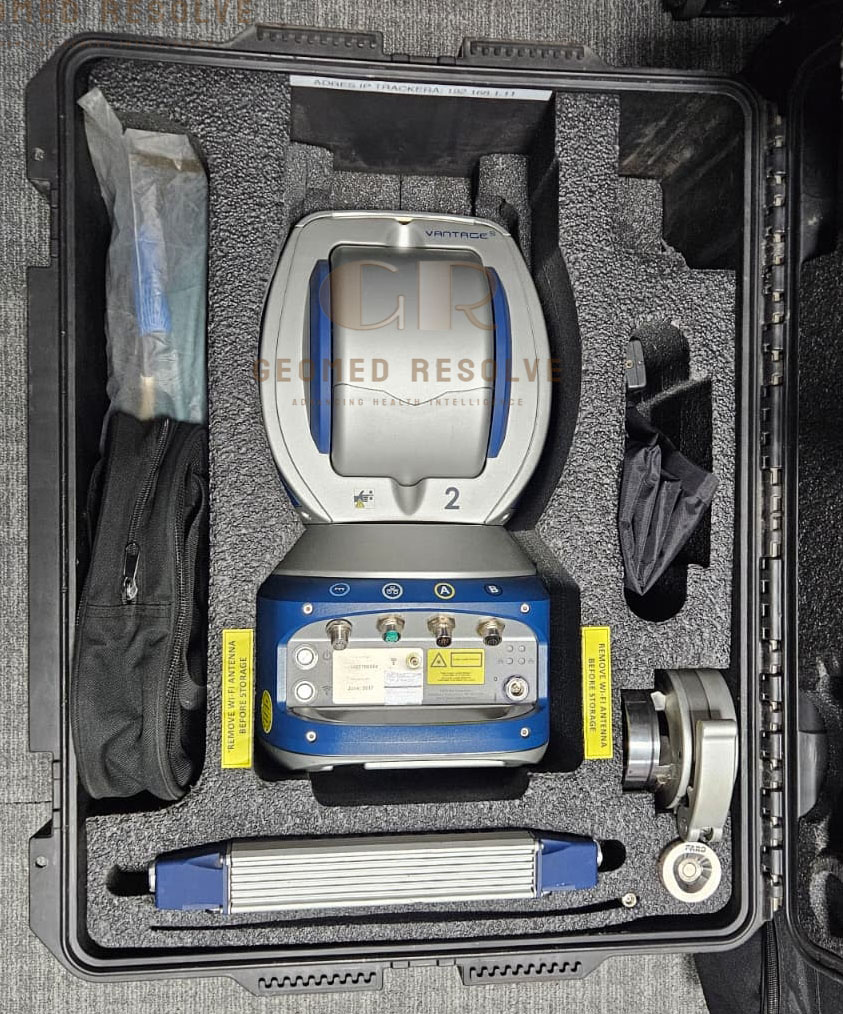

FARO Vantage S Laser Tracker Used
The FARO Vantage S Laser Tracker Used is a professional large-scale 3D metrology system designed for accurate measurement, inspection, alignment, and dimensional verification of large components, machines, assemblies, and manufacturing equipment. With measurement capability of up to 80 m using the specified SMR, it is a powerful solution for industrial quality control and precision measurement.
Description
FARO Vantage S Laser Tracker Used – High-Precision 3D Metrology Measurement System
The FARO Vantage S Laser Tracker is a portable high-precision 3D measurement system designed for large-scale inspection, dimensional verification, alignment, and industrial metrology.
The Vantage S tracks a spherical-mounted retroreflector (SMR) as it is moved across an object, capturing precise 3D coordinate measurements. Measurement data can then be compared with CAD nominal data to verify dimensions, alignment, and manufacturing accuracy.
Main Benefits
High-precision large-scale 3D measurement
Measurement range up to 80 m with specified SMR
Portable design for on-site inspection
Suitable for large components and assemblies
Fast dimensional verification
Supports CAD comparison workflows
Suitable for machine and robot alignment
ActiveSeek target tracking
Remote operation through mobile devices
Rugged design for industrial environments
Useful for quality control and inspection
Key Features
FARO Vantage S laser tracker
3DoF measurement capability
ActiveSeek target tracking
Integrated Absolute Distance Measurement System
Class 1 eye-safe laser system
RemoteControls workflow
Integrated Wi-Fi
Hot-swappable batteries
Portable construction
Large-volume measurement capability
Compatible with spherical-mounted retroreflectors
Designed for industrial metrology and inspection
Key Specifications
Product Type: Laser Tracker
Model: FARO Vantage S
Measurement Type: Large-scale 3D coordinate measurement
Measurement Capability: 3DoF
Maximum Range with specified 1.5-inch SMR: Up to 80 m
Range with 1.5-inch / 7/8-inch SMRs: Up to 60 m
Range with 1/2-inch SMR: Up to 30 m
Minimum Working Range: 0 m
Laser: Class 1
Laser Wavelength: 630–640 nm
Maximum Laser Output: 0.39 mW continuous wave
Dimensions: Approximately 240 × 416 mm
Weight: Approximately 13.4 kg
Battery Life: Up to approximately 8 hours with two batteries
Battery: Hot-swappable
Operating Temperature: -15°C to 50°C
Humidity: 0–95%, non-condensing
Protection: IP52
Power Supply: 24 V
Power Consumption: 75 W
Applications
The FARO Vantage S Laser Tracker is suitable for:
Large-scale 3D measurement
Industrial metrology
Dimensional inspection
Quality control
CAD comparison
Machine alignment
Robot alignment
Assembly verification
Aerospace inspection
Automotive inspection
Shipbuilding
Heavy equipment inspection
Metalworking and machining
Manufacturing inspection
Measurement service applications
What is the FARO Vantage S used for?
It is used for high-precision 3D measurement, dimensional inspection, machine alignment, assembly verification, and industrial metrology.
What is the maximum measurement range?
The Vantage S can measure up to 80 m with the specified 1.5-inch SMR configuration.
Is the Vantage S suitable for large components?
Yes. It is specifically designed for short-to-long-range measurement applications involving large parts, assemblies, machines, molds, and other large structures.
Can it be used for machine alignment?
Yes. FARO identifies machine and robot alignment among the applications of its Vantage Laser Tracker systems.
Is this product new or used?
This listing is for a used FARO Vantage S Laser Tracker. The actual condition, calibration status, service history, and included accessories should be confirmed before purchase.
Does the Vantage S use a laser?
Yes. It uses a Class 1, 630–640 nm laser system for measurement and target tracking.
