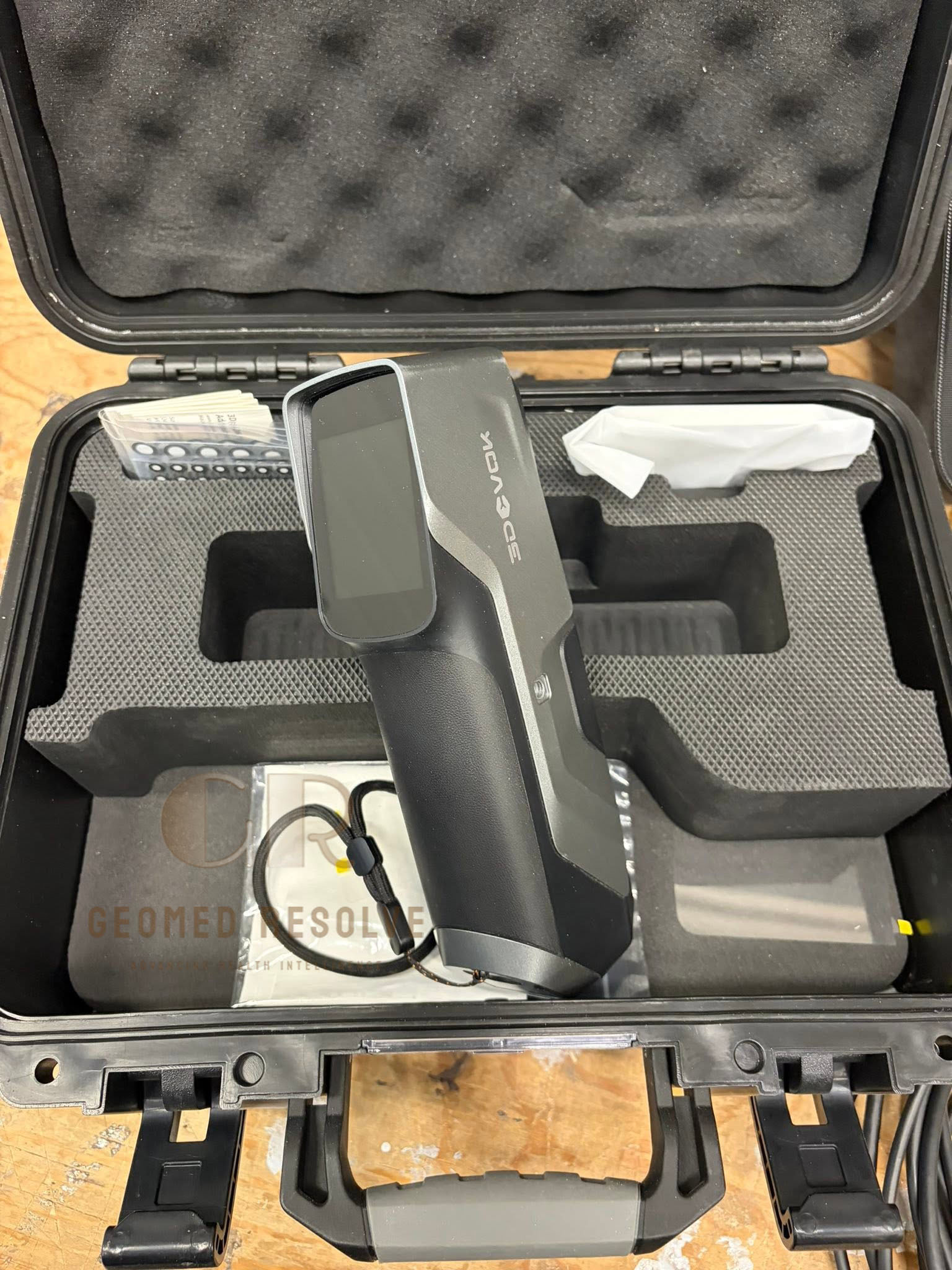

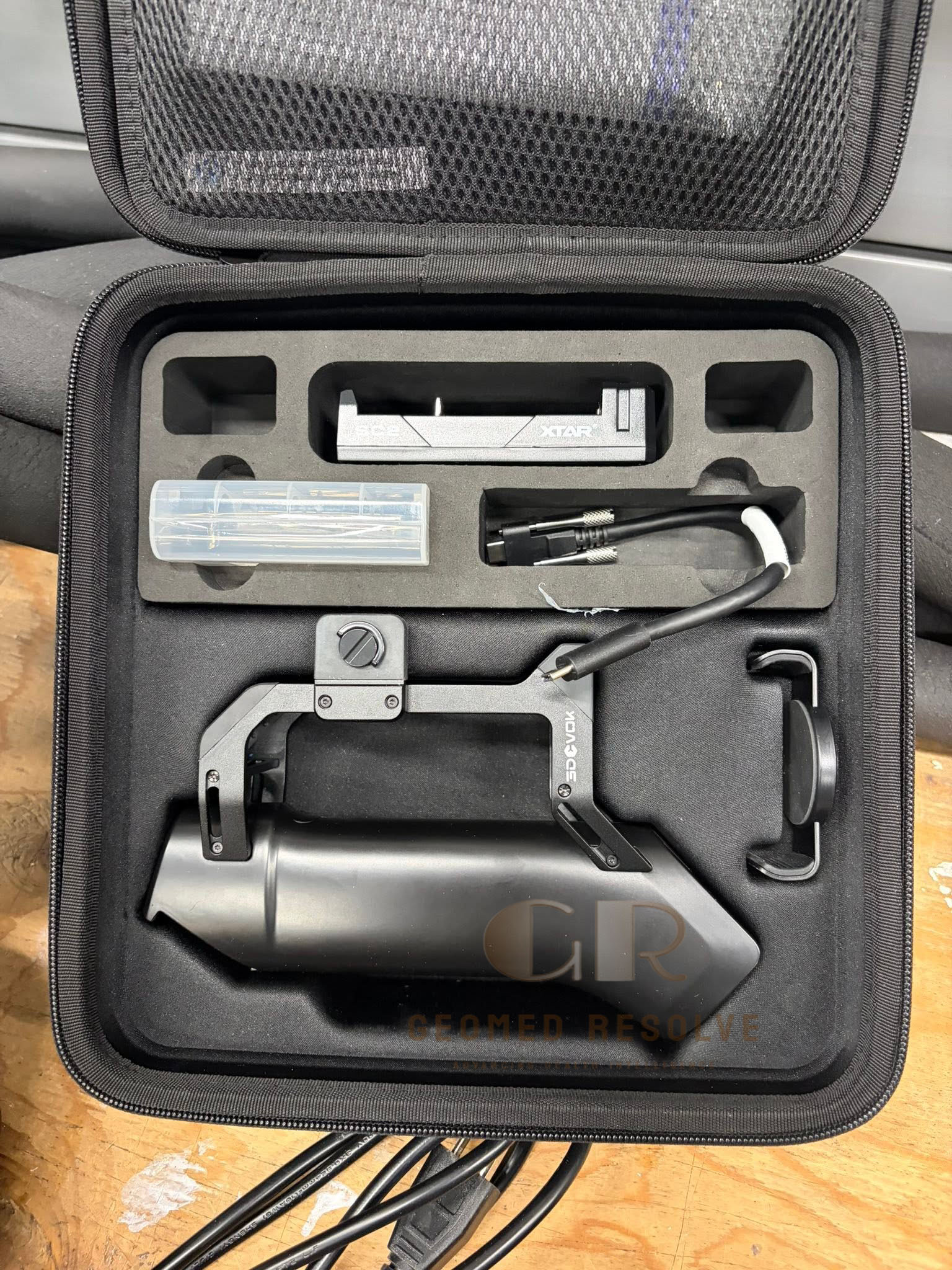

3DeVOK MT Professional 3D Scanner

Description

3DeVOK MT Professional 3D Scanner – High-Accuracy Handheld Laser & Infrared 3D Scanner for Metrology, Reverse Engineering & Inspection

The 3DeVOK MT Professional 3D Scanner is a professional handheld 3D scanning system designed for industrial inspection, reverse engineering, quality control, product development, cultural heritage, and 3D measurement applications.

The scanner combines blue laser, infrared laser, and infrared VCSEL structured light technologies to provide flexible scanning capability for different object sizes, surface conditions, and accuracy requirements.

With accuracy up to 0.04 mm, scanning speeds up to 4.5 million points/s, color capture capability, and multiple alignment methods, the 3DeVOK MT is designed for professional users requiring portable and efficient 3D data acquisition.

Main Benefits

High-accuracy handheld 3D scanning
Up to 0.04 mm accuracy
Multiple scanning technologies in one device
Blue laser scanning for detailed measurement
Infrared scanning for larger objects
Marker-free scanning capability
Full-color 3D data capture
Fast point-cloud generation
Portable lightweight design
Suitable for industrial and professional applications
Supports reverse engineering workflows
Supports 3D printing data output

Key Features

34-line blue laser scanning
22-line infrared laser scanning
Infrared VCSEL structured-light scanning
Markerless scanning support
Hybrid alignment
Marker alignment
Texture alignment
Geometric feature alignment
Color texture capture
High-speed point acquisition
USB 3.0 connection
Portable handheld design
Supports STL, OBJ, PLY and other 3D formats

Key Specifications

Brand: 3DeVOK
Model: MT Professional 3D Scanner
Product Type: Handheld Color 3D Scanner
Scanning Technology:
Blue Laser
Infrared Laser
Infrared VCSEL Structured Light
Basic Accuracy: Up to 0.04 mm
Volumetric Accuracy: Up to 0.04 mm + 0.06 mm/m
Point Distance: 0.05–5 mm
Texture Capture: Yes

Blue Laser Mode
Light Source: 34 blue laser lines
Laser Class: Class II (eye-safe)
Scanning Speed: Up to 3,300,000 points/s
Scanning Distance: 150–1,000 mm
Field of View: 140 × 140 mm to 490 × 490 mm

Infrared Laser Mode
Light Source: 22 infrared laser lines
Laser Class: Class I (eye-safe)
Scanning Speed: Up to 2,450,000 points/s
Scanning Distance: 150–1,500 mm
Field of View: 50 × 75 mm to 1,100 × 1,000 mm

Infrared VCSEL Structured Light Mode
Structured light scanning
Large-area scanning capability
Maximum scanning speed: Up to 4,500,000 points/s

Hardware
Scanner Size: Approximately 215 × 73 × 53 mm
Weight: Approximately 620 g
Interface: USB 3.0
Power Supply: DC 12 V / 5 A
Working Temperature: 0–40°C
Humidity: 10–90% RH (non-condensing)

Scanning Technology

Blue Laser Scanning
The blue laser mode is designed for high-detail industrial scanning, providing fine surface capture and high accuracy for mechanical parts, molds, and precision components.

Infrared Laser Scanning
The infrared laser mode provides flexibility for larger objects and environments where invisible-light scanning is preferred.

Infrared Structured Light
The VCSEL structured-light mode allows rapid capture of large surfaces with a wide field of view, making it suitable for larger objects and faster scanning workflows.

Applications

The 3DeVOK MT Professional 3D Scanner is suitable for:
Industrial 3D inspection
Quality control
Reverse engineering
Product development
Manufacturing inspection
Automotive parts
Aerospace components
Mechanical components
Mold and tooling inspection
Prototype development
3D printing preparation
Cultural heritage documentation
Archaeology
Art and sculpture digitization
Human body scanning
Digital archiving

Reverse Engineering
The 3DeVOK MT can capture detailed 3D geometry and convert scanned data into digital models for:
CAD reconstruction
Part duplication
Product modification
Engineering analysis
Manufacturing preparation
The scanner supports common 3D formats including STL and OBJ, making it suitable for CAD and additive manufacturing workflows.

Industrial Inspection
For quality-control applications, the scanner can capture accurate 3D surface information for:
Dimensional comparison
Surface analysis
Manufacturing verification
Component inspection
Prototype checking

Its combination of laser and structured-light modes allows users to select the most suitable scanning method depending on the object size and required detail level.

What is the 3DeVOK MT used for?
The 3DeVOK MT is used for industrial inspection, reverse engineering, quality control, 3D measurement, product design, and digital documentation.

How accurate is the 3DeVOK MT?
The scanner provides accuracy up to 0.04 mm under laboratory testing conditions.

Does it support marker-free scanning?
Yes. The 3DeVOK MT supports markerless scanning using texture, geometric features, and infrared/laser scanning modes.

Can it scan in color?
Yes. The scanner supports texture and color capture.

What scanning technologies does it use?
It combines:
Blue laser
Infrared laser
Infrared VCSEL structured light

Can it be used for reverse engineering?
Yes. It can generate 3D data suitable for reverse engineering, CAD modeling, and manufacturing workflows.
