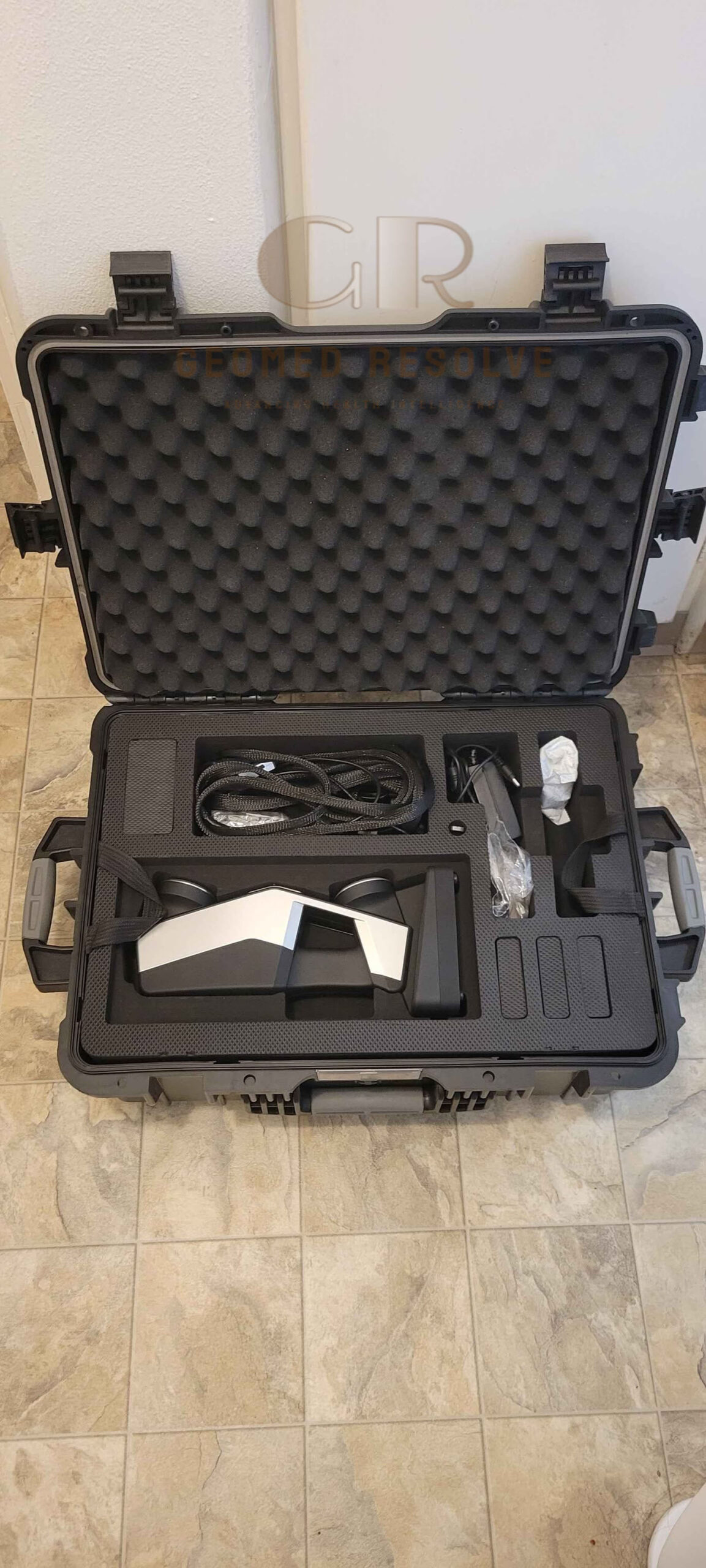

SHINING 3D FreeScan X5 Laser 3D Scanner

Description

SHINING 3D FreeScan X5 Laser 3D Scanner – High-Accuracy Handheld Metrology Scanner for Inspection, Reverse Engineering & Quality Control

The SHINING 3D FreeScan X5 Laser 3D Scanner is a professional handheld laser scanning system designed for high-accuracy 3D measurement, inspection, reverse engineering, and quality control.

The FreeScan X5 combines a lightweight handheld design with a 10-line laser array, allowing users to scan complex parts without requiring a tripod or fixed scanning setup. Published specifications report measuring accuracy of up to 0.035 mm, scan speeds of up to 350,000 points/scans per second, and 0.1 mm resolution.

Its portability makes the scanner particularly useful for industrial components, mechanical parts, tooling, molds, automotive components, and other objects requiring detailed 3D dimensional data.

Main Benefits

High-accuracy handheld 3D scanning
Up to 0.035 mm measuring accuracy
Fast scanning up to 350,000 scans/s
0.1 mm 3D resolution
Lightweight 0.95 kg design
Suitable for complex and irregular surfaces
No tripod or fixed positioning system required
Suitable for narrow and difficult-to-access areas
Supports large-part measurement with compatible photogrammetry
Compatible with mainstream 3D/CAD software

Key Features

10-line laser array
Handheld laser 3D scanning
High-speed data acquisition
Marker-based scanning
Portable design
Real-time 3D point-cloud generation
Compatible with DigiMetric for extended measurement
USB 3.0 data transmission
3DScan software
Multiple output formats
Suitable for industrial metrology applications

SHINING 3D’s documentation describes its FreeScan handheld scanners as portable systems designed for high-precision and repeatable scanning, with applications ranging from small components to larger industrial parts.

Key Specifications

Brand: SHINING 3D
Model: FreeScan X5
Product Type: Handheld Laser 3D Scanner
Measuring Accuracy: Up to 0.035 mm
Volume Precision: 0.02 mm + 0.08 mm/m
Volume Precision with DigiMetric: 0.020 mm + 0.025 mm/m
Resolution: 0.1 mm
Scan Speed: Up to 350,000 scans/s
Single Scan Range: Approximately 300 × 250 mm
Scan Range: 100–8,000 mm
Working Distance: 300 mm
Scan Depth: 250 mm
Light Source: 10-line laser
Laser Classification: Class II
Software: 3DScan
Extended Measurement: DigiMetric
Transmission: USB 3.0
Operating System: Windows 10 64-bit
Operating Temperature: -10°C to +40°C
Weight: Approximately 0.95 kg
Dimensions: Approximately 130 × 90 × 310 mm
Output Formats: STL, ASC, DGM, OBJ and others

3D Scanning Technology

The FreeScan X5 uses a 10-line laser array to capture dense 3D information from the surface of an object.

Its handheld design allows the operator to move around the component while continuously collecting scan data. The published 0.1 mm resolution and high scan rate make it suitable for capturing detailed geometry efficiently.

For larger components, the FreeScan X5 can be used with DigiMetric photogrammetry technology to improve volumetric accuracy over larger measurement volumes.

Applications

The SHINING 3D FreeScan X5 is suitable for:
Industrial 3D inspection
Dimensional inspection
Quality control
Reverse engineering
CAD reconstruction
Product development
Automotive inspection
Aerospace components
Mechanical components
Mold and tooling inspection
Casting inspection
Manufacturing quality control
Research and development
Digital archiving
3D measurement

What is the SHINING 3D FreeScan X5 used for?
The FreeScan X5 is used for 3D inspection, dimensional measurement, reverse engineering, quality control, and industrial scanning.

How accurate is the FreeScan X5?
Published specifications list measuring accuracy of up to 0.035 mm and volume precision of 0.02 mm + 0.08 mm/m.

How fast can the FreeScan X5 scan?
The FreeScan X5 can scan at up to approximately 350,000 scans per second according to published specifications.

What type of laser does it use?
The FreeScan X5 uses a 10-line laser array and is specified as a Class II laser device.

Does it require a tripod?
No. The FreeScan X5 is designed as a handheld scanner, allowing portable operation without an external tripod or fixed positioning system.

Can the FreeScan X5 scan large objects?
Yes. For larger measurement applications, the scanner can be combined with DigiMetric photogrammetry to improve volumetric accuracy.

What software does it use?
The published specifications identify 3DScan as the software and DigiMetric as the supported extended-measurement solution.

What file formats can it export?
Published specifications list formats including STL, ASC, DGM, and OBJ, with compatibility with mainstream 3D software.
