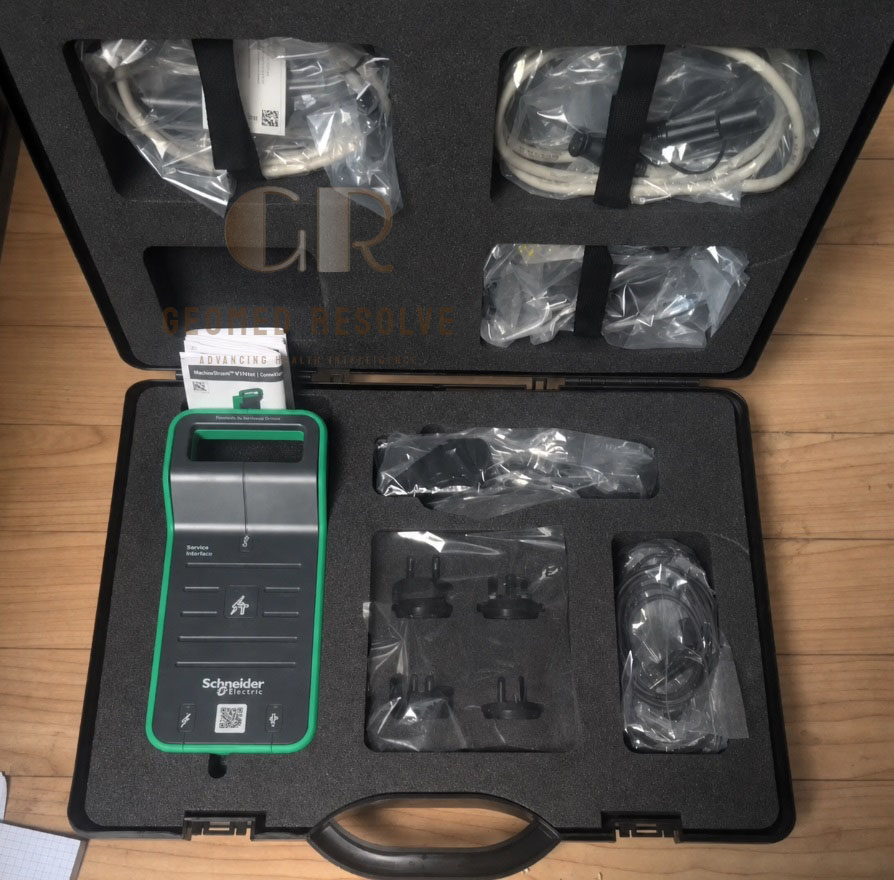

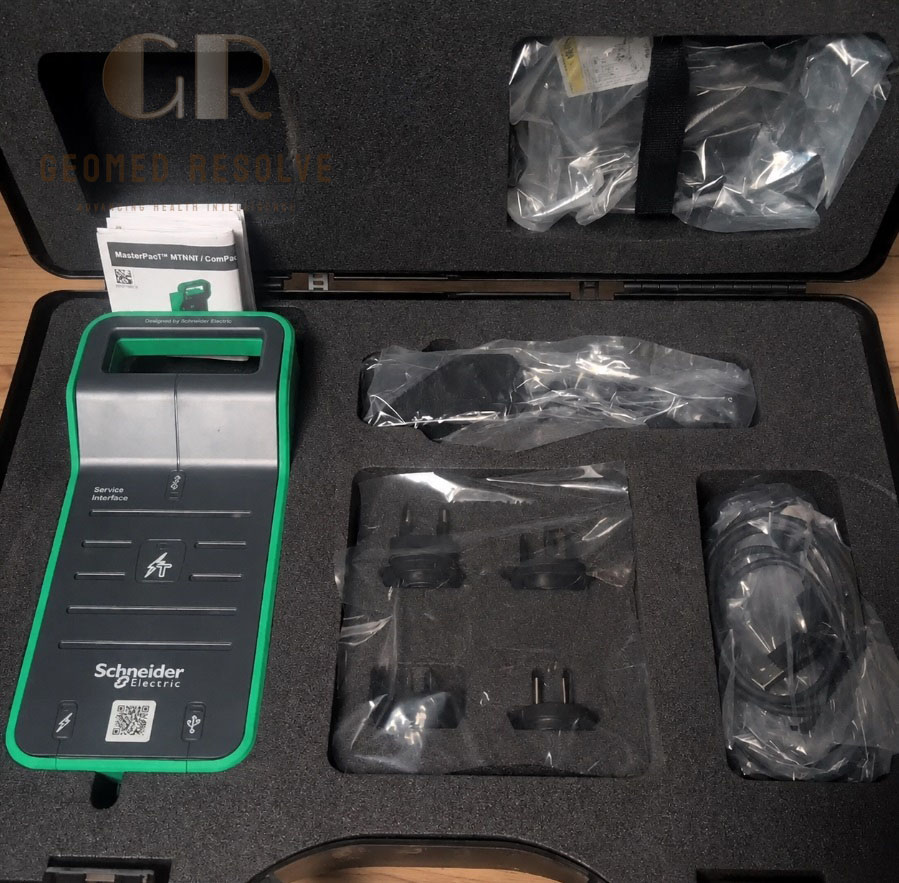

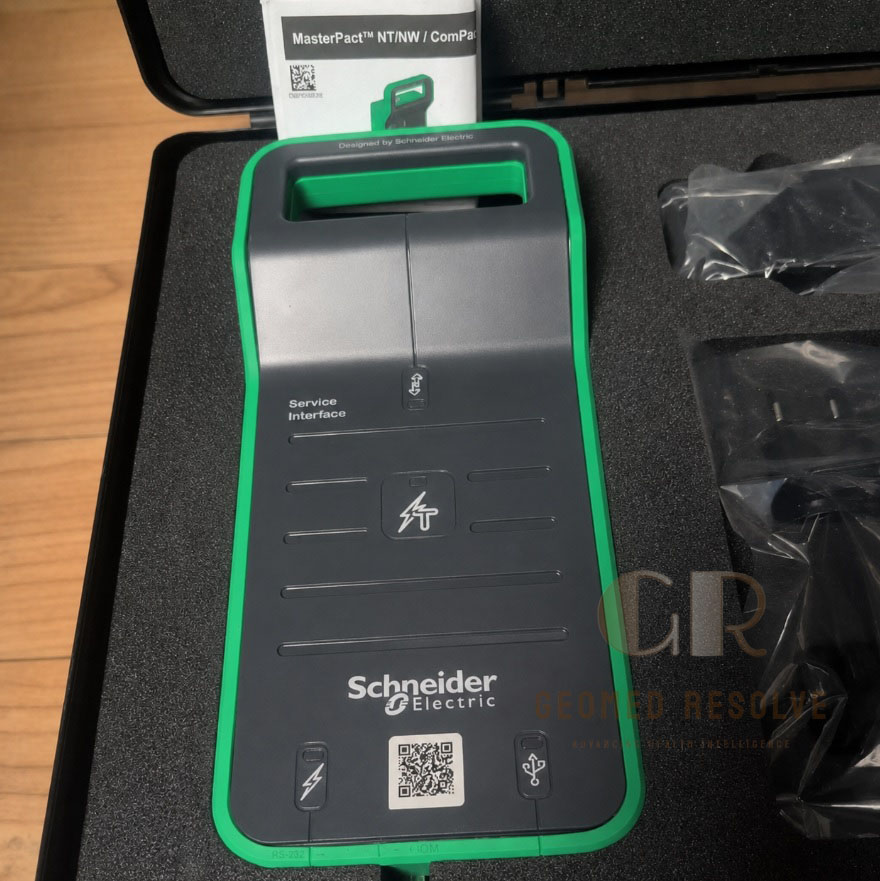

Schneider Electric LV485500 Service Interface Kit
The Schneider Electric LV485500 Service Interface Kit is a portable field-testing and configuration instrument for compatible PacT series circuit breakers and Enerlin’X devices. It provides technicians with a professional interface for testing and configuring MicroLogic trip units used with MasterPact, ComPacT, PowerPact and other compatible Schneider Electric equipment.
Description
Schneider Electric LV485500 Service Interface Kit – Professional Field Testing & Configuration Tool for PacT Series Circuit Breakers
The Schneider Electric LV485500 Service Interface Kit is a portable professional service and testing instrument designed for field testing and configuration of Schneider Electric low-voltage circuit breakers and Enerlin’X devices.
Schneider Electric identifies the LV485500 as a Service Interface for configuring Enerlin’X devices and testing and configuring compatible MicroLogic trip units used with MasterPact NT/NW, EasyPact MVS, ComPacT NS/NSX and PowerPact P- and R-frame circuit breakers.
Main Benefits
Professional circuit-breaker service interface
Portable field-testing solution
MicroLogic trip-unit configuration
Enerlin’X device configuration
Compatible with multiple Schneider Electric circuit-breaker families
Handheld design
Mini-USB interface
Integrated status indicators
24 V DC power output for compatible external devices
High-voltage safety isolation between user interface and test port
Key Features
Field Testing & Configuration
The LV485500 is designed as a portable field-testing instrument, allowing qualified service personnel to configure and test compatible Schneider Electric devices directly in the field.
Broad PacT Compatibility
The Service Interface is designed for use with compatible devices installed on:
MasterPact NT circuit breakers
MasterPact NW circuit breakers
EasyPact MVS circuit breakers
ComPacT NS circuit breakers
ComPacT NSX circuit breakers
PowerPact P-frame circuit breakers
PowerPact R-frame circuit breakers
Compact Portable Design
The LV485500 is designed as a handheld service instrument for field technicians rather than as a permanently installed device.
Multiple Connection Interfaces
The system includes a Mini-USB interface, test-port connection and dedicated connection cables for different compatible circuit-breaker/trip-unit configurations.
Safety Isolation
Published Schneider Electric documentation specifies 12 kV+ safety isolation between the user interface and test port, providing an important electrical safety feature for the intended service environment.
Key Specifications
Brand: Schneider Electric
Model / Reference: LV485500
Product Type: Service Interface Kit
Series: PacT Series
Primary Application: Circuit-breaker testing and configuration
Form Factor: Handheld / portable
Interface: Mini-USB
Power Input: Up to 115–230 V AC, 50/60 Hz with AC/DC adapter
Direct DC Input: 24 V DC
External Power Output: 24 V DC, up to 120 mA for compatible Enerlin’X devices
Safety Isolation: 12 kV+
Representative Weight: Approximately 2.953 kg
Representative Dimensions: Approximately 227 × 106 × 86.5 mm
Compatible Product Families: MasterPact, ComPacT, PowerPact and compatible PacT devices
Accessories & Compatible Parts
Schneider Electric’s Service Interface documentation identifies the following related components:
LV485500 — Service Interface Kit
LV485510SP — Service Interface module
LV485511SP — AC/DC power supply
LV485512SP — 7-pin cable for 630–6300 A ACB MicroLogic trip units
LV485513SP — 7-pin cable for 100–630 A MCCB trip units
LV485514SP — ULP cable
Applications
The Schneider Electric LV485500 Service Interface Kit is suitable for:
Circuit-breaker testing
MicroLogic trip-unit configuration
Circuit-breaker commissioning
Electrical maintenance
Field diagnostics
Enerlin’X device configuration
Schneider Electric switchgear servicing
Preventive maintenance
Electrical equipment troubleshooting
Service and maintenance of low-voltage distribution systems
What is the Schneider Electric LV485500 used for?
The LV485500 is used for field testing and configuration of compatible Schneider Electric circuit breakers, MicroLogic trip units and Enerlin’X devices.
Which circuit breakers are compatible?
Schneider Electric identifies compatibility with MasterPact NT/NW, EasyPact MVS, ComPacT NS/NSX and PowerPact P- and R-frame circuit breakers, subject to the specific trip-unit and connection configuration.
Is LV485500 a circuit breaker?
No. It is a portable Service Interface Kit used for testing and configuration of compatible circuit-breaker equipment.
Does the kit include cables?
Schneider Electric identifies several dedicated cables as LV485500 accessories, including the LV485512SP, LV485513SP and LV485514SP cables.
Can individual accessories be replaced?
Yes. Schneider Electric states that the accessories included with the LV485500 can also be ordered individually when replacement parts are required.
Who should operate the LV485500?
Electrical installation, operation, servicing and maintenance should be performed by qualified personnel following applicable electrical safety requirements. Schneider Electric explicitly provides this safety instruction in its documentation.
