Olympus GoldXpert GX-2000 XRF Analyzer

Description

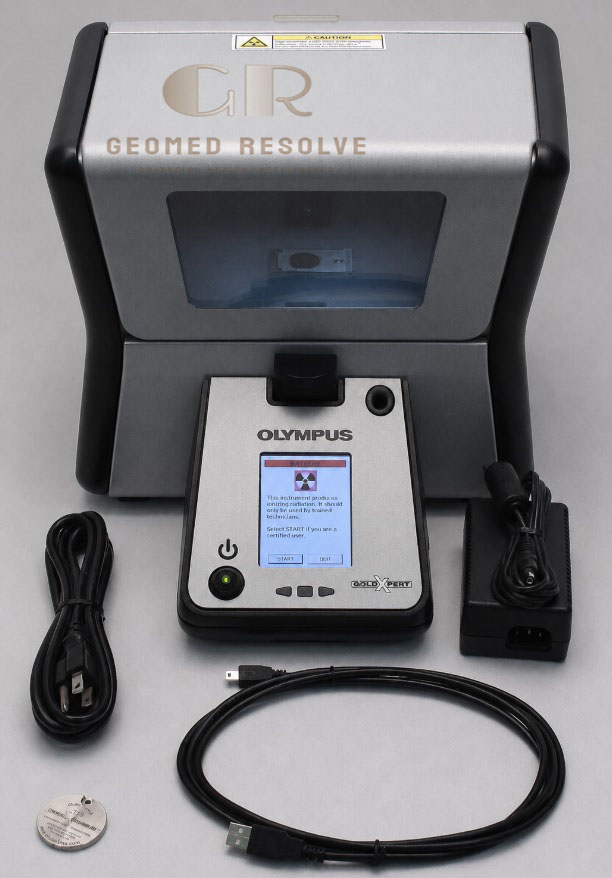

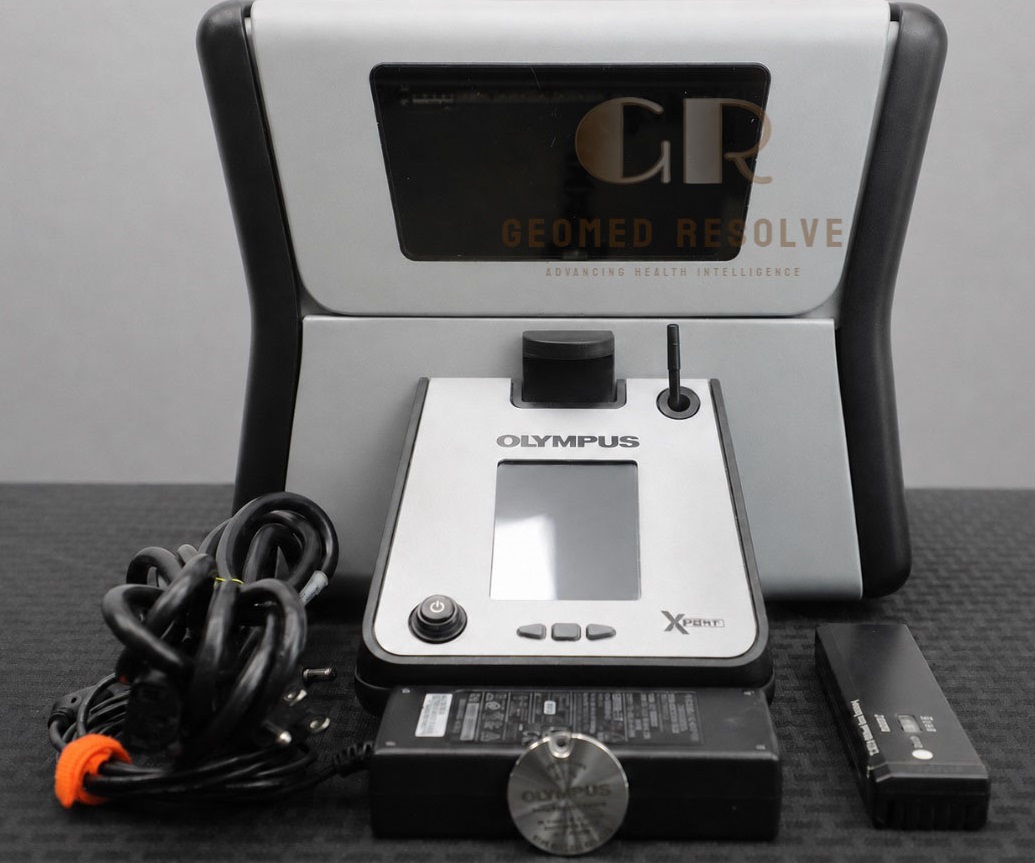

Olympus GoldXpert GX-2000 Countertop XRF Precious Metal Analyzer – Gold, Silver & Platinum Testing System

The Olympus GoldXpert GX-2000 is a compact countertop X-ray fluorescence (XRF) analyzer designed for rapid, non-destructive analysis of precious metals and alloys. It is particularly suited to gold testing, jewelry analysis, karat verification, precious-metal quality control and material identification.

The GoldXpert was designed as a countertop analyzer that can also be operated as a portable system with an optional rechargeable battery. It uses an enclosed sample chamber, integrated camera and small-spot XRF collimation for convenient analysis of jewelry and other valuable metal samples.

The GX-2000 family was available with either a Si PIN detector or Silicon Drift Detector (SDD) configuration. Therefore, for a used listing, it is important to identify whether the actual unit is GX-2000-PIN or GX-2000-SDD before specifying detector performance.

Main Benefits

Fast precious-metal analysis
Non-destructive XRF testing
Designed for gold and jewelry testing
Measures gold, silver, platinum and other precious metals
Precious-metal alloy identification
Countertop laboratory-style design
Compact and portable
Optional battery operation
Integrated sample-viewing camera
3 mm and 10 mm measurement spots
Color touchscreen display
USB and Bluetooth connectivity
Suitable for jewelry stores, refineries and assay applications

Key Features

Precious Metal XRF Analysis
The GoldXpert is designed to determine gold content and karatage and analyze precious-metal alloys. The standard precious-metals suite includes elements such as Au, Ag, Pt, Pd, Ir, Rh, Ni, Pb, Cu, Zn, Fe and Co, with additional elements available depending on detector/configuration.

Non-Destructive Testing
XRF analysis allows jewelry, coins, precious-metal components and other valuable objects to be tested without cutting, drilling or otherwise destroying the sample.

This makes the GoldXpert particularly useful for:
Gold jewelry
Rings
Chains
Watches
Coins
Gold bars
Precious-metal alloys
Recycled metals

Small-Spot Measurement
The integrated XRF geometry provides selectable 3 mm and 10 mm collimation, allowing the operator to measure smaller jewelry features or larger areas depending on the sample.

Integrated Camera
The built-in camera allows the operator to view the sample and measurement location and record sample images together with analysis results for documentation and reporting.

Touchscreen Operation
The GoldXpert incorporates a color touchscreen display with an 800 × 600 pixel resolution, providing direct access to measurement and analysis functions.

Key Specifications

Brand: Olympus
Model: GoldXpert GX-2000
Product Type: Countertop XRF Precious Metal Analyzer
Technology: X-Ray Fluorescence (XRF)
Primary Application: Precious-metal analysis
Detector Options: Si PIN or Silicon Drift Detector (SDD)
X-Ray Tube: 4 W, 40 kV, 100 µA maximum
Anode: Configuration-dependent
Collimation: 3 mm / 10 mm
Display: Color touchscreen
Display Resolution: 800 × 600
Sample Chamber: Approximately 125 × 210 × 180 mm
Integrated Camera: Yes
Connectivity: USB and Bluetooth
Power: AC adapter or optional rechargeable lithium-ion battery
Power Supply: 100–240 VAC, 50–60 Hz
Power Consumption: Approximately 70 W
Dimensions: Approximately 267 × 310 × 340 mm with door closed
Weight: Approximately 10 kg
Operating Temperature: Approximately -10°C to +50°C
Humidity: Approximately 10–90% RH, non-condensing

Applications

The Olympus GoldXpert GX-2000 is suitable for:
Gold purity testing
Gold karat analysis
Jewelry testing
Precious-metal verification
Gold bar analysis
Gold coin testing
Silver analysis
Platinum analysis
Palladium analysis
Precious-metal alloy analysis
Jewelry quality control
Precious-metal recycling
Refinery quality control
Assay operations
Material identification

Materials & Elements
Depending on the installed configuration and calibration, the GoldXpert can analyze a broad range of metals, including:
Gold (Au)
Silver (Ag)
Platinum (Pt)
Palladium (Pd)
Rhodium (Rh)
Iridium (Ir)
Ruthenium (Ru)
Copper (Cu)
Nickel (Ni)
Zinc (Zn)
Iron (Fe)
Cobalt (Co)
Lead (Pb)
Tin (Sn)
Other alloying and precious-metal elements

What is the Olympus GoldXpert GX-2000 used for?
The GX-2000 is used primarily for non-destructive precious-metal analysis, including gold karat testing, jewelry analysis and alloy verification.

Can the GoldXpert test gold purity?
Yes. It is designed to determine gold content and karatage and to analyze the composition of precious-metal alloys.

Is the GoldXpert GX-2000 an XRF analyzer?
Yes. It is a countertop X-ray fluorescence analyzer specifically designed for precious-metal testing.

What measurement spot sizes are available?
The GoldXpert provides selectable 3 mm and 10 mm collimation for different sample sizes and measurement requirements.

Does the GX-2000 have a camera?
Yes. The system includes an integrated camera that can record sample images along with analysis results.

Does the GX-2000 have an SDD detector?
Some GX-2000 configurations use a Silicon Drift Detector, while others use a Si PIN detector. Check the identification label or instrument configuration before listing the detector type.

Can the GoldXpert be used away from a laboratory?
Yes. The GoldXpert has a compact design and can be operated using an optional rechargeable lithium-ion battery, allowing testing away from a fixed laboratory setup.
