Bruker S8 TIGER Used

Description

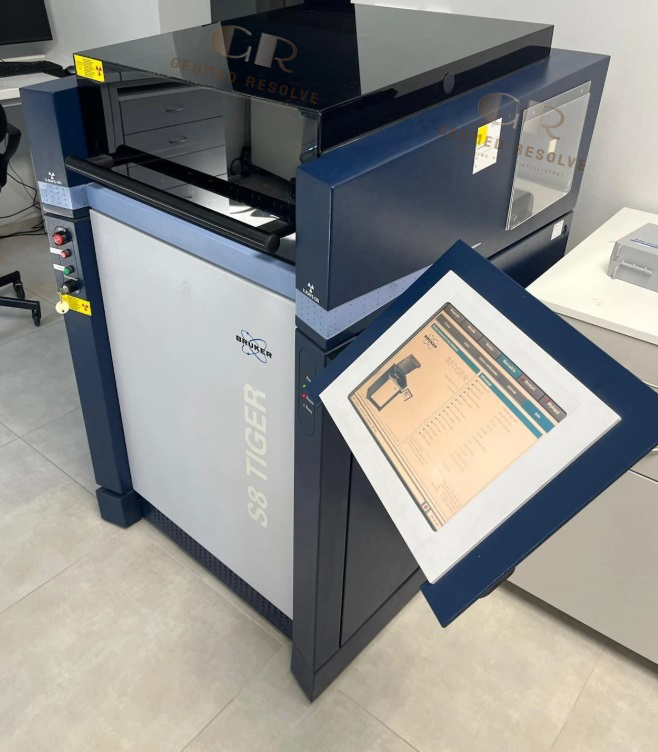

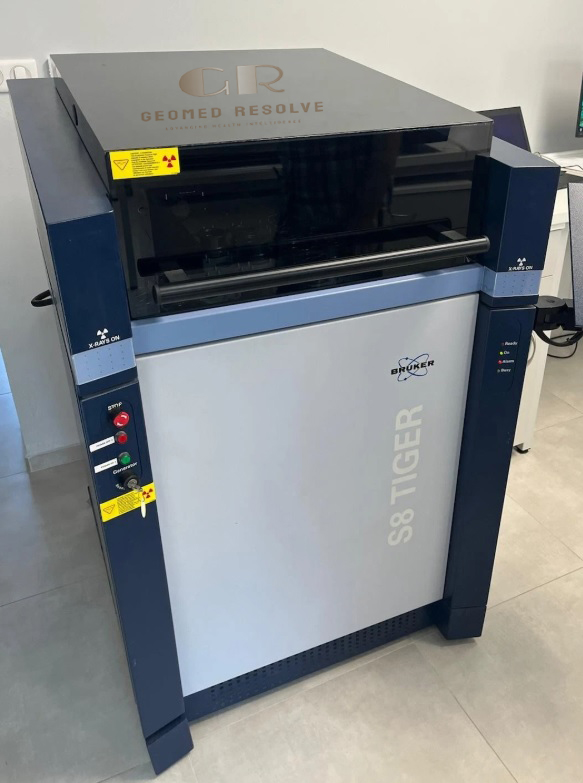

Bruker S8 TIGER Used – Wavelength Dispersive XRF Spectrometer for Elemental Analysis

The Bruker S8 TIGER Used is a high-performance Wavelength Dispersive X-Ray Fluorescence (WDXRF) spectrometer designed for precise elemental analysis across a wide range of materials. It delivers excellent analytical accuracy, low detection limits, and high sample throughput, making it ideal for industrial quality control, research laboratories, mining, cement production, metallurgy, petrochemical analysis, and environmental testing.

A properly maintained used S8 TIGER offers professional WDXRF performance while providing a cost-effective solution for laboratories seeking reliable elemental analysis.

Main Benefits

High-precision elemental analysis
Fast and reliable measurement results
Excellent detection limits
High sample throughput
Suitable for solids, powders, liquids, and fused beads
Ideal for industrial quality control
Flexible analytical configurations
Cost-effective used laboratory instrument

Key Features

Wavelength Dispersive XRF (WDXRF) technology
Sequential elemental analysis
High-performance X-ray tube
Automatic sample loading system

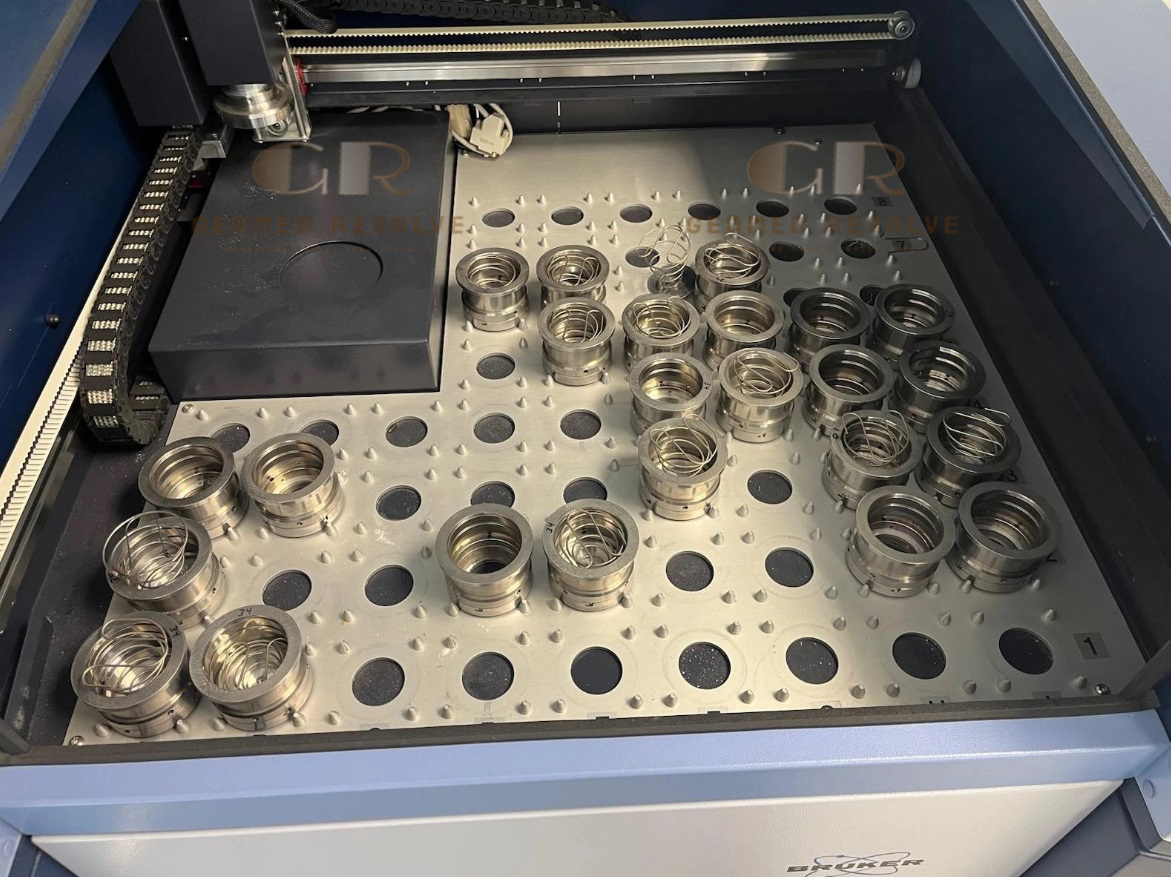

Up to 84-position sample magazine
Automatic crystal changer
Automatic collimator changer
Multiple detector configurations
High analytical sensitivity
User-friendly software
Vacuum and helium measurement capability
Expandable analytical configurations

Key Specifications

Product Type: Wavelength Dispersive XRF Spectrometer
Technology: WDXRF
Element Range: Beryllium (Be) to Americium (Am)
X-ray Generator:
Up to 4 kW
Up to 60 kV
Up to 170 mA
X-ray Tube: Rhodium (Rh) anode
Sample Capacity: Up to 84 samples
Analyzer Crystals: Up to 8 positions
Collimator Changer: Up to 4 positions
Detector Types:
Flow proportional counter
Scintillation counter
Measurement Modes:
Vacuum
Helium
Sample Types:
Powders
Solids
Liquids
Pressed pellets
Fused beads
Dimensions: Approximately 132 × 84 × 95.6 cm
Weight: Approximately 503 kg

Applications

The Bruker S8 TIGER Used is ideal for:
Mining and mineral analysis
Cement quality control
Geological laboratories
Metal and alloy analysis
Petrochemical testing
Environmental laboratories
Chemical manufacturing
Glass and ceramics analysis
Research laboratories
Industrial process control
Academic institutions
Quality assurance laboratories

What is the Bruker S8 TIGER used for?
It is used for quantitative elemental analysis in mining, metallurgy, cement, petrochemical, geology, environmental testing, research, and industrial quality control laboratories.

What elements can the S8 TIGER analyze?
The system can analyze elements from beryllium (Be) to americium (Am) depending on the instrument configuration and calibration.

What types of samples can be analyzed?
The instrument supports solids, powders, liquids, pressed pellets, and fused bead samples.

What is the advantage of WDXRF technology?
WDXRF provides excellent analytical accuracy, low detection limits, high spectral resolution, and reliable quantitative elemental analysis for laboratory applications.

Is a used Bruker S8 TIGER a good investment?
Yes. A properly inspected, calibrated, and maintained used S8 TIGER provides professional laboratory performance while significantly reducing capital investment costs.
